Basler Racer Line Scan Cameras
GigE & Cameralink Line Cameras

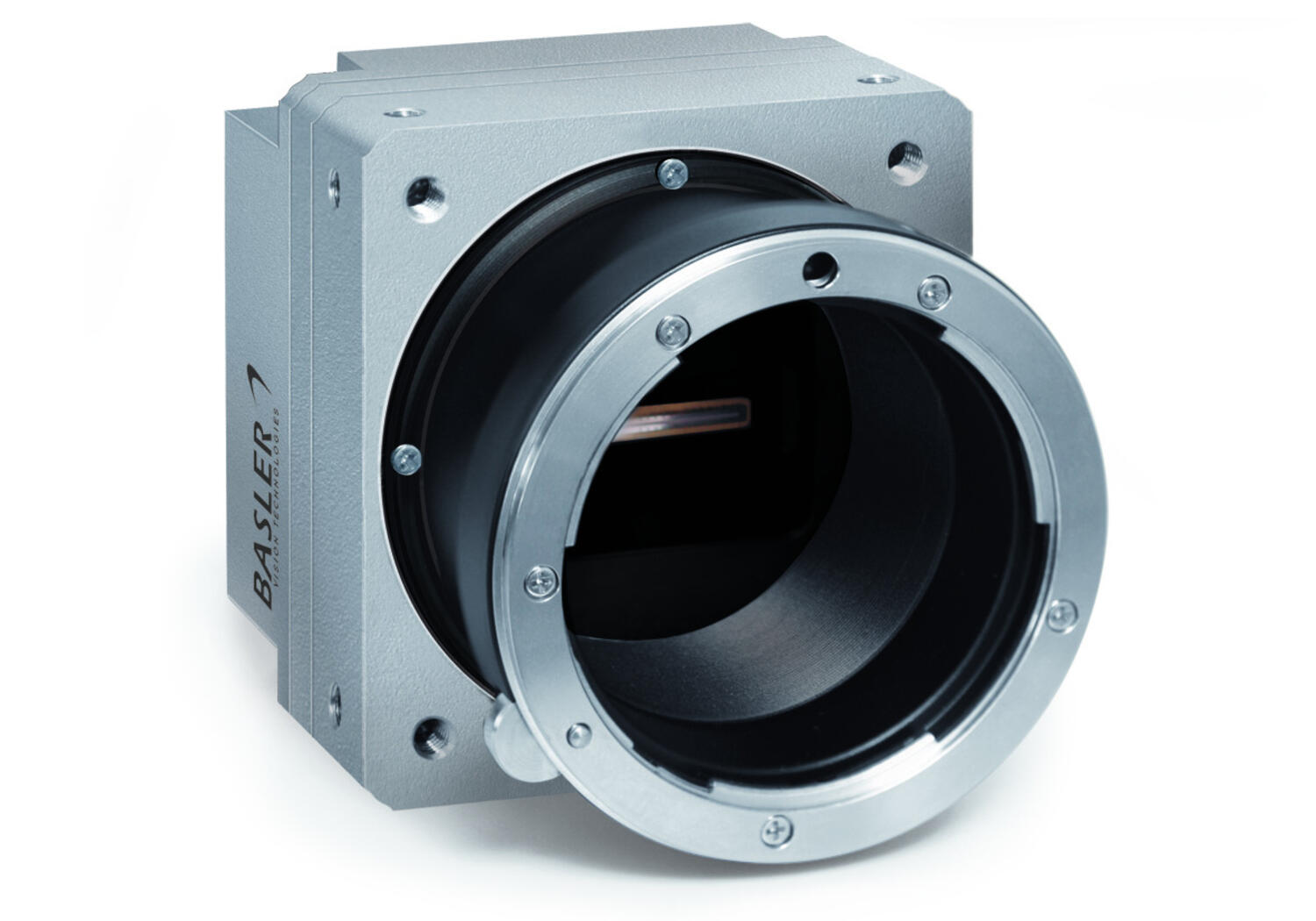

The Basler Racer Line Scan camera features a slim build of only 56mm, to easily fit into most systems, as well as being able to deliver exceptional performance even under low voltage LED lighting.
The Racer camera range is available in GigE or CameraLink with a range of resolutions from 2k to 12k, with a line rate of up to 80 kHz via camera link and up to 51 kHz via GigE.
This range of Line Scan cameras is particularly suited for applications in, web inspections (film, paper, cotton textiles), sorting and packaging (refuse, postal, foodstuffs) and transport related applications (underfloor, rail, overhead, container inspections).
- 2 k to 12 k resolution
- Up to 80 kHz Line Rate
- Monochrome Cameras
- GigE Vison Compatible
- Lens Mount: C-mount & F-mount
Selected variant
Specifications
| IP Class | IP30 |
|---|---|
| Sensor model | DR-2k-7 |
| Operating temperature | -10°C ... 60°C |
| Sensor type | CMOS |
| Sensor supplier | Awaiba |
| Mono/Color | Mono |
| Line Speed Max | 51 kHz |
| Resolution Max | 2048 x 1 px |
| Weight | 240 g |
| Sensor size | 14.3 mm |
| Pixel size | 7 x 7 µm |

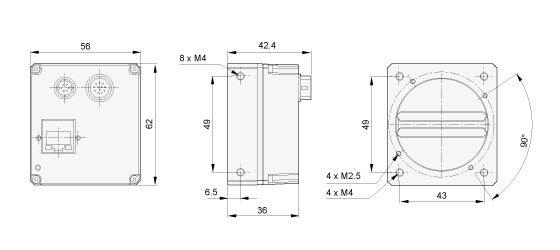

| Length | 36 mm |
|---|---|
| Width | 56 mm |
| Digital Inputs | 3 |
| Power Consumption | 3 W |
| Lens Barrel | C-mount, F-mount, M42, M58 |
| Digital Outputs | 2 |
| Approvals | CE, EAC, FCC, GenICam, GigE Vision, RoHS, UL |
| Height | 62 mm |
| Shutter type | Global |
| Resolution | 2k |
Downloads
Product description
The Basler Racer Line Scan camera features a slim build of only 56mm, to easily fit into most systems, as well as being able to deliver exceptional performance even under low voltage LED lighting.
The Racer camera range is available in GigE or CameraLink with a range of resolutions from 2k to 12k, with a line rate of up to 80 kHz via camera link and up to 51 kHz via GigE.
This range of Line Scan cameras is particularly suited for applications in, web inspections (film, paper, cotton textiles), sorting and packaging (refuse, postal, foodstuffs) and transport related applications (underfloor, rail, overhead, container inspections).
