BASLER

Basler ACE GigE USB3.0 and CameraLink cameras

Ace Classic, Ace U and Ace L

Basler Ace Cameras, launched in 2009, are the smallest GigE camera on the market, also available with USB3.0 and Camera Link interface. With a small housing of only 29 x 29mm, the ace is suitable for a large range of vision applications, even where space is limited. There are over 130 models in the Ace range, split is Ace Classic, Ace U and Ace L. All featuring a range of resolutions from VGA to 20mp, speeds of up to 751 fps and sensors from a range of suppliers



Ace Classic model cameras have an excellent price/performance ratio and also feature a range of comprehensive sensors, including, CMOS from CMOSIS, e2V, ON Semiconductor (MT series) and CCD from Sony. The Ace classic range is available in GigE, USB3.0 and CameraLink.



Ace U cameras have the same compact footprint of the Ace Classic range (29 x 29mm), with the addition of unique PGI feature set from Basler and new CMOS sensors, in GigE and USB3.0 interfaces.



Ace L cameras feature the same additional firmware as Ace U but with high resolution 9 and 12mp Sony Pregius CMOS sensors, and optical formats above 1”, to accommodate these larger sensors the Ace L is slightly larger with a footprint of 40mm x 30mm. With frame rates up to 40fps, the Ace L is available in GigE and USB3.0.

Read more
  • VGA to 20 Mpixels
  • Frame Rate up to 340 fps
  • CMOS Sensors with NIR function
  • Camera Link with PoCL
  • Very small housing

Selected variant

basler.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

IP Class IP30
Sensor model ICX424
Operating temperature 0°C … 50°C
Sensor type CCD
Sensor supplier Sony
Mono/Color Mono
Resolution Max 659 x 494 px
Weight 90 g
Sensor size 1/3"
Pixel size 7.4 x 7.4 µm
Length 42 mm
Width 29 mm
Digital Inputs 1
Frame Rate Max 90 fps
Power Consumption 2,7 W
Lens Barrel C-mount
Digital Outputs 1
Approvals CE, FCC, GenICam, GigE Vision, RoHS, UL, EAC
Height 29 mm
Shutter type Global
Resolution VGA

Downloads

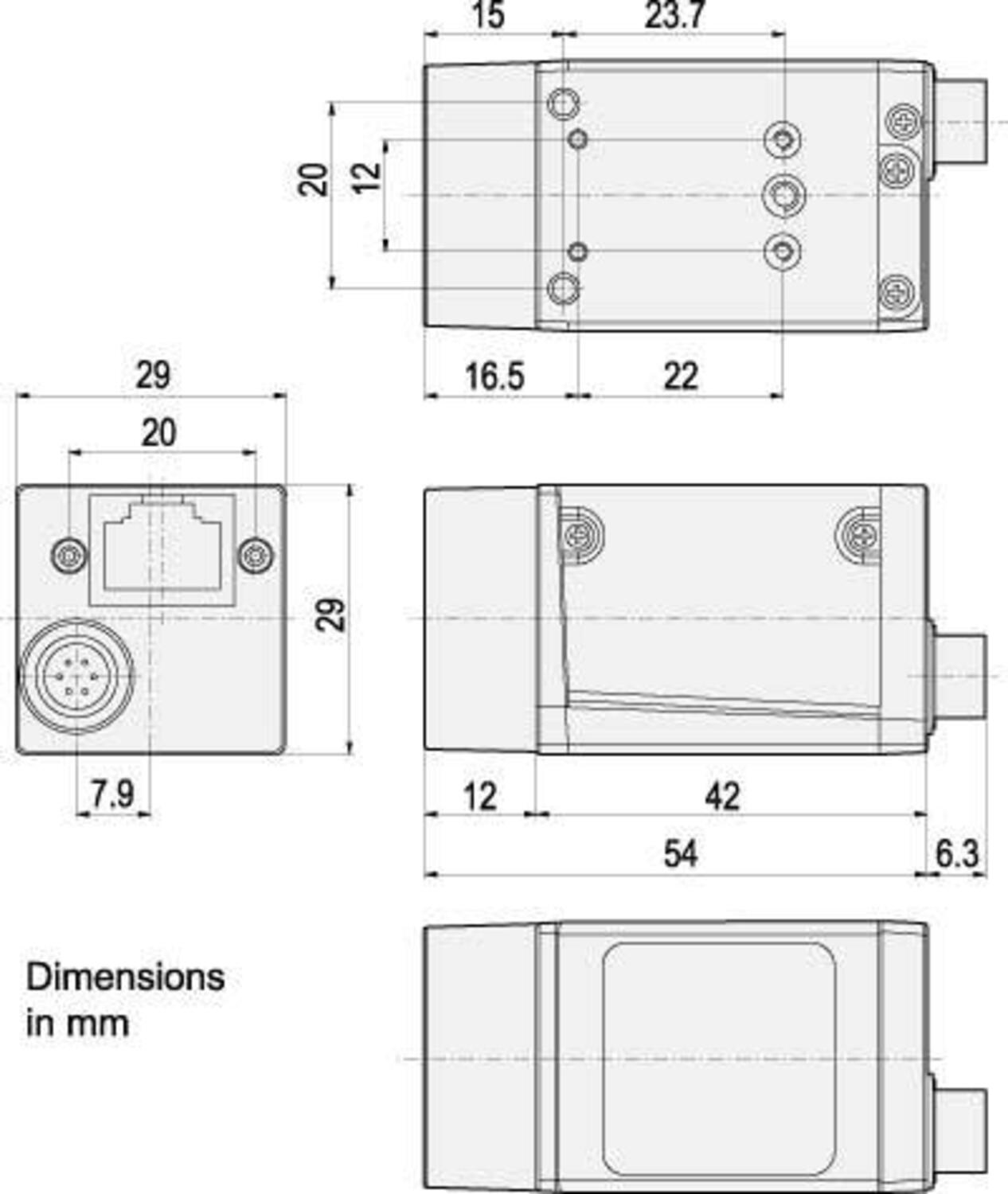

Measurements and connections

Product description

Basler Ace Cameras, launched in 2009, are the smallest GigE camera on the market, also available with USB3.0 and Camera Link interface. With a small housing of only 29 x 29mm, the ace is suitable for a large range of vision applications, even where space is limited. There are over 130 models in the Ace range, split is Ace Classic, Ace U and Ace L. All featuring a range of resolutions from VGA to 20mp, speeds of up to 751 fps and sensors from a range of suppliers



Ace Classic model cameras have an excellent price/performance ratio and also feature a range of comprehensive sensors, including, CMOS from CMOSIS, e2V, ON Semiconductor (MT series) and CCD from Sony. The Ace classic range is available in GigE, USB3.0 and CameraLink.



Ace U cameras have the same compact footprint of the Ace Classic range (29 x 29mm), with the addition of unique PGI feature set from Basler and new CMOS sensors, in GigE and USB3.0 interfaces.



Ace L cameras feature the same additional firmware as Ace U but with high resolution 9 and 12mp Sony Pregius CMOS sensors, and optical formats above 1”, to accommodate these larger sensors the Ace L is slightly larger with a footprint of 40mm x 30mm. With frame rates up to 40fps, the Ace L is available in GigE and USB3.0.

Accessories

Related products

Articles Sensor model Mono/Color Sensor size Frame Rate Max Shutter type Resolution
CAM GE M 0640*0480 90F BAS
Art:
ACA640-90GM Copied
ICX424
Mono
1/3"
90 fps
Global
VGA
CAM GE C 0640*0480 90F BAS
Art:
ACA640-90GC Copied
ICX424
Color
1/3"
90 fps
Global
VGA
CAM GE M 0640*0480 100F BAS
Art:
ACA640-120GM Copied
ICX618
Mono
1/4"
120 fps
Global
VGA
CAM GE M 0640*0480 100F BAS
Art:
ACA640-120GC Copied
ICX618
Color
1/4"
120 fps
Global
VGA
Ace U GigE Camera, ICX618 1/4" CMOS, 134fps, Mono, C-Mount
Art:
ACA640-121GM Copied
ICX618 Replacement
Mono
1/4"
134 fps
Global
VGA
CAM GE M 0640*0480 300F BAS
Art:
ACA640-300GM Copied
PYTHON 300
Mono
1/4"
340 fps
Global
VGA
CAM GE C 0640*0480 300F BAS
Art:
ACA640-300GC Copied
PYTHON 300
Color
1/4"
376 fps
Global
VGA
Ace U GigE Camera, IMX287 1/2.9" CMOS, 291fps, Mono, C-Mount
Art:
ACA720-290GM Copied
IMX287
Mono
1/2.9"
291 fps
Global
VGA
Ace U GigE Camera, IMX287 1/2.9" CMOS, 291fps, Colour, C-Mount
Art:
ACA720-290GC Copied
IMX287
Color
1/2.9"
291 fps
Global
VGA
CAM GE C 0780*0580 60F BAS
Art:
ACA780-75GM Copied
ICX415
Mono
1/2"
75 fps
Global
CCIR
CAM GE C 0780*0580 75F BAS
Art:
ACA780-75GC Copied
ICX415
Color
1/2"
75 fps
Global
CCIR
Ace U GigE Camera, Python500 1/3.6" CMOS, 240fps, Mono, C-Mount
Art:
ACA800-200GM Copied
PYTHON 500
Mono
1/3.6"
240 fps
Global
CCIR
Ace U GigE Camera, Python500 1/3.6" CMOS, 240fps, Colour, C-Mount
Art:
ACA800-200GC Copied
PYTHON 500
Color
1/3.6"
240 fps
Global
CCIR
CAM GE M 1280*1024 60F BAS
Art:
ACA1280-60GM Copied
EV76C560
Mono
1/1.8"
60 fps
Rolling
1.3MP
CAM GE C 1280*1024 60F BAS
Art:
ACA1280-60GC Copied
EV76C560
Color
1/1.8"
60 fps
Rolling
1.3MP
Ace GigE Camera, ICX445 1/3" CCD, 22fps, Mono, C-Mount
Art:
ACA1300-22GM Copied
ICX445
Mono
1/3"
22 fps
Global
1.3MP
Ace GigE Camera, ICX445 1/3" CCD, 22fps, Colour, C-Mount
Art:
ACA1300-22GC Copied
ICX445
Color
1/3"
22 fps
Global
1.3MP
CAM GE M 1296*0966 30F BAS
Art:
ACA1300-30GM Copied
ICX445
Mono
1/3"
30 fps
Global
1.3MP
CAM GE C 1296*0966 30F BAS
Art:
ACA1300-30GC Copied
ICX445
Color
1/3"
30 fps
Global
1.3MP
CAM GE M 1280*1024 60F BAS
Art:
ACA1300-60GM Copied
EV76C560
Mono
1/1.8"
60 fps
Global, Rolling
1.3MP
CAM GE M 1280*1024 60F NIR BAS
Art:
ACA1300-60GM/N Copied
EV76C661
Mono
1/1.8"
60 fps
Global, Rolling
1.3MP
CAM GE C 1280*1024 60F BAS
Art:
ACA1300-60GC Copied
EV76C560
Color
1/1.8"
60 fps
Global, Rolling
1.3MP
CAM GE M 1280*1024 75F BAS
Art:
ACA1300-75GM Copied
PYTHON 1300
Mono
1/2"
88 fps
Global
1.3MP
CAM GE C 1280*1024 75F BAS
Art:
ACA1300-75GC Copied
PYTHON 1300
Color
1/2"
88 fps
Global
1.3MP
Ace U GigE Camera, IMX273 1/2.9" CMOS, 73fps, Mono, C-Mount
Art:
ACA1440-73GM Copied
ICX273
Mono
1/2.9"
73 fps
Global
1.6MP
Ace U GigE Camera, IMX273 1/2.9" CMOS, 73fps, Colour, C-Mount
Art:
ACA1440-73GC Copied
IMX273
Color
1/2.9"
73 fps
Global
1.6 MP
CAM GE M 1628*1236 20F BAS
Art:
ACA1600-20GM Copied
ICX274
Mono
1/1.8"
20 fps
Global
2MP
CAM GE C 1628*1236 20F BAS
Art:
ACA1600-20GC Copied
ICX274
Color
1/1.8"
20 fps
Global
2MP
CAM GE M 1600*1200 60F BAS
Art:
ACA1600-60GM Copied
EV76C570
Mono
1/1.8"
60 fps
Global, Rolling
2MP
CAM GE C 1600*1200 60F BAS
Art:
ACA1600-60GC Copied
EV76C570
Color
1/1.8"
60 fps
Global, Rolling
2MP
CAM GE M 1920*1080 25F BAS
Art:
ACA1920-25GM Copied
MT9P031
Mono
1/3.7"
25 fps
Rolling
2MP
CAM GE C 1920*1080 25F BAS
Art:
ACA1920-25GC Copied
MT9P031
Color
1/3.7"
25 fps
Rolling
2MP
CAM GE M 1920*1080 F BAS IMX249
Art:
ACA1920-40GM Copied
IMX249
Mono
1/1.2"
42 fps
Global
2.3MP
CAM GE C 1920*1080 F BAS IMX249
Art:
ACA1920-40GC Copied
IMX249
Color
1/1.2"
42 fps
Global
2.3MP
CAM GE M 1920*1200 48F BAS
Art:
ACA1920-48GM Copied
PYTHON 2000
Mono
2/3"
50 fps
Global
2.3MP
CAM GE C 1920*1200 48F BAS
Art:
ACA1920-48GC Copied
PYTHON 2000
Color
2/3"
50 fps
Global
2.3MP
CAM GE M 1920*1080 F BAS IMX174
Art:
ACA1920-50GM Copied
IMX174
Mono
1/1.2"
50 fps
Global
2.3MP
CAM GE C 1920*1080 F BAS IMX174
Art:
ACA1920-50GC Copied
IMX174
Color
1/1.2"
50 fps
Global
2.3MP
CAM GE M 2048*1088 50F BAS
Art:
ACA2000-50GM Copied
CMV2000
Mono
2/3"
50 fps
Global
2MP
CAM GE M 2048*1088 50F NIR BAS
Art:
ACA2000-50GM/N Copied
CMV2000 NIR
Mono
2/3"
50 fps
Global
2MP
CAM GE C 2048*1088 50F BAS
Art:
ACA2000-50GC Copied
CMV2000
Color
2/3"
50 fps
Global
2MP
CAM GE M 2048*2048 25F BAS
Art:
ACA2040-25GM Copied
CMV4000
Mono
1"
25 fps
Global
4MP
CAM GE M 2048*2048 25F NIR BAS
Art:
ACA2040-25GM/N Copied
CMV4000 NIR
Mono
1"
25 fps
Global
4MP
CAM GE C 2048*2048 25F BAS
Art:
ACA2040-25GC Copied
CMV4000
Color
1"
25 fps
Global
4MP
Ace U GigE Camera, IMX265 1/1.8" CMOS, 36fps, Mono, C-Mount
Art:
ACA2040-35GM Copied
IMX265
Mono
1/1.8"
36 fps
Global
3MP
Ace U GigE Camera, IMX265 1/1.8" CMOS, 36fps, Colour, C-Mount
Art:
ACA2040-35GC Copied
IMX265
Color
1/1.8"
36 fps
Global
3MP
Ace U GigE Camera, IMX264 2/3" CMOS, 23fps, Mono, C-Mount
Art:
ACA2440-20GM Copied
IMX264
Mono
2/3"
23 fps
Global
5MP
Ace U GigE Camera, IMX264 2/3" CMOS, 23fps, Colour, C-Mount
Art:
ACA2440-20GC Copied
IMX264
Color
2/3"
23 fps
Global
5MP
CAM GE M 2592*1944 14F BAS
Art:
ACA2500-14GM Copied
MT9P031
Mono
1/2.5"
14 fps
Rolling
5MP
CAM GE C 2592*1944 14F BAS
Art:
ACA2500-14GC Copied
MT9P031
Color
1/2.5"
14 fps
Rolling
5MP
Ace U GigE Camera, Python5000 1" CMOS, 21fps, Mono, C-Mount
Art:
ACA2500-20GM Copied
PYTHON 5000
Mono
1"
21 fps
Global
5MP
Ace U GigE Camera, Python5000 1" CMOS, 21fps, Colour, C-Mount
Art:
ACA2500-20GC Copied
PYTHON 5000
Color
1"
21 fps
Global
5MP
CAM GE M 3856*2764 10F BAS
Art:
ACA3800-10GM Copied
MT9J003
Mono
1/2.3"
10 fps
Rolling
10MP
CAM GE C 3856*2764 10F BAS
Art:
ACA3800-10GC Copied
MT9J003
Color
1/2.3"
10 fps
Rolling
10MP
Ace U GigE Camera, IMX178 1/1.8" CMOS, 16fps, Mono, C-Mount
Art:
ACA3088-16GM Copied
IMX178
Mono
1/1.8"
16 fps
Rolling
6MP
Ace U GigE Camera, IMX178 1/1.8" CMOS, 16fps, Colour, C-Mount
Art:
ACA3088-16GC Copied
IMX178
Color
1/1.8"
16 fps
Rolling
6MP
Ace U GigE Camera, IMX226 1/1.7" CMOS, 8fps, Mono, C-Mount
Art:
ACA4024-8GM Copied
IMX226
Mono
1/1.7"
8 fps
Rolling
12MP
Ace U GigE Camera, IMX226 1/1.7" CMOS, 8fps, Colour, C-Mount
Art:
ACA4024-8GC Copied
IMX226
Color
1/1.7"
8 fps
Rolling
12MP
Ace L GigE Camera, IMX267 1" CMOS, 12fps, Mono, C-Mount
Art:
ACA4096-11GM Copied
IMX267
Mono
1"
12 fps
Global
9MP
Ace L GigE Camera, IMX267 1" CMOS, 12fps, Colour, C-Mount
Art:
ACA4096-11GC Copied
IMX267
Color
1"
12 fps
Global
9MP
Ace L GigE Camera, IMX304 1.1" CMOS, 8fps, Mono, C-Mount
Art:
ACA4112-8GM Copied
IMX304
Mono
1.1"
8 fps
Global
12MP
Ace L GigE Camera, IMX304 1.1" CMOS, 8fps, Colour, C-Mount
Art:
ACA4112-8GC Copied
IMX304
Color
1.1"
8 fps
Global
12MP
Ace U GigE Camera, IMX183 1" CMOS, 5fps, Mono, C-Mount
Art:
ACA5472-5GM Copied
IMX183
Mono
1"
5 fps
Rolling
20MP
Ace U GigE Camera, IMX183 1" CMOS, 5fps, Colour, C-Mount
Art:
ACA5472-5GC Copied
IMX183
Color
1"
5 fps
Rolling
20MP
CAM GE C 4608*3288 7F BAS
Art:
ACA4600-7GC Copied
MT9F002
Color
1/2.3"
7 fps
Rolling
14MP
CAM USB3 M 0659*0494 90F BAS
Art:
ACA640-90UM Copied
ICX424
Mono
1/3"
90 fps
Global
VGA
0AM USB3 C 0659*0494 90F BAS
Art:
ACA640-90UC Copied
ICX424
Color
1/3"
90 fps
Global
VGA
CAM USB3 M 0640*0480 750F BAS
Art:
ACA640-750UM Copied
PYTHON 300
Mono
1/4"
751 fps
Global
VGA
CAM USB3 C 0640*0480 750F BAS
Art:
ACA640-750UC Copied
PYTHON 300
Color
1/4"
751 fps
Global
VGA
Ace U USB3.0 Camera, IMX287 1/2.9" CMOS, 525fps, Mono, C-Mount
Art:
ACA720-520UM Copied
IMX287
Mono
1/2.9"
525 fps
Global
VGA
Ace U USB3.0 Camera, IMX287 1/2.9" CMOS, 525fps, Colour, C-Mount
Art:
ACA720-520UC Copied
IMX287
Color
1/2.9"
525 fps
Global
VGA
CAM USB3 M 0800*0600 510F BAS
Art:
ACA800-510UM Copied
PYTHON 500
Mono
1/3.6"
511 fps
Global
CCIR
CAM USB3 C 0800*0600 510F BAS
Art:
ACA800-510UC Copied
PYTHON 500
Color
1/3.6"
511 fps
Global
CCIR
CAM USB3 M 1296*0966 30F BAS
Art:
ACA1300-30UM Copied
ICX445
Mono
1/3"
30 fps
Global
1.3MP
CAM USB3 C 1296*0966 30F BAS
Art:
ACA1300-30UC Copied
ICX445
Color
1/3"
30 fps
Global
1.3MP
CAM USB3 M 1280*1024 200F BAS PYTHON
Art:
ACA1300-200UM Copied
PYTHON 1300
Mono
1/2"
203 fps
Global
1.3MP
CAM USB3 C 1280*1024 200F BAS
Art:
ACA1300-200UC Copied
PYTHON 1300
Color
1/2"
203 fps
Global
1.3MP
Ace U USB3.0 Camera, IMX273 1/2.9" CMOS, 227fps, Mono, C-Mount
Art:
ACA1440-220UM Copied
IMX273
Mono
1/2.9"
227 fps
Global
1.6MP
Ace U USB3.0 Camera, IMX273 1/2.9" CMOS, 227fps, Colour, C-Mount
Art:
ACA1440-220UC Copied
IMX273
Color
1/2.9"
227 fps
Global
1.6MP
CAM USB3 M 1628*1236 20F BAS
Art:
ACA1600-20UM Copied
ICX274
Mono
1/1.8"
20 fps
Global
2MP
CAM USB3 C 1628*1236 20F BAS
Art:
ACA1600-20UC Copied
ICX274
Color
1/1.8"
20 fps
Global
2MP
CAM USB3 M 1920*1080 25F BAS
Art:
ACA1920-25UM Copied
MT9P031
Mono
1/3.7"
26 fps
Rolling
2MP
CAM USB3 C 1920*1080 25F BAS
Art:
ACA1920-25UC Copied
MT9P031
Color
1/3.7"
26 fps
Rolling
2MP
CAM USB3 M 1920*1080 F BAS IMX249
Art:
ACA1920-40UM Copied
IMX249
Mono
1/1.2"
41 fps
Global
2.3MP
CAM USB3 C 1920*1080 F BAS IMX249
Art:
ACA1920-40UC Copied
IMX249
Color
1/1.2"
41 fps
Global
2.3MP
CAM USB3 M 1920*1200 150F BAS
Art:
ACA1920-150UM Copied
PYTHON 2000
Mono
2/3"
150 fps
Global
2.3MP
CAM USB3 C 1984*1264 150F BAS
Art:
ACA1920-150UC Copied
PYTHON 2000
Color
2/3"
150 fps
Global
2.3MP
CAM USB3 M 1920*1080 155F BAS IMX174
Art:
ACA1920-155UM Copied
IMX174
Mono
1/1.2"
164 fps
Global
2.3MP
CAM USB3 C 1920*1080 155F BAS IMX174
Art:
ACA1920-155UC Copied
IMX174
Color
1/1.2"
164 fps
Global
2.3MP
CAM USB3 M 2048*1088 165F BAS
Art:
ACA2000-165UM Copied
CMV2000
Mono
2/3"
165 fps
Global
2MP
CAM USB3 M 2048*1088 165F NIR BAS
Art:
ACA2000-165UM/N Copied
CMV2000 NIR
Mono
2/3"
165 fps
Global
2MP
CAM USB3 C 2048*1088 165F BAS
Art:
ACA2000-165UC Copied
CMV2000
Color
2/3"
165 fps
Global
2MP
Ace U USB3.0 Camera, IMX265 1/1.8" CMOS, 55fps, Mono, C-Mount
Art:
ACA2040-55UM Copied
IMX265
Mono
1/1.8"
55 fps
Global
3MP
Ace U USB3.0 Camera, IMX265 1/1.8" CMOS, 55fps, Colour, C-Mount
Art:
ACA2040-55UC Copied
IMX265
Color
1/1.8"
55 fps
Global
3MP
CAM USB3 M 2048*2048 90F BAS
Art:
ACA2040-90UM Copied
CMV4000
Mono
1"
90 fps
Global
4MP
CAM USB3 M 2048*2048 90F BAS NIR
Art:
ACA2040-90UM/N Copied
CMV4000 NIR
Mono
1"
90 fps
Global
4MP
CAM USB3 C 2048*2048 90F BAS
Art:
ACA2040-90UC Copied
CMV4000
Color
1"
90 fps
Global
4MP
Ace U USB3.0 Camera, IMX252 1/1.8" CMOS, 120fps, Mono, C-Mount
Art:
ACA2040-120UM Copied
IMX252
Mono
1/1.8"
120 fps
Global
3MP
Ace U USB3.0 Camera, IMX252 1/1.8" CMOS, 120fps, Colour, C-Mount
Art:
ACA2040-120UC Copied
IMX252
Color
1/1.8"
120 fps
Global
3MP
Ace U USB3.0 Camera, IMX264 2/3" CMOS, 35fps, Mono, C-Mount
Art:
ACA2440-35UM Copied
IMX264
Mono
2/3"
35 fps
Global
5MP
Ace U USB3.0 Camera, IMX264 2/3" CMOS, 35fps, Colour, C-Mount
Art:
ACA2440-35UC Copied
IMX264
Color
2/3"
35 fps
Global
5MP
Ace U USB3.0 Camera, IMX250 2/3" CMOS, 75fps, Mono, C-Mount
Art:
ACA2440-75UM Copied
IMX250
Mono
2/3"
75 fps
Global
5MP
Ace U USB3.0 Camera, IMX250 2/3" CMOS, 75fps, Colour, C-Mount
Art:
ACA2440-75UC Copied
IMX250
Color
2/3"
75 fps
Global
5MP
CAM USB3 M 2592*1944 14F BAS
Art:
ACA2500-14UM Copied
MT9P031
Mono
1/2.5"
14 fps
Rolling
5MP
CAM USB3 C 2592*1944 14F BAS
Art:
ACA2500-14UC Copied
MT9P031
Color
1/2.5"
14 fps
Rolling
5MP
CAM USB3 M 2590*2048 60F BAS
Art:
ACA2500-60UM Copied
PYTHON 5000
Mono
1"
60 fps
Global
5MP
CAM USB3 C 2590*2048 60F BAS
Art:
ACA2500-60UC Copied
PYTHON 5000
Color
1"
60 fps
Global
5MP
CAM USB3 M 3840*2748 14F BAS
Art:
ACA3800-14UM Copied
MT9J003
Mono
1/2.3"
14 fps
Rolling
10MP
Ace USB3.0 Camera, MT9J003 1/2.3" CMOS, 14fps, Colour, C-Mount
Art:
ACA3800-14UC Copied
MT9J003
Color
1/2.3"
14 fps
Rolling
10MP
Ace U USB3.0 Camera, IMX178 1/1.8" CMOS, 59fps, Mono, C-Mount
Art:
ACA3088-57UM Copied
IMX178
Mono
1/1.8"
59 fps
Rolling
6MP
Ace U USB3.0 Camera, IMX178 1/1.8" CMOS, 59fps, Colour, C-Mount
Art:
ACA3088-57UC Copied
IMX178
Color
1/1.8"
59 fps
Rolling
6MP
Ace U USB3.0 Camera, IMX226 1/1.7" CMOS, 31fps, Mono, C-Mount
Art:
ACA4024-29UM Copied
IMX226
Mono
1/1.7"
31 fps
Rolling
12MP
Ace U USB3.0 Camera, IMX226 1/1.7" CMOS, 31fps, Colour, C-Mount
Art:
ACA4024-29UC Copied
IMX226
Color
1/1.7"
31 fps
Rolling
12MP
Ace L USB3.0 Camera, IMX267 1" CMOS, 32fps, Mono, C-Mount
Art:
ACA4096-30UM Copied
IMX267
Mono
1"
32 fps
Global
9MP
Ace L USB3.0 Camera, IMX267 1" CMOS, 32fps, Colour, C-Mount
Art:
ACA4096-30UC Copied
IMX267
Color
1"
32 fps
Global
9MP
Ace L USB3.0 Camera, IMX255 1" CMOS, 42fps, Mono, C-Mount
Art:
ACA4096-40UM Copied
IMX255
Mono
1"
42 fps
Global
9MP
Ace L USB3.0 Camera, IMX255 1" CMOS, 42fps, Colour, C-Mount
Art:
ACA4096-40UC Copied
IMX255
Color
1"
42 fps
Global
9MP
Ace L USB3.0 Camera, IMX304 1.1" CMOS, 23fps, Mono, C-Mount
Art:
ACA4112-20UM Copied
IMX304
Mono
1.1"
23 fps
Global
12MP
Ace L USB3.0 Camera, IMX304 1.1" CMOS, 23fps, Colour, C-Mount
Art:
ACA4112-20UC Copied
IMX304
Color
1.1"
23 fps
Global
12MP
Ace L USB3.0 Camera, IMX253 1.1" CMOS, 30fps, Mono, C-Mount
Art:
ACA4112-30UM Copied
IMX253
Mono
1.1"
30 fps
Global
12MP
Ace L USB3.0 Camera, IMX253 1.1" CMOS, 30fps, Colour, C-Mount
Art:
ACA4112-30UC Copied
IMX253
Color
1.1"
30 fps
Global
12MP
CAM USB3 C 4608*3288 10F BAS
Art:
ACA4600-10UC Copied
MT9F002
Color
1/2.3"
10 fps
Rolling
14MP
Ace U USB3.0 Camera, IMX183 1" CMOS, 17fps, Mono, C-Mount
Art:
ACA5472-17UM Copied
IMX183
Mono
1"
17 fps
Rolling
20MP
Ace U USB3.0 Camera, IMX183 1" CMOS, 17fps, Colour, C-Mount
Art:
ACA5472-17UC Copied
IMX183
Color
1"
17 fps
Rolling
20MP
CAM CL M 2048*1088 340F BAS
Art:
ACA2000-340KM Copied
CMV2000
Mono
2/3"
340 fps
Global
2MP
CAM CL M 2048*1088 340F NIR BAS
Art:
ACA2000-340KM/N Copied
CMV2000 NIR
Mono
2/3"
340 fps
Global
2MP
CAM CL C 2048*1088 340F BAS
Art:
ACA2000-340KC Copied
CMV2000
Color
2/3"
340 fps
Global
2MP
CAM CL M 2048*2048 180F BAS
Art:
ACA2040-180KM Copied
CMV4000
Mono
1"
180 fps
Global
4MP
CAM CL M 2048*2048 180F NIR BAS
Art:
ACA2040-180KM/N Copied
CMV4000 NIR
Mono
1"
180 fps
Global
4MP
CAM CL C 2048*2048 180F BAS
Art:
ACA2040-180KC Copied
CMV4000
Color
1"
180 fps
Global
4MP

Selected variant

Select a variant in the list

Contact us
Please contact us for more information.
Send e-mail
Do you need help?
Logo

Cookies on oem.ee

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

Functional cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analytics cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
