| IP Class | IP67 |
|---|---|
| Shaft Diameter | 6 mm |
| Connection Thread | M8 |
| Temperature range to | 100 °C |
| Resolution | 32 P/R |
| Housing diametre | 30 mm |
| Temperature range from | -40 °C |
| Supply Voltage DC Max | 30 V DC |
|---|---|
| Output | Push/Pull |
| Supply Voltage DC Min | 5 V DC |
| Speed max. | 4500 rpm |
| Sensor type | Incremental |
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Articles | IP Class | Shaft Diameter | Connection Thread | Temperature range to | Resolution | Housing diametre | Temperature range from | Supply Voltage DC Max | Output | Supply Voltage DC Min | Speed max. | Sensor type | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

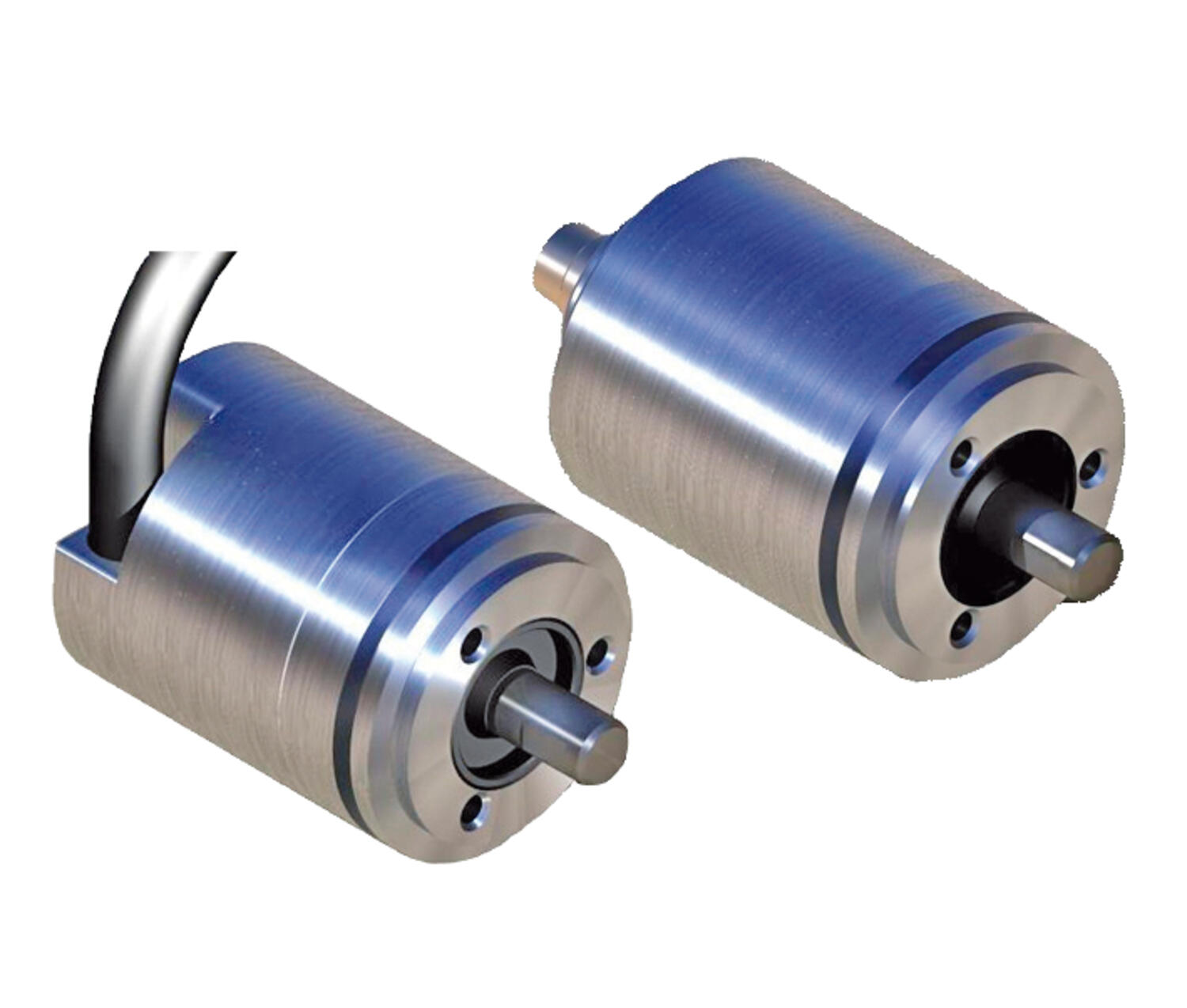

Incremental magnetic encoder, ø30, ø6, 32 c/t, M8 connector
Art:
HHM3S6PG5900326
Copied
|
IP67
|
6 mm
|
M8
|
100 °C
|
32 P/R
|
30 mm
|
-40 °C
|
30 V DC
|
Push/Pull
|
5 V DC
|
4500 rpm
|
Incremental
|
| |
|
Incremental magnetic encoder, ø30, ø6, 64 c/t, M8 connector
Art:
HHM3S6PG5900646
Copied
|
IP67
|
6 mm
|
M8
|
100 °C
|
64 P/R
|
30 mm
|
-40 °C
|
30 V DC
|
Push/Pull
|
5 V DC
|
4500 rpm
|
Incremental
|
| |
|
Incremental magnetic encoder, ø30, ø6, 128 c/t, M8 connector
Art:
HHM3S6PG5901286
Copied
|
IP67
|
6 mm
|
M8
|
100 °C
|
128 P/R
|
30 mm
|
-40 °C
|
30 V DC
|
Push/Pull
|
5 V DC
|
4500 rpm
|
Incremental
|
| |
|
Incremental magnetic encoder, ø30, ø6, 256 c/t, M8 connector
Art:
HHM3S6PG5902566
Copied
|
IP67
|
6 mm
|
M8
|
100 °C
|
256 P/R
|
30 mm
|
-40 °C
|
30 V DC
|
Push/Pull
|
5 V DC
|
4500 rpm
|
Incremental
|
| |
|
Incremental magnetic encoder, ø30, ø6, 1024 c/t, M8 connector
Art:
HHM3S6PG5910246
Copied
|
IP67
|
6 mm
|
M8
|
100 °C
|
1024 P/R
|
30 mm
|
-40 °C
|
30 V DC
|
Push/Pull
|
5 V DC
|
4500 rpm
|
Incremental
|
|
Select a variant in the list
