BEI SENSORS
GZT4 incremental encoder
With its 40mm size and a 6mm through shaft, this encoder characterizes itself by its strength and robustness of the mechanical and opto-electronic parts, it’s the most compact truly industrial encoder with a through shaft.
- Coded discs in synthetic material are used: stable and unbreakable (Polyfass™, Mylar-Myca composite)
- Available resolution up to 1 024 counts per turn (GHT4 option, up to 2 500 counts per turn)
- Universal electronics 5 to 24Vdc available
- Application fields : micro-robotics, printing machines, low power DC motors, shears…

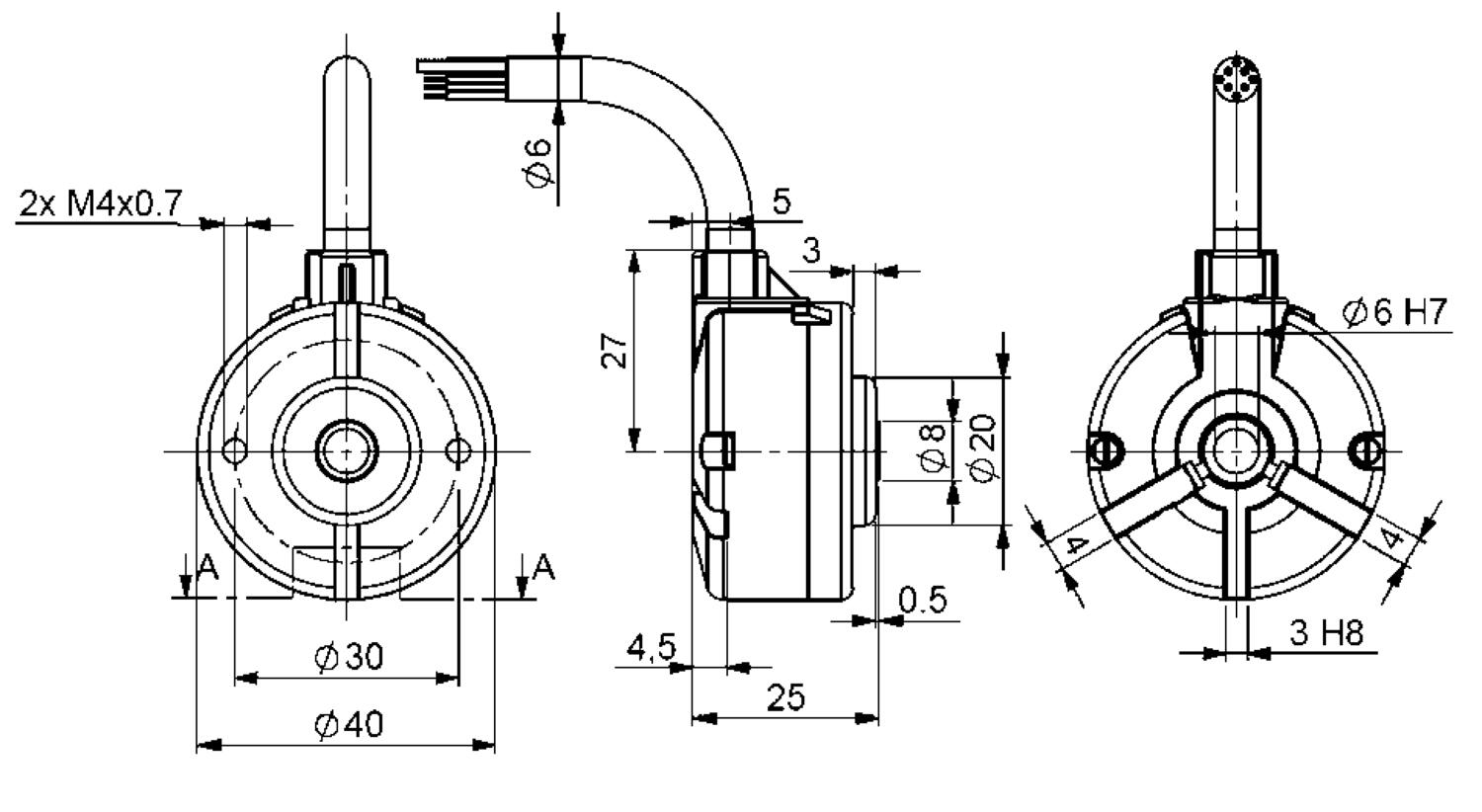

- Diameter 40mm, 6mm bore
- Resolution max. 1024 P/R
- A, B and Z channels, also inverted
- IP52, IP66 available
- Equipped with 2m connecting cable
Selected variant
Specifications
| IP Class | IP52 |
|---|---|
| Shaft Diameter | 6 mm |
| Connection Thread | Cable |
| Temperature range to | 80 °C |
| Resolution | 50 P/R |
| Housing diametre | 40 mm |
| Temperature range from | -20 °C |
| Supply Voltage DC Max | 24 V DC |
|---|---|

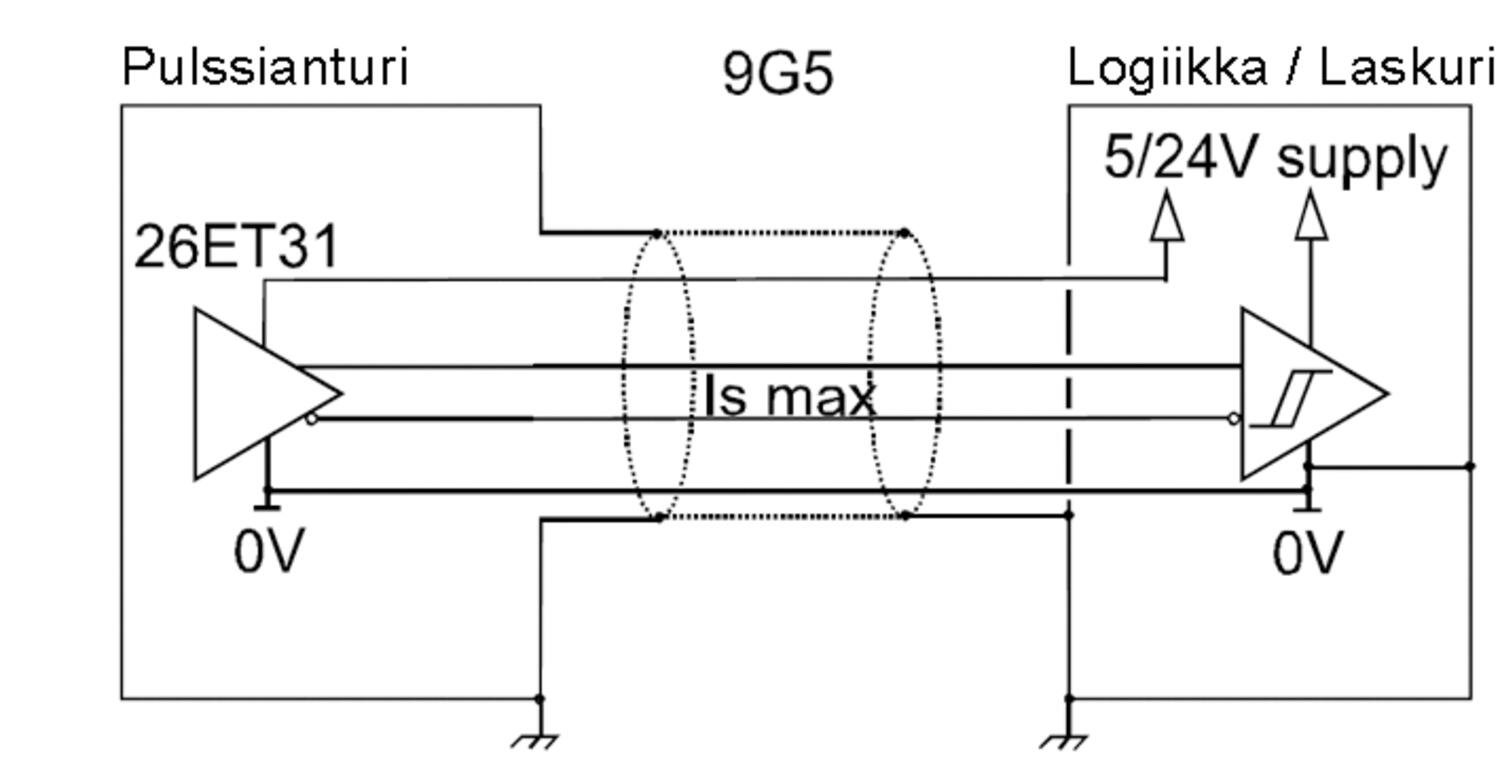

| Output | Push/Pull |
| Supply Voltage DC Min | 5 V DC |
| Speed max. | 12000 rpm |
| Sensor type | Incremental |
Product description
With its 40mm size and a 6mm through shaft, this encoder characterizes itself by its strength and robustness of the mechanical and opto-electronic parts, it’s the most compact truly industrial encoder with a through shaft.
- Coded discs in synthetic material are used: stable and unbreakable (Polyfass™, Mylar-Myca composite)
- Available resolution up to 1 024 counts per turn (GHT4 option, up to 2 500 counts per turn)
- Universal electronics 5 to 24Vdc available
- Application fields : micro-robotics, printing machines, low power DC motors, shears…
