IP Class | IP54 |
---|---|
Shaft Diameter | 6 mm |
Connection Thread | Cable |
Temperature range to | 80 °C |
Resolution | 50 P/R |

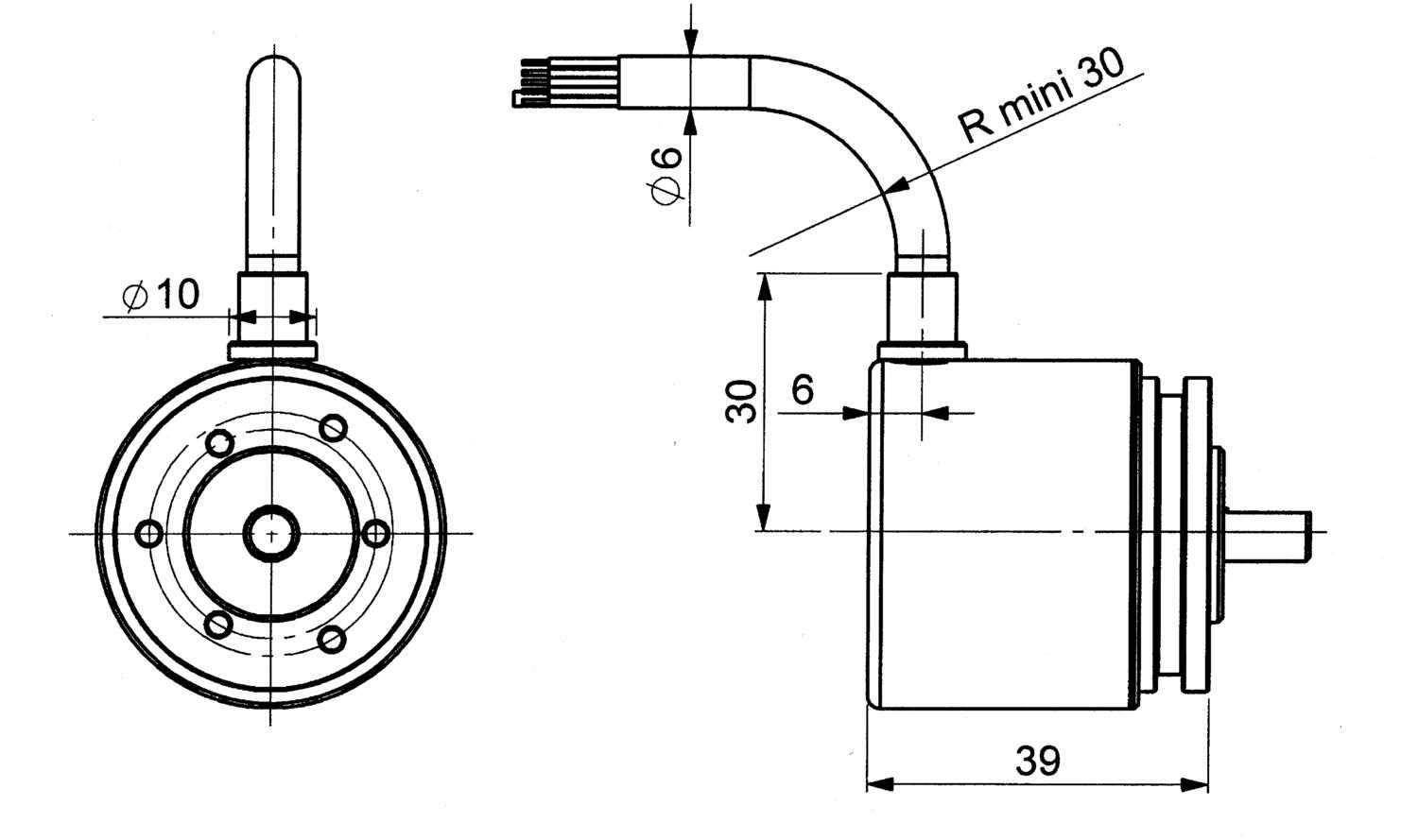

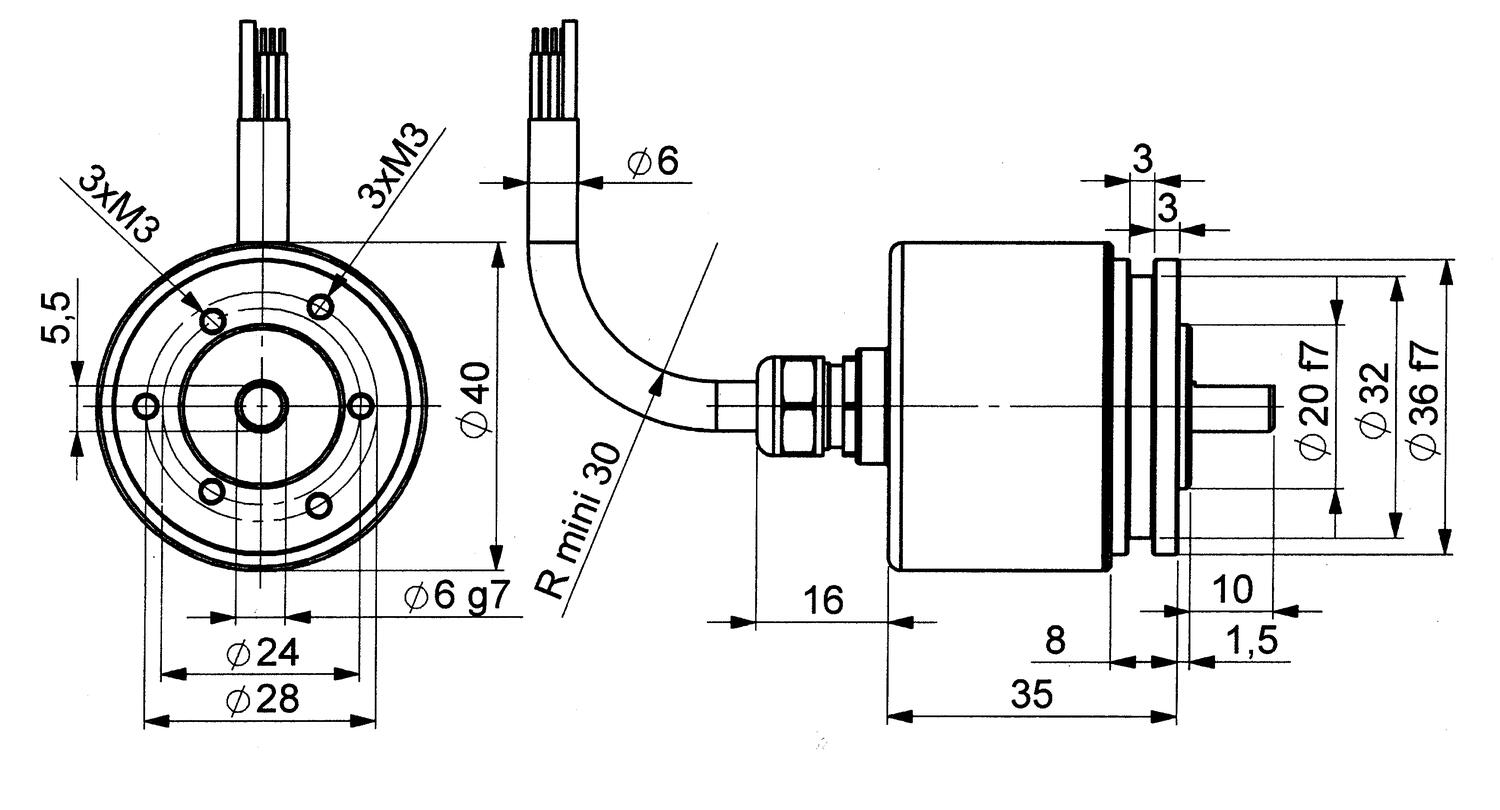

Housing diametre | 40 mm |
Temperature range from | -20 °C |
Supply Voltage DC Max | 24 V DC |
---|---|

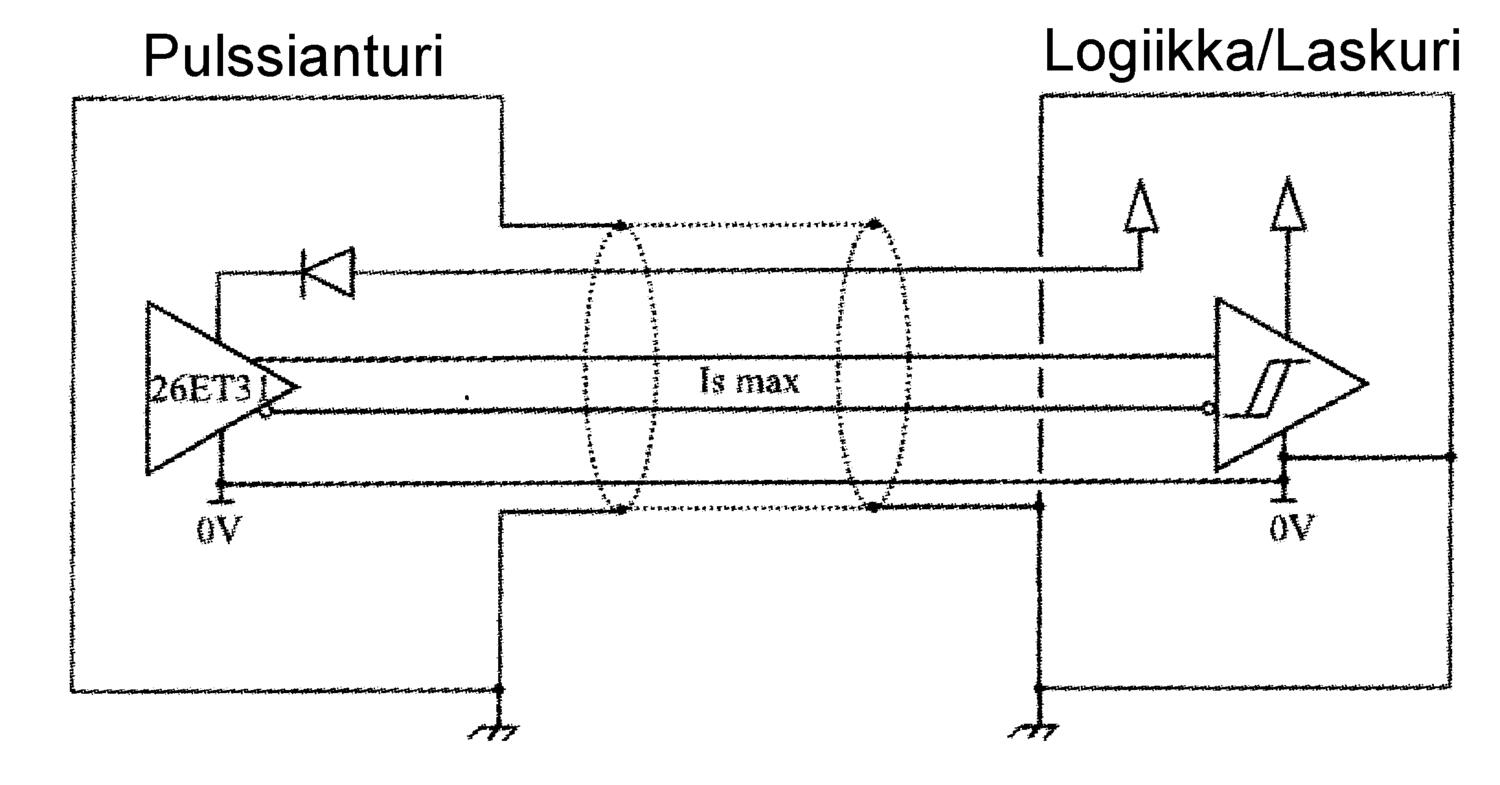

Output | Push/Pull |
Supply Voltage DC Min | 5 V DC |
Speed max. | 12000 rpm |
Sensor type | Incremental |
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Articles | IP Class | Shaft Diameter | Connection Thread | Temperature range to | Resolution | Housing diametre | Temperature range from | Supply Voltage DC Max | Output | Supply Voltage DC Min | Speed max. | Sensor type | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
Incremental encoder, ø40, ø6, 50 P/R, 2 m cable
Art:
GHM40695900503A
Copied
|
IP54
|
6 mm
|
Cable
|
80 °C
|
50 P/R
|
40 mm
|
-20 °C
|
24 V DC
|
Push/Pull
|
5 V DC
|
12000 rpm
|
Incremental
|
| |
![]()
Incremental encoder, ø40, ø6, 100 P/R, 2 m cable
Art:
GHM40695901003A
Copied
|
IP54
|
6 mm
|
Cable
|
80 °C
|
100 P/R
|
40 mm
|
-20 °C
|
24 V DC
|
Push/Pull
|
5 V DC
|
12000 rpm
|
Incremental
|
| |
![]()
Incremental encoder, ø40, ø6, 200 P/R, 2 m cable
Art:
GHM40695902003A
Copied
|
IP54
|
6 mm
|
Cable
|
80 °C
|
200 P/R
|
40 mm
|
-20 °C
|
24 V DC
|
Push/Pull
|
5 V DC
|
12000 rpm
|
Incremental
|
| |
![]()
Incremental encoder, ø40, ø6, 300 P/R, 2 m cable
Art:
GHM40695903003A
Copied
|
IP54
|
6 mm
|
Cable
|
80 °C
|
300 P/R
|
40 mm
|
-20 °C
|
24 V DC
|
Push/Pull
|
5 V DC
|
12000 rpm
|
Incremental
|
| |
![]()
Incremental encoder, ø40, ø6, 500 P/R, 2 m cable
Art:
GHM40695905003A
Copied
|
IP54
|
6 mm
|
Cable
|
80 °C
|
500 P/R
|
40 mm
|
-20 °C
|
24 V DC
|
Push/Pull
|
5 V DC
|
12000 rpm
|
Incremental
|
| |
![]()
Incremental encoder, ø40, ø6, 1000 P/R, 2 m cable
Art:
GHM40695910003A
Copied
|
IP54
|
6 mm
|
Cable
|
80 °C
|
1000 P/R
|
40 mm
|
-20 °C
|
24 V DC
|
Push/Pull
|
5 V DC
|
12000 rpm
|
Incremental
|
| |
![]()
Incremental encoder, ø40, ø6, 2500 P/R, 2 m cable
Art:
GHM40695925003A
Copied
|
IP54
|
6 mm
|
Cable
|
80 °C
|
2500 P/R
|
40 mm
|
-20 °C
|
24 V DC
|
Push/Pull
|
5 V DC
|
12000 rpm
|
Incremental
|
|
Select a variant in the list
