DHM5 incremental encoder

  • Diameter 58mm, shaft 6 or 10mm
  • Resolution max. 80 000 P/R
  • A, B and Z channels, also inverted
  • IP65, IP69K available
  • Also available with magnetic encoder

Selected variant

Sensata-BEI Sensors.png

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

IP Class IP65
Shaft Diameter 10 mm
Connection Thread Cable
Temperature range to 100 °C
Resolution 100 P/R
Housing diametre 58 mm
Temperature range from -30 °C
Supply Voltage DC Max 30 V DC
Output Push/Pull
Supply Voltage DC Min 4,75 V DC
Speed max. 12000 rpm
Sensor type Incremental

Downloads

Measurements and connections

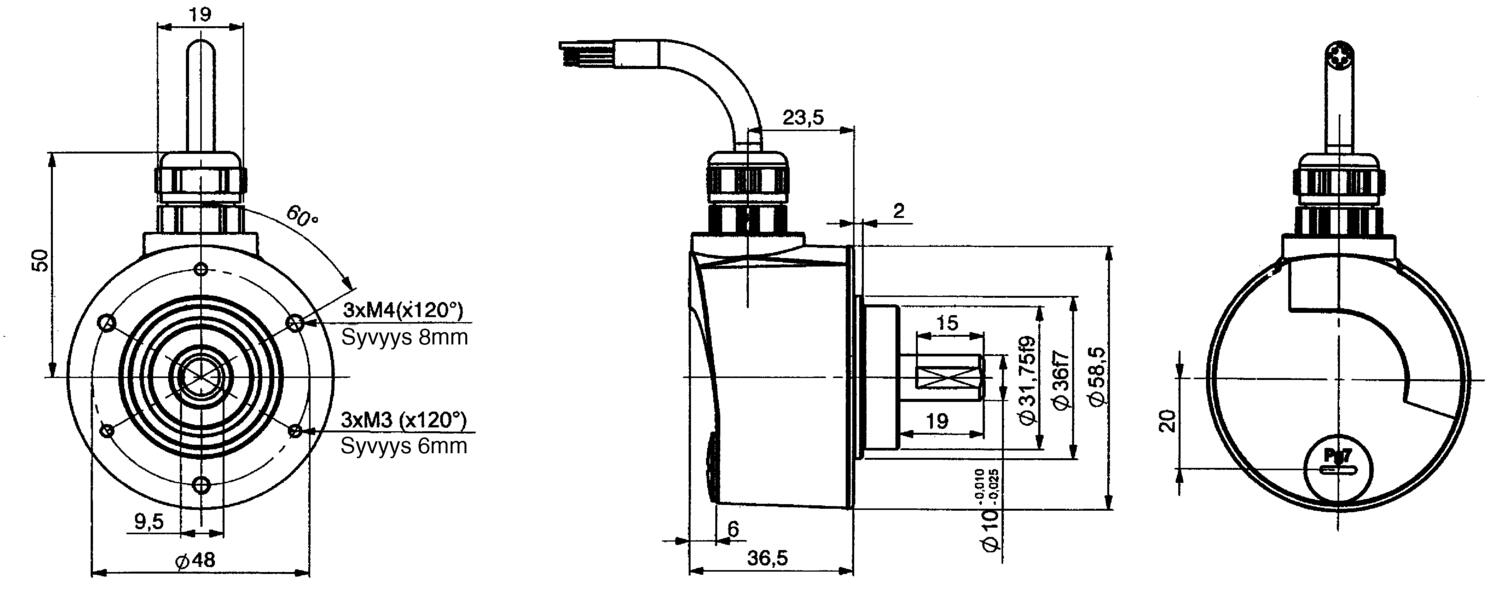

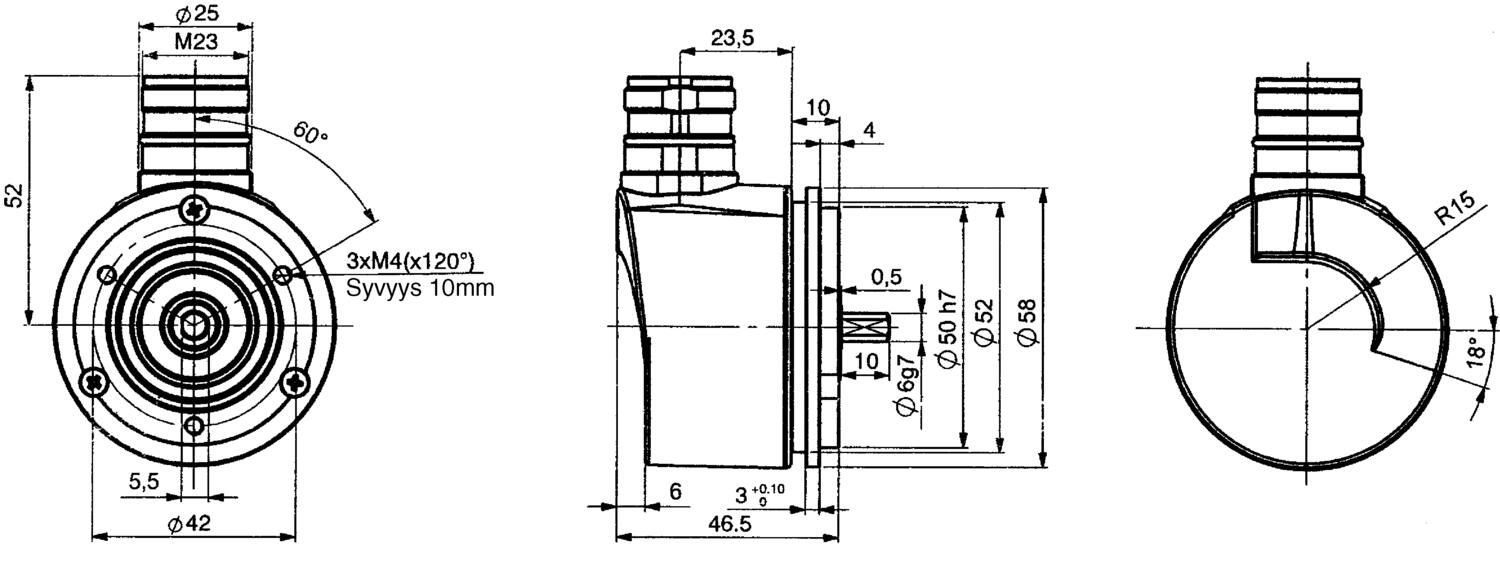

Technical illustrations
