BEI SENSORS

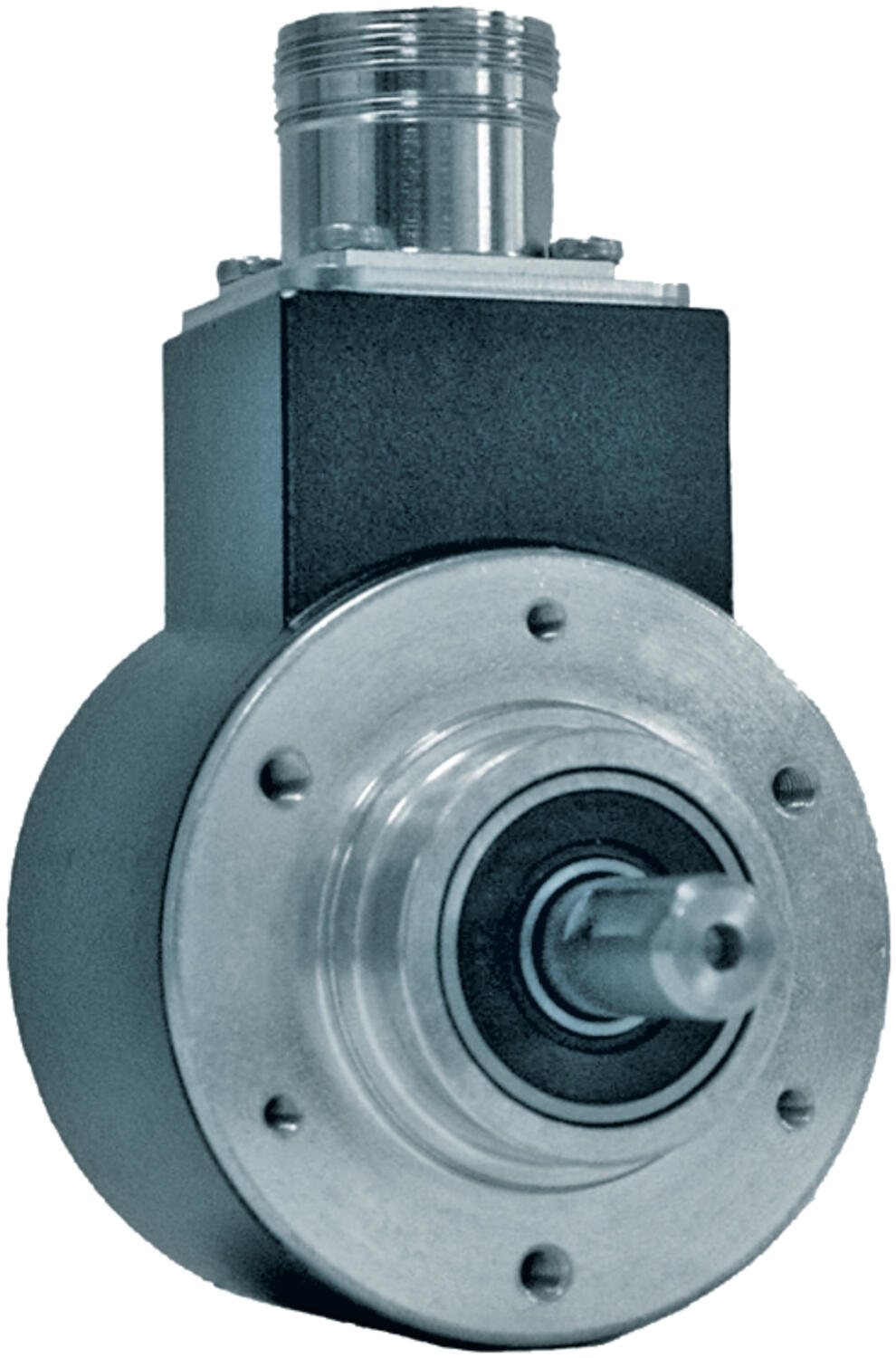

PHM5 absolute shaft encoder
- Diameter 58mm, shaft diameter 6mm or 10mm
- Resolution (Max): 13x16 bits
- Output SSI, parallel and CANopen
- IP65, IP67 available
Selected variant
Specifications
| IP Class | IP65 |
|---|---|
| Shaft Diameter | 10 mm |

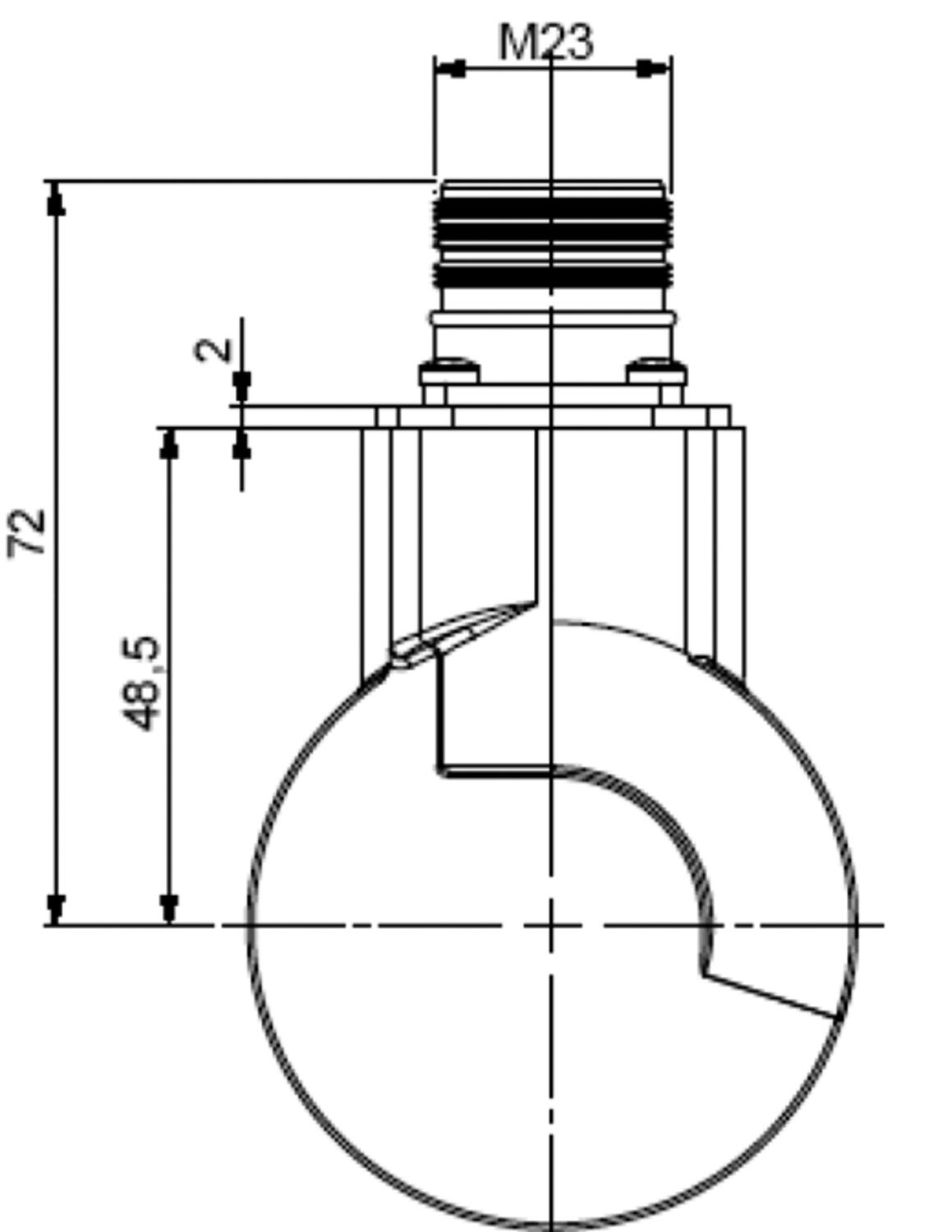

| Connection Thread | M23 contact |
| Temperature range to | 85 °C |
| Housing diametre | 58 mm |
| Temperature range from | -20 °C |
| Version | Multiturn |
| Supply Voltage DC Max | 30 V DC |
|---|---|

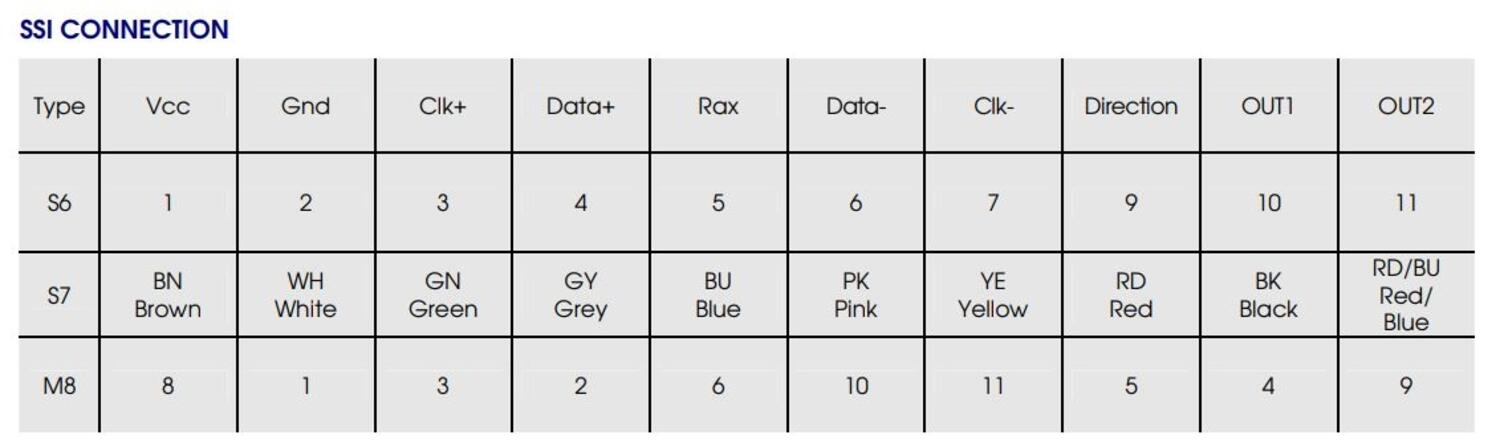

| Output | SSI |
| Supply Voltage DC Min | 5 V DC |
| Speed max. | 6000 rpm |
| Sensor type | Absolute |
| Resolution | Max. 13 bit resoluutiolle ja 12 bit kierroksille |
