BEI SENSORS

MHK5 absolute hollow shaft encoder

  • Diameter 58mm, bore 15mm
  • Resolution (Max): 13x16 bits
  • CANopen, DeviceNet, Ethercat, Ethernet/IP, Interbus, Modbus, Parallel, Profibus, Profinet
  • IP64

Selected variant

Sensata-BEI Sensors.png

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

IP Class IP64
Shaft Diameter 15 mm
Connection Thread Screw terminal
Temperature range to 85 °C
Housing diametre 58 mm
Temperature range from -40 °C
Version Multiturn
Supply Voltage DC Max 30 V DC
Output Profibus
Supply Voltage DC Min 10 V DC
Speed max. 6000 rpm
Sensor type Absolute
Resolution Max. 13 bit resoluutiolle ja 12 bit kierroksille

Downloads

Measurements and connections

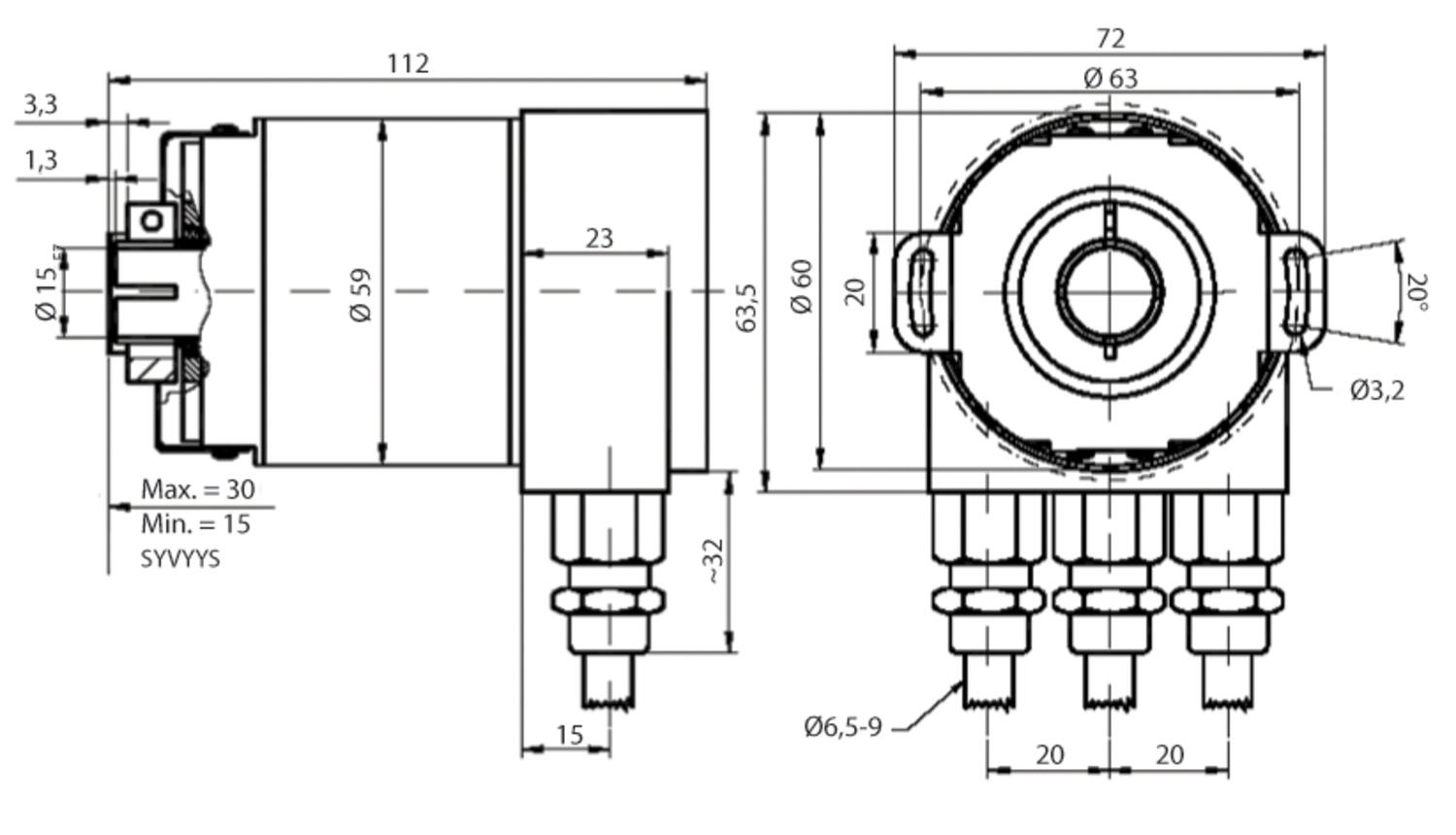

Technical illustrations

Accessories

Articles IP Class Shaft Diameter Connection Thread Temperature range to Housing diametre Temperature range from Version Supply Voltage DC Max Output Supply Voltage DC Min Speed max. Sensor type Resolution
253297_566.tif
Absolute encoder, ø58, ø15, Profibus
Art:
MHK515-PROF-001 Copied
IP64
15 mm
Screw terminal
85 °C
58 mm
-40 °C
Multiturn
30 V DC
Profibus
10 V DC
6000 rpm
Absolute
Max. 13 bit resoluutiolle ja 12 bit kierroksille
253297_566.tif
Absolute encoder, ø58, ø15, CANopen
Art:
MHK515-CANO-001 Copied
IP64
15 mm
Screw terminal
85 °C
58 mm
-40 °C
Multiturn
30 V DC
CANopen
10 V DC
6000 rpm
Absolute
Max. 13 bit resoluutiolle ja 12 bit kierroksille
