BERNSTEIN

IN73 Modular Limit Switch

  • The assembly consists of plasticbody and actuator
  • Easy to assemble without tools
  • Actuator positioning in increments of 45 degrees
  • IP66&IP67

Selected variant

bernstein.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Contact type Snap-action, 1NO, 1 NC
IP Class IP66, IP67
Voltage DC max 24 V
Cable entry 1 x M20 x1,5
Connection Thread Screw terminal
Temperature range to 75 °C
Conventional Thermal Current 5 A
Voltage AC max 240 V
Temperature range from -30 °C
Material of body Plastic
Atex approved No
Manufacturer Part No 6081000112

Downloads

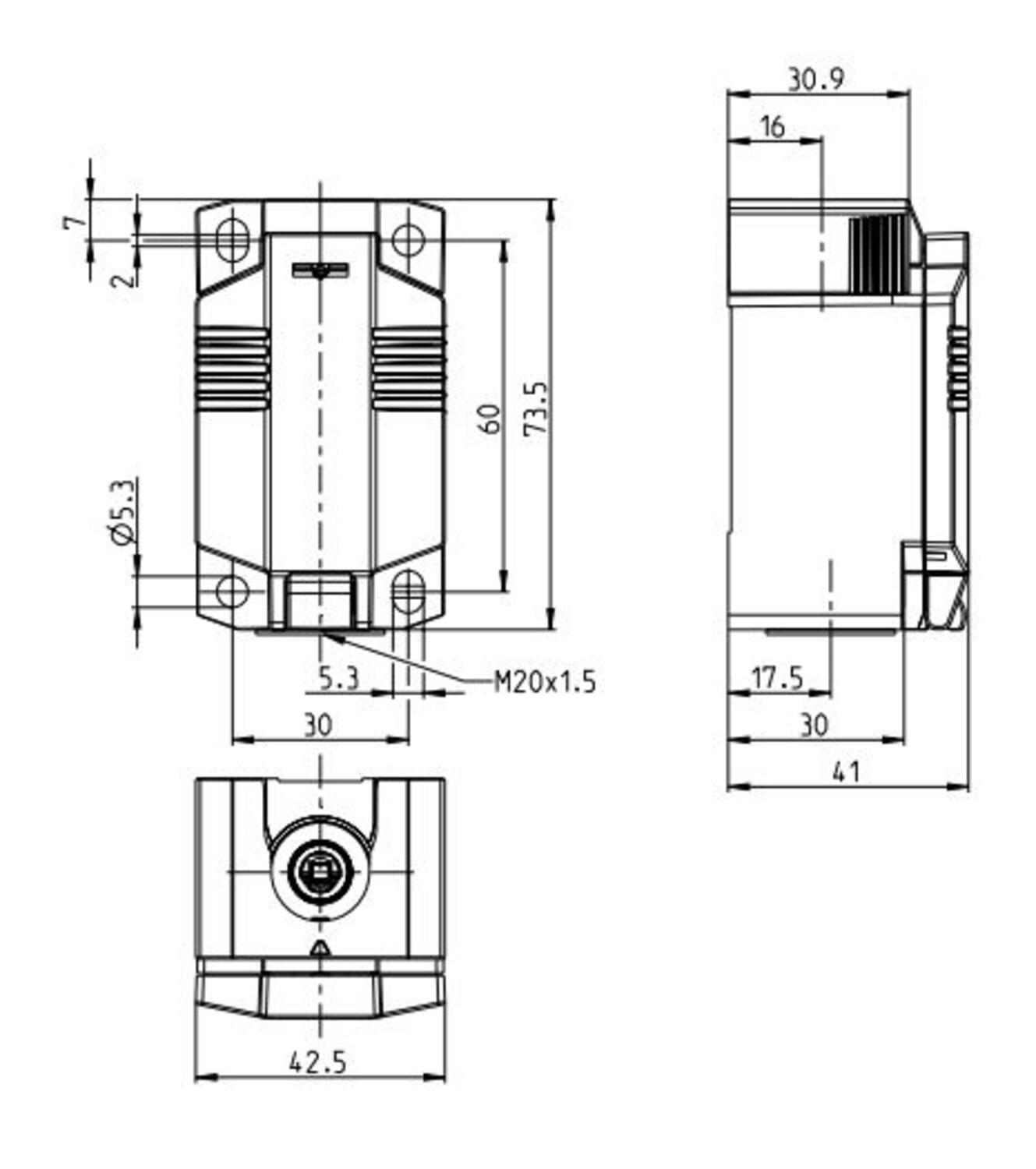

Measurements and connections

Technical illustrations

Accessories

Related products

Articles Contact type IP Class Voltage DC max Cable entry Connection Thread Temperature range to Conventional Thermal Current Voltage AC max Temperature range from Material of body Atex approved Manufacturer Part No
Art:
608.1000.112 Copied
Snap-action, 1NO, 1 NC
IP66, IP67
24 V
1 x M20 x1,5
Screw terminal
75 °C
5 A
240 V
-30 °C
Plastic
No
6081000112
Limit switch body IN73-11 M20, 1NO/1NC
Art:
608.1000.113 Copied
Slow-action, 1NO, 1 NC
IP66, IP67
24 V
1 x M20 x1,5
Screw terminal
75 °C
5 A
240 V
-30 °C
Plastic
No
6081000113
Art:
608.1000.114 Copied
Snap-action, 2 NC
IP66, IP67
24 V
1 x M20 x1,5
Screw terminal
75 °C
5 A
240 V
-30 °C
Plastic
No
6081000114
Art:
608.1000.116 Copied
Snap-action, 2 NO
IP66, IP67
24 V
1 x M20 x1,5
Screw terminal
75 °C
5 A
240 V
-30 °C
Plastic
No
6081000116
