| Contact type | Snap-action, 1NO, 1 NC |
|---|---|
| IP Class | IP20 |
| Cable entry | 8,5x3,5 mm |
| Connection Thread | Screw terminal |
| Temperature range to | 80 °C |
| Conventional Thermal Current | 10 A |
| Voltage AC max | 240 V |
| Temperature range from | -30 °C |
| Operating Frequency Max | 100 ggr/min |
|---|---|
| Approvals | CE, CSA US, UL |
| Material of body | Plastic |
| B10d | 6x10^6 |
| Atex approved | No |
| Manufacturer Part No | 6008351002 |
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Articles | Contact type | IP Class | Cable entry | Connection Thread | Temperature range to | Conventional Thermal Current | Voltage AC max | Temperature range from | Operating Frequency Max | Approvals | Material of body | B10d | Atex approved | Manufacturer Part No | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

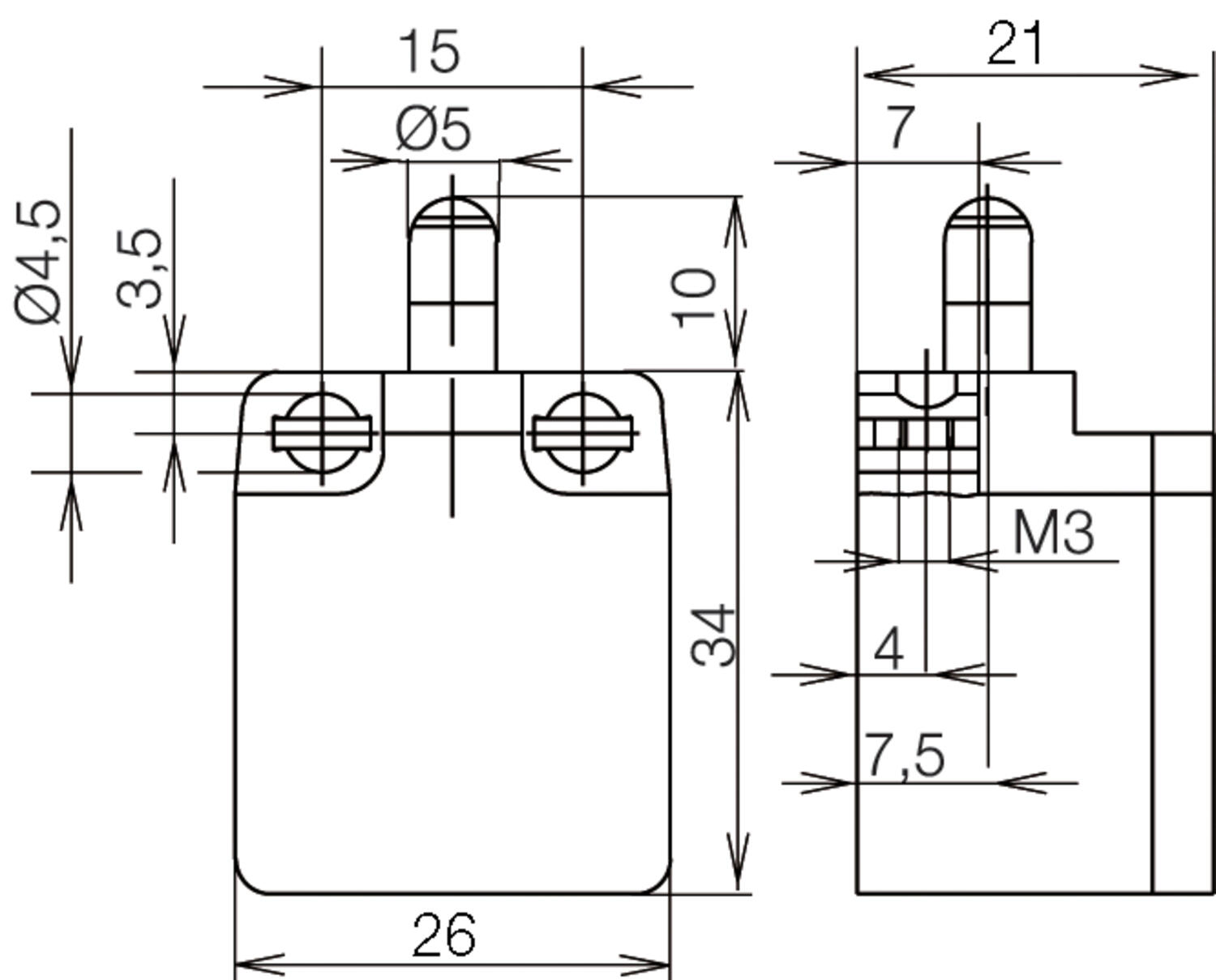

Limit switch C2-SU1Z
Art:
600.8351.002
Copied
|
Snap-action, 1NO, 1 NC
|
IP20
|
8,5x3,5 mm
|
Screw terminal
|
80 °C
|
10 A
|
240 V
|
-30 °C
|
100 ggr/min
|
CE, CSA US, UL
|
Plastic
|
6x10^6
|
No
|
6008351002
|
| |

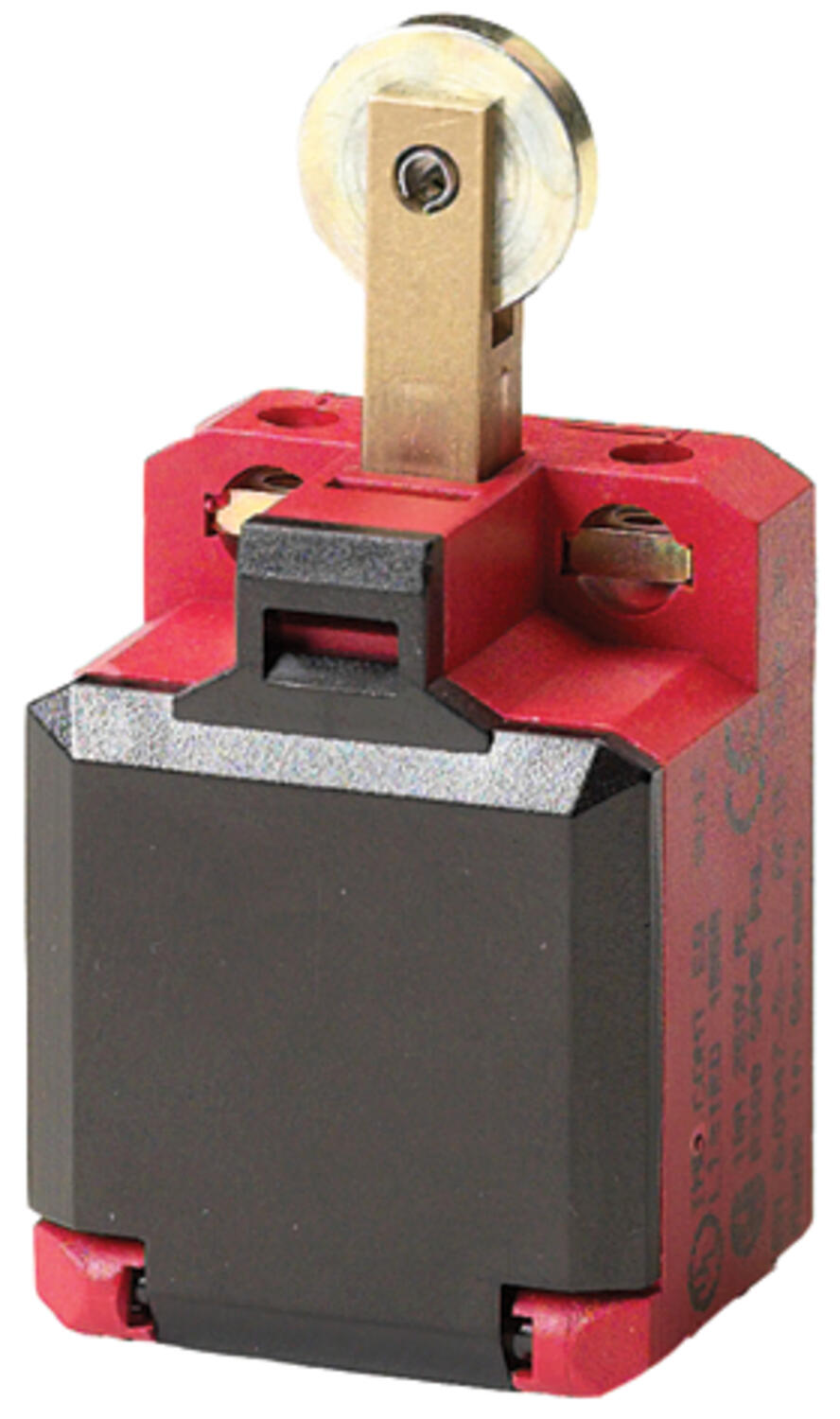

C2-SUIZ R COMBI LIMIT SWITCH
Art:
600.8366.014
Copied
|
Snap-action, 1NO, 1 NC
|
IP20
|
8,5x3,5 mm
|
Screw terminal
|
80 °C
|
10 A
|
240 V
|
-30 °C
|
100 ggr/min
|
CE, CSA US, UL
|
Plastic
|
6x10^6
|
No
|
6008366014
|
| |

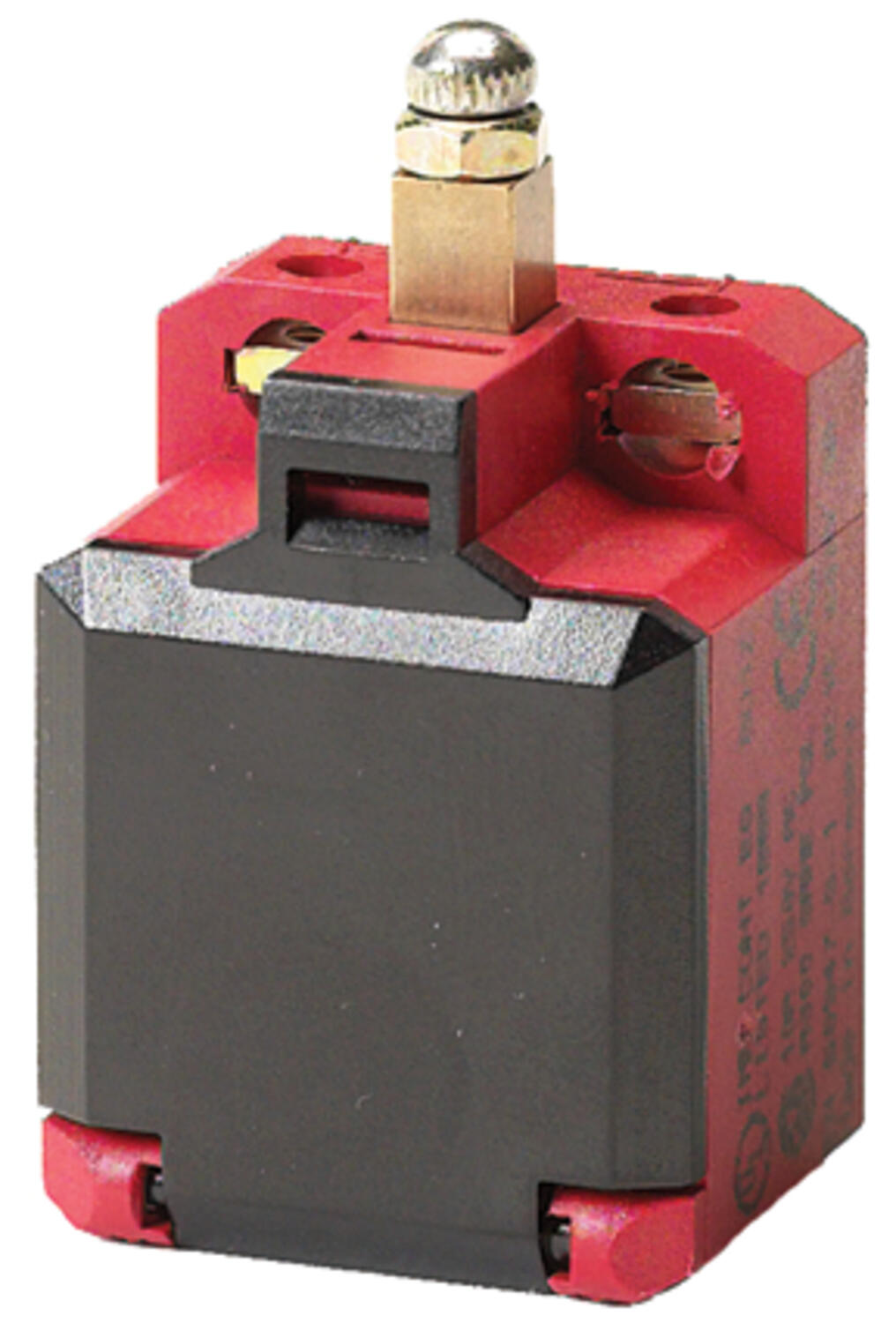

Limit switch C2-SU1Z ST
Art:
600.8354.026
Copied
|
Snap-action, 1NO, 1 NC
|
IP20
|
8,5x3,5 mm
|
Screw terminal
|
80 °C
|
10 A
|
240 V
|
-30 °C
|
100 ggr/min
|
CE, CSA US, UL
|
Plastic
|
6x10^6
|
No
|
6008354026
|
| |

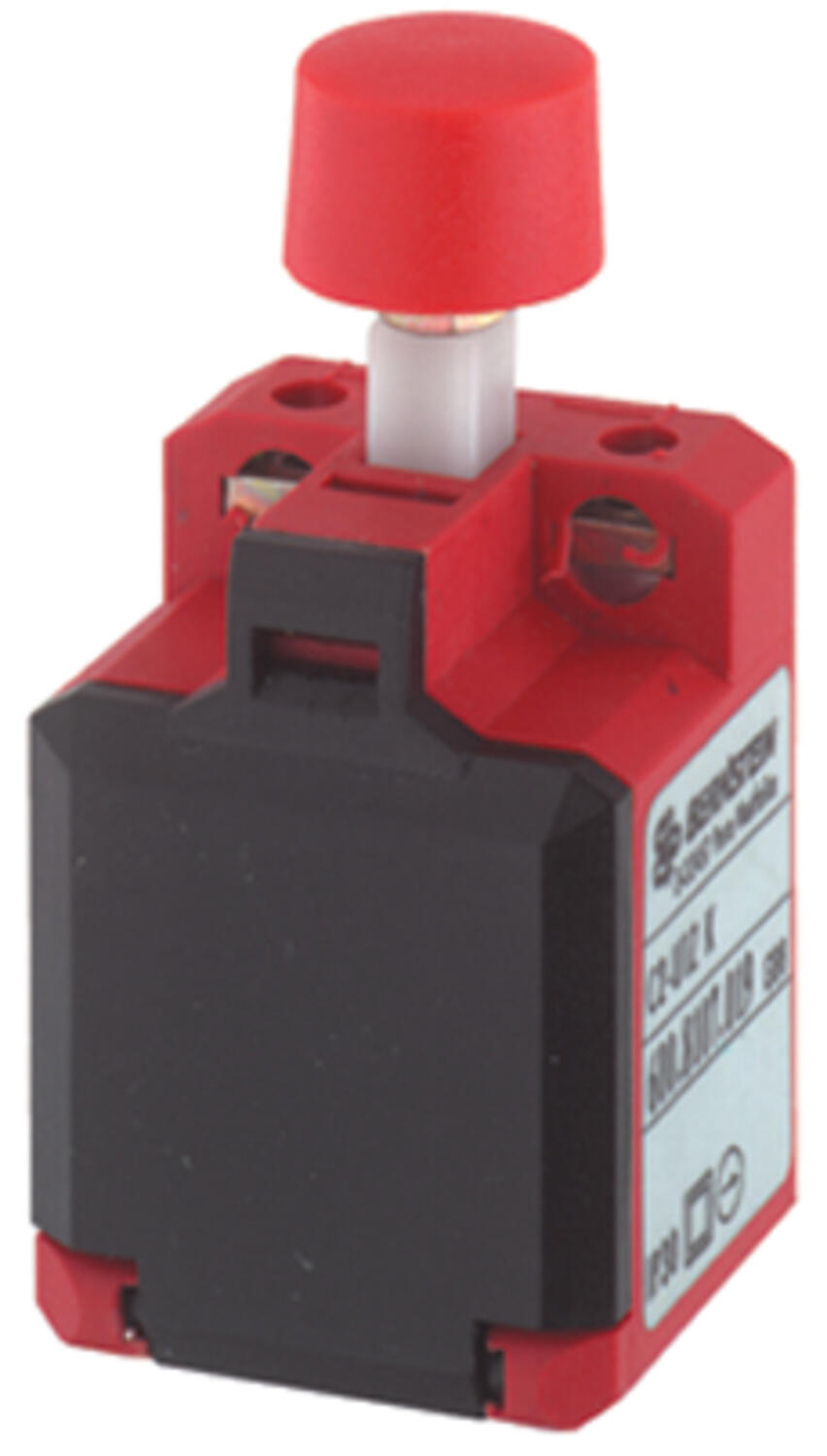

Limit switch C2-SU1Z K
Art:
600.8357.020
Copied
|
Snap-action, 1NO, 1 NC
|
IP20
|
8,5x3,5 mm
|
Screw terminal
|
80 °C
|
10 A
|
240 V
|
-30 °C
|
100 ggr/min
|
CE, CSA US, UL
|
Plastic
|
6x10^6
|
No
|
6008357020
|
| |
|
Limit switch C2-SA2Z
Art:
600.8851.004
Copied
|
Snap-action, 2 NC
|
IP20
|
8,5x3,5 mm
|
Screw terminal
|
80 °C
|
10 A
|
240 V
|
-30 °C
|
100 ggr/min
|
CE, CSA US, UL
|
Plastic
|
6x10^6
|
No
|
6008851004
|
| |
|
Limit switch C2-SU1Z O.M.
Art:
600.8351.008
Copied
|
Snap-action, 1NO, 1 NC
|
IP20
|
8,5x3,5 mm
|
Screw terminal
|
80 °C
|
10 A
|
240 V
|
-30 °C
|
100 ggr/min
|
CE, CSA US, UL
|
Plastic
|
6x10^6
|
No
|
6008351008
|
|
Select a variant in the list
