| Contact type | Snap-action, 1NO, 1 NC |
|---|---|
| IP Class | IP65 |
| Cable entry | 2 x M16 x1,5 |
| Connection Thread | Screw terminal |
| Temperature range to | 80 °C |
| Conventional Thermal Current | 10 A |
| Voltage AC max | 240 V |
| Temperature range from | -30 °C |
| Operating Frequency Max | 100 ggr/min |
|---|---|
| Approvals | CCC, CE, CSA US |
| Material of body | Plastic |
| B10d | 20x10^6 |
| Atex approved | No |
| Manufacturer Part No | 6085153107 |
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Articles | Contact type | IP Class | Cable entry | Connection Thread | Temperature range to | Conventional Thermal Current | Voltage AC max | Temperature range from | Operating Frequency Max | Approvals | Material of body | B10d | Atex approved | Manufacturer Part No | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bi2-SU1Z W SAFETY SWITCH
Art:
608.5153.107
Copied
|
Snap-action, 1NO, 1 NC
|
IP65
|
2 x M16 x1,5
|
Screw terminal
|
80 °C
|
10 A
|
240 V
|
-30 °C
|
100 ggr/min
|
CCC, CE, CSA US
|
Plastic
|
20x10^6
|
No
|
6085153107
|
| |
Limit switch BI2-SU1Z HW
Art:
608.5171.109
Copied
|
Snap-action, 1NO, 1 NC
|
IP65
|
2 x M16 x1,5
|
Screw terminal
|
80 °C
|
10 A
|
240 V
|
-30 °C
|
100 ggr/min
|
CCC, CE, CSA US
|
Plastic
|
20x10^6
|
No
|
6085171109
|
| |

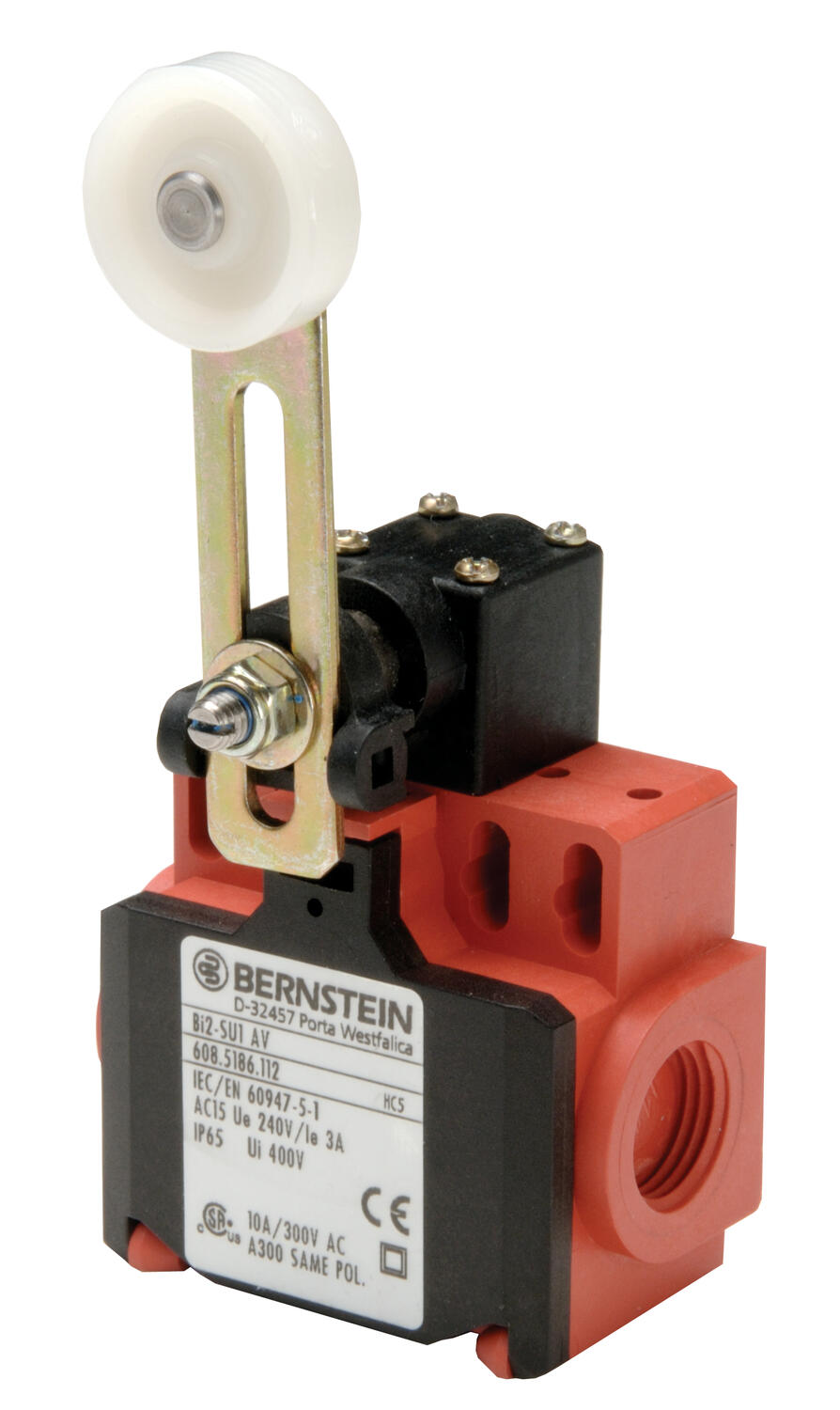

Limit switch BI2-SU1 AV
Art:
608.5186.112
Copied
|
Snap-action, 1NO, 1 NC
|
IP65
|
2 x M16 x1,5
|
Screw terminal
|
80 °C
|
10 A
|
240 V
|
-30 °C
|
100 ggr/min
|
CCC, CE, CSA US
|
Plastic
|
20x10^6
|
No
|
6085186112
|
| |
Limit switch BI2-SU1Z RIW
Art:
608.5167.108
Copied
|
Snap-action, 1NO, 1 NC
|
IP65
|
2 x M16 x1,5
|
Screw terminal
|
80 °C
|
10 A
|
240 V
|
-30 °C
|
100 ggr/min
|
CCC, CE, CSA US
|
Plastic
|
20x10^6
|
No
|
6085167108
|
| |
Limit switch BI2-SU1Z AH
Art:
608.5185.111
Copied
|
Snap-action, 1NO, 1 NC
|
IP65
|
2 x M16 x1,5
|
Screw terminal
|
80 °C
|
10 A
|
240 V
|
-30 °C
|
100 ggr/min
|
CCC, CE, CSA US
|
Plastic
|
20x10^6
|
No
|
6085185111
|
| |

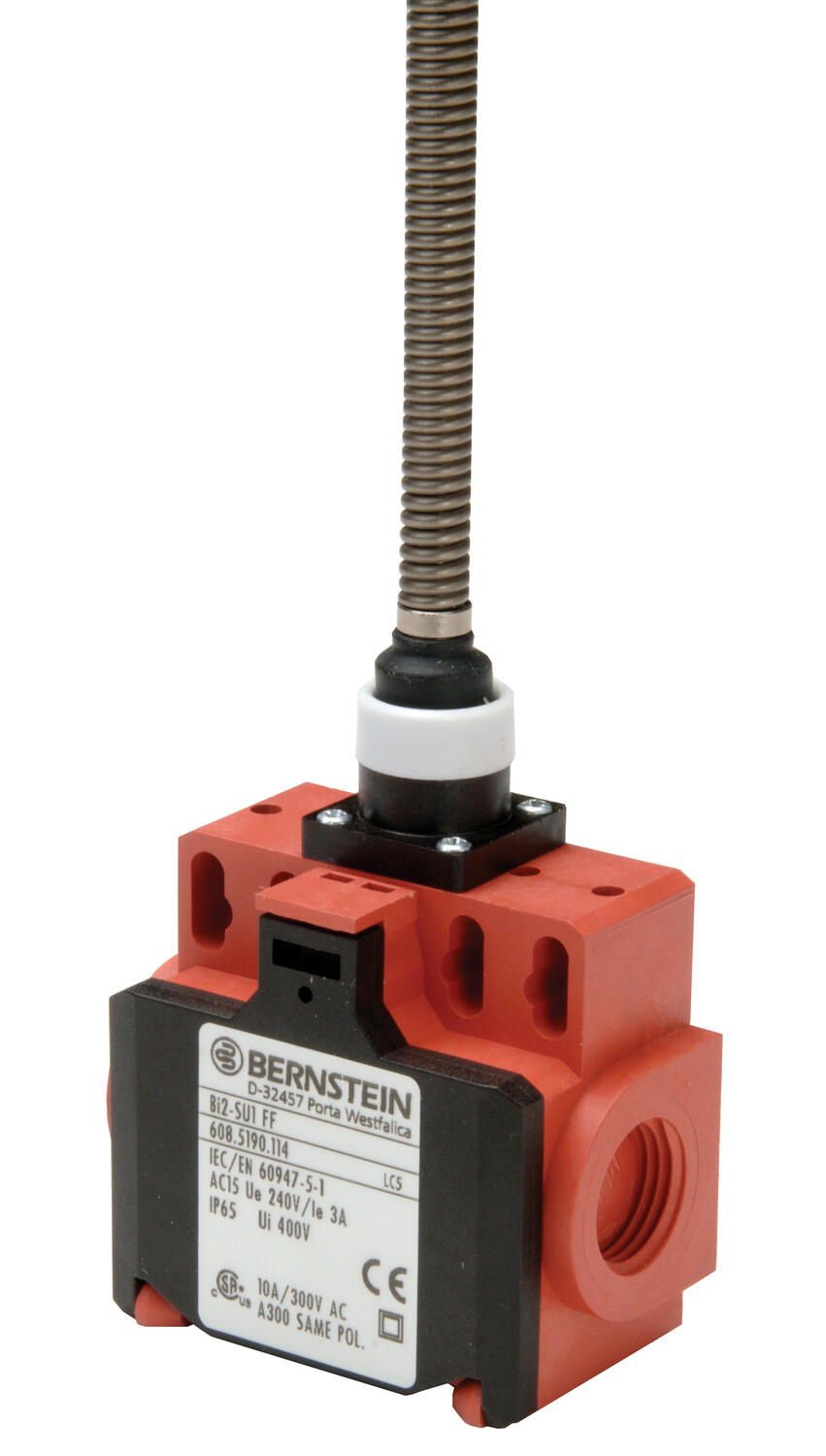

Limit switch BI2-SU1 FF
Art:
608.5190.114
Copied
|
Snap-action, 1NO, 1 NC
|
IP65
|
2 x M16 x1,5
|
Screw terminal
|
80 °C
|
10 A
|
240 V
|
-30 °C
|
100 ggr/min
|
CCC, CE, CSA US
|
Plastic
|
20x10^6
|
No
|
6085190114
|
|
Select a variant in the list
