| Contact type | Snap-action, 1NO, 1 NC |
|---|---|
| IP Class | IP65 |
| Cable entry | 3 x M20 x1,5 |
| Connection Thread | Screw terminal |
| Temperature range to | 80 °C |
| Conventional Thermal Current | 10 A |
| Voltage AC max | 240 V |
| Temperature range from | -30 °C |
| Operating Frequency Max | 100 ggr/min |
|---|---|
| Approvals | CE, CSA, UL |
| Material of body | Metal |
| B10d | 20x10^6 |
| Atex approved | No |
| Manufacturer Part No | 6033353016 |
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Articles | Contact type | IP Class | Cable entry | Connection Thread | Temperature range to | Conventional Thermal Current | Voltage AC max | Temperature range from | Operating Frequency Max | Approvals | Material of body | B10d | Atex approved | Manufacturer Part No | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

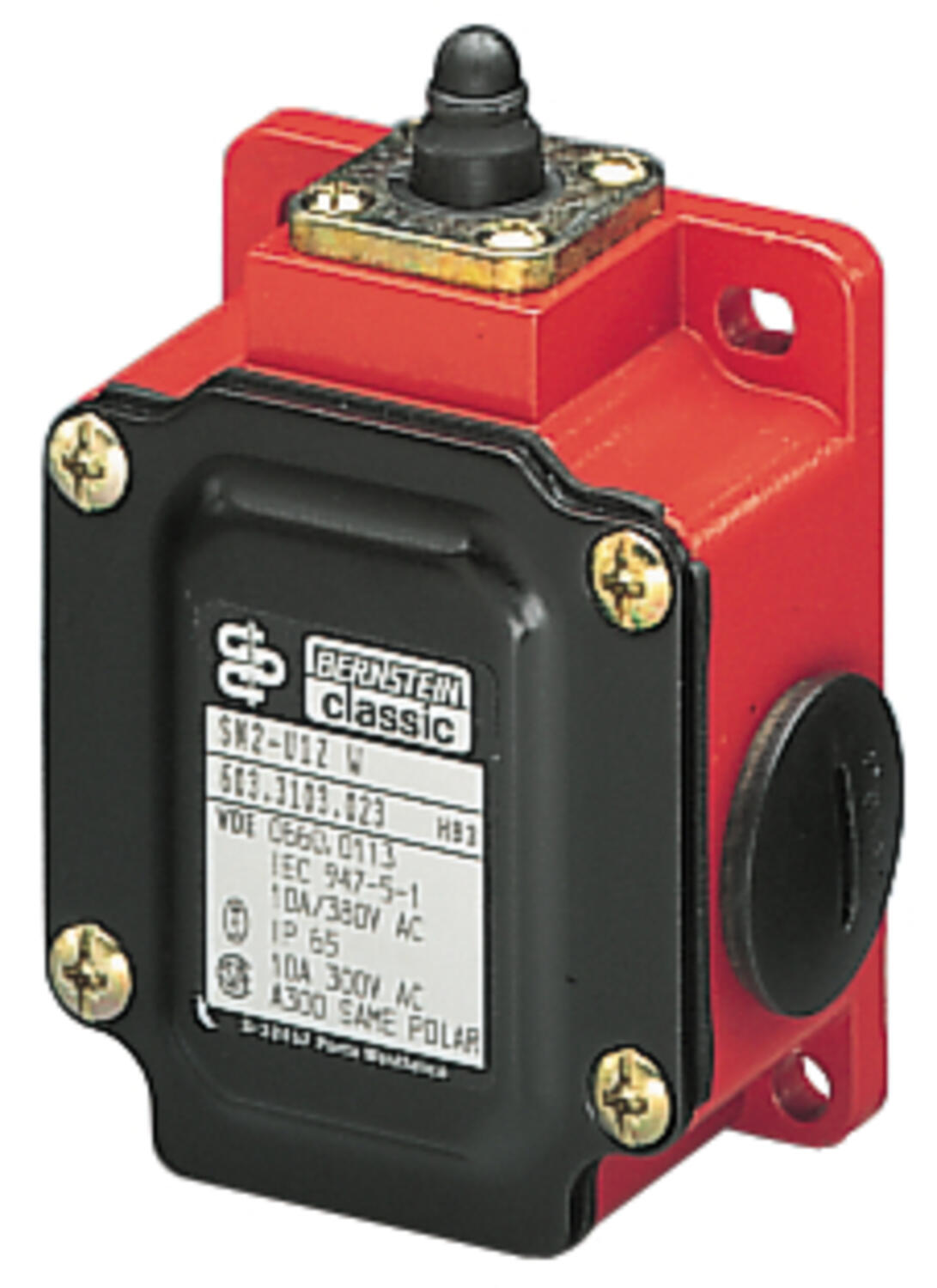

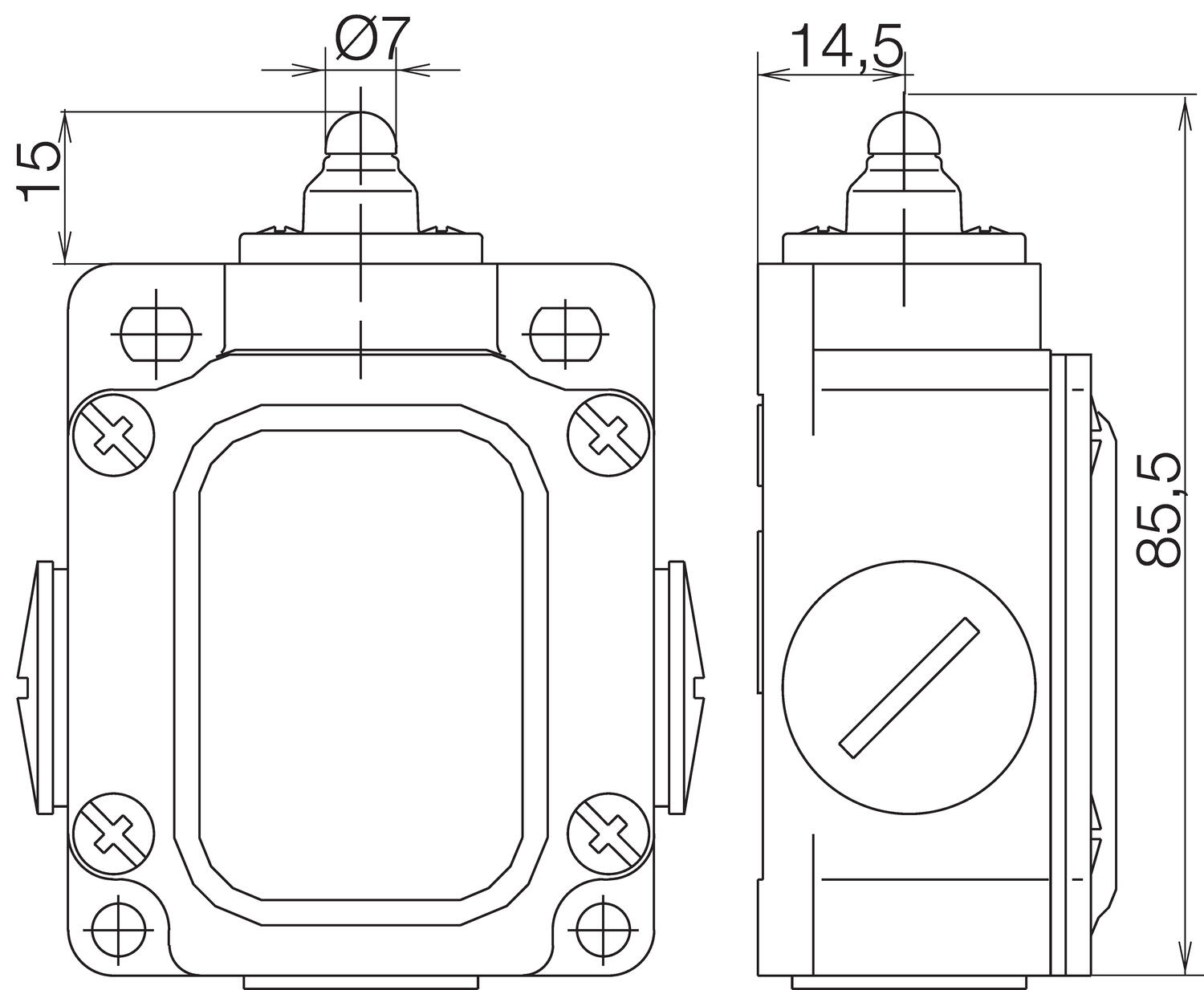

Limit switch SN2-SU1Z W
Art:
603.3353.016
Copied
|
Snap-action, 1NO, 1 NC
|
IP65
|
3 x M20 x1,5
|
Screw terminal
|
80 °C
|
10 A
|
240 V
|
-30 °C
|
100 ggr/min
|
CE, CSA, UL
|
Metal
|
20x10^6
|
No
|
6033353016
|
| |
Limit switch SN2-SU1Z RIW
Art:
603.3367.017
Copied
|
Snap-action, 1NO, 1 NC
|
IP65
|
3 x M20 x1,5
|
Screw terminal
|
80 °C
|
10 A
|
240 V
|
-30 °C
|
100 ggr/min
|
CE, CSA, UL
|
Metal
|
20x10^6
|
No
|
6033367017
|
| |

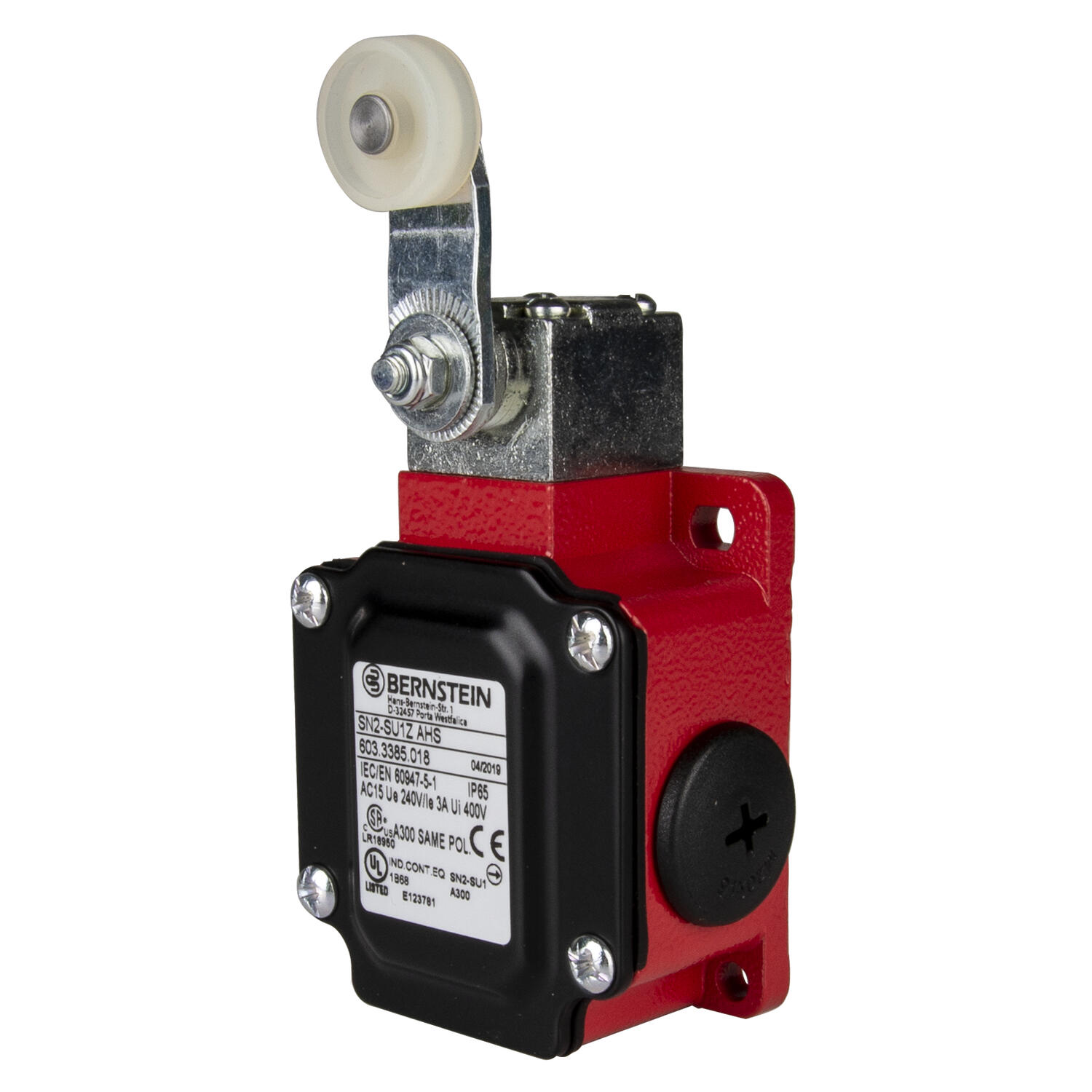

SN2-SU1Z AHS LIMIT SWITCH
Art:
603.3385.018
Copied
|
Snap-action, 1NO, 1 NC
|
IP65
|
3 x M20 x1,5
|
Screw terminal
|
80 °C
|
10 A
|
240 V
|
-30 °C
|
100 ggr/min
|
CE, CSA US
|
Metal
|
20x10^6
|
No
|
6033385018
|
| |
Limit switch SN2-SU1 LIW
Art:
603.3194.022
Copied
|
Snap-action, 1NO, 1 NC
|
IP65
|
3 x M20 x1,5
|
Screw terminal
|
80 °C
|
10 A
|
240 V
|
-30 °C
|
100 ggr/min
|
CE, CSA US, UL
|
Metal
|
20x10^6
|
No
|
6033194022
|
| |

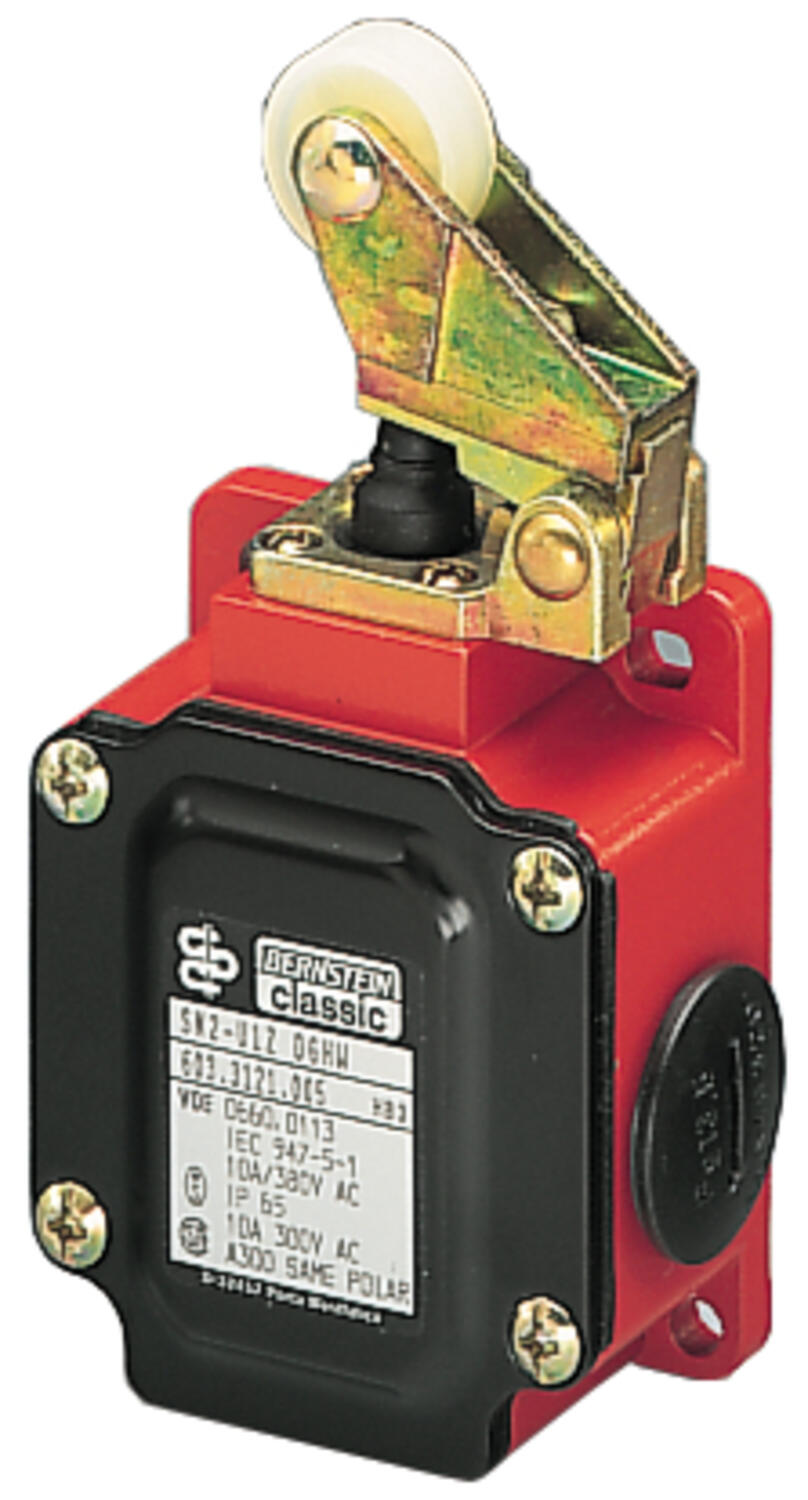

Limit switch SN2-SU1Z DGHW
Art:
603.3371.004
Copied
|
Snap-action, 1NO, 1 NC
|
IP65
|
3 x M20 x1,5
|
Screw terminal
|
80 °C
|
10 A
|
240 V
|
-30 °C
|
100 ggr/min
|
CE, CSA, UL
|
Metal
|
20x10^6
|
No
|
6033371004
|
| |

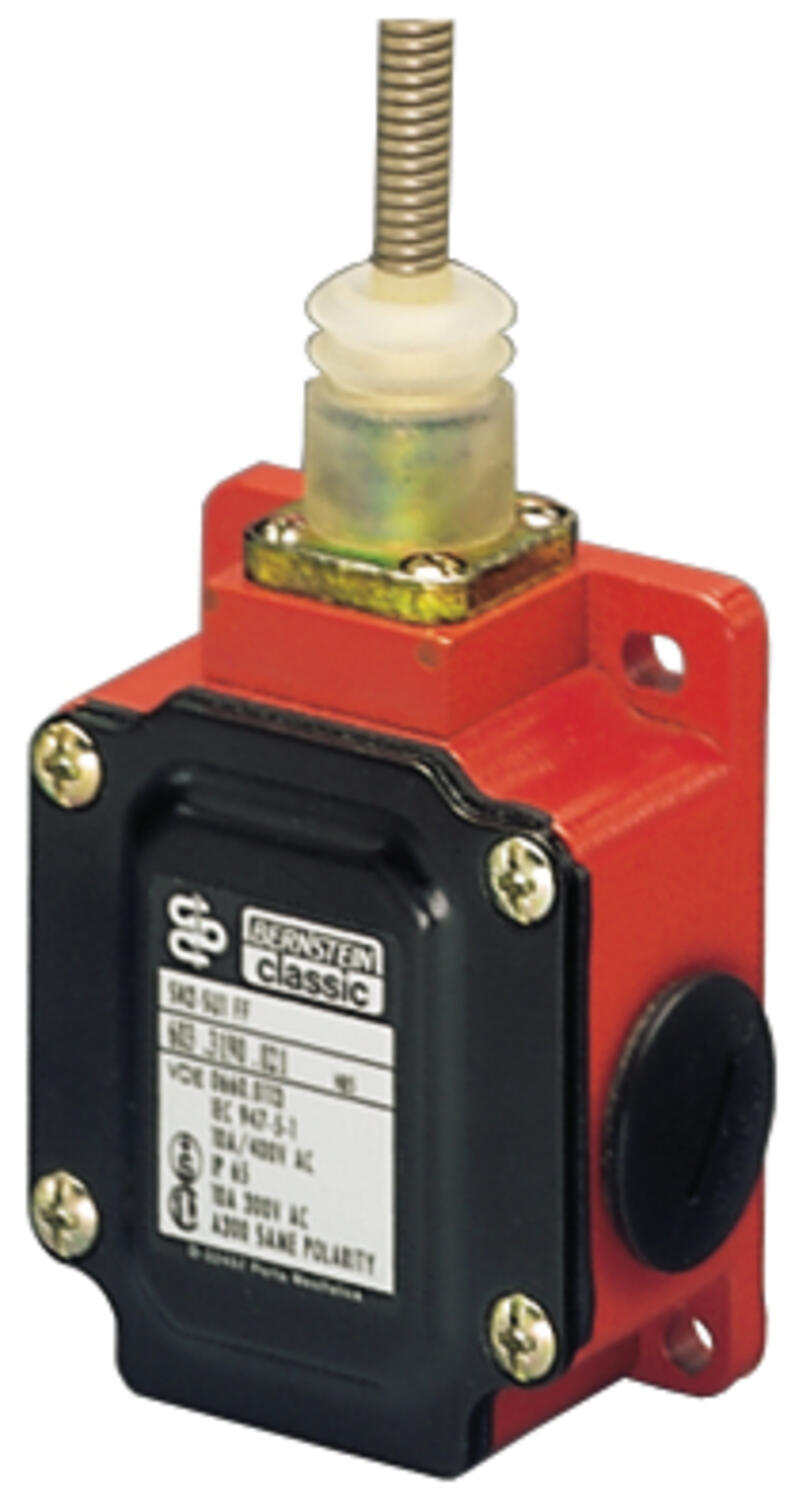

Limit switch SN2-SU1 FF
Art:
603.3190.021
Copied
|
Snap-action, 1NO, 1 NC
|
IP65
|
3 x M20 x1,5
|
Screw terminal
|
80 °C
|
10 A
|
240 V
|
-30 °C
|
100 ggr/min
|
CE, CSA, UL
|
Metal
|
20x10^6
|
No
|
6033190021
|
|
Select a variant in the list
