BERNSTEIN

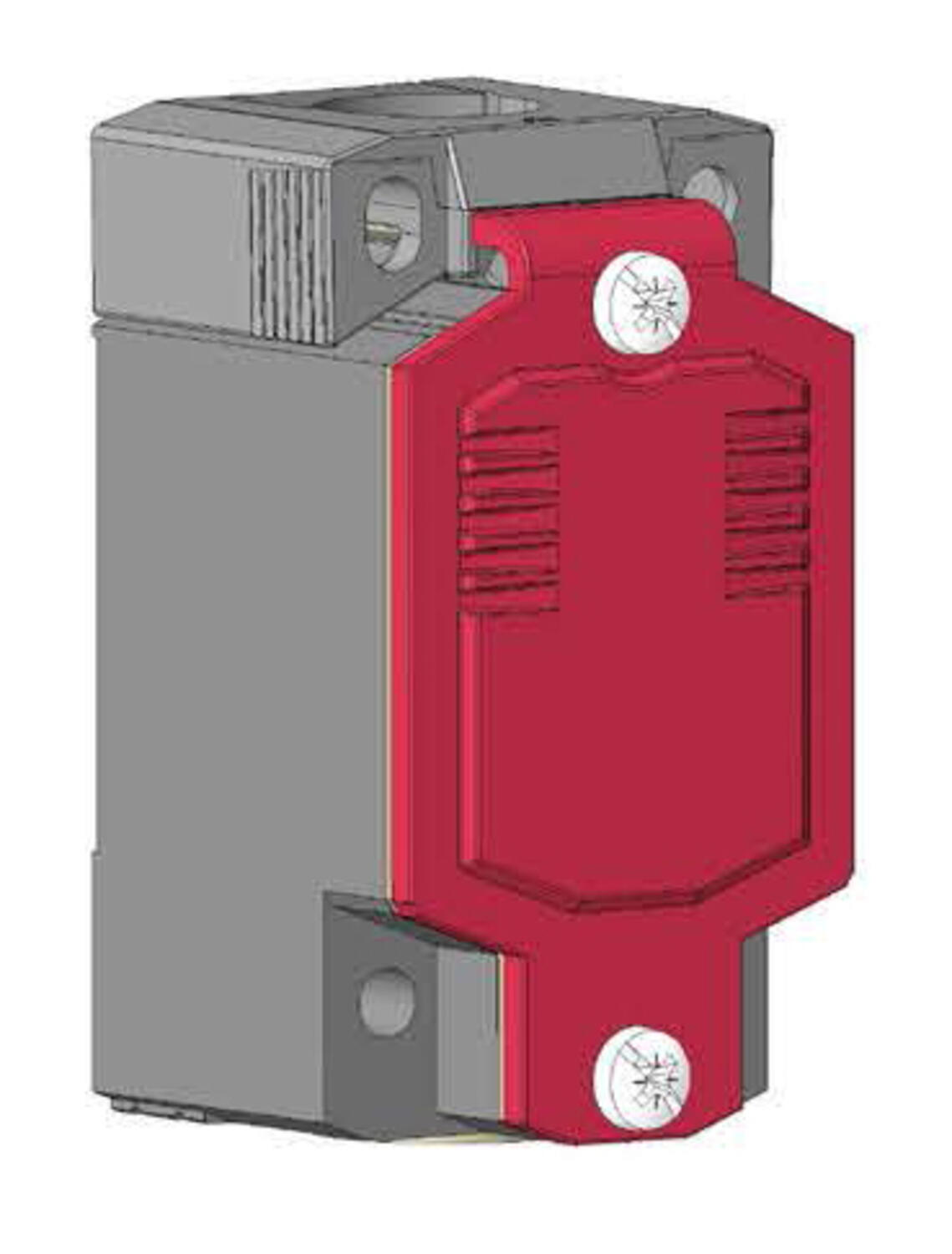

MN78 Modular Limit Switch

  • The assembly consists of aluminiumbody and actuator
  • Easy to assemble without tools
  • Actuator positioning in increments of 45 degrees
  • IP66&IP67

Selected variant

bernstein.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Contact type Snap-action, 1NO, 1 NC
IP Class IP66, IP67
Voltage DC max 24 V
Cable entry 1 x M20 x1,5
Connection Thread Screw terminal
Temperature range to 75 °C
Conventional Thermal Current 5 A
Voltage AC max 240 V
Temperature range from -30 °C
Material of body Metal
Atex approved No
Manufacturer Part No 6087000102

Downloads

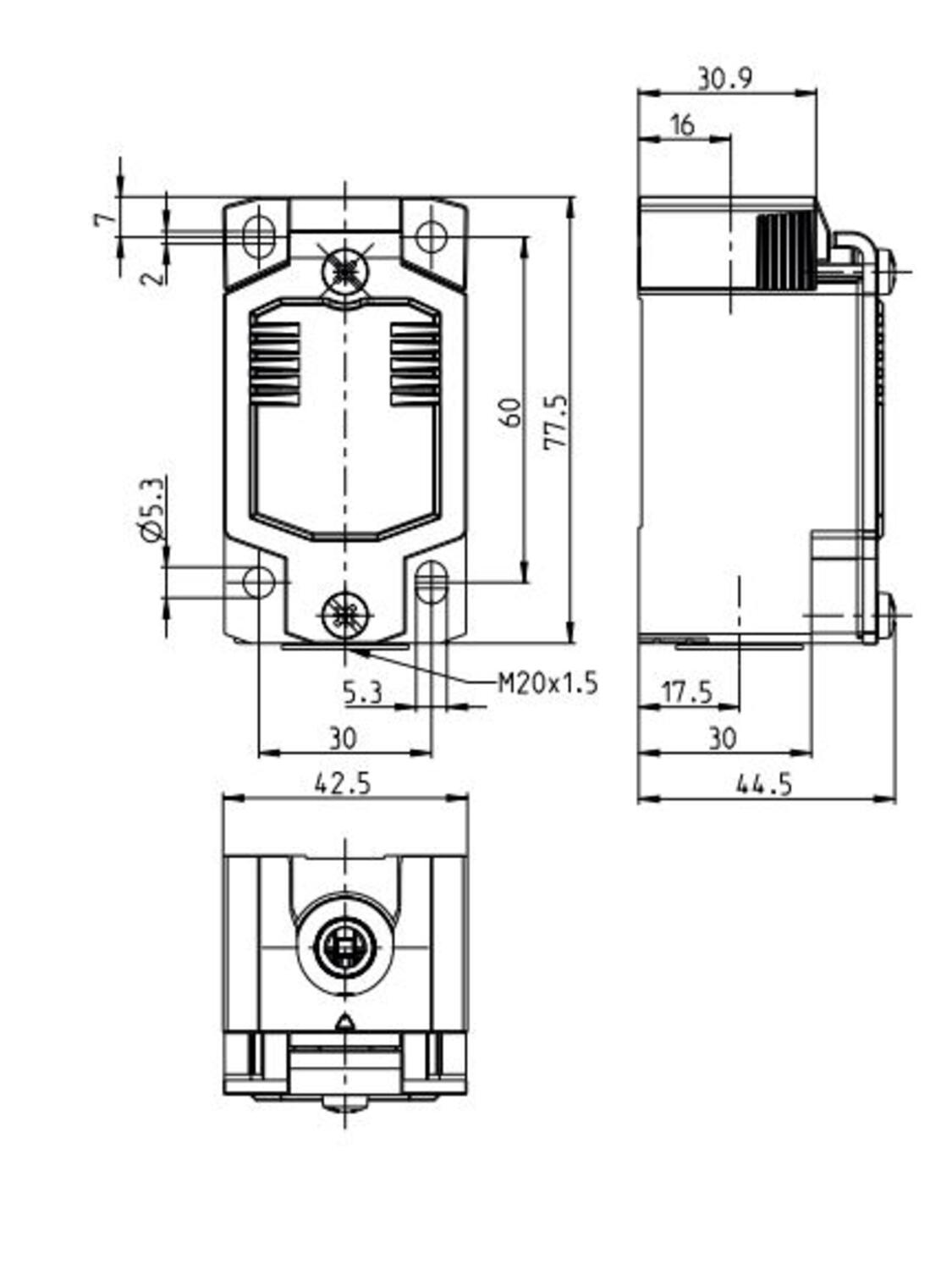

Measurements and connections

Technical illustrations

Accessories

Related products

Articles Contact type IP Class Voltage DC max Cable entry Connection Thread Temperature range to Conventional Thermal Current Voltage AC max Temperature range from Material of body Atex approved Manufacturer Part No
Limit switch body MN78-S11 M20, 1NO/1NC
Art:
608.7000.102 Copied
Snap-action, 1NO, 1 NC
IP66, IP67
24 V
1 x M20 x1,5
Screw terminal
75 °C
5 A
240 V
-30 °C
Metal
No
6087000102
Limit switch body MN78-11 M20, 1NO/1NC
Art:
608.7000.103 Copied
Slow-action, 1NO, 1 NC
IP66, IP67
24 V
1 x M20 x1,5
Screw terminal
75 °C
5 A
240 V
-30 °C
Metal
No
6087000103
Limit switch body MN78-S20 M20, 2NC
Art:
608.7000.104 Copied
Snap-action, 2 NC
IP66, IP67
24 V
1 x M20 x1,5
Screw terminal
75 °C
5 A
240 V
-30 °C
Metal
No
6087000104
Art:
608.7000.106 Copied
Snap-action, 2 NO
IP66, IP67
24 V
1 x M20 x1,5
Screw terminal
75 °C
5 A
240 V
-30 °C
Metal
No
6087000106

Selected variant

Select a variant in the list
