| Contact type | Snap-action, 1NO, 1 NC |
|---|---|
| IP Class | IP66, IP67 |
| Voltage DC max | 24 V |
| Cable entry | 1 x M20 x1,5 |
| Connection Thread | Screw terminal |
| Temperature range to | 75 °C |
| Conventional Thermal Current | 5 A |
| Voltage AC max | 240 V |
|---|---|
| Temperature range from | -30 °C |
| Material of body | Metal |
| Atex approved | No |
| Manufacturer Part No | 6087000001 |
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Articles | Contact type | IP Class | Voltage DC max | Cable entry | Connection Thread | Temperature range to | Conventional Thermal Current | Voltage AC max | Temperature range from | Material of body | Atex approved | Manufacturer Part No | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

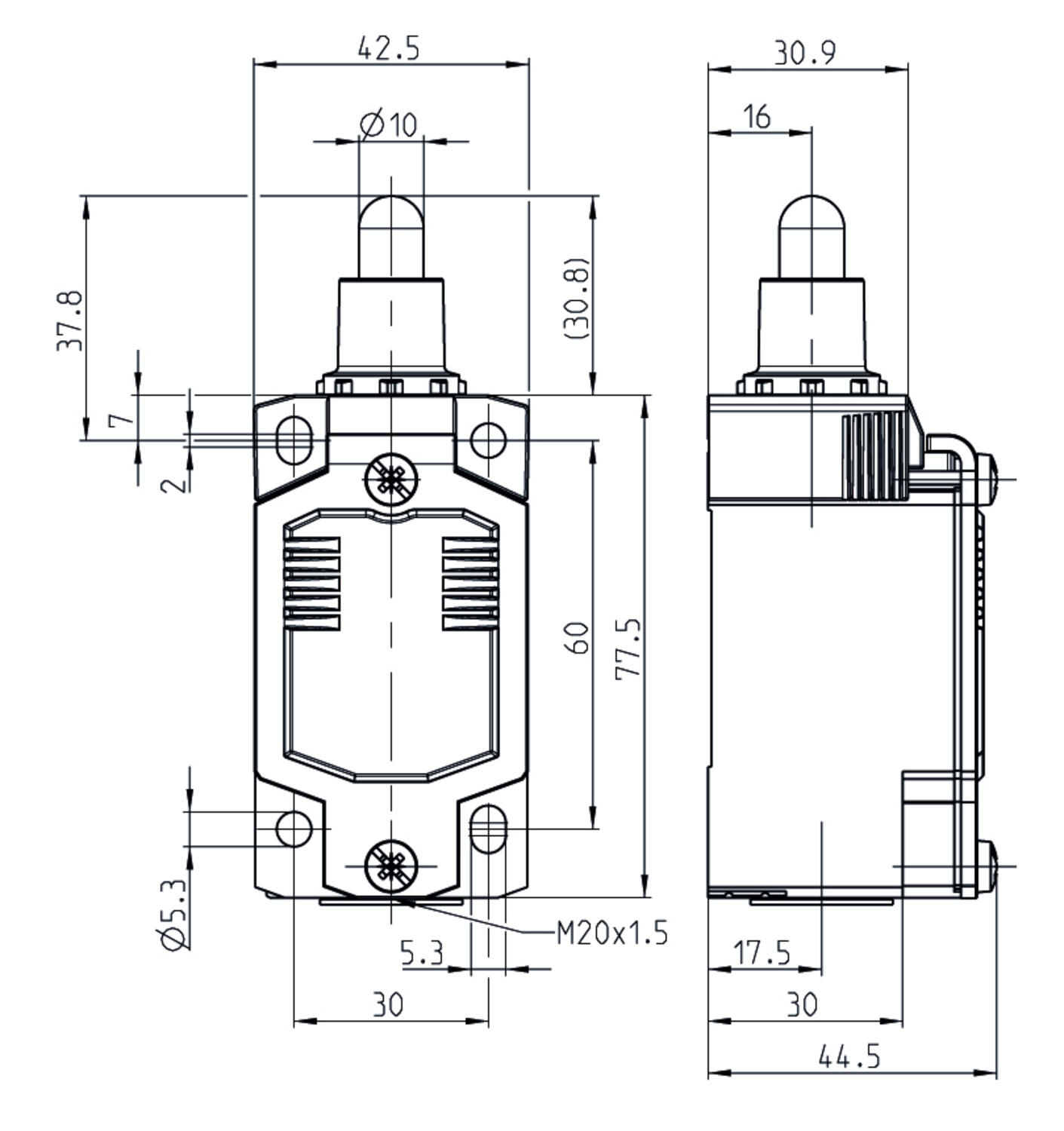

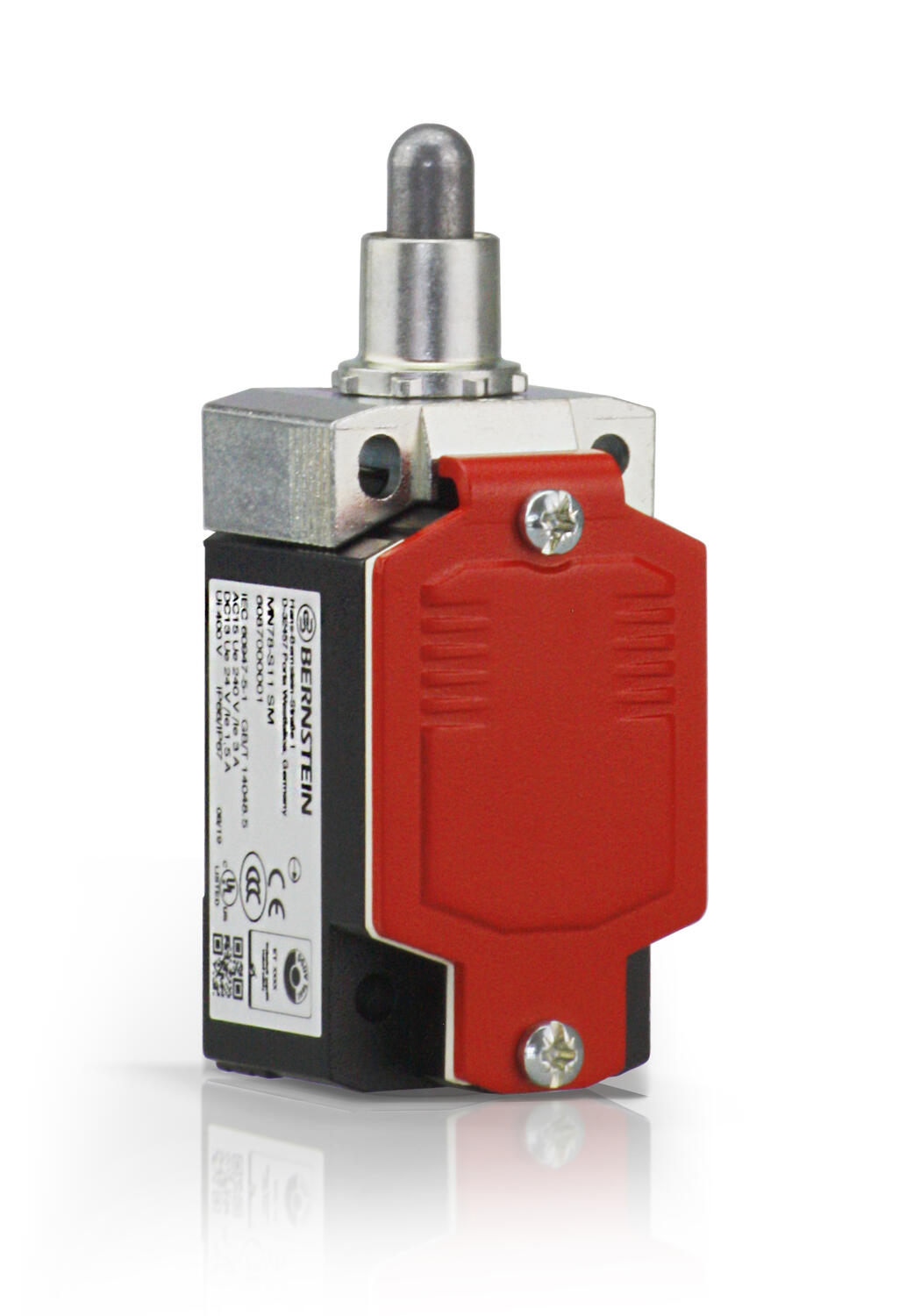

LIMIT SWITCH MN78-S11 SM 1NO/1NC
Art:
608.7000.001
Copied
|
Snap-action, 1NO, 1 NC
|
IP66, IP67
|
24 V
|
1 x M20 x1,5
|
Screw terminal
|
75 °C
|
5 A
|
240 V
|
-30 °C
|
Metal
|
No
|
6087000001
|
| |

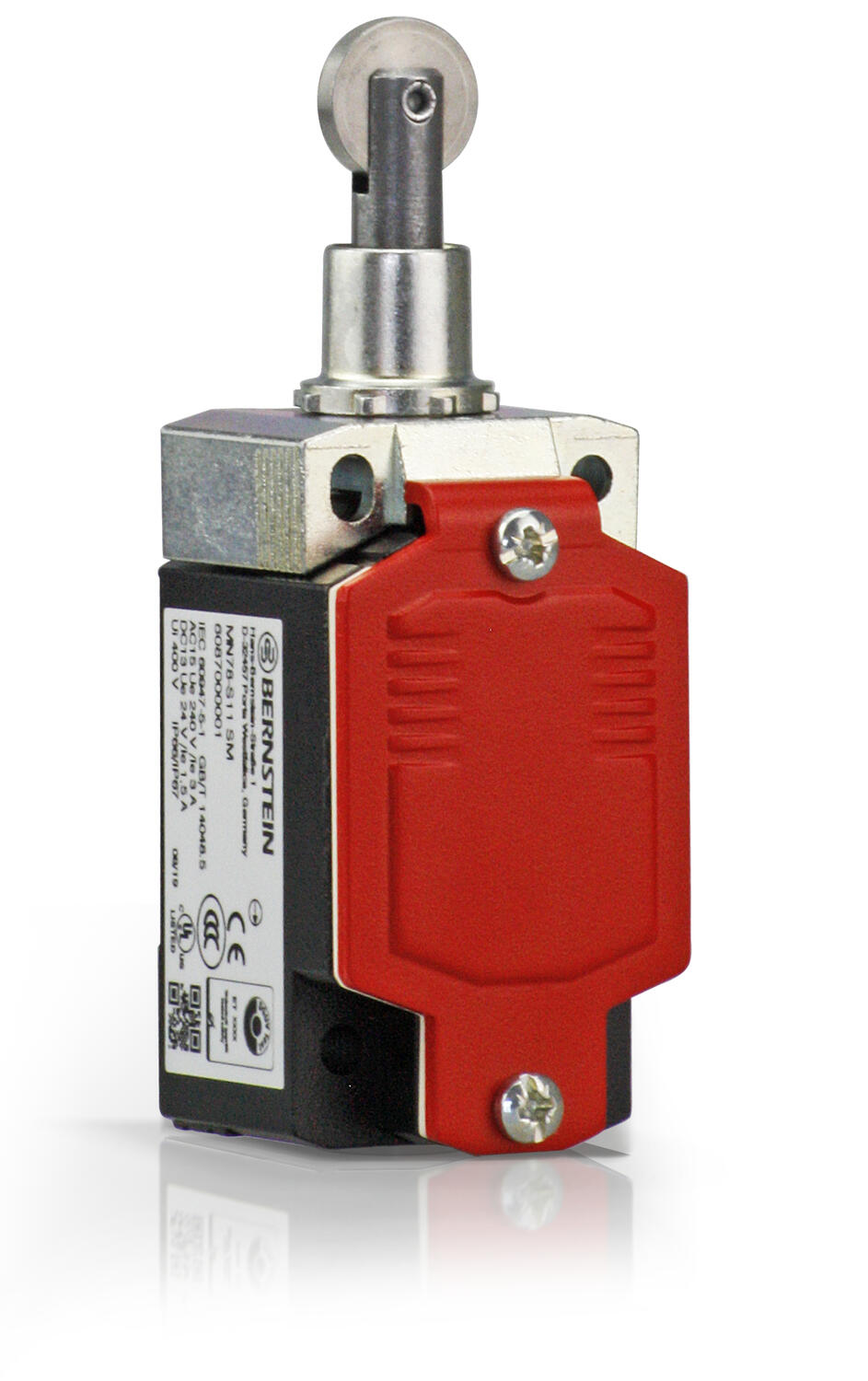

LIMIT SWITCH MN78-S11 RM 1NO/1NC
Art:
608.7000.013
Copied
|
Snap-action, 1NO, 1 NC
|
IP66, IP67
|
24 V
|
1 x M20 x1,5
|
Screw terminal
|
75 °C
|
5 A
|
240 V
|
-30 °C
|
Metal
|
No
|
6087000013
|
| |

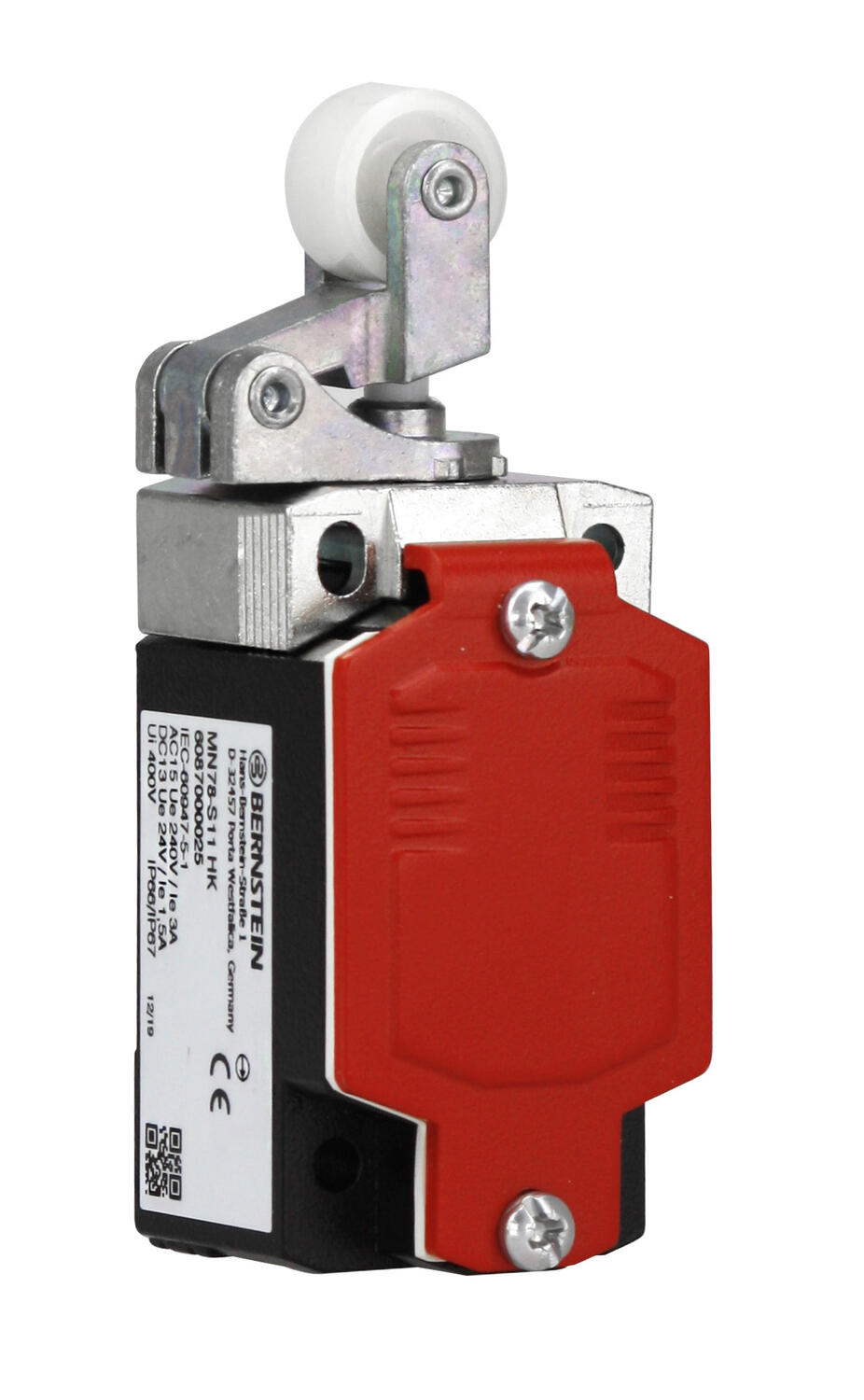

LIMIT SWITCH MN78-S11 HK 1NO/1NC
Art:
608.7000.025
Copied
|
Snap-action, 1NO, 1 NC
|
IP66, IP67
|
24 V
|
1 x M20 x1,5
|
Screw terminal
|
75 °C
|
5 A
|
240 V
|
-30 °C
|
Metal
|
No
|
6087000025
|
| |

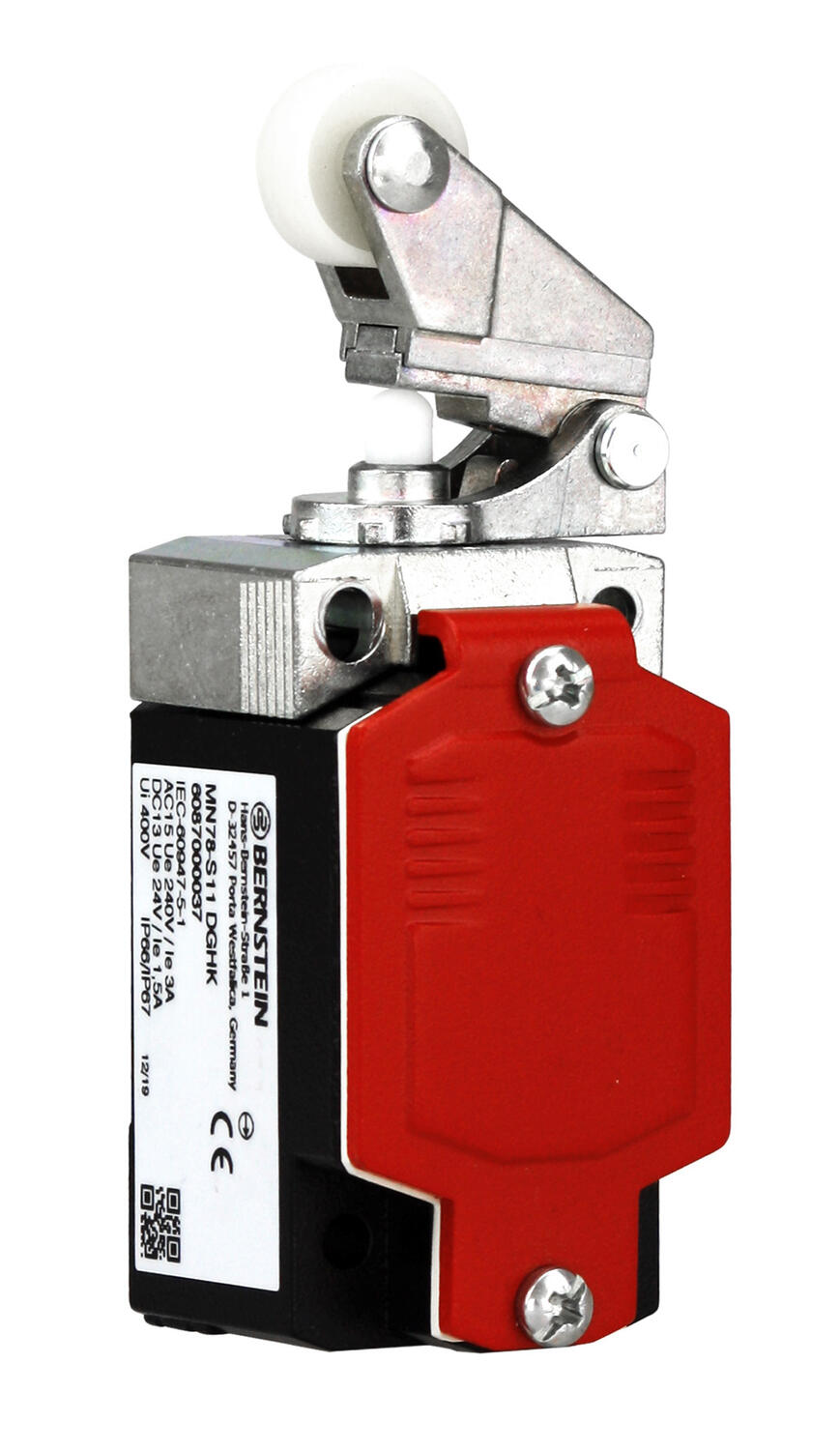

LIMIT SWITCH MN78-S11 DGHK 1NO/1NC
Art:
608.7000.037
Copied
|
Snap-action, 1NO, 1 NC
|
IP66, IP67
|
24 V
|
1 x M20 x1,5
|
Screw terminal
|
75 °C
|
5 A
|
240 V
|
-30 °C
|
Metal
|
No
|
6087000037
|
| |

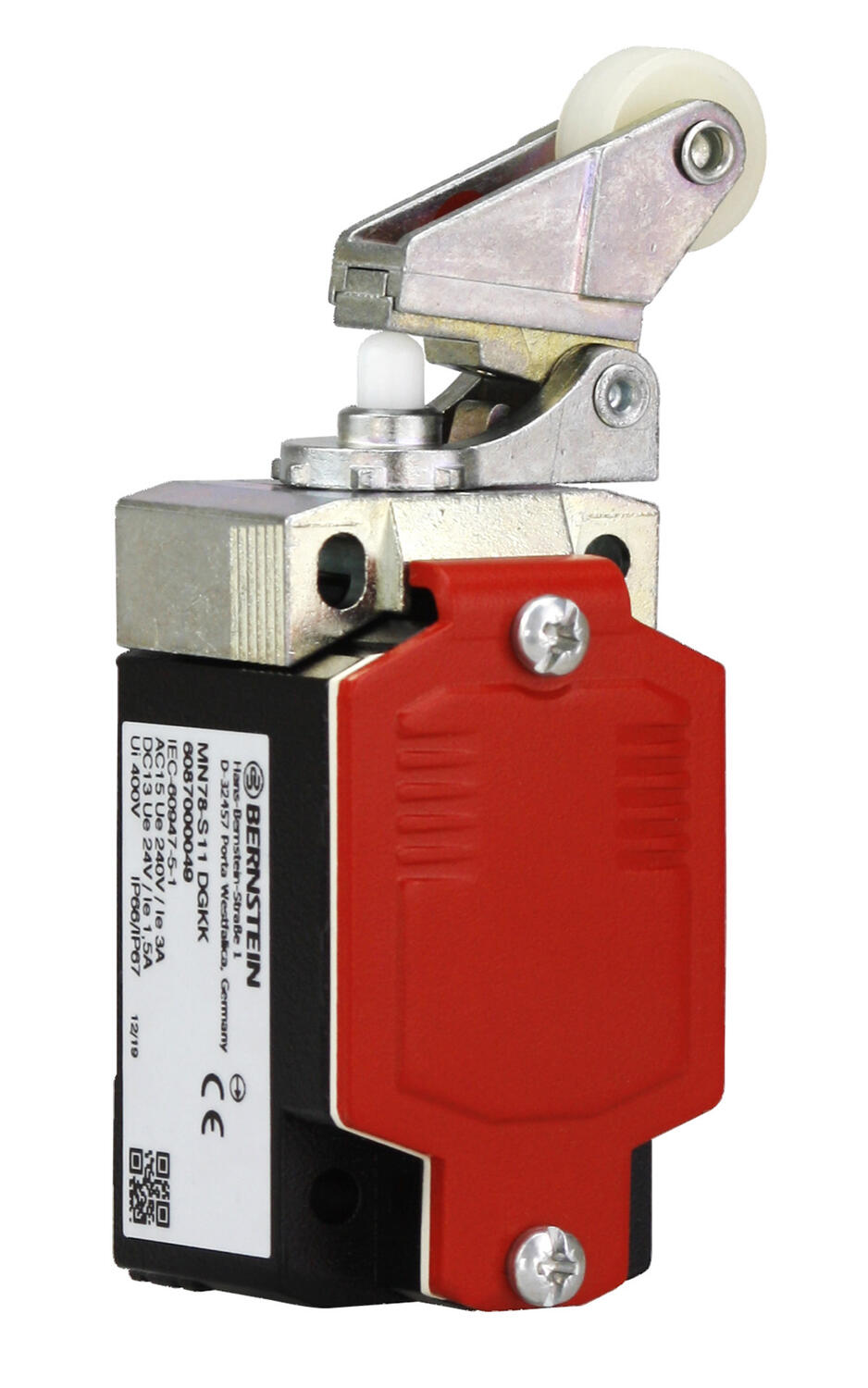

LIMIT SWITCH MN78-S11 DGKK 1NO/1NC
Art:
608.7000.049
Copied
|
Snap-action, 1NO, 1 NC
|
IP66, IP67
|
24 V
|
1 x M20 x1,5
|
Screw terminal
|
75 °C
|
5 A
|
240 V
|
-30 °C
|
Metal
|
No
|
6087000049
|
| |

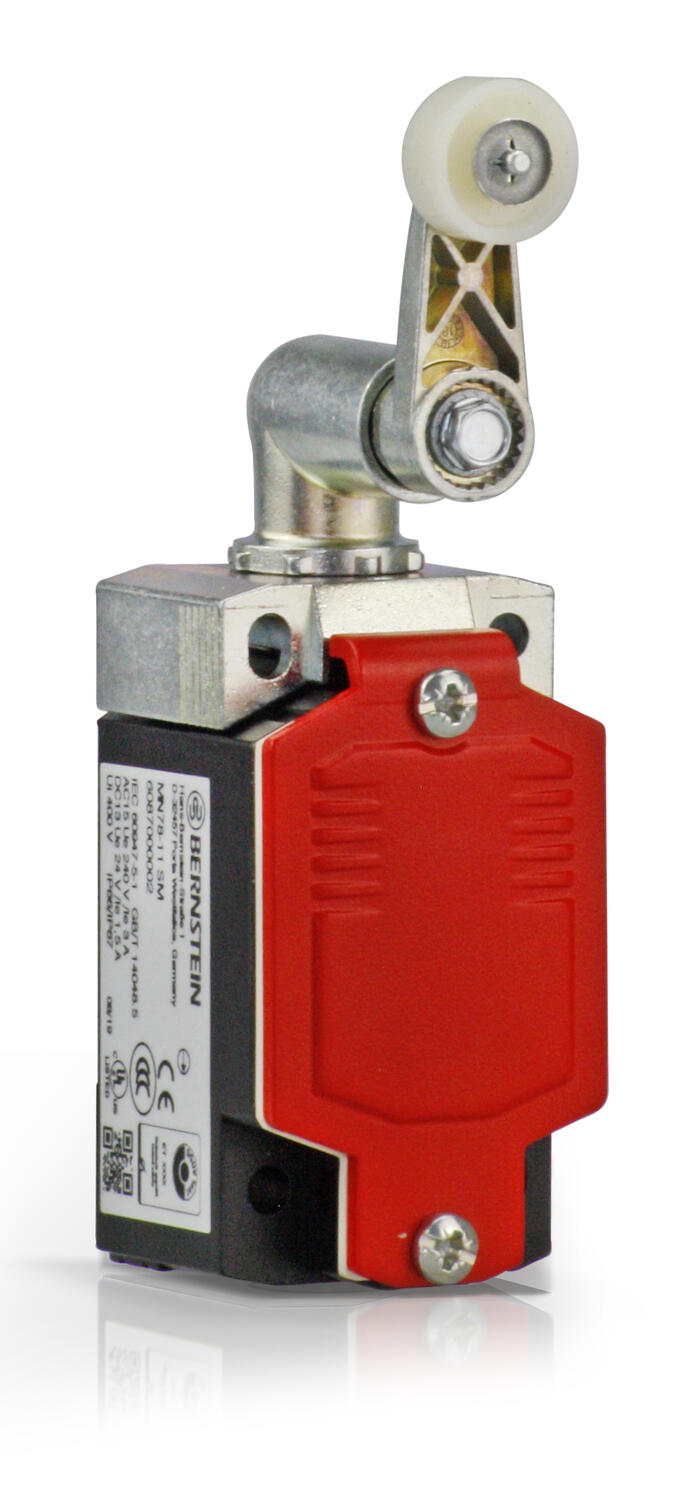

LIMIT SWITCH MN78-S11 AHK 1NO/1NC
Art:
608.7000.061
Copied
|
Snap-action, 1NO, 1 NC
|
IP66, IP67
|
24 V
|
1 x M20 x1,5
|
Screw terminal
|
75 °C
|
5 A
|
240 V
|
-30 °C
|
Metal
|
No
|
6087000061
|
| |

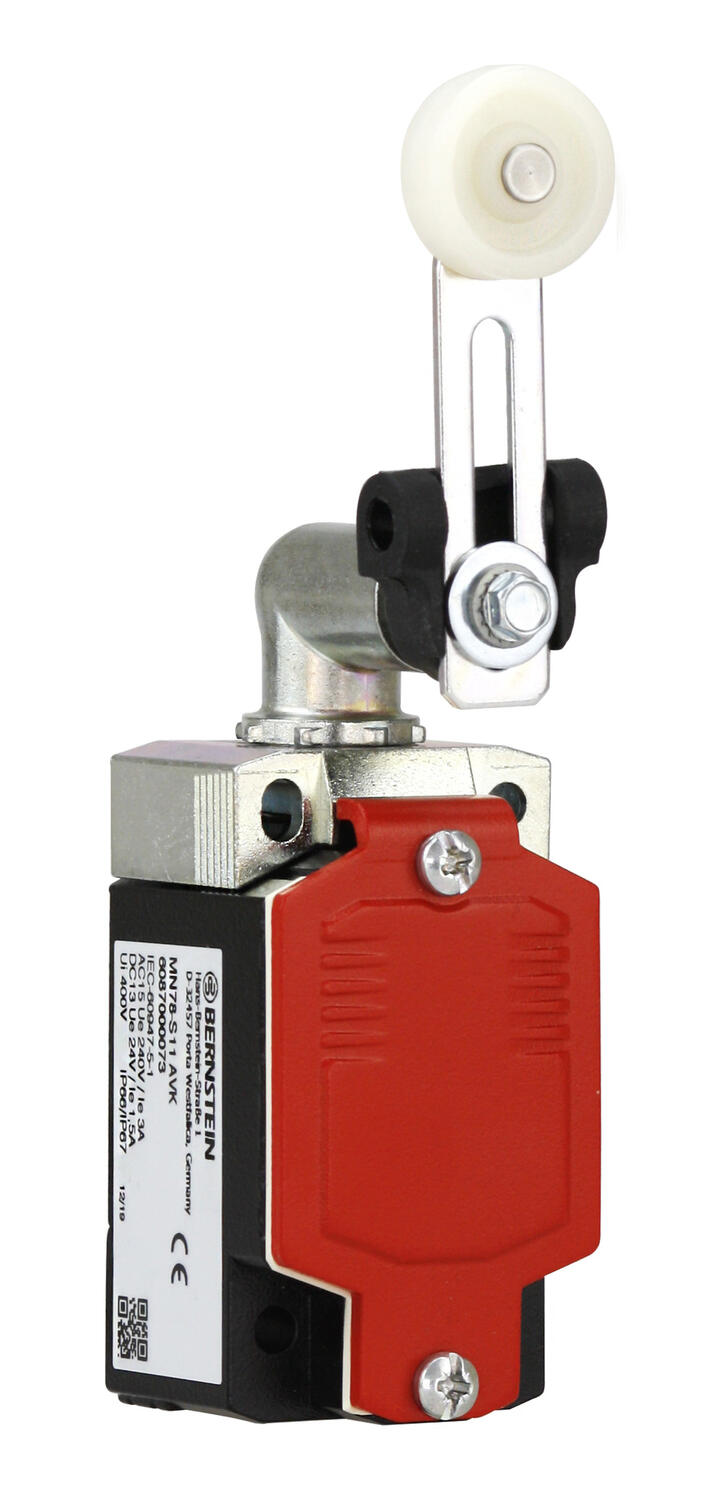

LIMIT SWITCH MN78-S11 AVK 1NO/1NC
Art:
608.7000.073
Copied
|
Snap-action, 1NO, 1 NC
|
IP66, IP67
|
24 V
|
1 x M20 x1,5
|
Screw terminal
|
75 °C
|
5 A
|
240 V
|
-30 °C
|
Metal
|
No
|
6087000073
|
| |

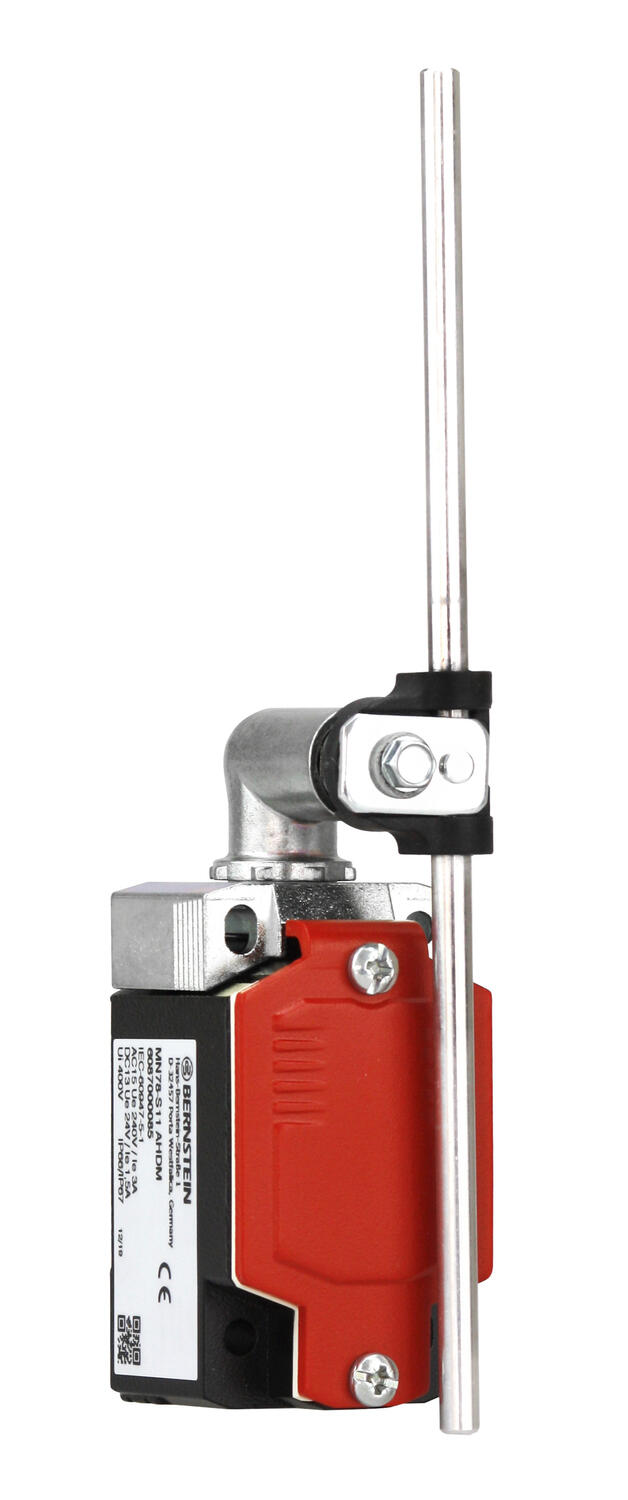

LIMIT SWITCH MN78-S11 AHDM 1NO/1NC
Art:
608.7000.085
Copied
|
Snap-action, 1NO, 1 NC
|
IP66, IP67
|
24 V
|
1 x M20 x1,5
|
Screw terminal
|
75 °C
|
5 A
|
240 V
|
-30 °C
|
Metal
|
No
|
6087000085
|
|
Select a variant in the list
