Hokuyo UTM Scanning Rangefinder

30m and 270° scanning range. Suitable for robots with higher moving speed because of the longer range and fast response.



  •  Long Detection range: 30m
  • Wide Angle: 270°
  • Outdoor Environment
  • Compact and Light: W60xD60xH87mm, 370g
Read more
  • Detecting distance 30 m
  • Scanning time 25ms
  • Scanning angle 270°
  • USB or Ethernet interface

Selected variant

Hokuyo_logo.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Supply voltage 12VDC±10%(Current consumptlon:Max:1A,Normal:0.7A)
Scan speed 25 ms
Sensing distance min 0,1 m

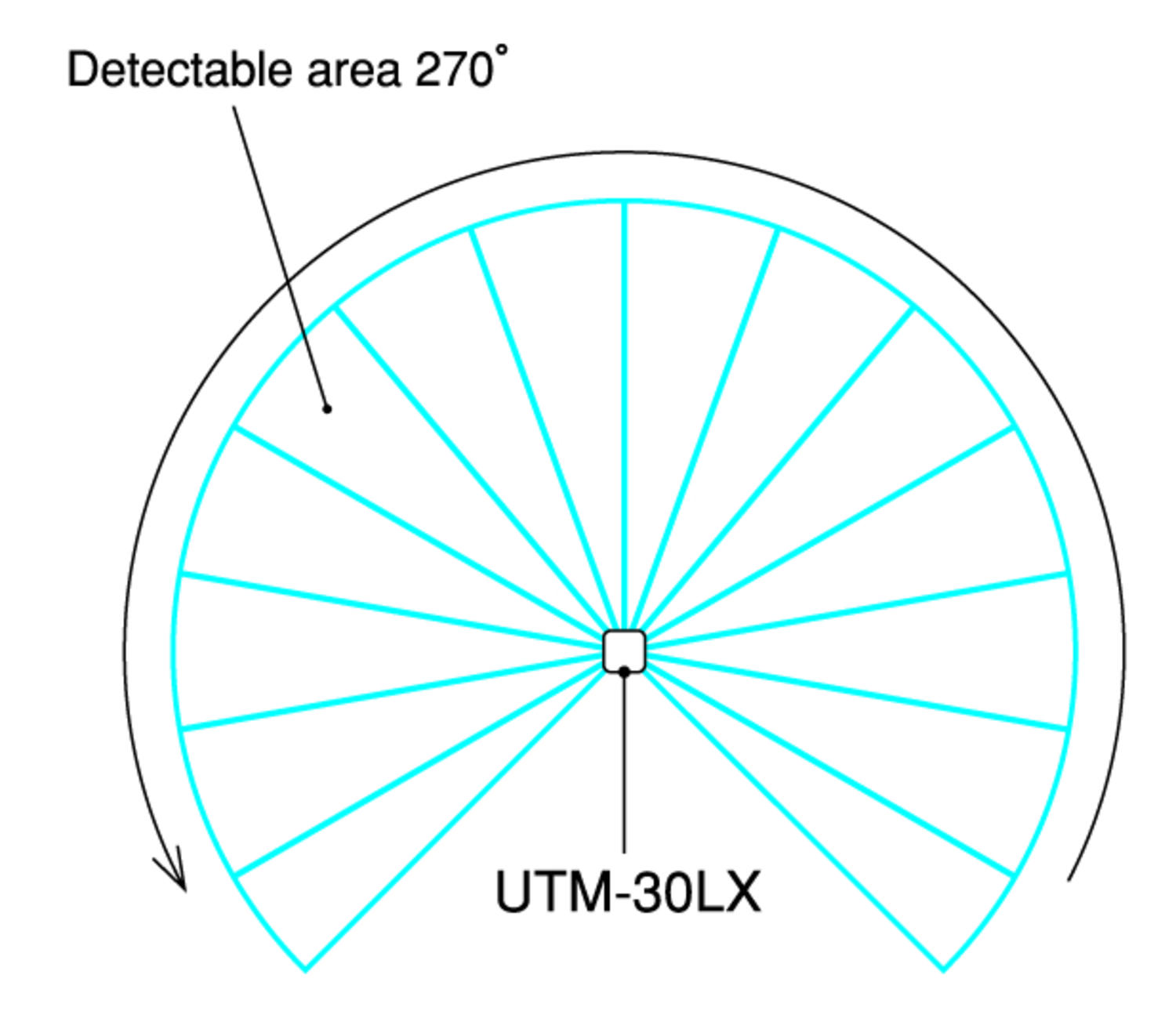

Scanning Angle 270 °
Sensing distance max 30 m
Resolution 0.25°(360°/1,440 steps)
Weight 0,37 kg
Temperature range to 50 °C
Length 60 mm
Width 60 mm
Temperature range from -10 °C
Height 87 mm

Downloads

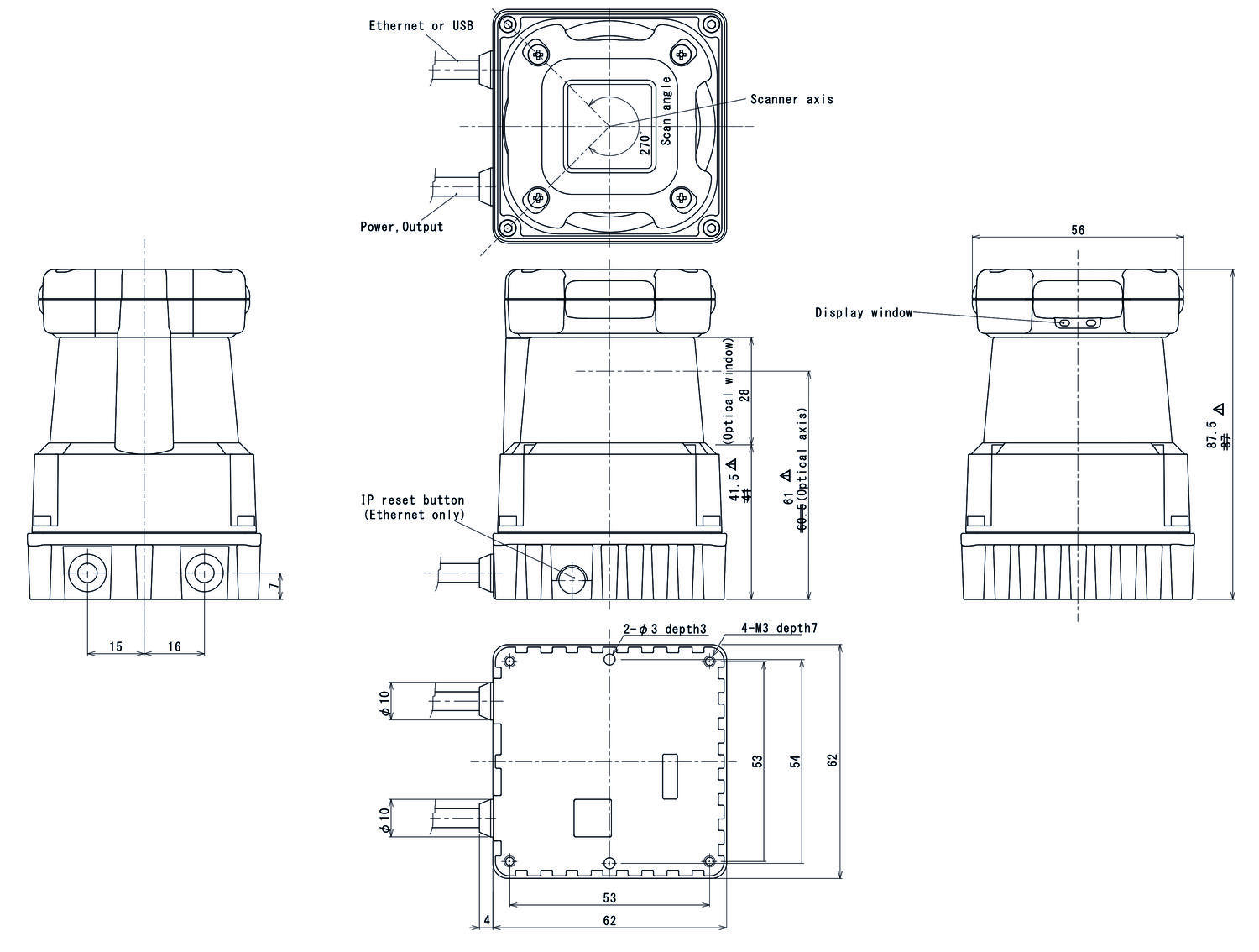

Measurements and connections

Technical illustrations

Product description

30m and 270° scanning range. Suitable for robots with higher moving speed because of the longer range and fast response.



  •  Long Detection range: 30m
  • Wide Angle: 270°
  • Outdoor Environment
  • Compact and Light: W60xD60xH87mm, 370g

Accessories

Related products

Articles Supply voltage Scan speed Sensing distance min Scanning Angle Sensing distance max Resolution Weight Temperature range to Length Width Temperature range from Height
UTM_mittaava.tif
Scanner, 0,1-30m, distance data output, USB
Art:
UTM-30LX Copied
12VDC±10%(Current consumptlon:Max:1A,Normal:0.7A)
25 ms
0,1 m
270 °
30 m
0.25°(360°/1,440 steps)
0,37 kg
50 °C
60 mm
60 mm
-10 °C
87 mm
UTM_mittaava.tif
Scanner, 0,1m-30m, distance data output, Ethernet
Art:
UTM-30LX-EW Copied
12VDC±10%(Current consumptlon:Max:1A,Normal:0.7A)
25 ms
0,1 m
270 °
30 m
0.25°(360°/1,440 steps)
0,37 kg
50 °C
60 mm
60 mm
-10 °C
87 mm

Selected variant

Select a variant in the list

Contact us
Please contact us for more information.
Send e-mail
