Hokuyo UST Scanning Rangefinder

SOKUIKI sensor for intelligent robots.



  • The smallest and the lightest of its kind, 130g
  • Mid-detection range 10m/20m, Wide detection angle 270, Fast response 25msec, High angular resolution 0.25°
  • It is possible to detect size, position and the moving direction of objects.
Read more
  • Detecting distance 10 tai 20 m
  • Scanning time 25ms
  • Scanning angle 270°
  • Ethernet interface

Selected variant

Hokuyo_logo.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Supply voltage 12 V DC/24 V DC (10-30 V DC rippel: max 10 %)
Scan speed 25 ms
Sensing distance min 0,06 m
Scanning Angle 270 °
Sensing distance max 10 m
Resolution 0,25°
IP Class IP65
Weight 0,13 kg
Temperature range to 50 °C
Length 50 mm
Width 50 mm
Temperature range from -10 °C
Material of body Aluminium, Polycarbonate
Height 70 mm

Downloads

Measurements and connections

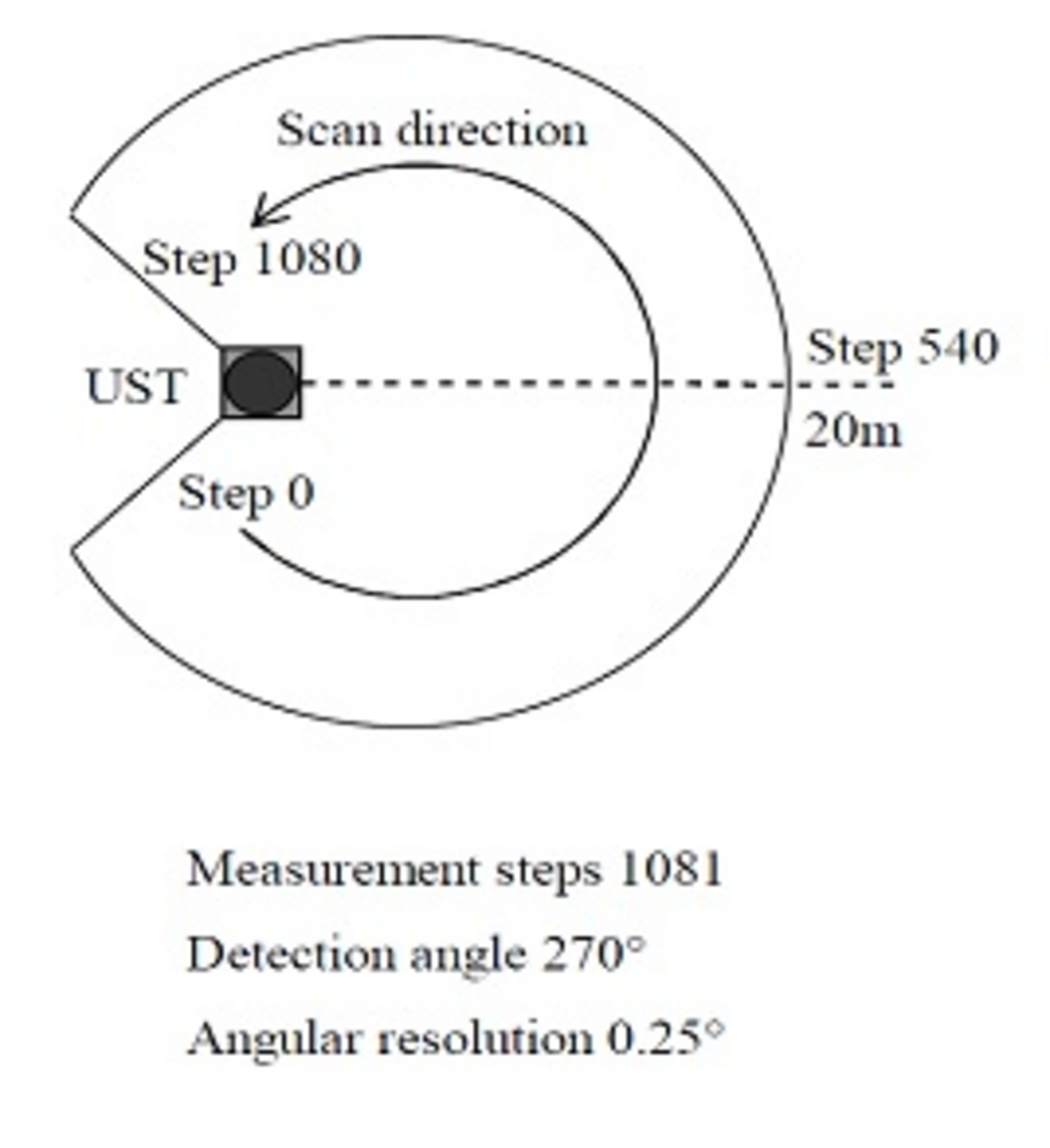

Technical illustrations

Product description

SOKUIKI sensor for intelligent robots.



  • The smallest and the lightest of its kind, 130g
  • Mid-detection range 10m/20m, Wide detection angle 270, Fast response 25msec, High angular resolution 0.25°
  • It is possible to detect size, position and the moving direction of objects.

Accessories

Related products

Articles Supply voltage Scan speed Sensing distance min Scanning Angle Sensing distance max Resolution IP Class Weight Temperature range to Length Width Temperature range from Material of body Height
UST.eps
Scanner, 0,06m-10m, area configuration/distance data output, Ethernet
Art:
UST-10LX Copied
12 V DC/24 V DC (10-30 V DC rippel: max 10 %)
25 ms
0,06 m
270 °
10 m
0,25°
IP65
0,13 kg
50 °C
50 mm
50 mm
-10 °C
Aluminium, Polycarbonate
70 mm
UST.eps
Scanner, 0,06-20m, area configuration/distance data output, Ethernet
Art:
UST-20LX Copied
12 V DC/24 V DC (10-30 V DC rippel: max 10 %)
25 ms
0,06 m
270 °
20 m
0,25°
IP65
0,13 kg
50 °C
50 mm
50 mm
-10 °C
Aluminium, Polycarbonate
70 mm
