HOKUYO

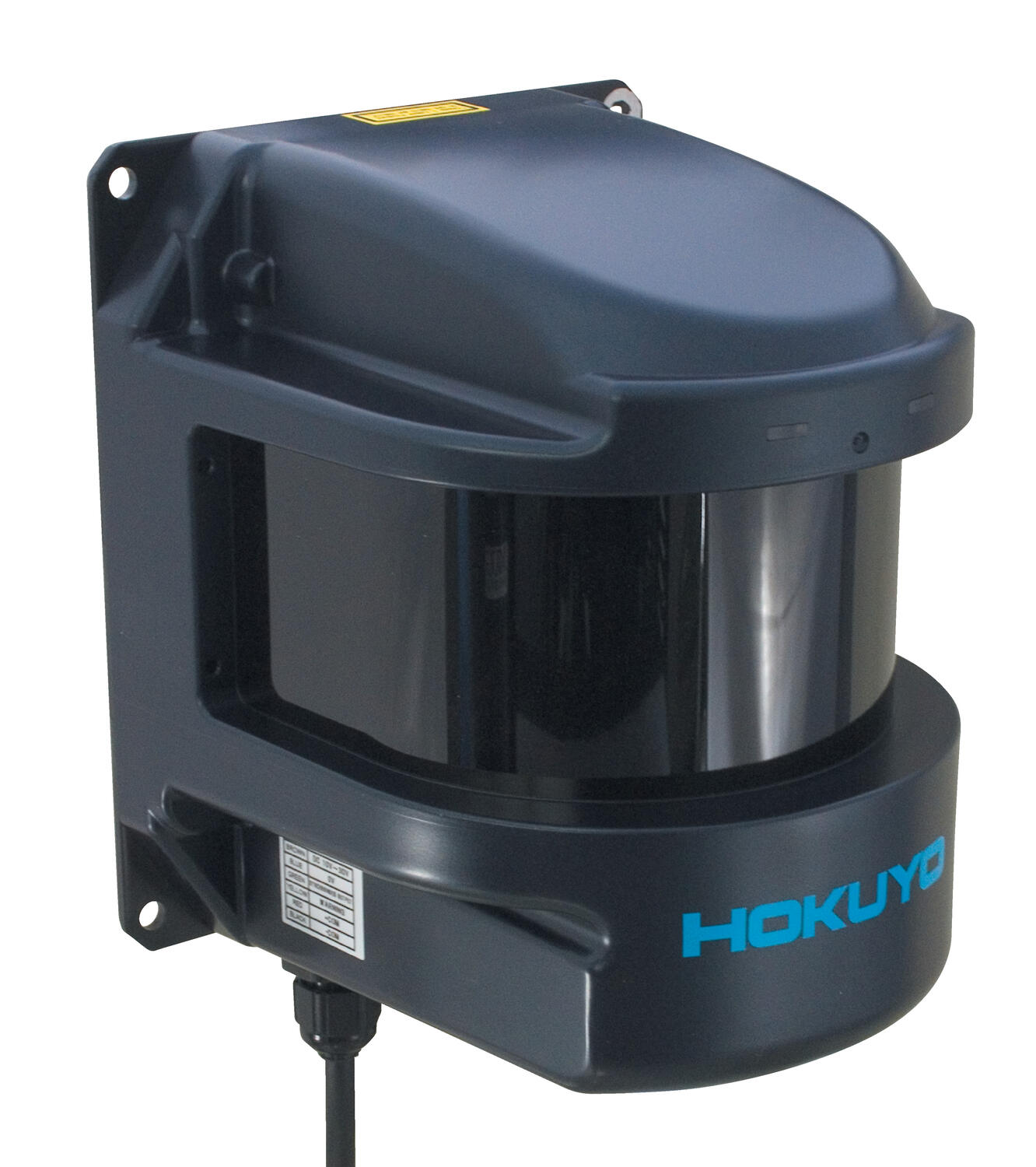

UXM Scanning Rangefinder

UXM-series scanners have long detection distances up to 80m. Excellent accuracy and high resolution. Detection angle 190°.

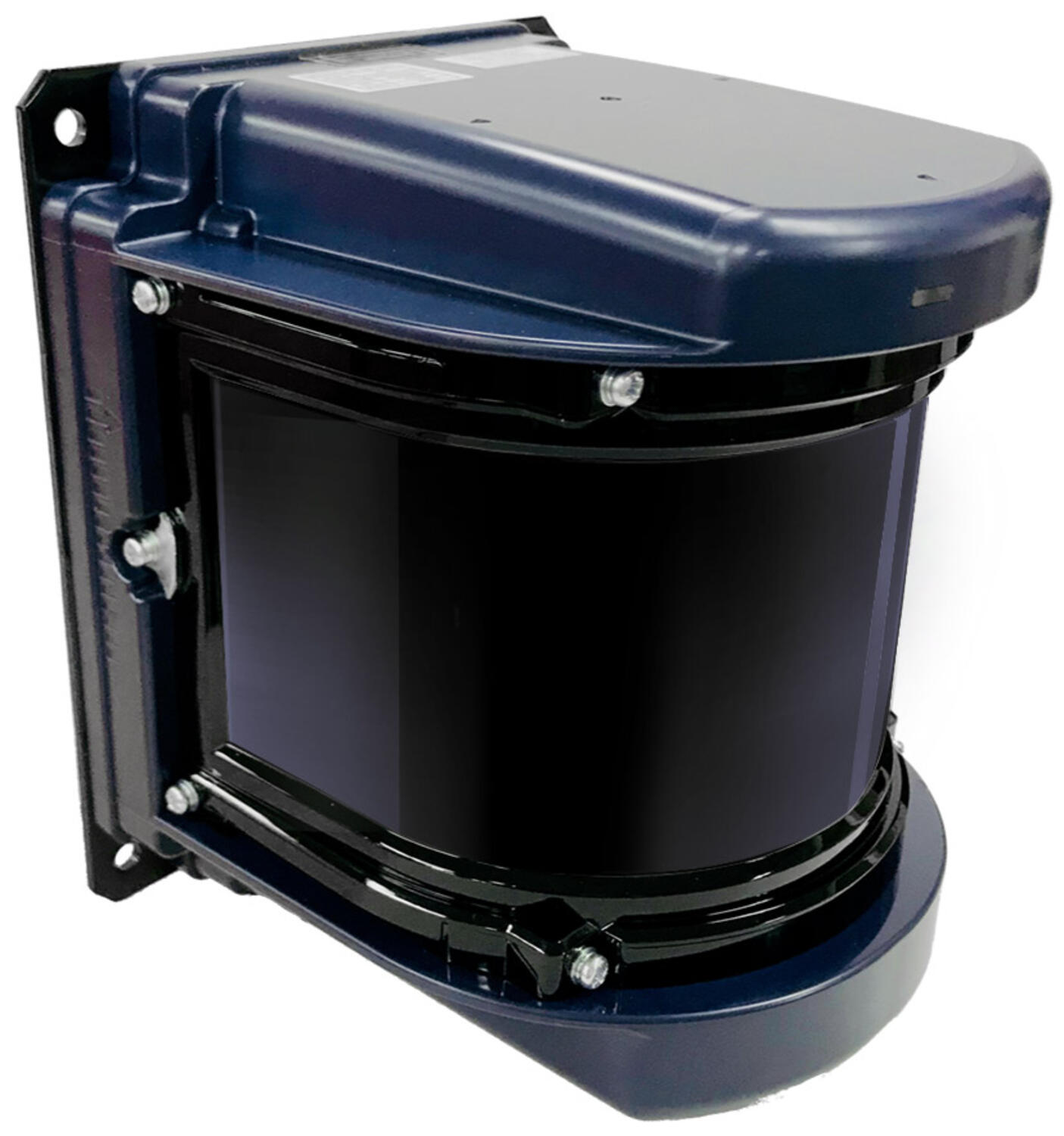

Heater equipped version available for outdoor applications. Heater is turned on automatically when the temperature inside the scanner drops below 0°C.

Read more
  • Detection distance 30/80m

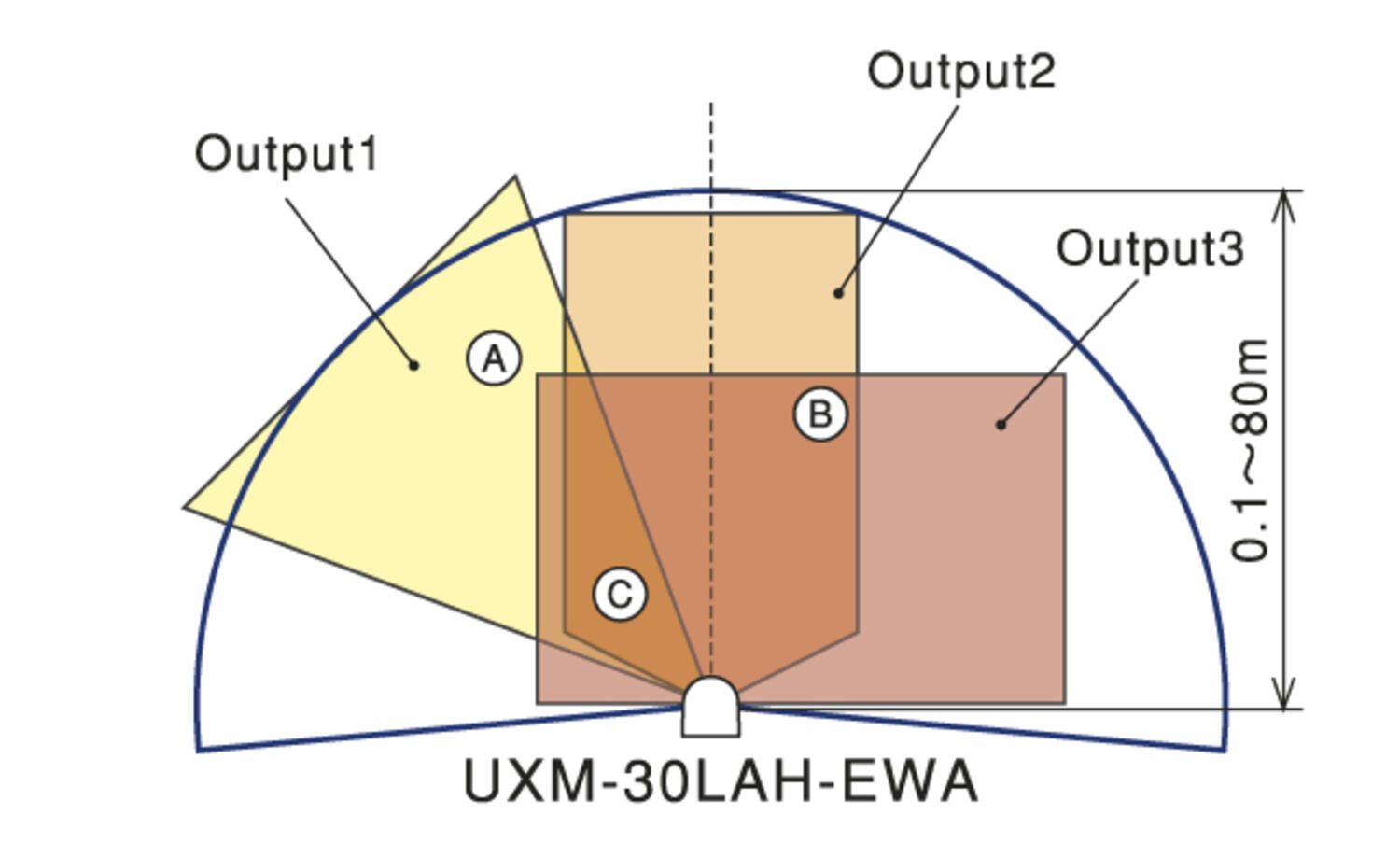

  • Three detecting outputs
  • Scanning angle 190°
  • USB / Ethernet interface

Selected variant

Selected variant

Specifications

Supply Voltage DC Max 30 V DC
Supply Voltage DC Min 10 V DC
Power consumption 1,25 A
Scan speed 50 ms
Laser Class Class 1
Sensing distance min 0,1 m
Scanning Angle 190 °
Sensing distance max 80 m
Resolution 0,125°
IP Class IP67
Weight 1,2 kg
Temperature range to 50 °C

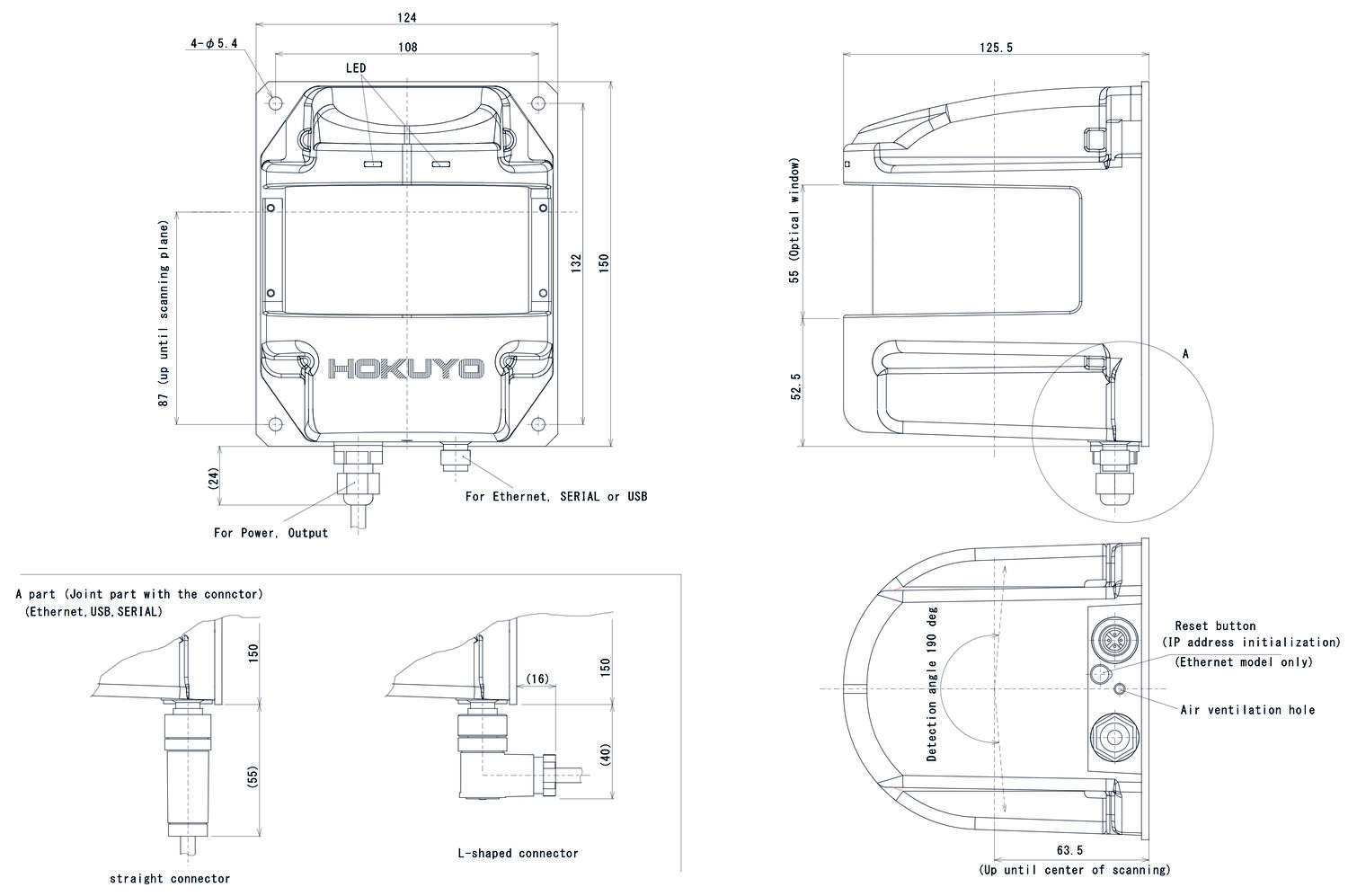

Length 124 mm
Width 126 mm
Temperature range from -30 °C
Material of body Aluminium, Polycarbonate
Height 150 mm

Product description

UXM-series scanners have long detection distances up to 80m. Excellent accuracy and high resolution. Detection angle 190°.



Heater equipped version available for outdoor applications. Heater is turned on automatically when the temperature inside the scanner drops below 0°C.

Accessories

Articles Supply Voltage DC Max Supply Voltage DC Min Power consumption Scan speed Laser Class Sensing distance min Scanning Angle Sensing distance max Resolution IP Class Weight Temperature range to Length Width Temperature range from Material of body Height
30 V DC
10 V DC
1,25 A
50 ms
Class 1
0,1 m
190 °
80 m
0,125°
IP67
1,2 kg
50 °C
124 mm
126 mm
-30 °C
Aluminium, Polycarbonate
150 mm
30 V DC
10 V DC
0,6 A
50 ms
Class 1
0,1 m
190 °
30 m
0,25°
IP67
0,8 kg
50 °C
124 mm
126 mm
-10 °C
Aluminium, Polycarbonate
150 mm
