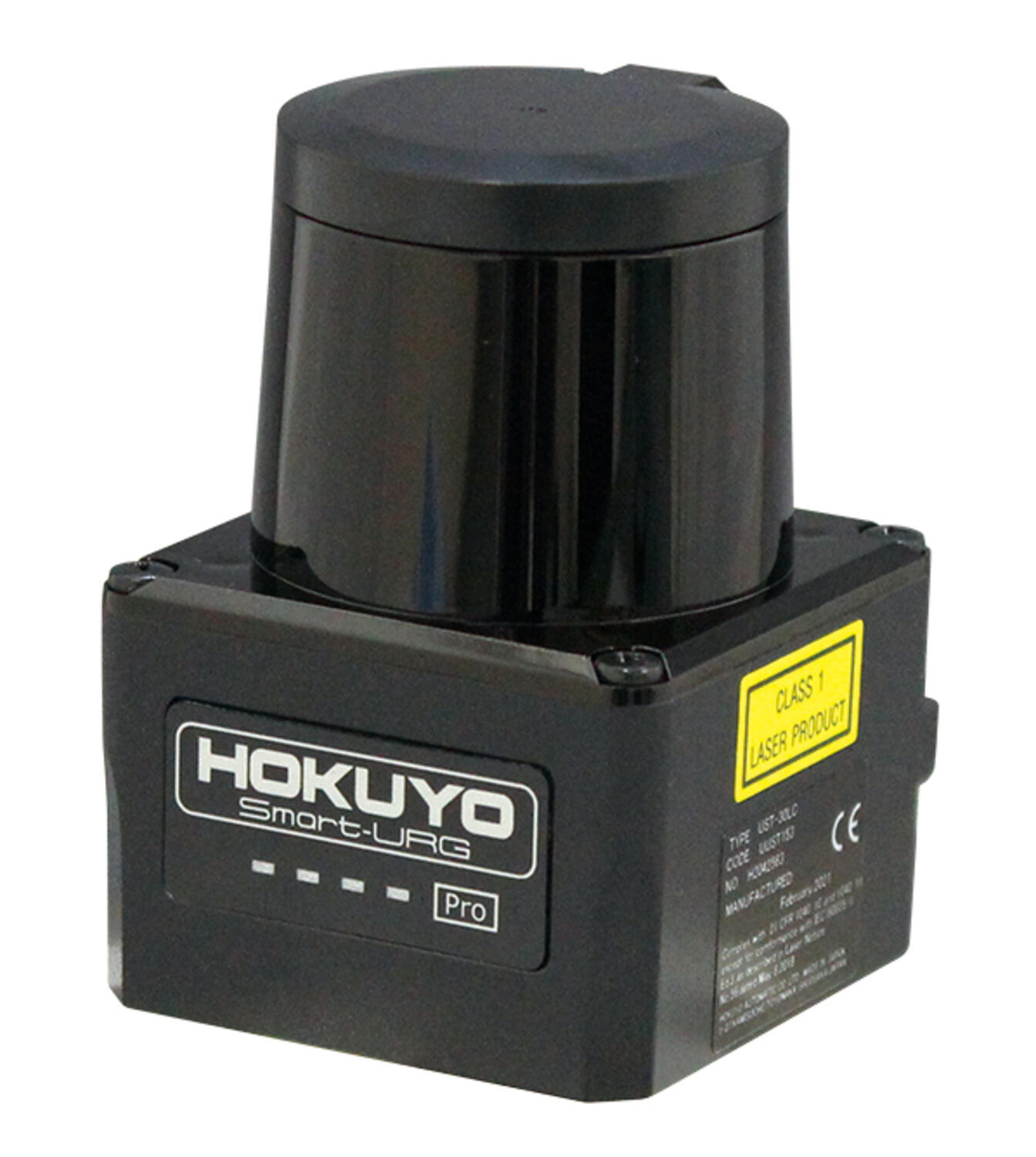

HOKUYO
UST-series scanners offer wide detection angle and quick output response time. Light weight and compact design is unbeatable on the market. Distance detection is based on TOF (Time Of Flight).
Supply voltage | 12 V DC/24 V DC (10-30 V DC rippel: max 10 %) |
---|---|
Scan speed | 25 ms |
Sensing distance min | 0,06 m |
Scanning Angle | 270 ° |
Sensing distance max | 5 m |
Resolution | 0,5° |
Reaction time | 66 ms |
IP Class | IP65 |
Weight | 0,13 kg |
---|---|
Temperature range to | 50 °C |

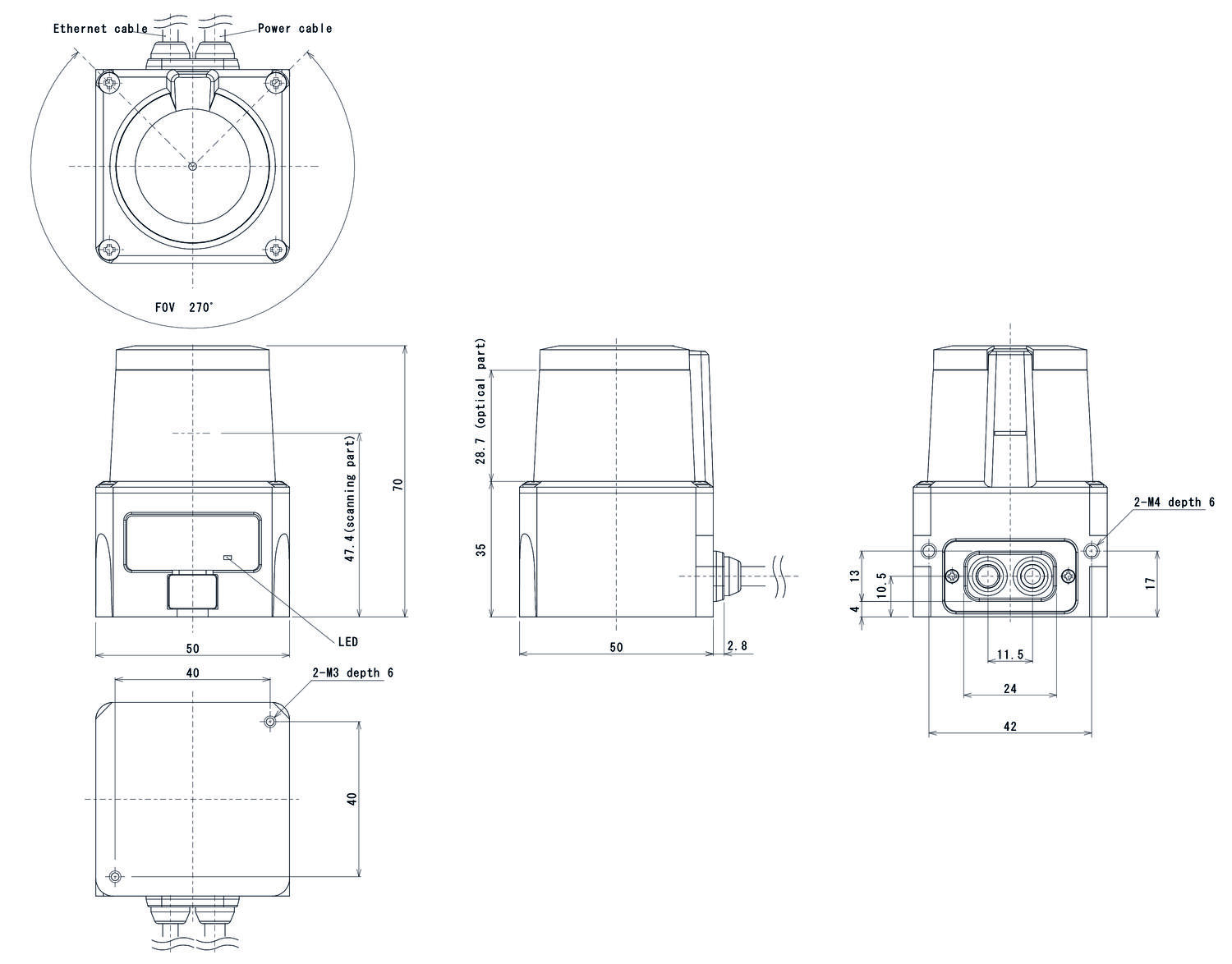

Length | 50 mm |
Width | 50 mm |
Temperature range from | -10 °C |
Material of body | Aluminium, Polycarbonate |
Height | 70 mm |
UST-series scanners offer wide detection angle and quick output response time. Light weight and compact design is unbeatable on the market. Distance detection is based on TOF (Time Of Flight).
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Articles | Supply voltage | Scan speed | Sensing distance min | Scanning Angle | Sensing distance max | Resolution | Reaction time | IP Class | Weight | Temperature range to | Length | Width | Temperature range from | Material of body | Height | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
LASER SCANNER 5M NPN
Art:
UST-05LN
Copied
|
12 V DC/24 V DC (10-30 V DC rippel: max 10 %)
|
25 ms
|
0,06 m
|
270 °
|
5 m
|
0,5°
|
66 ms
|
IP65
|
0,13 kg
|
50 °C
|
50 mm
|
50 mm
|
-10 °C
|
Aluminium, Polycarbonate
|
70 mm
|
| |
![]()

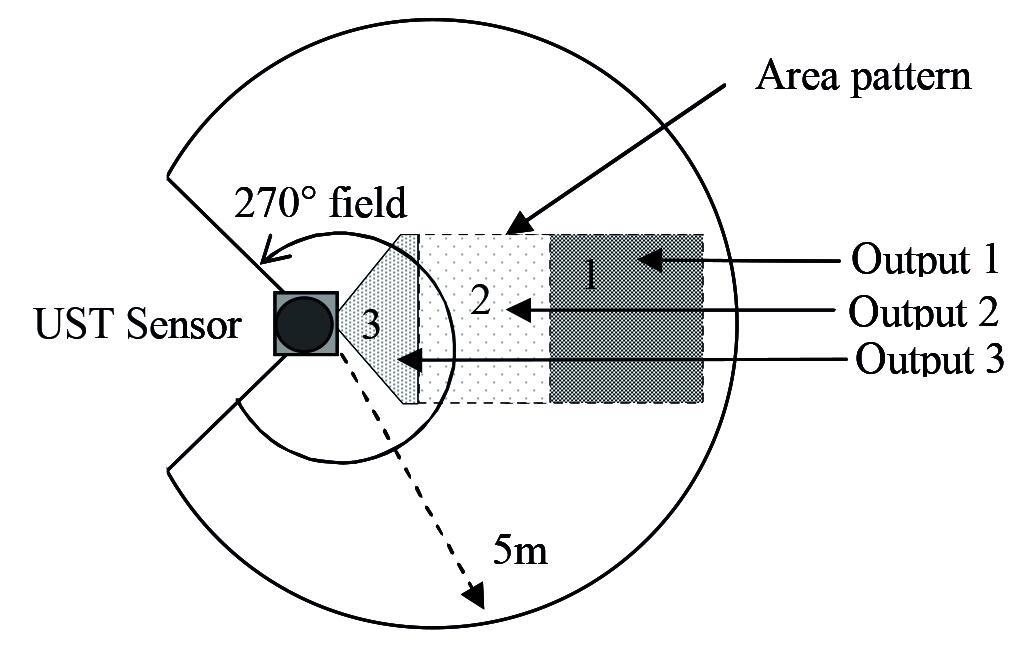

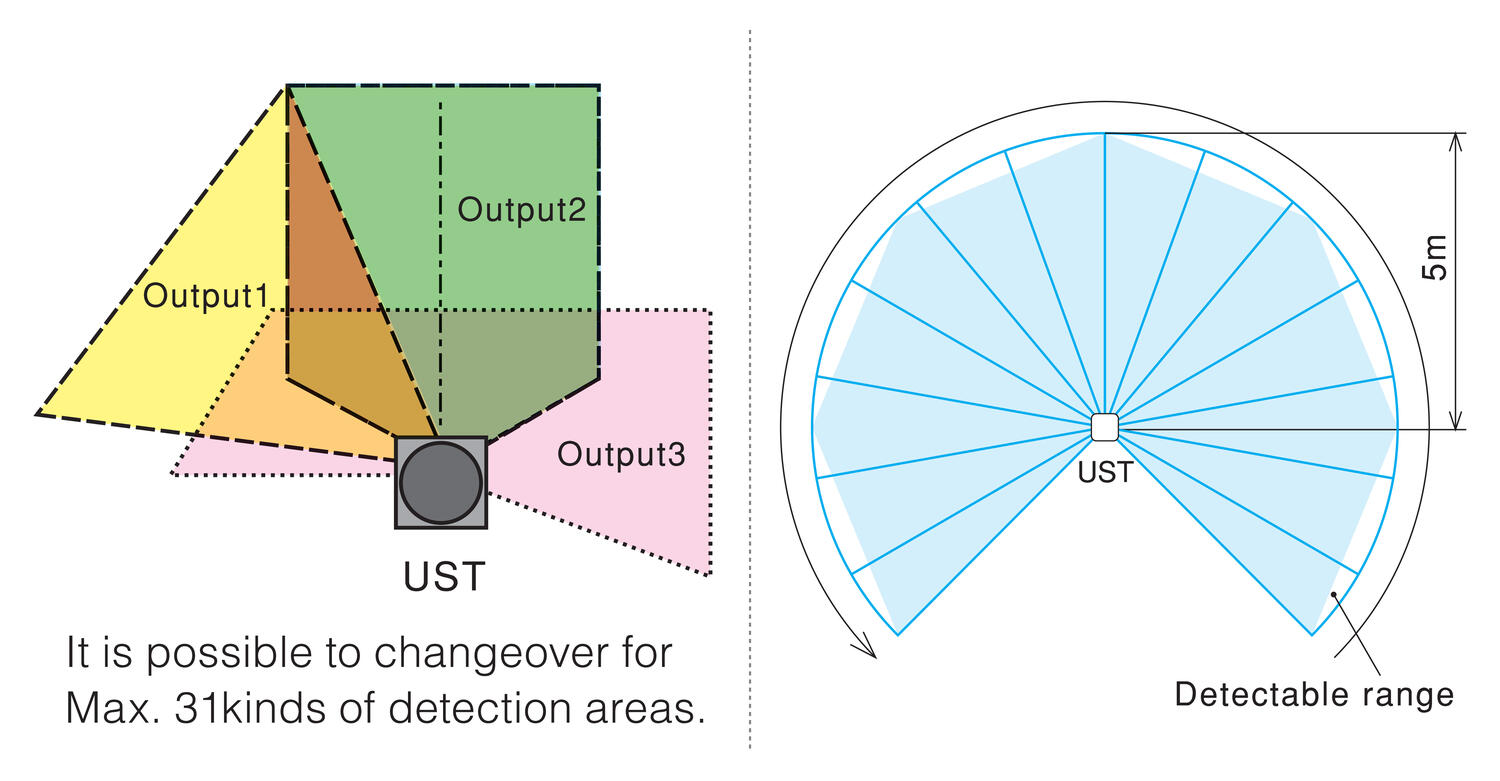

Laser scanner, area configuration/distance output, 5m, USB, RS422, NPN
Art:
UST-05LA
Copied
|
12 V DC/24 V DC (10-30 V DC rippel: max 10 %)
|
25 ms
|
0,06 m
|
270 °
|
5 m
|
0,5°
|
66 ms
|
IP65
|
0,13 kg
|
50 °C
|
50 mm
|
50 mm
|
-10 °C
|
Aluminium, Polycarbonate
|
70 mm
|
| |
![]()
LASER SCANNER 5M PNP
Art:
UST-05LNP
Copied
|
12 V DC/24 V DC (10-30 V DC rippel: max 10 %)
|
25 ms
|
0,06 m
|
270 °
|
5 m
|
0,5°
|
66 ms
|
IP65
|
0,13 kg
|
50 °C
|
50 mm
|
50 mm
|
-10 °C
|
Aluminium, Polycarbonate
|
70 mm
|
|
Select a variant in the list
