QG40 acceleration sensor, twin axis

QG-series acceleration sensors measure acceleration in one, two or three axes. These sensors are based on robust MEMS technology and thanks to the modular design easy to adapt to specific requirements. Because these acceleration sensors have a higher bandwidth than inclinometers, they can accurately measure the g-forces of fast movements. Applicable for agricultural machinery, windmills and containers.



Functions include:



  • measurement of acceleration and vibration
  • active vibration damping
  • transport monitoring

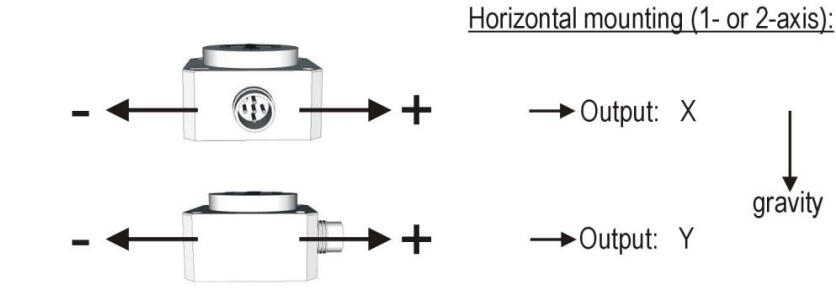

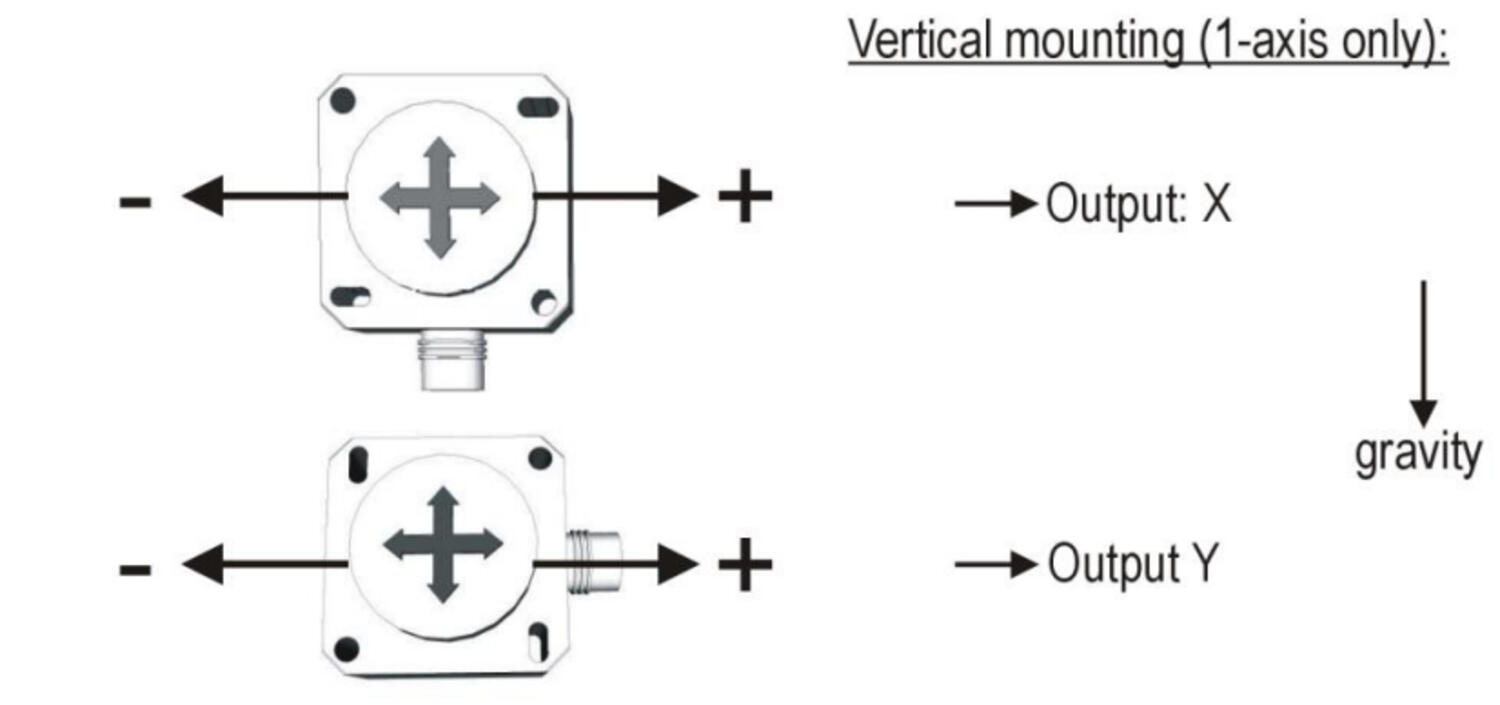

Measurement orientation:



 QGseries_AccelerationSensorHorisontal.tif     QGseries_AccelerationSensorVertical.tif

Read more
  • Twin axis, triple axis version available
  • ±1,5, ±4 or ±16 g
  • Output 0,5-4,5 V or 4-20 mA
  • IP67 rated

Selected variant

DIS_sensors_logotype.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Technical data
IP Class IP67
Voltage DC max 30 V
Voltage DC min 10 V
Measuring range 1,5 g
Connection Thread M12
Temperature range to 85 °C
Temperature effect 0,6 mg/K
Length 40 mm
Width 40 mm

*Invisible Heading*
Accuracy 0,08 g
Resolution 4 mg
Temperature range from -25 °C
Output 0,5-4,5 V
Central Material Plastic
Approvals CE
Height 25 mm
Number of axis 2

Downloads

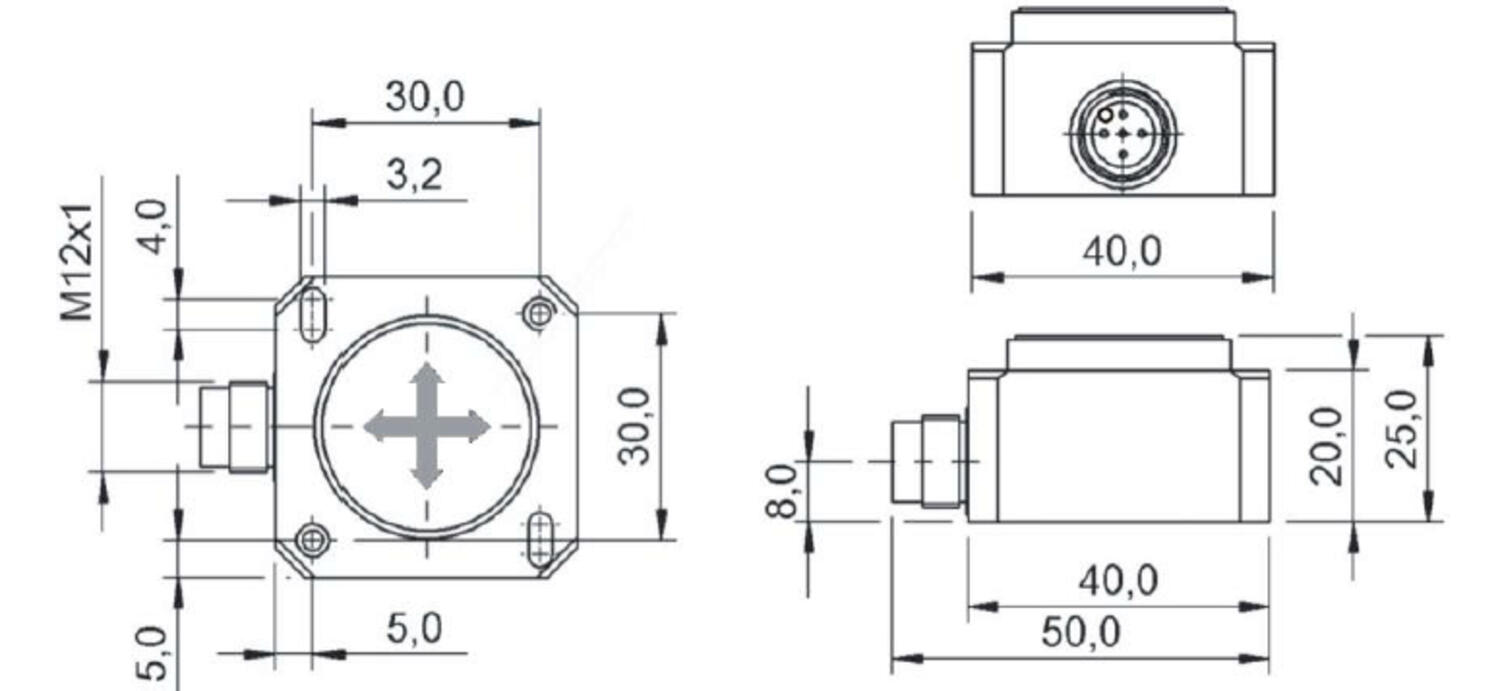

Measurements and connections

Technical illustrations

Product description

QG-series acceleration sensors measure acceleration in one, two or three axes. These sensors are based on robust MEMS technology and thanks to the modular design easy to adapt to specific requirements. Because these acceleration sensors have a higher bandwidth than inclinometers, they can accurately measure the g-forces of fast movements. Applicable for agricultural machinery, windmills and containers.



Functions include:



  • measurement of acceleration and vibration
  • active vibration damping
  • transport monitoring

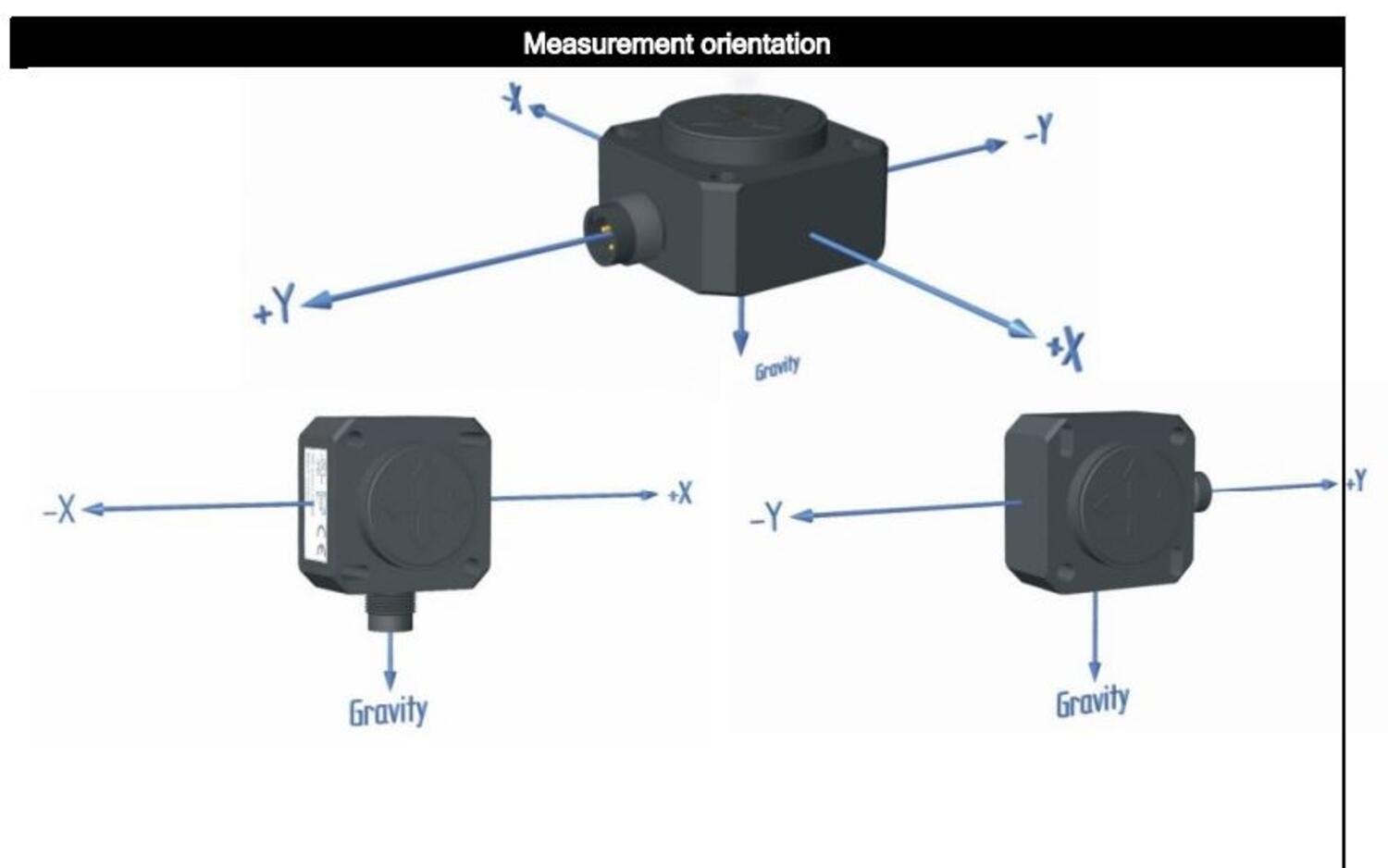

Measurement orientation:



 QGseries_AccelerationSensorHorisontal.tif     QGseries_AccelerationSensorVertical.tif

Accessories

Related products

Articles IP Class Voltage DC max Voltage DC min Measuring range Connection Thread Temperature range to Temperature effect Length Width Accuracy Resolution Temperature range from Output Central Material Approvals Height Number of axis
qg40_qgn40anturi.tif
Acceleration sensor, +/-1,5 g, 0,5-4,5 V, 2-axis
Art:
QG40-KAXY-1,5E-AV-CM Copied
IP67
30 V
10 V
1,5 g
M12
85 °C
0,6 mg/K
40 mm
40 mm
0,08 g
4 mg
-25 °C
0,5-4,5 V
Plastic
CE
25 mm
2
qg40_qgn40anturi.tif
Acceleration sensor, +/-1,5 g, 4-20 mA, 2-axis
Art:
QG40-KAXY-1,5E-AI-CM Copied
IP67
30 V
10 V
1,5 g
M12
85 °C
0,6 mg/K
40 mm
40 mm
0,08 g
4 mg
-25 °C
4-20 mA
Plastic
CE
25 mm
2
qg40_qgn40anturi.tif
Acceleration sensor, +/-4,0 g, 0,5-4,5 V, 2-axis
Art:
QG40-KAXY-4,0E-AV-CM Copied
IP67
30 V
10 V
4 g
M12
85 °C
0,6 mg/K
40 mm
40 mm
0,15 g
4 mg
-25 °C
0,5-4,5 V
Plastic
CE
25 mm
2
qg40_qgn40anturi.tif
Acceleration sensor, +/-4,0 g, 4-20 mA, 2-axis
Art:
QG40-KAXY-4,0E-AI-CM Copied
IP67
30 V
10 V
4 g
M12
85 °C
0,6 mg/K
40 mm
40 mm
0,15 g
4 mg
-25 °C
4-20 mA
Plastic
CE
25 mm
2
qg40_qgn40anturi.tif
Acceleration sensor, +/-16,0 g, 0,5-4,5 V, 2-axis
Art:
QG40-KAXY-16,0E-AV-CM Copied
IP67
30 V
10 V
16 g
M12
85 °C
1 mg/K
40 mm
40 mm
0,5 g
16 mg
-25 °C
0,5-4,5 V
Plastic
CE
25 mm
2
qg40_qgn40anturi.tif
Acceleration sensor, +/-16,0 g, 4-20 mA, 2-axis
Art:
QG40-KAXY-16,0E-AI-CM Copied
IP67
30 V
10 V
16 g
M12
85 °C
1 mg/K
40 mm
40 mm
0,5 g
16 mg
-25 °C
4-20 mA
Plastic
CE
25 mm
2
