MECHAN

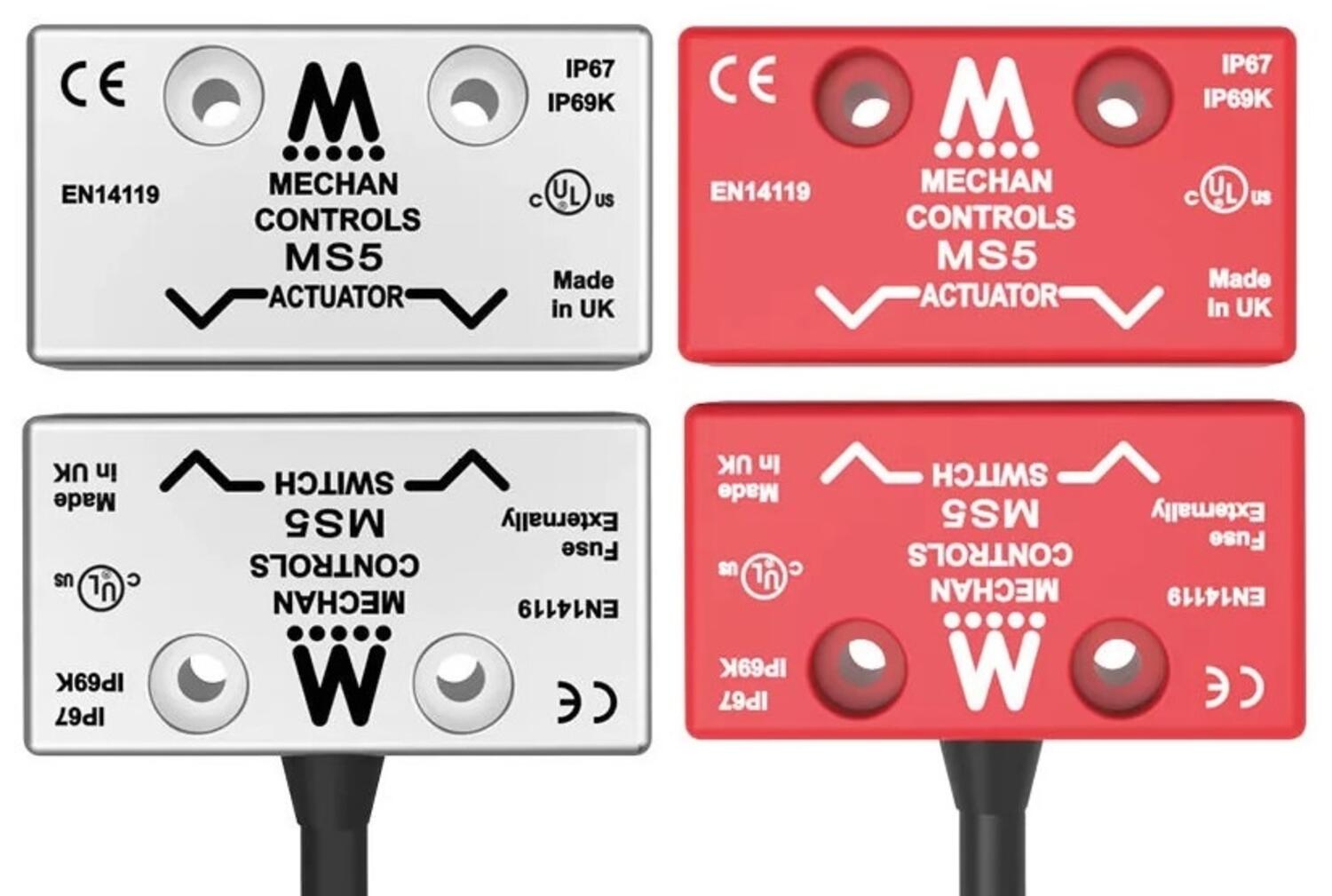

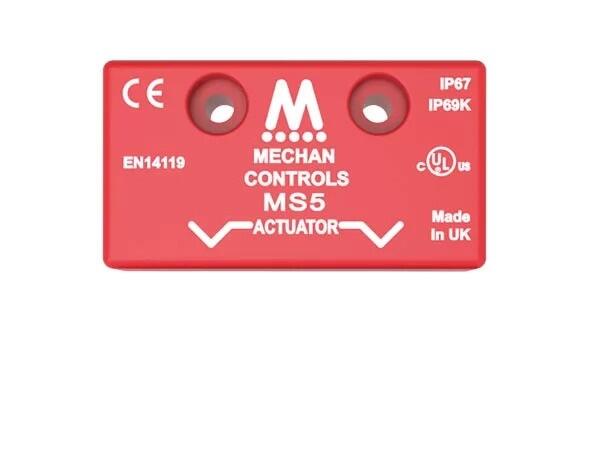

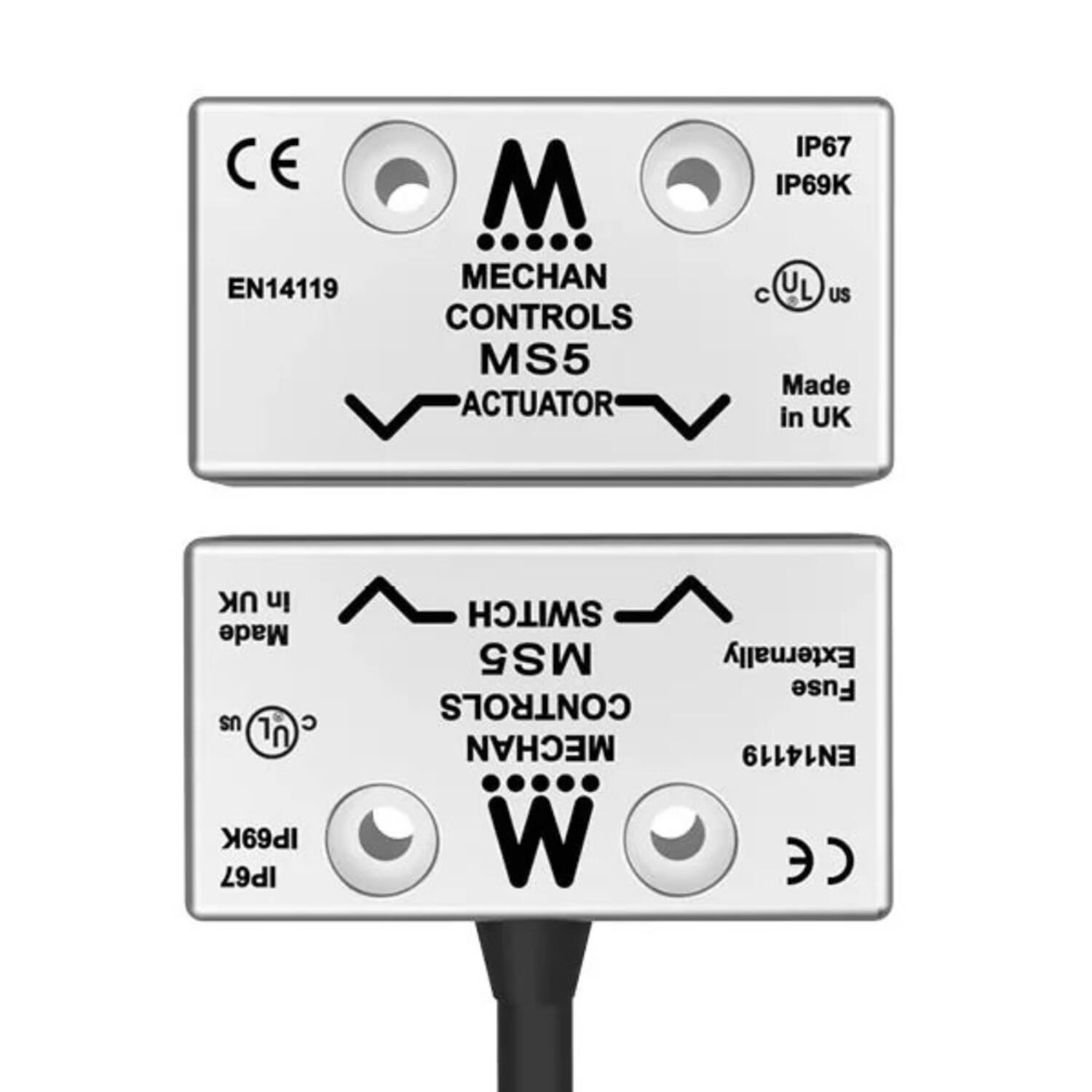

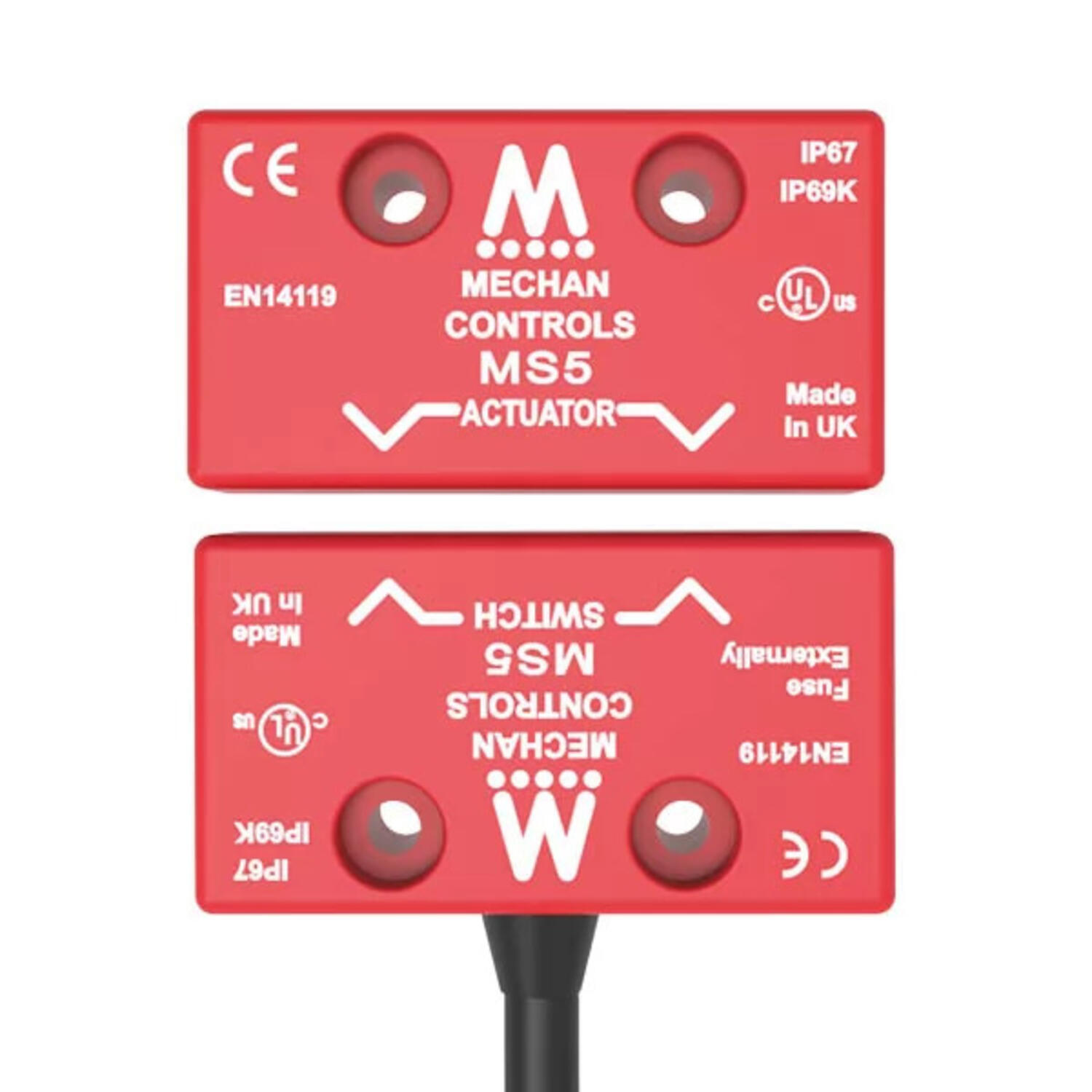

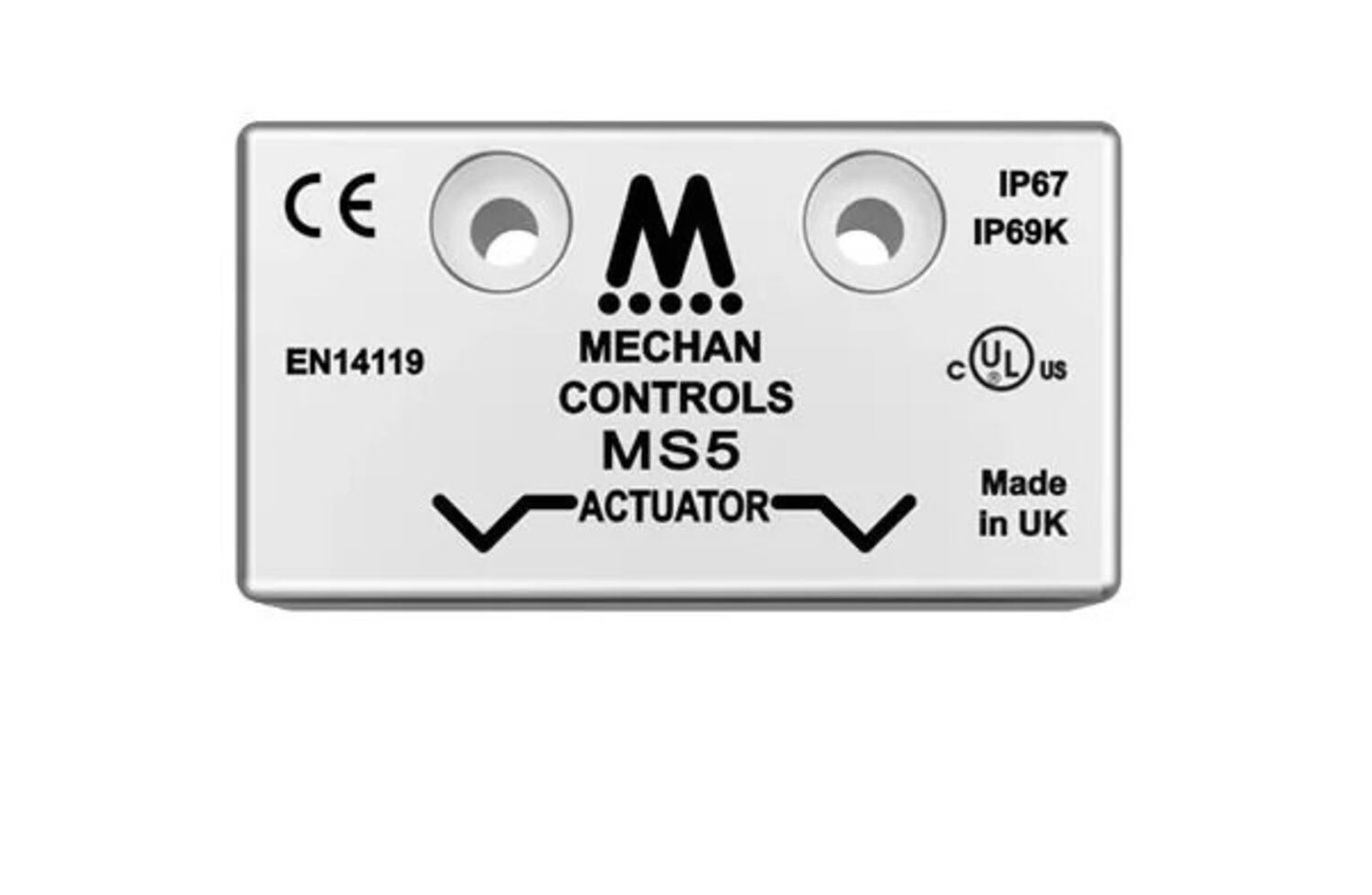

Mechan - Magnasafe

The Magnasafe is a complete range of non-contact magnetically operated safety switches. Constructed using heavy duty reed switches encapsulated into ABS housings and protected with internal fuses, these switches can safely perform over 1 million operations at full load. The long switching distance makes the Magnasafe tolerant to misalignment and gate wear.

When the switch and actuator are apart, the safety contacts are open and the auxiliary contacts are closed. Moving the actuator to within the operating range of the switch (target to target) closes the safety contacts and opens the auxiliary contacts. Using versions with 2 safety contacts in conjunction with a Duelco safety relay will produce a higher integrity safety system.

Technical specification

Safety contact rating

230Vac, 2A inductive or resistive
30Vdc, 1A inductive or resistive

MS5 only: 24Vdc,
0.3A inductive or resistive

Safety contact operating distance

10mm on, 25mm off

MS5 only: 7 to 10mm on,
12mm off

Safety contact: close/drop/bounce

3ms/2.1ms/0.7ms



Auxiliary contact rating

15W/10VA

MS5 only: 24Vdc,
0.3A inductive or resistive

Auxiliary contact operating distance

8mm off, 10mm on



Auxiliary contact: close/drop/bounce

0.5ms/0.3ms/0.7ms



Internal fuse

2A fast acting - AC version
1A fast acting - DC version

MS5 only: no internal fuse

External fuse (not supplied)

1.6A fast acting - AC version
0.8A fast acting - DC version

MS5 only: 0.2A fast acting

Protection

IP67



Vibration/shock

50-100Hz/10G



Operating temperature

-10°C to +55°C



Housing

Red ABS case, resin filled



Mounting

Target to target,
fix with tamper proof screws supplied

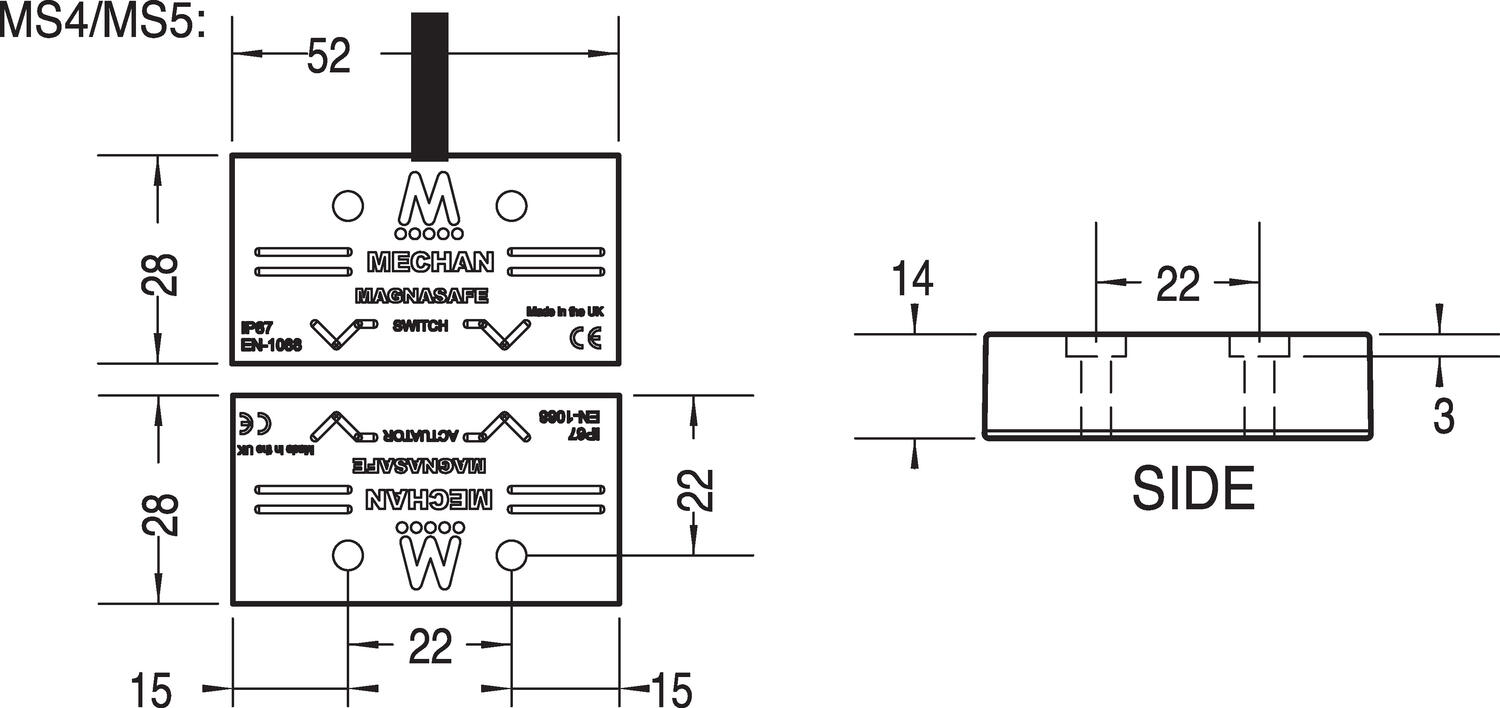

Dimensions

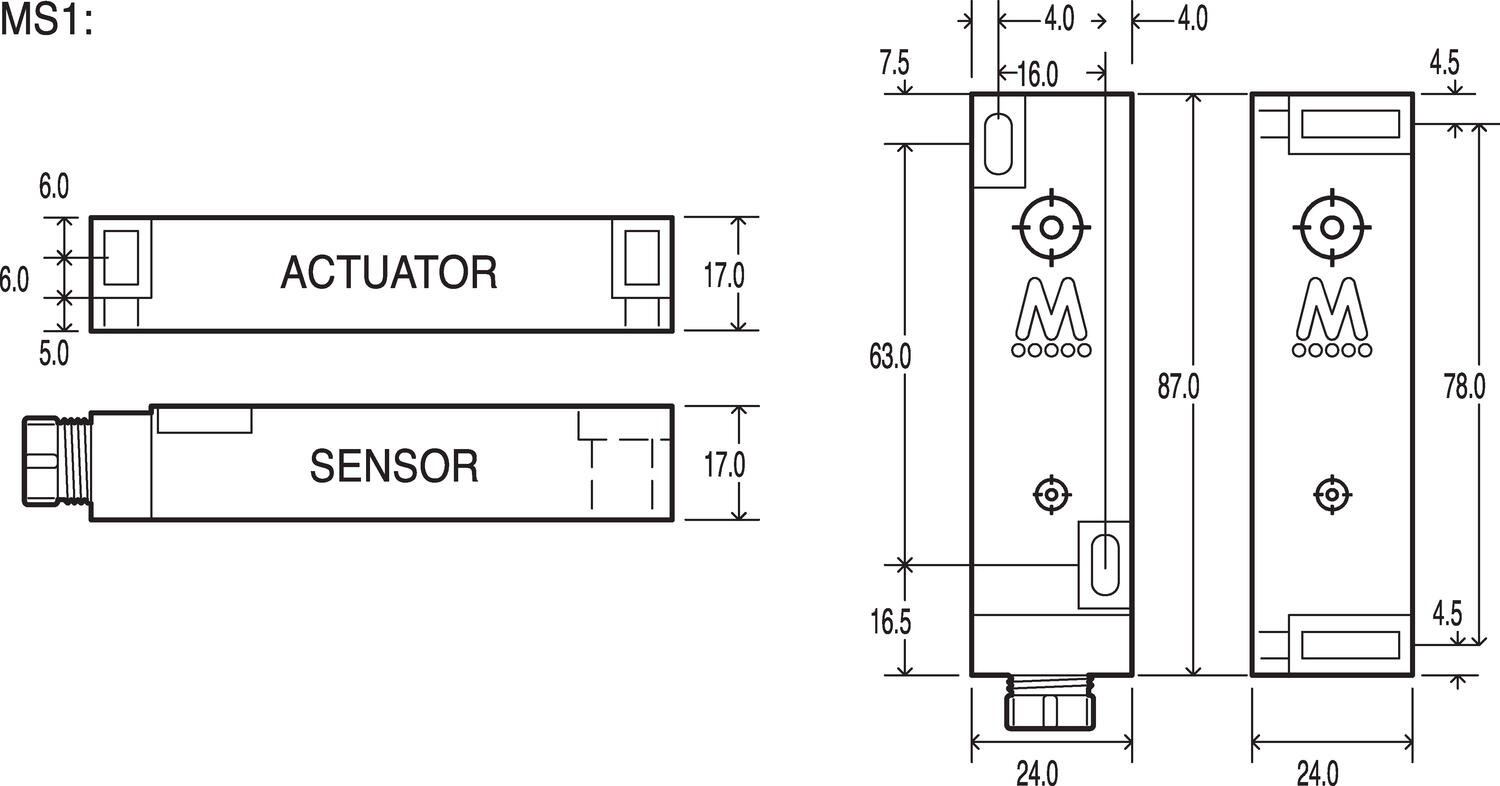

228724_877.eps

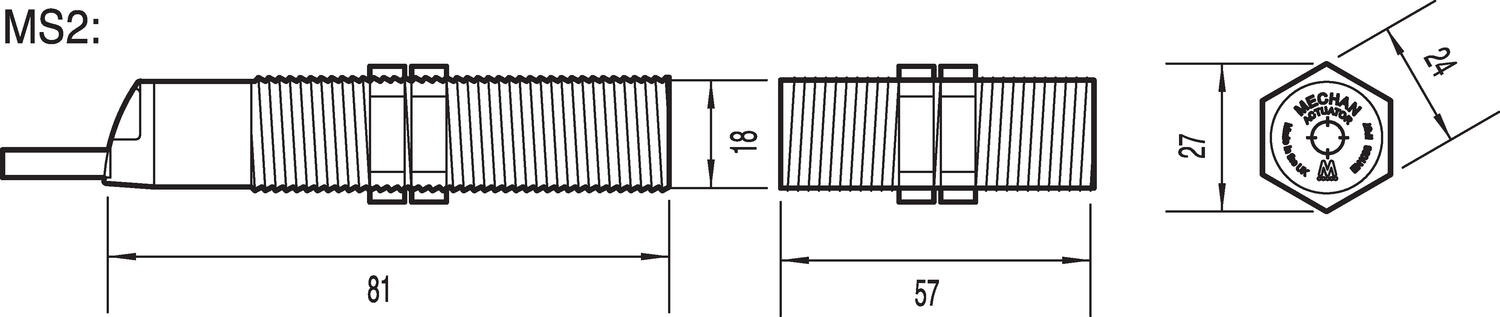

228725_877.eps

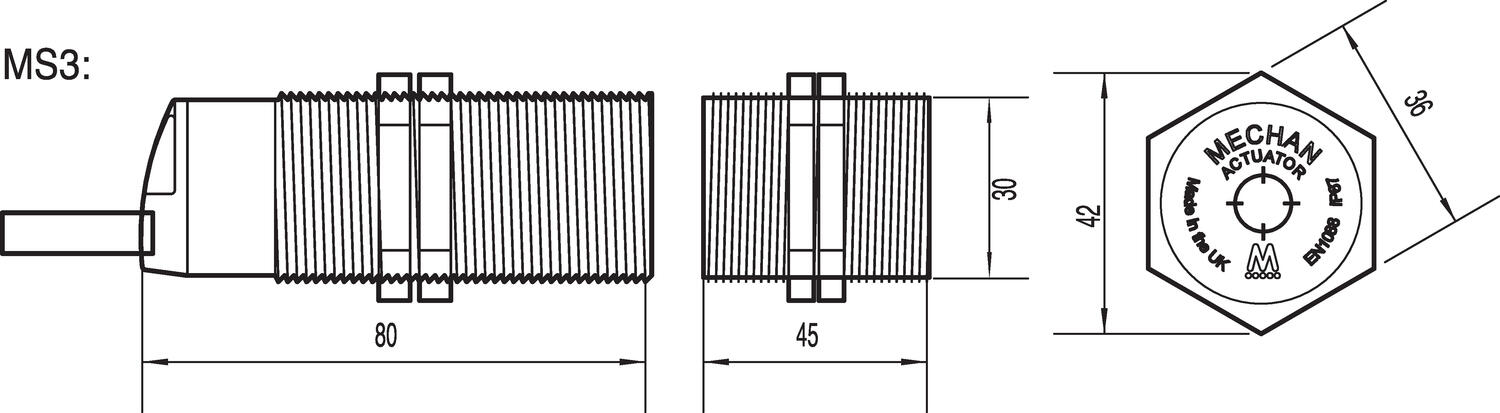

228726_877.eps

228727_877.eps

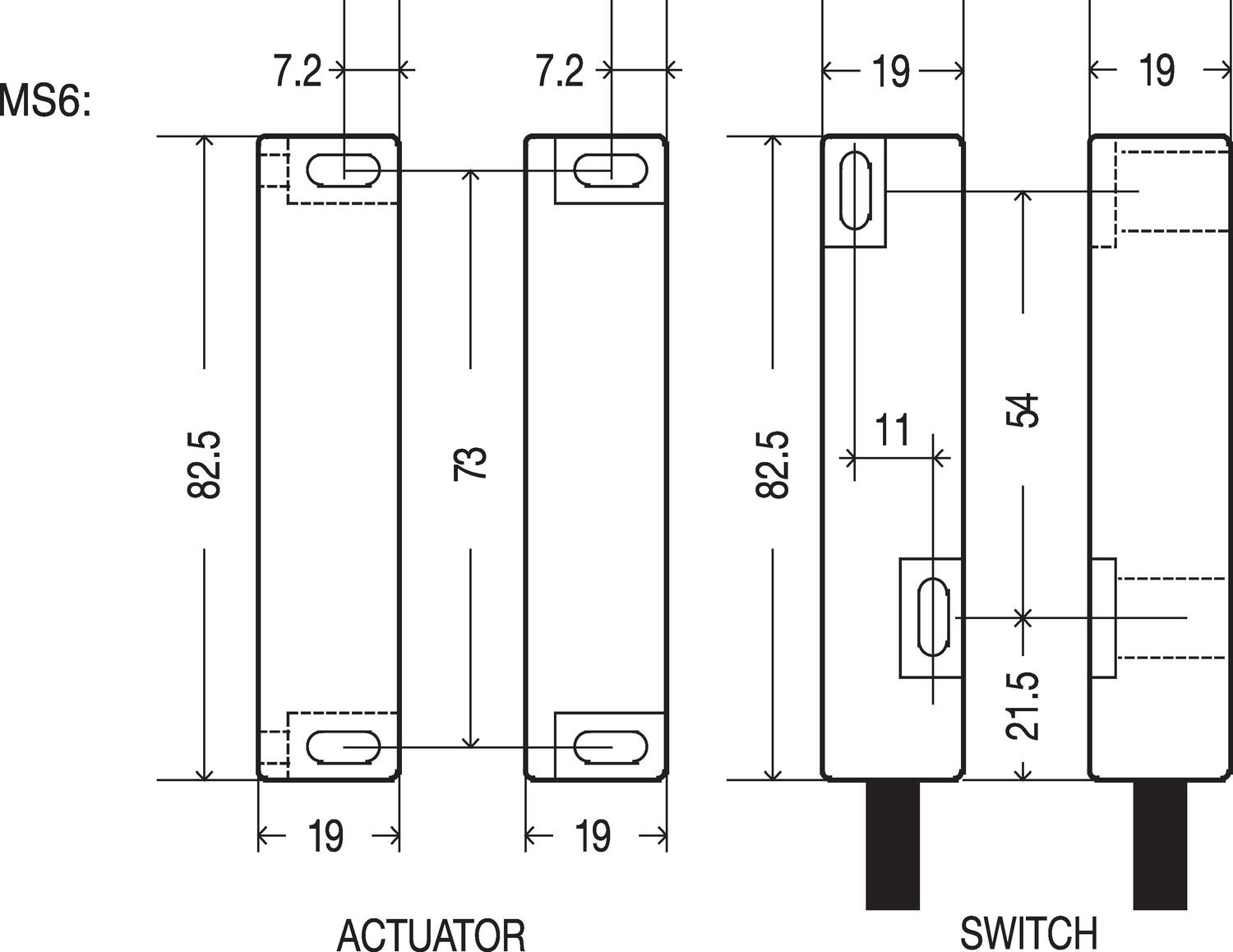

228728_877.eps

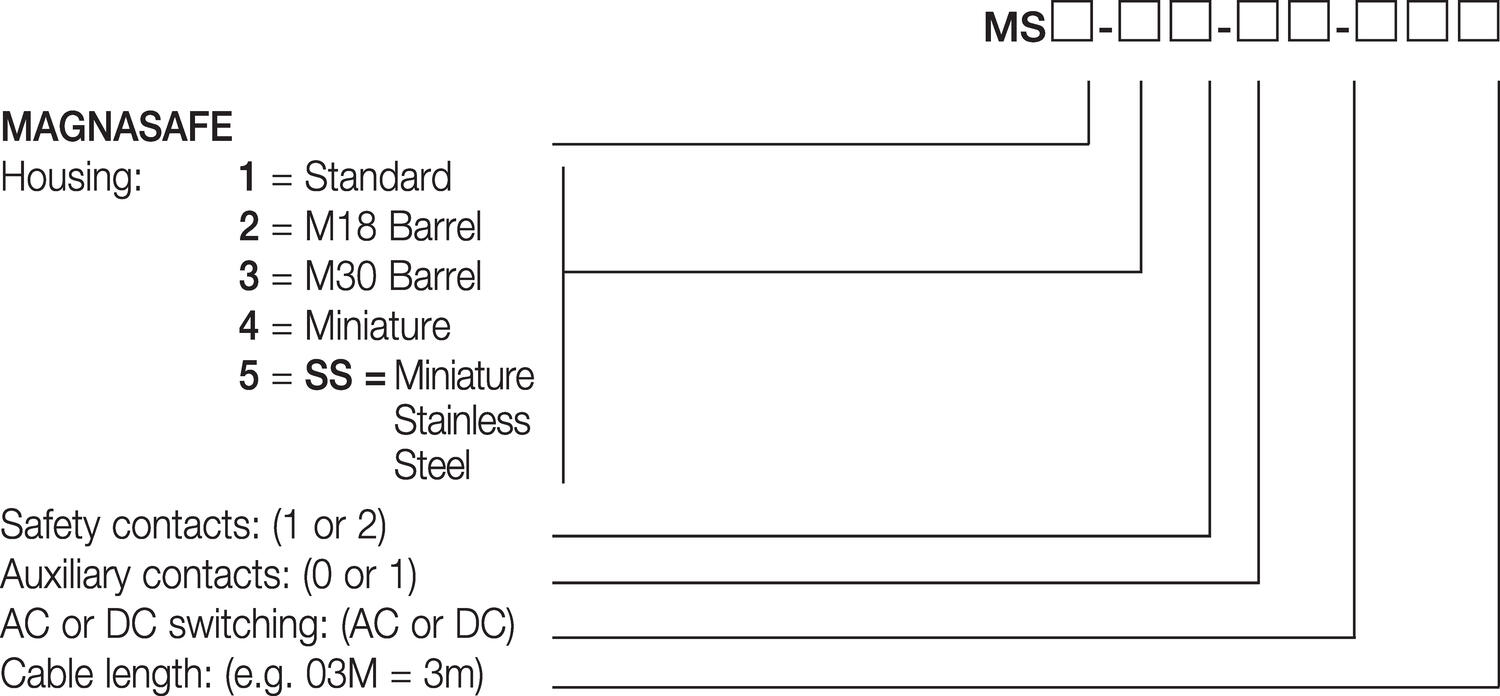

Ordering information

228729_877.eps


Order codes available:

MS1-10-AC-03M

MS1-11-AC-03M

MS1-20-AC-03M

MS1-21-AC-03M

MS1-10-DC-03M

MS1-11-DC-03M

MS1-20-DC-03M

MS1-21-DC-03M





MS2-10-AC-03M

MS2-11-AC-03M

MS2-10-DC-03M

MS2-11-DC-03M



MS3-10-AC-03M

MS3-11-AC-03M

MS3-20-AC-03M

MS3-21-AC-03M

MS3-10-DC-03M

MS3-11-DC-03M

MS3-20-DC-03M

MS3-21-DC-03M





MS4-10-DC-03M

MS4-11-DC-03M







*MS5-21-DC-03M









MS6-10-DC-03M

MS6-11-DC-03M

MS6-20-DC-03M

MS6-21-DC-03M



MS6-10-AC-03M

MS6-11-AC-03M

MS6-20-AC-03M

MS6-21-AC-03M

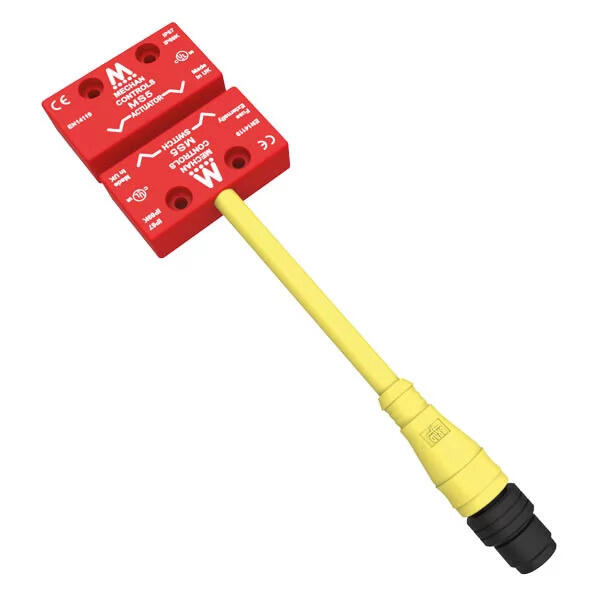

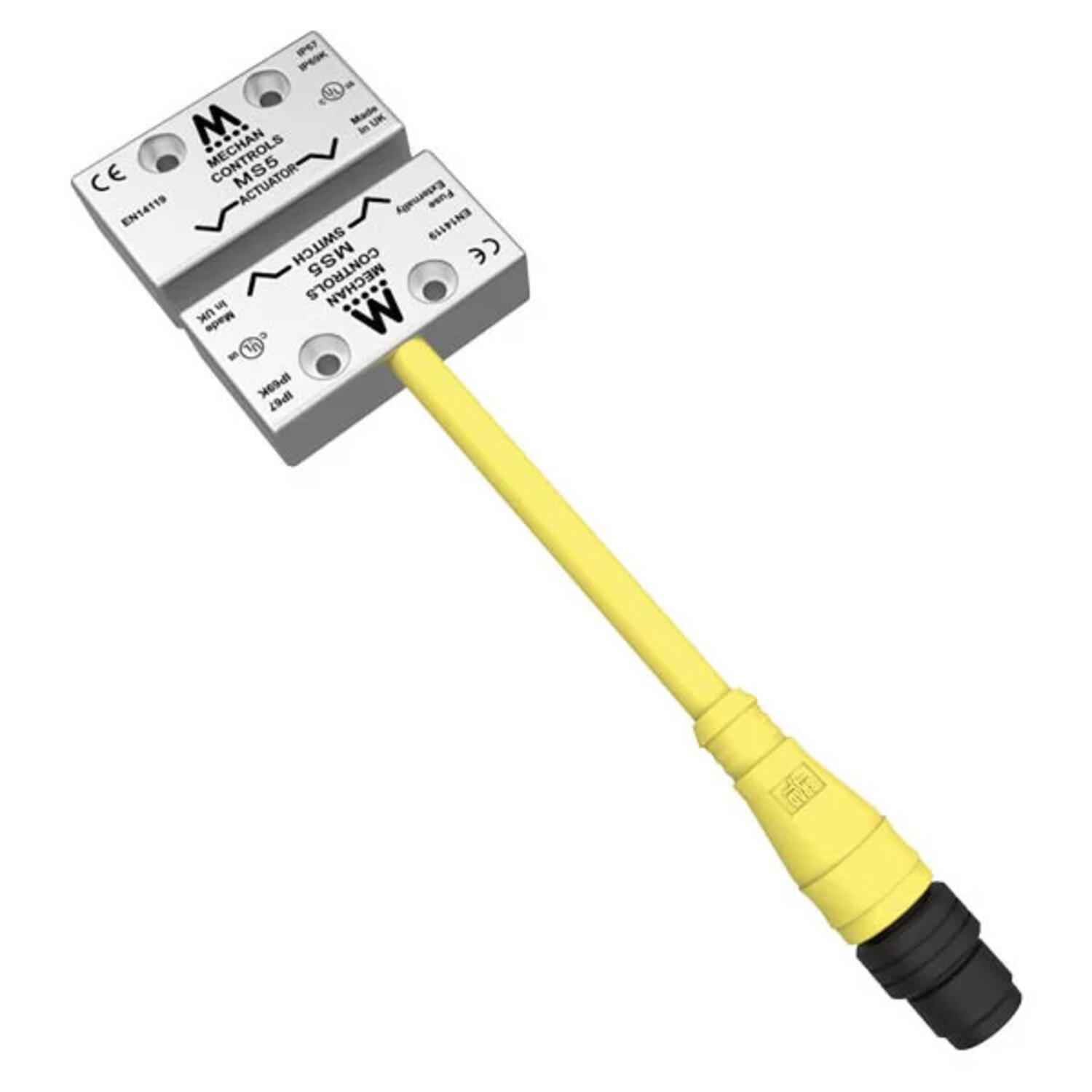

* Connector versions are available

Read more
  • Five different housings
  • IP67 sealing
  • Greater than 10mm switching distance
  • AC and DC versions available

Selected variant

Selected variant

Specifications

Contact Current Max 300mA
Activation Distance From 7 mm
Signal contact NC 1
Activation Distances 17 mm
Safety contact NO 2
Material Case ABS plastic
IP Class IP67
Temperature range to 55 °C
Temperature range from -25 °C
B10d 2,0 milj.

Measurements and connections

Product description

The Magnasafe is a complete range of non-contact magnetically operated safety switches. Constructed using heavy duty reed switches encapsulated into ABS housings and protected with internal fuses, these switches can safely perform over 1 million operations at full load. The long switching distance makes the Magnasafe tolerant to misalignment and gate wear.

When the switch and actuator are apart, the safety contacts are open and the auxiliary contacts are closed. Moving the actuator to within the operating range of the switch (target to target) closes the safety contacts and opens the auxiliary contacts. Using versions with 2 safety contacts in conjunction with a Duelco safety relay will produce a higher integrity safety system.

Technical specification

Safety contact rating

230Vac, 2A inductive or resistive
30Vdc, 1A inductive or resistive

MS5 only: 24Vdc,
0.3A inductive or resistive

Safety contact operating distance

10mm on, 25mm off

MS5 only: 7 to 10mm on,
12mm off

Safety contact: close/drop/bounce

3ms/2.1ms/0.7ms



Auxiliary contact rating

15W/10VA

MS5 only: 24Vdc,
0.3A inductive or resistive

Auxiliary contact operating distance

8mm off, 10mm on



Auxiliary contact: close/drop/bounce

0.5ms/0.3ms/0.7ms



Internal fuse

2A fast acting - AC version
1A fast acting - DC version

MS5 only: no internal fuse

External fuse (not supplied)

1.6A fast acting - AC version
0.8A fast acting - DC version

MS5 only: 0.2A fast acting

Protection

IP67



Vibration/shock

50-100Hz/10G



Operating temperature

-10°C to +55°C



Housing

Red ABS case, resin filled



Mounting

Target to target,
fix with tamper proof screws supplied





Dimensions

228724_877.eps

228725_877.eps

228726_877.eps

228727_877.eps

228728_877.eps



Ordering information

228729_877.eps


Order codes available:

MS1-10-AC-03M

MS1-11-AC-03M

MS1-20-AC-03M

MS1-21-AC-03M

MS1-10-DC-03M

MS1-11-DC-03M

MS1-20-DC-03M

MS1-21-DC-03M





MS2-10-AC-03M

MS2-11-AC-03M

MS2-10-DC-03M

MS2-11-DC-03M



MS3-10-AC-03M

MS3-11-AC-03M

MS3-20-AC-03M

MS3-21-AC-03M

MS3-10-DC-03M

MS3-11-DC-03M

MS3-20-DC-03M

MS3-21-DC-03M





MS4-10-DC-03M

MS4-11-DC-03M







*MS5-21-DC-03M









MS6-10-DC-03M

MS6-11-DC-03M

MS6-20-DC-03M

MS6-21-DC-03M



MS6-10-AC-03M

MS6-11-AC-03M

MS6-20-AC-03M

MS6-21-AC-03M



* Connector versions are available
