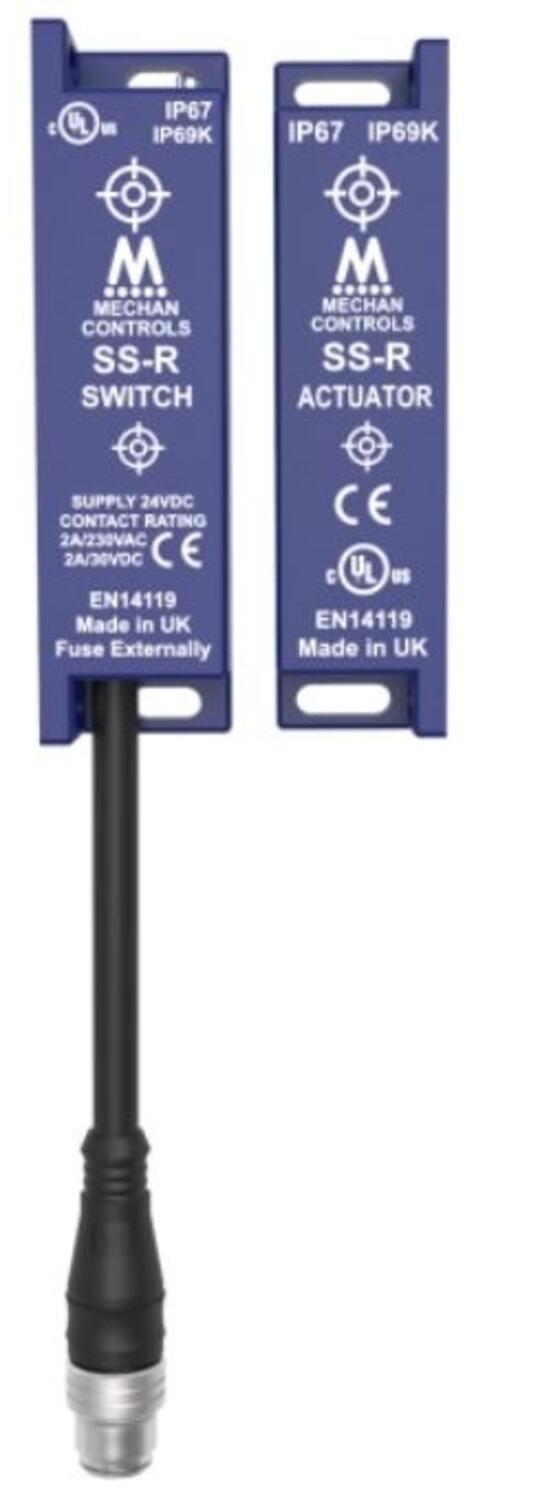

SS-R safety switches are standalone electronic, non-contact, safety switches. With 2NO + 1NC contacts, capable of switching 2A at 30Vdc or 110Vac.
With tamper resistant, electronic switching, the SS-R are suitable for use with most safety relays. A dual colour, built in LED, helps the operator in speedy fault diagnosis. The SS-R safety switches are available with 3, 5, 6, 10 or 15 metre pre-wired cables which are fully sealed and suitable for use in most wet / harsh environments.
Contact Current Max | 2 A |
---|---|
Activation Distance From | 7 mm |
Signal contact NC | 1 |
Activation Distances | 11 mm |
Safety contact NO | 2 |
Material Case | ABS plastic |
IP Class | IP67, IP69K |
Temperature range to | 55 °C |
Temperature range from | -25 °C |
B10d | 2,0 milj. |
SS-R safety switches are standalone electronic, non-contact, safety switches. With 2NO + 1NC contacts, capable of switching 2A at 30Vdc or 110Vac.
With tamper resistant, electronic switching, the SS-R are suitable for use with most safety relays. A dual colour, built in LED, helps the operator in speedy fault diagnosis. The SS-R safety switches are available with 3, 5, 6, 10 or 15 metre pre-wired cables which are fully sealed and suitable for use in most wet / harsh environments.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Articles | Contact Current Max | Activation Distance From | Signal contact NC | Activation Distances | Safety contact NO | Material Case | IP Class | Temperature range to | Temperature range from | B10d | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
Electronic safety switch, 2 NO + 1 NC, 3m cable
Art:
SSR-21-03M
Copied
|
2 A
|
7 mm
|
1
|
11 mm
|
2
|
ABS plastic
|
IP67, IP69K
|
55 °C
|
-25 °C
|
2,0 milj.
|
| |
![]()
Electronic safety switch, 2 NO+1 NC, 5m cable
Art:
SSR-21-05M
Copied
|
2 A
|
7 mm
|
1
|
11 mm
|
2
|
ABS plastic
|
IP67, IP69K
|
55 °C
|
-25 °C
|
2,0 milj.
|
| |
![]()
Electronic safety switch, 2 NO+1 NC, 10m cable
Art:
SSR-21-10M
Copied
|
2 A
|
7 mm
|
1
|
11 mm
|
2
|
ABS plastic
|
IP67, IP69K
|
55 °C
|
-25 °C
|
2,0 milj.
|
| |
![]()
Electronic safety switch, 2 NO+1 NC, M12 connector
Art:
SSR-21-QD
Copied
|
2 A
|
7 mm
|
1
|
11 mm
|
2
|
ABS plastic
|
IP67, IP69K
|
55 °C
|
-25 °C
|
2,0 milj.
|
| |
![]()
SSR cable 8-wire, 5m, M12 connector
Art:
SSR-CABLE-QD-05
Copied
|
2 A
|
7 mm
|
1
|
11 mm
|
2
|
ABS plastic
|
IP67
|
55 °C
|
-25 °C
|
2,0 milj.
|
| |
![]()
SSR receiver
Art:
SSR-ACTUATOR
Copied
|
|
|
|
|
|
ABS plastic
|
IP67, IP69K
|
|
|
|
|
Select a variant in the list
