DUELCO

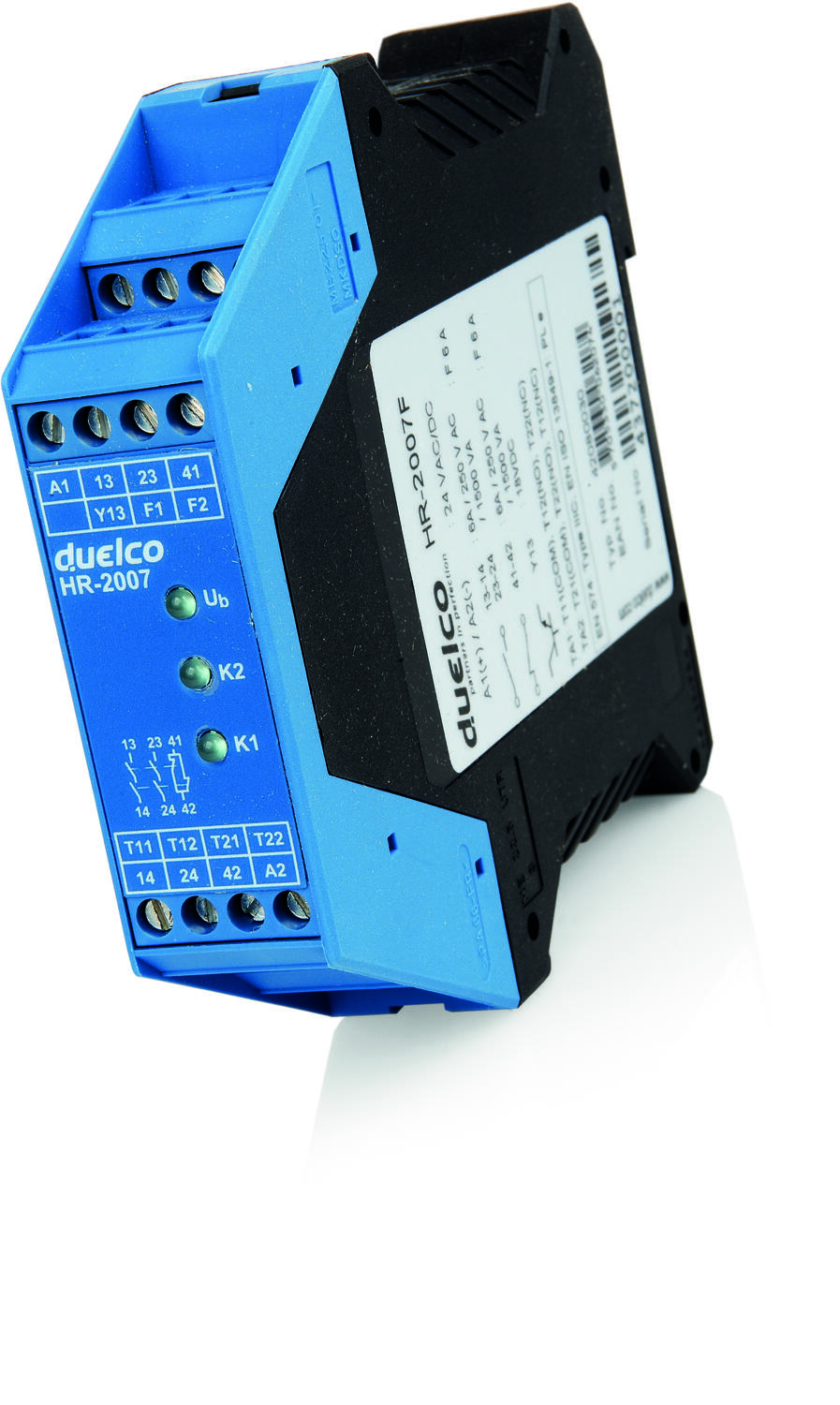

Duelco - HR-2007F Two Hand Control Relay

Two-hand control relay for dangerous work processes such as punching or pressing. Verification of the operation of two control buttons within a maximum time of 0.5s. With short circuit monitoring protection.

Read more
  • Safety Category 4 / Performance level e
  • Type IIIC (EN 574)
  • Status-/fault indication via LEDs
  • 2 NO safety outputs
  • Available with 230VAC and 24V AC/DC supply voltage

Selected variant

DUELCO.tif

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Tolerance ± 10 %
Supply voltage 24 V AC/DC
Safety outputs NO 2
Signal output NC 1
IP Class Housing IP40
Temperature range to 55 °C
Width 22,5 mm
Temperature range from -25 °C
IP Class Connection IP20
PL e (EN ISO 13849-1)
Safety category 4

Downloads

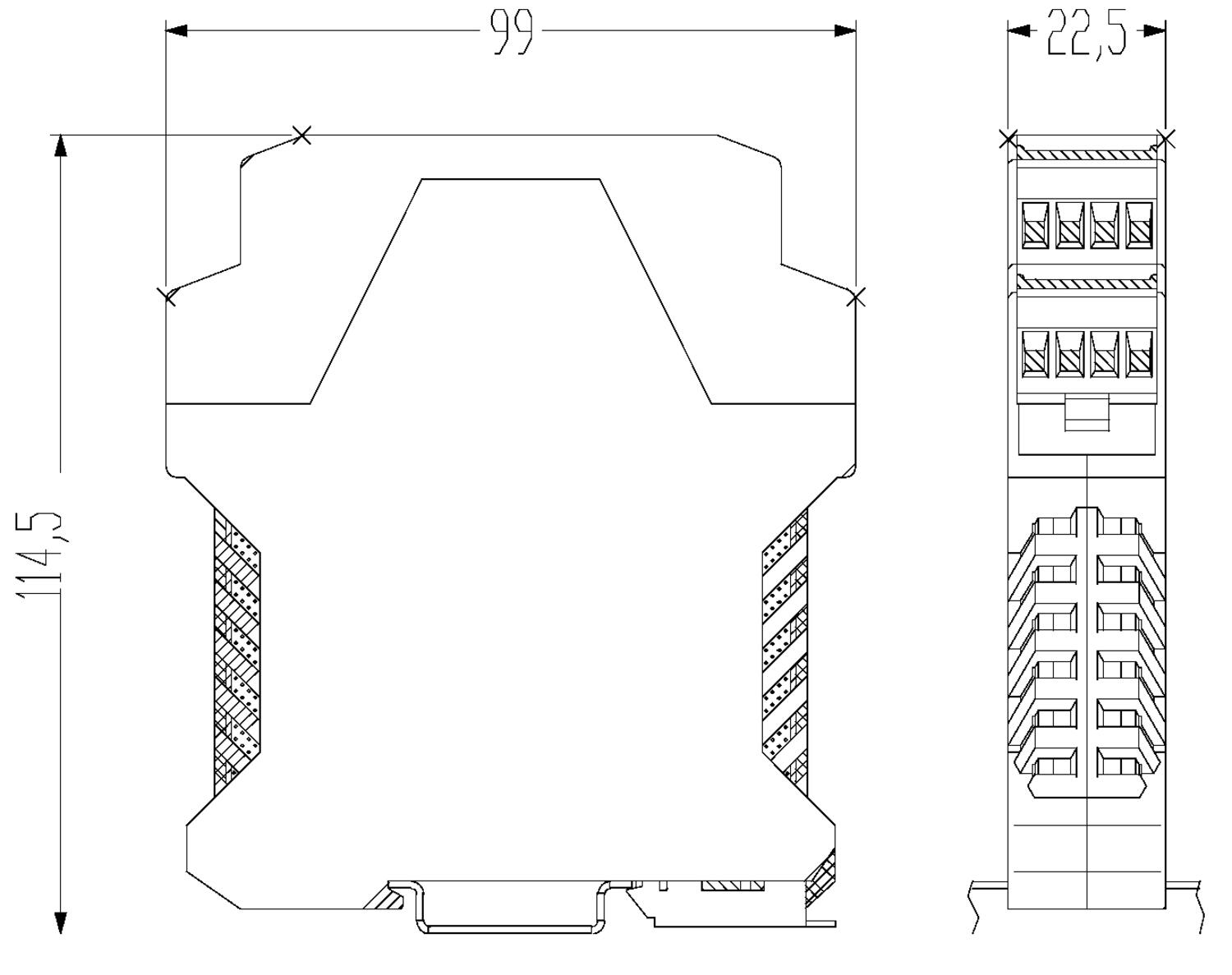

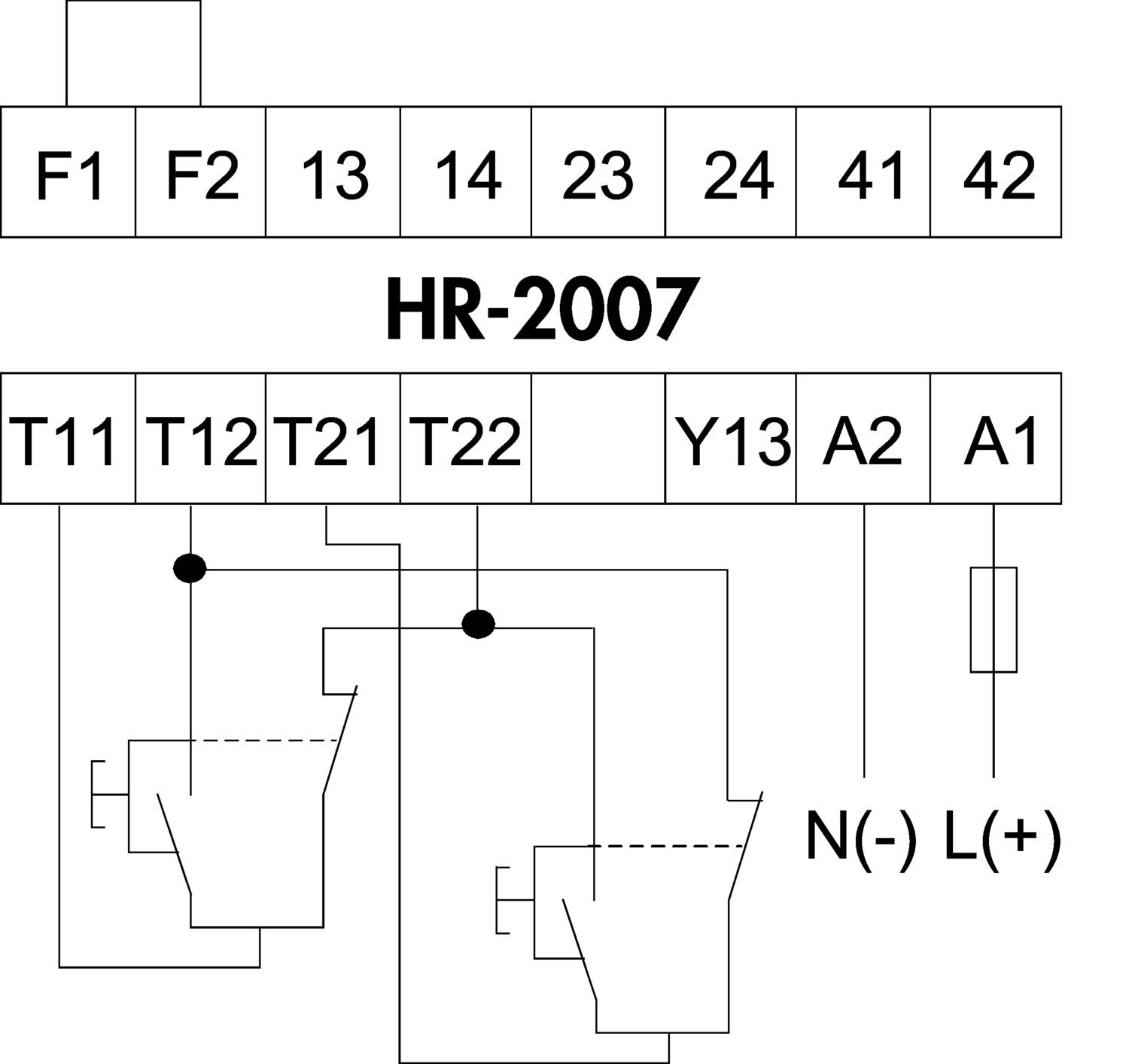

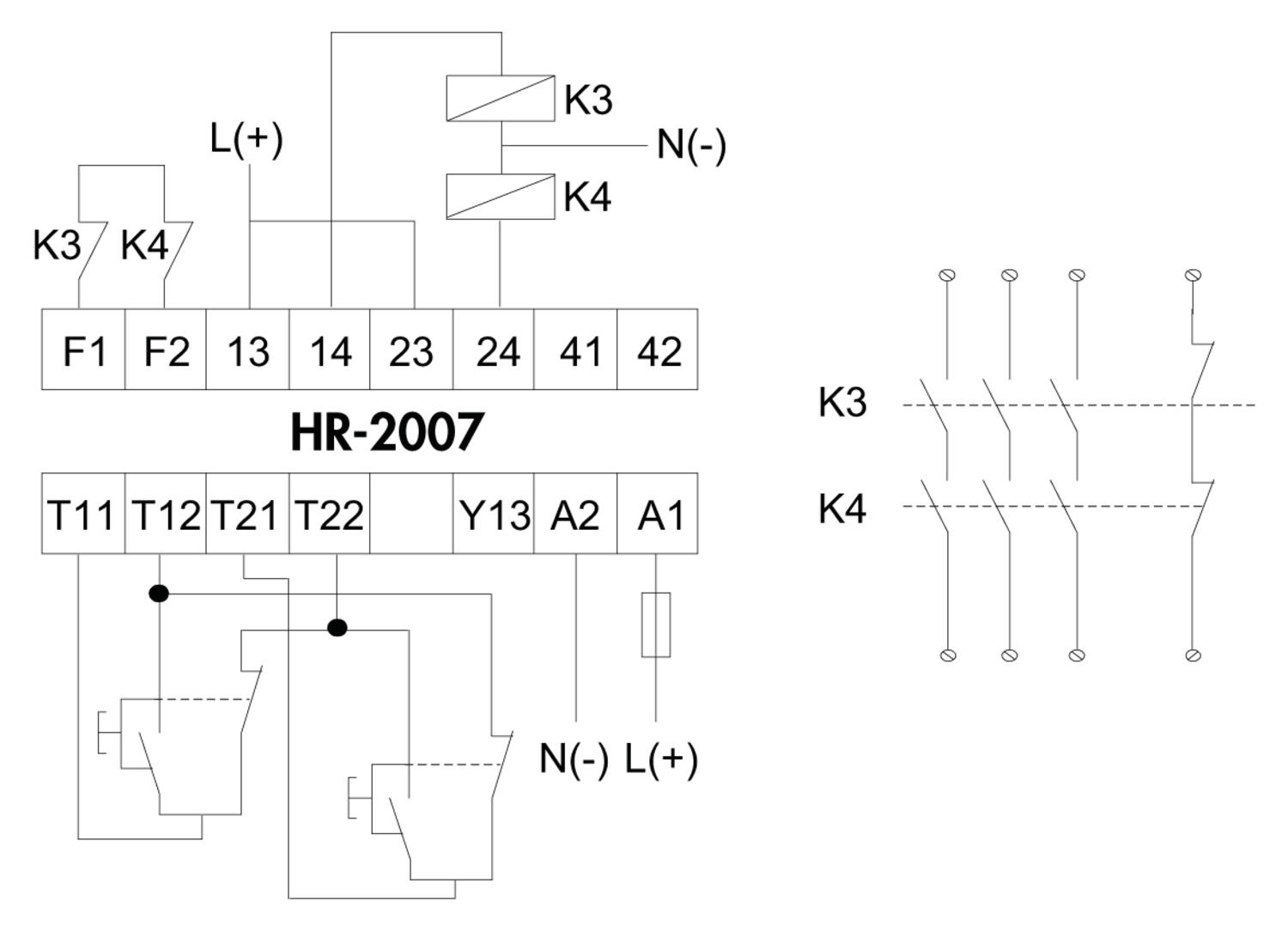

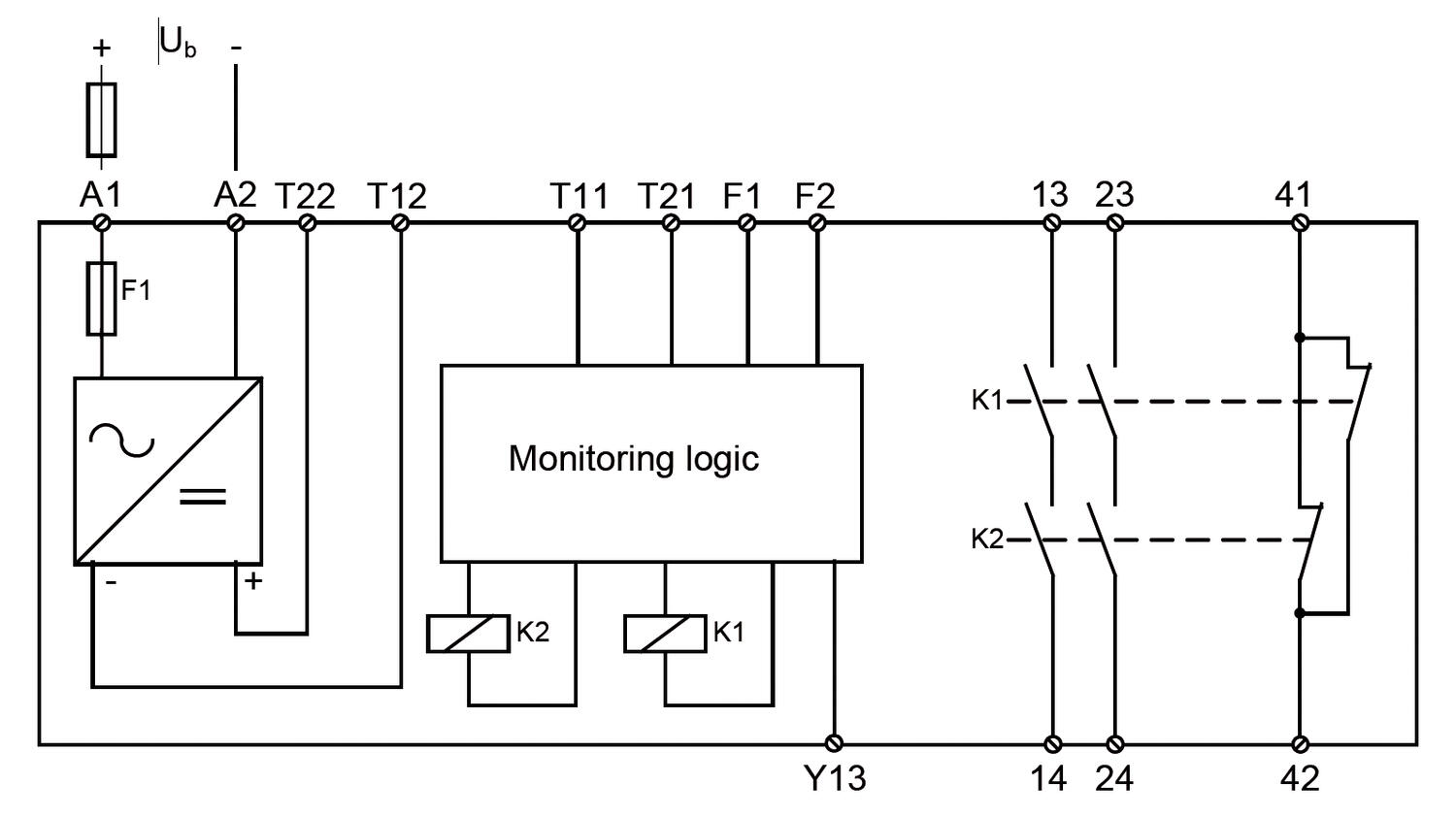

Measurements and connections

Product description

Two-hand control relay for dangerous work processes such as punching or pressing. Verification of the operation of two control buttons within a maximum time of 0.5s. With short circuit monitoring protection.

Accessories

Related products

Articles Tolerance Supply voltage Safety outputs NO Signal output NC IP Class Housing Temperature range to Width Temperature range from IP Class Connection PL Safety category
Duelco HR-2007F.tif
HR2007F 2-Hand Control Relay 24Vac/dc
Art:
42080030 Copied
± 10 %
24 V AC/DC
2
1
IP40
55 °C
22,5 mm
-25 °C
IP20
e (EN ISO 13849-1)
4
Duelco HR-2007F.tif
HR2007F 230VAC 2-HAND RELAY
Art:
42080031 Copied
± 10 %
230 V AC
2
1
IP40
55 °C
22,5 mm
-25 °C
IP20
e (EN ISO 13849-1)
4

Selected variant

Select a variant in the list
