Duelco - EU-2001F Extention Module

Extension module for increasing the number of contacts. Compatible with the complete Duelco safety relay range.



Read more
  • Up to Safety Category 4 (PLe)
  • 4 NO Safety Contact with or without delay
  • 1 Transistor output
  • Status/fault indication via LEDs

Selected variant

DUELCO.tif

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Tolerance ±10%
Supply voltage 24 V DC
Safety outputs NO 4
IP Class Housing IP40
Temperature range to 50 °C
Width 22,5 mm
Temperature range from 0 °C
IP Class Connection IP20
PL e
Safety category 4

Downloads

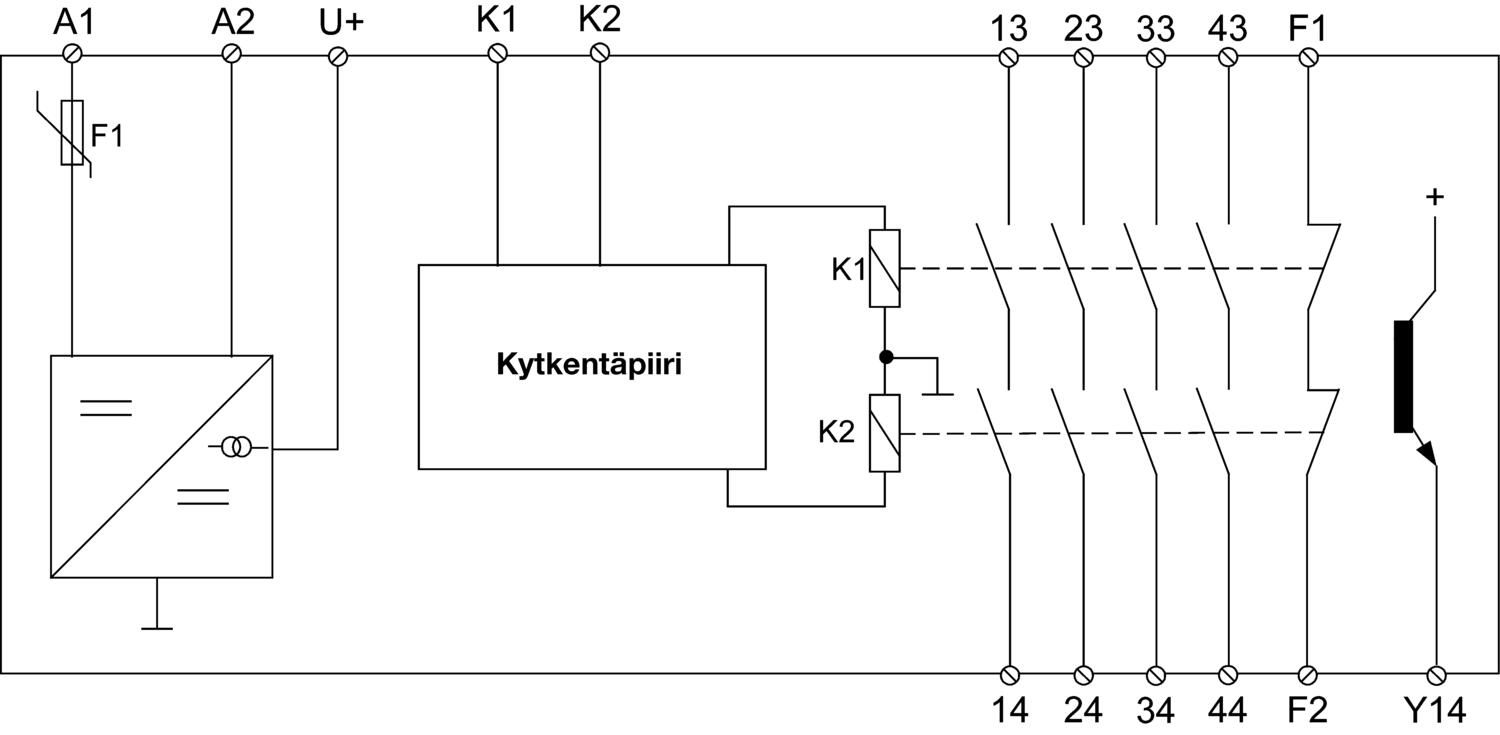

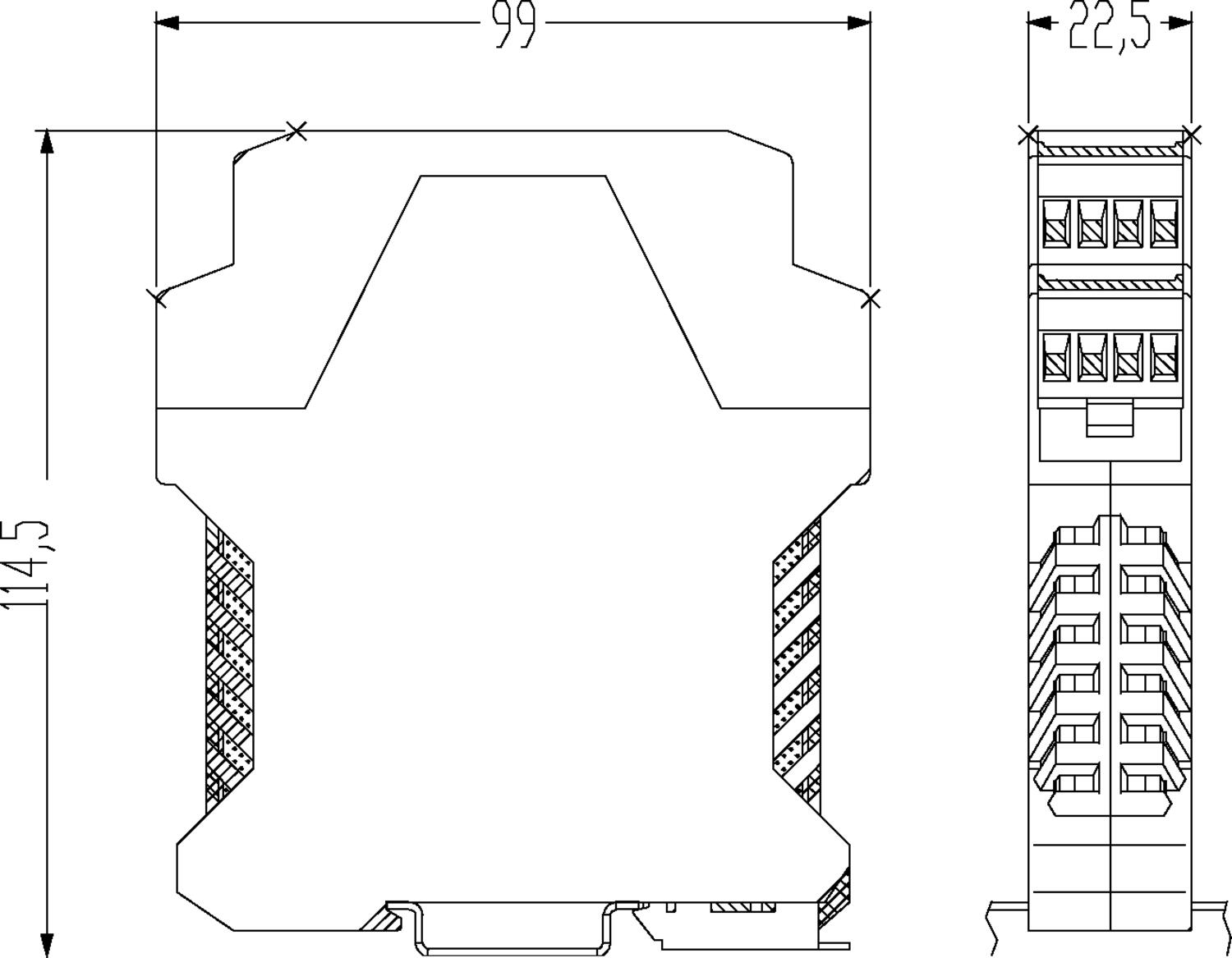

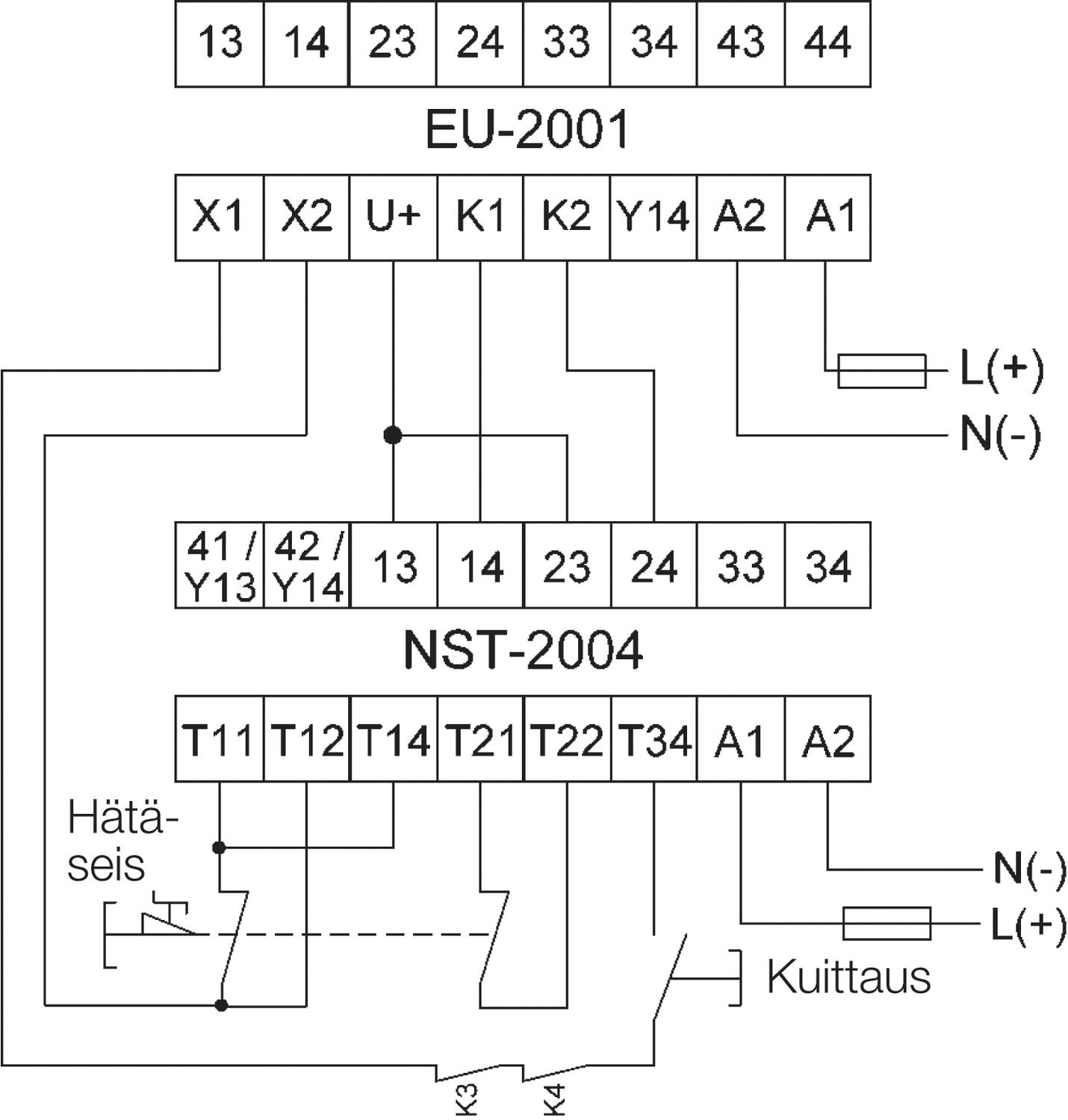

Measurements and connections

Product description

Extension module for increasing the number of contacts. Compatible with the complete Duelco safety relay range.



Accessories

Related products

Articles Tolerance Supply voltage Safety outputs NO IP Class Housing Temperature range to Width Temperature range from IP Class Connection PL Safety category
Duelco-EU-2001F.tif
EU2001 24VDC EXTENSION 4NO
Art:
42022001 Copied
±10%
24 V DC
4
IP40
50 °C
22,5 mm
0 °C
IP20
e
4
Duelco-EU-2001F.tif
Extension module, EU-2001F, 4 NO+transistor, 24 V DC, 0,5 s
Art:
42023105 Copied
±10%
24 V DC
4
IP40
50 °C
22,5 mm
0 °C
IP20
e
4
Duelco-EU-2001F.tif
Extension module, EU-2001F, 4 NO+transistor, 24 V DC, 1 s
Art:
42023110 Copied
±10%
24 V DC
4
IP40
50 °C
22,5 mm
0 °C
IP20
e
4
Duelco-EU-2001F.tif
Extension module, EU-2001F, 4 NO+transistor, 24 V DC, 2 s
Art:
42023120 Copied
±10%
24 V DC
4
IP40
50 °C
22,5 mm
0 °C
IP20
e
4
Duelco-EU-2001F.tif
Extension module, EU-2001F, 4 NO+transistor, 24 V DC, 4 s
Art:
42023140 Copied
±10%
24 V DC
4
IP40
50 °C
22,5 mm
0 °C
IP20
e
4
