CASTELL
Multi-key powersafe electrical switch KSE20
A typical application of KSE multi-key powersafe electrical switch is machine guarding. It is usually used in combination with an access interlock such as the Salus for part body access or an access interlock with an exchange key for full body access control such as AIE.

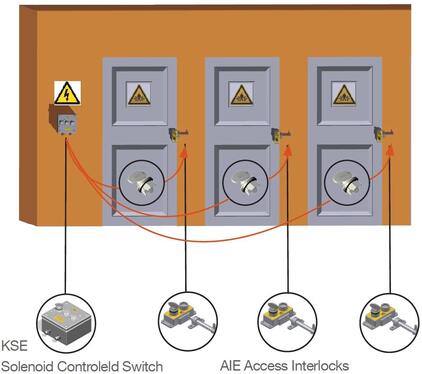

A typical system will isolate machinery and control access to hazardous areas. Removing the power isolation key from the KSE unit changes the condition of the electrical supply to the machine to a safe condition and enables the release of the personnel keys. These keys are then used to unlock the AIE dual key access interlocks.
The guards can only be opened when the electrical supply has been switched into a safe condition and only once all the keys have been returned to the KSE can the machine be restarted.
- Up to 4 locks can be released from the same switch
- Panel mount or enclosed
- 2 NC+2 NO or 4 NC contacts
Selected variant
Specifications
| Approvals | CE, CSA, UL |
|---|---|
| Conforming To | EMC, LVD, MD |
| Contact Current Max | 20 A |
| Contact Current Min | 5 mA |
| Contact Voltage Max | 400 V |
| Contact Voltage Min | 20 V |
| Materials Locks | Brass |
| Temperature ambient from | -25 °C |
| Temperature ambient to | 55 °C |
Downloads
Product description
A typical application of KSE multi-key powersafe electrical switch is machine guarding. It is usually used in combination with an access interlock such as the Salus for part body access or an access interlock with an exchange key for full body access control such as AIE.
A typical system will isolate machinery and control access to hazardous areas. Removing the power isolation key from the KSE unit changes the condition of the electrical supply to the machine to a safe condition and enables the release of the personnel keys. These keys are then used to unlock the AIE dual key access interlocks.
The guards can only be opened when the electrical supply has been switched into a safe condition and only once all the keys have been returned to the KSE can the machine be restarted.
