Auer - Buzzer, siren and combi-signal KLH (KDH)

Small, low cost membrane buzzer for indoor use.

Read more
  • Membrane buzzer
  • 92 dB

Selected variant

AuerSignal Logo_RGB.tif

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Color House Grey RAL 7035
IP Class IP43, NEMA Type 2
Mounting Vertically
Nominal current max 0.055 A
Nominal current min 0.055 A
Number of tones 1
Sound level max 92 dB
Sound level min 92 dB
Supply Voltage 12 V
Supply Voltage DC Max 13.2 V DC
Supply Voltage DC Min 10.8 V DC
Temperature range from -25 °C
Temperature range to 50 °C
Terminal connection 2.5 mm²
Tone frequency max 50 Hz
Tone frequency min 50 Hz
Weight 180 g

Downloads

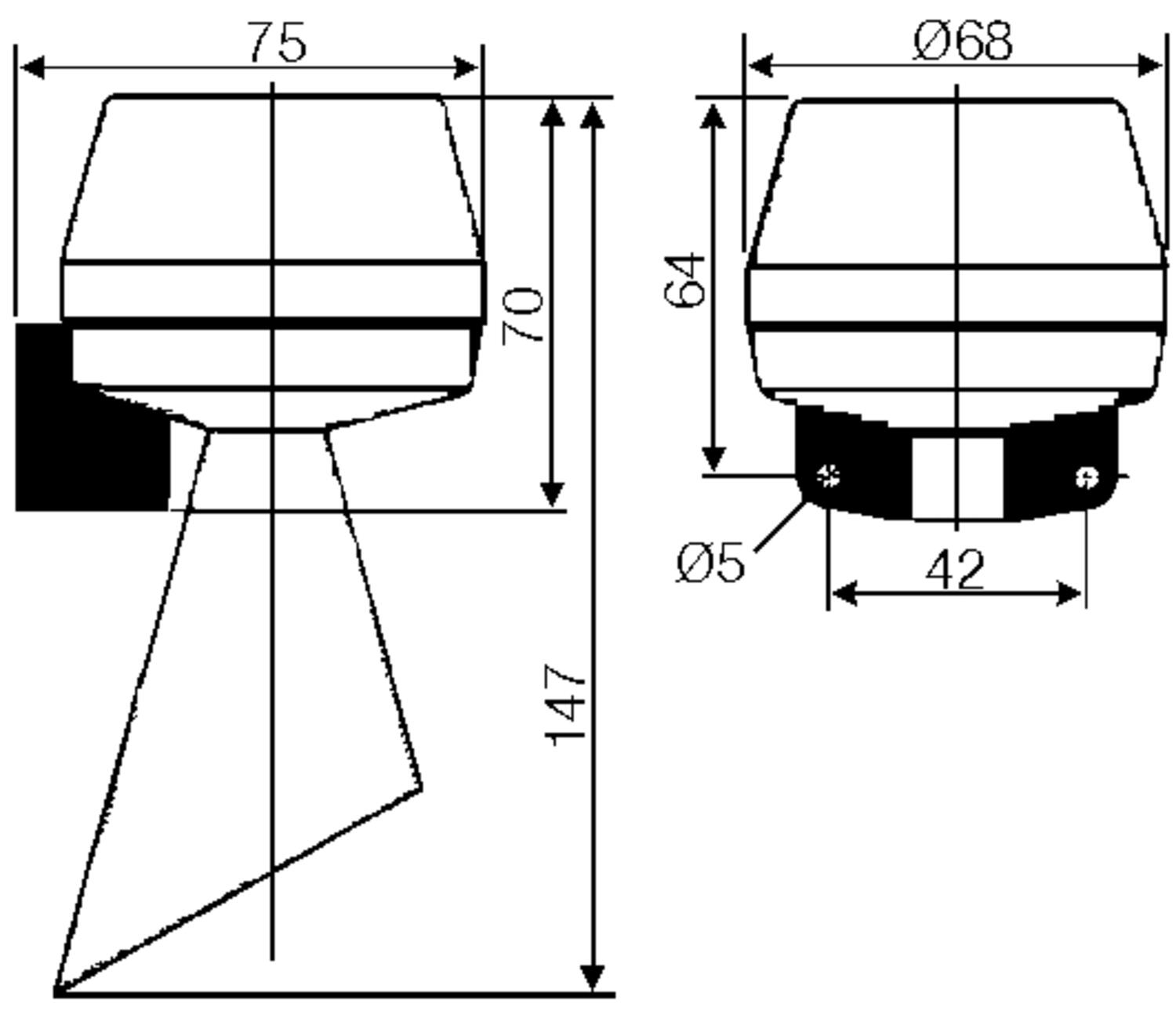

Measurements and connections

Technical illustrations

Product description

Small, low cost membrane buzzer for indoor use.

Accessories

Articles Nominal current max Nominal current min Operating Voltage AC Max Operating Voltage AC Min Supply Voltage Supply Voltage DC Max Supply Voltage DC Min Weight
klh_auer_siren.tif
Mini horn, 12 V dc, KLH
Art:
710100004 Copied
0.055 A
0.055 A
12 V
13.2 V DC
10.8 V DC
180 g
klh_auer_siren.tif
KLH 24VDC 92dB
Art:
710100005 Copied
0.026 A
0.026 A
24 V
26.4 V DC
21.6 V DC
180 g
klh_auer_siren.tif
KLH siren 110VDC
Art:
710100010 Copied
0.011 A
0.011 A
110 V
121 V DC
99 V DC
180 g
klh_auer_siren.tif
Mini horn, 220 V dc, KLH
Art:
710100013 Copied
0.011 A
0.011 A
220 V
242 V DC
198 V DC
180 g
klh_auer_siren.tif
Mini horn, 24 V ac, KLH
Art:
710100105 Copied
0.09 A
0.09 A
13.2 V AC
10.8 V AC
24 V
180 g
klh_auer_siren.tif
KLH 48VAC 92dB
Art:
710100108 Copied
0.06 A
0.06 A
52.8 V AC
43.2 V AC
48 V
180 g
klh_auer_siren.tif
Mini horn, 110 V ac, KLH
Art:
710100110 Copied
0.021 A
0.021 A
121 V AC
99 V AC
110 V
180 g
klh_auer_siren.tif
KLH / 92dB / 230VAC
Art:
710100113 Copied
0.011 A
0.011 A
253 V AC
207 V AC
230 V
180 g

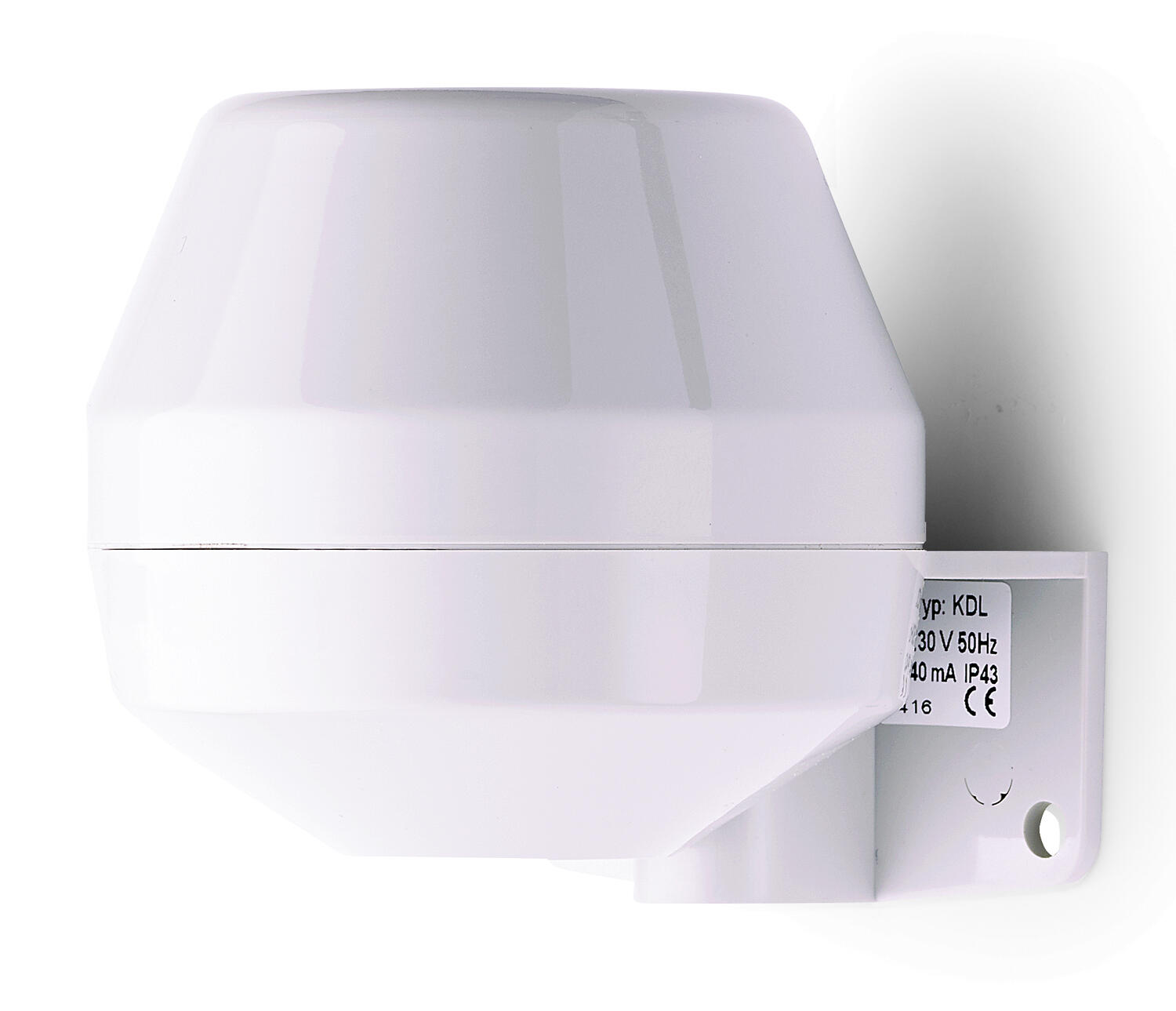

kdh_siren.tif
KDH / 92dB / 12VDC
Art:
710000004 Copied
0.026 A
0.026 A
12 V
13.2 V DC
10.8 V DC
150 g

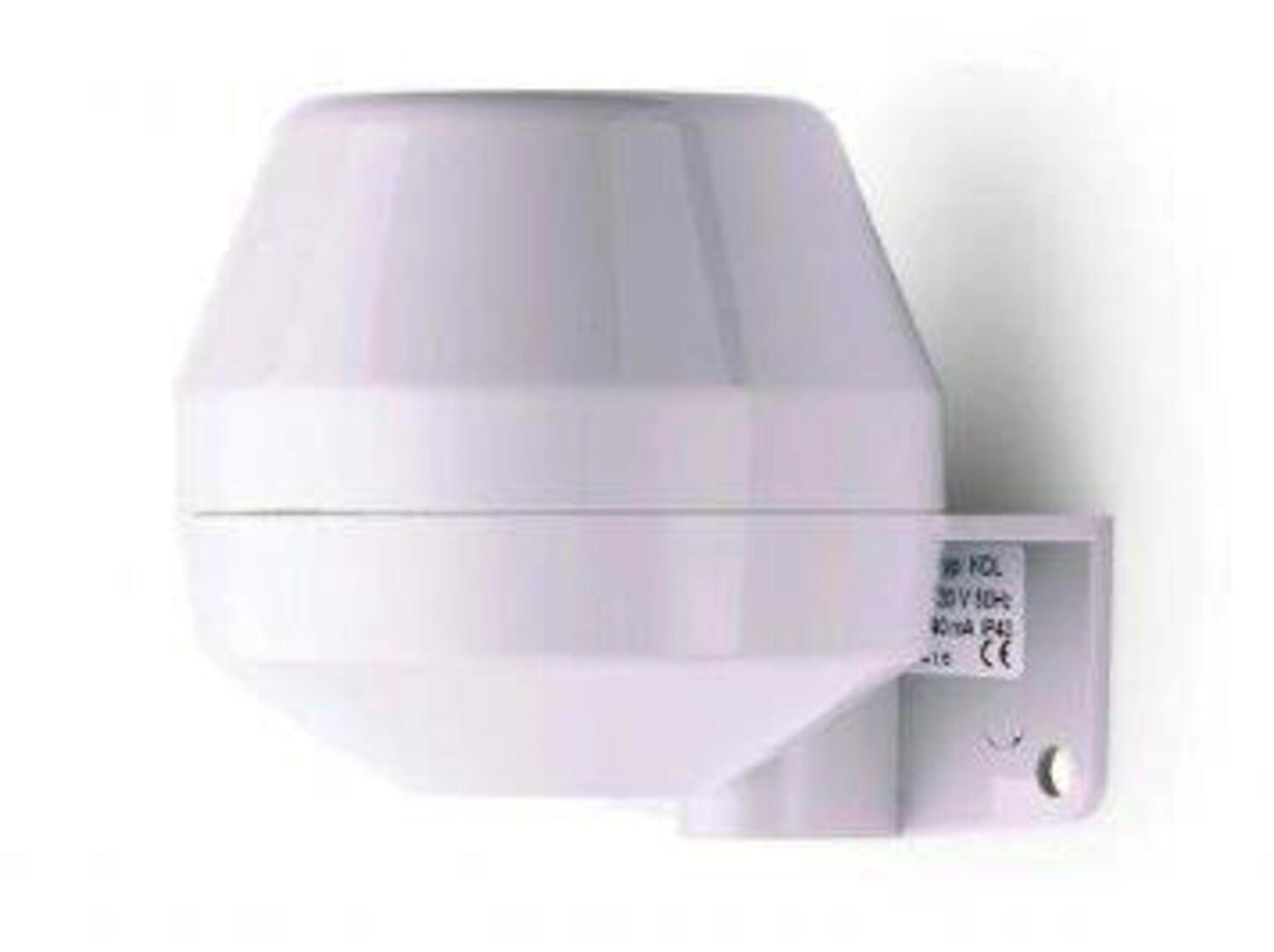

Auer_KDH.tif
KDH / 92dB / 24VDC
Art:
710000005 Copied
0.026 A
0.026 A
24 V
26.4 V DC
21.6 V DC
150 g
kdh_siren.tif
KDH / 92dB / 110VDC
Art:
710000010 Copied
0.026 A
0.026 A
110 V
121 V DC
99 V DC
150 g
kdh_siren.tif
BUCZEK MEMBRN.KDH 220VDC 92dB
Art:
710000013 Copied
0.026 A
0.026 A
220 V
242 V DC
198 V DC
150 g
kdh_siren.tif
KDH / 92dB / 24VAC
Art:
710000105 Copied
0.011 A
0.011 A
26.4 V AC
21.6 V AC
24 V
150 g
kdh_siren.tif
Mini horn, 48 V ac, KDH
Art:
710000108 Copied
0.011 A
0.011 A
52.8 V AC
43.2 V AC
48 V
150 g
kdh_siren.tif
Mini horn, 110 V ac, KDH
Art:
710000110 Copied
0.011 A
0.011 A
121 V AC
99 V AC
110 V
150 g
kdh_siren.tif
KDH / 92dB / 230VAC
Art:
710000113 Copied
0.011 A
0.011 A
253 V AC
207 V AC
230 V
150 g
