Cubic Warning Light LED Series "Q" 876161313

Color House	Red
Color Lens	Orange
Diameter	94mm
IK Class	9
IP Class	IP65
Light source	LED
Light type	Orange LED
Mounting	Independent

Operating Voltage AC Max	240 V AC
Operating Voltage AC Min	230 V AC
Sound level max	80 dB
Temperature range from	-30 °C
Temperature range to	60 °C
Terminal connection	2,5 mm²

Articles	Color Lens	Diameter	Light source	Light type	Operating Voltage AC / DC Max	Operating Voltage AC Max	Operating Voltage AC Min	Sound level max	Supply Voltage AC / DC Min

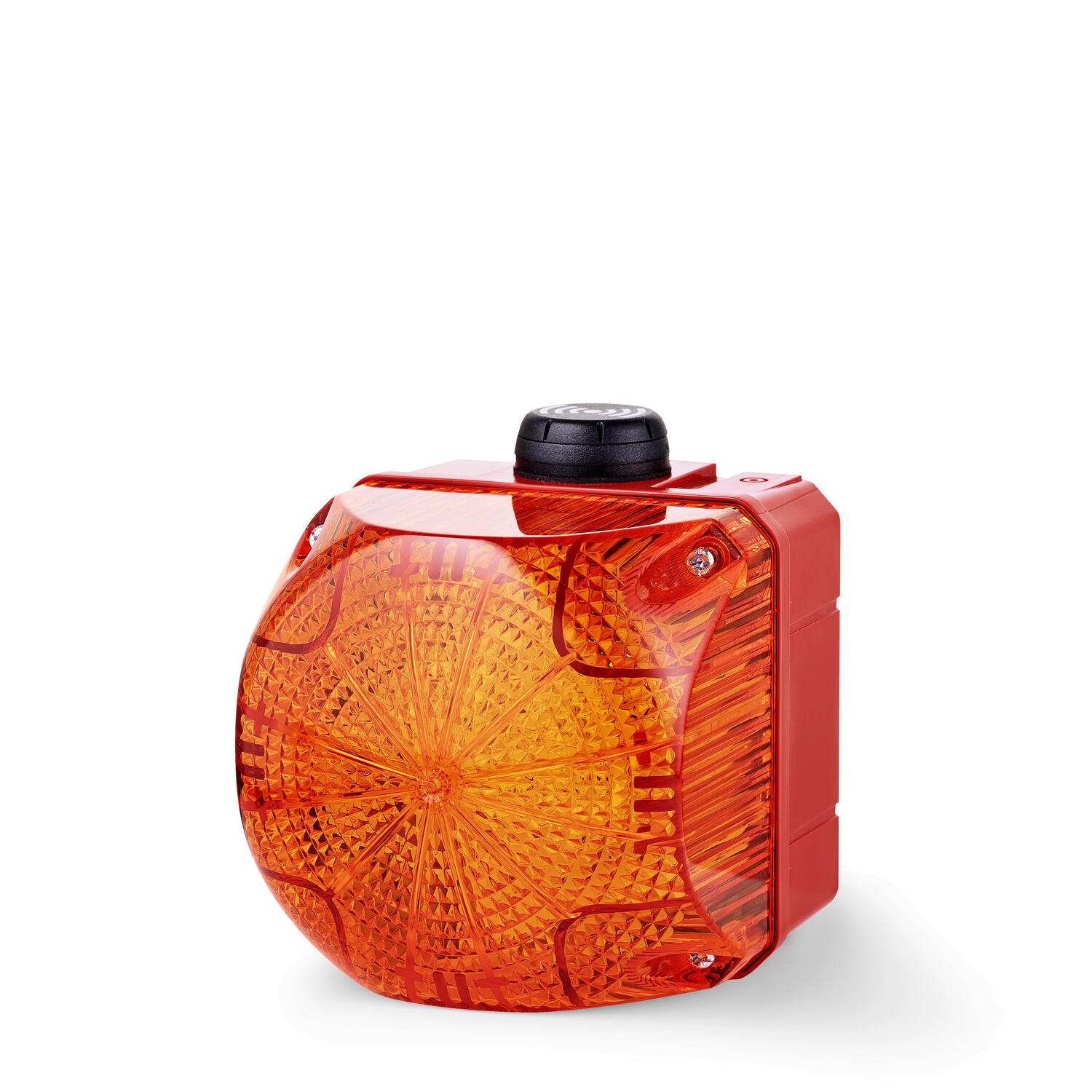

LED Steady/flashing+Buzzer, 94mm, Amber, 230-240 V ac, QSS Art: 876161313 Copied	Orange	94mm	LED	Orange LED		240 V AC	230 V AC	80 dB
LED Steady/flashing+Buzzer, 94mm, Amber, 24 V ac/dc, QSS Art: 876161405 Copied	Orange	94mm	LED	Orange LED	24 V			80 dB	24 V

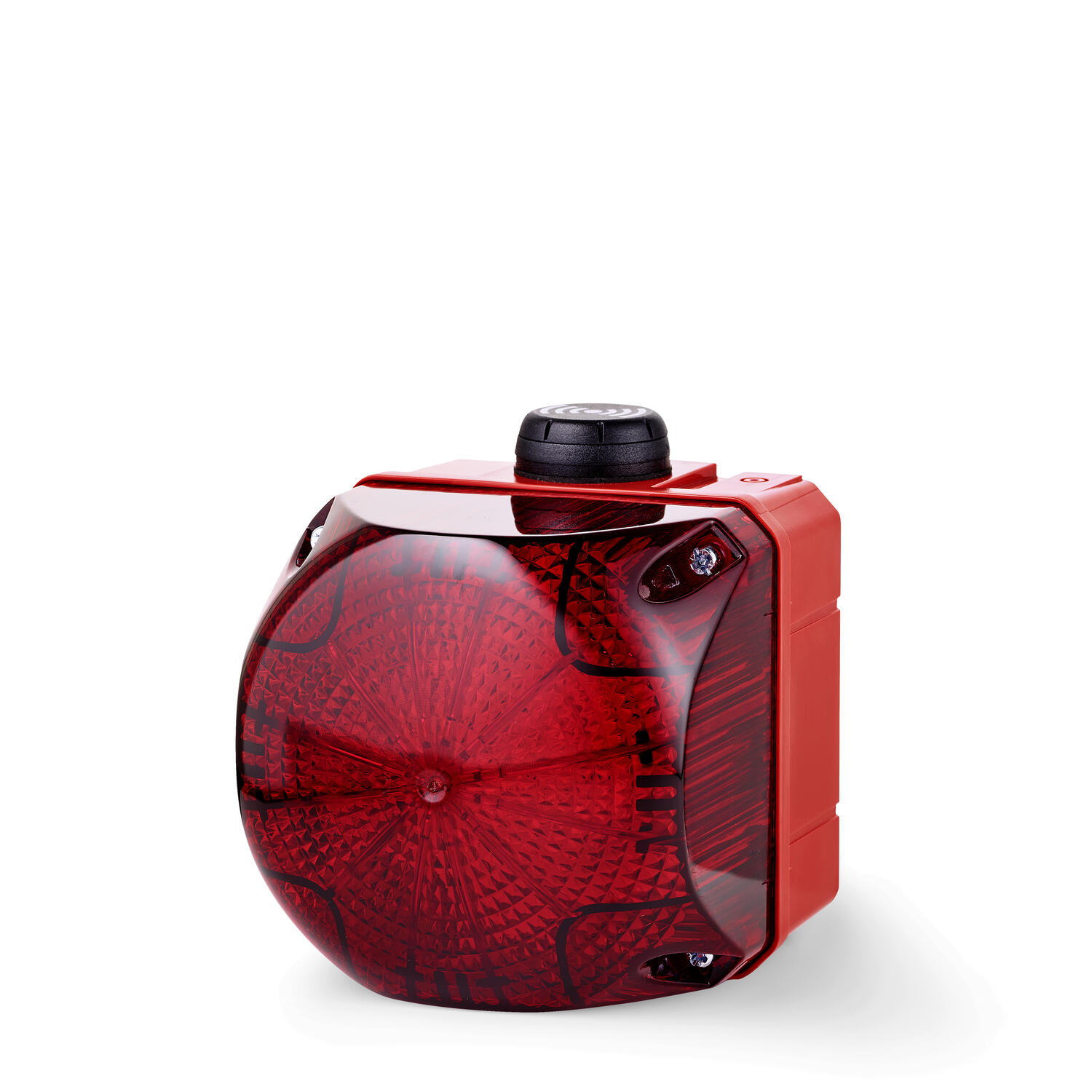

QSS Beacons/red/ with buzzer indicator. Art: 876162313 Copied	Red	94mm	LED	Red LED		240 V AC	230 V AC	80 dB
LED Steady/flashing+Buzzer, 94mm, Red, 24 V ac/dc, QSS Art: 876162405 Copied	Red	94mm	LED	Red LED	24 V			80 dB	24 V

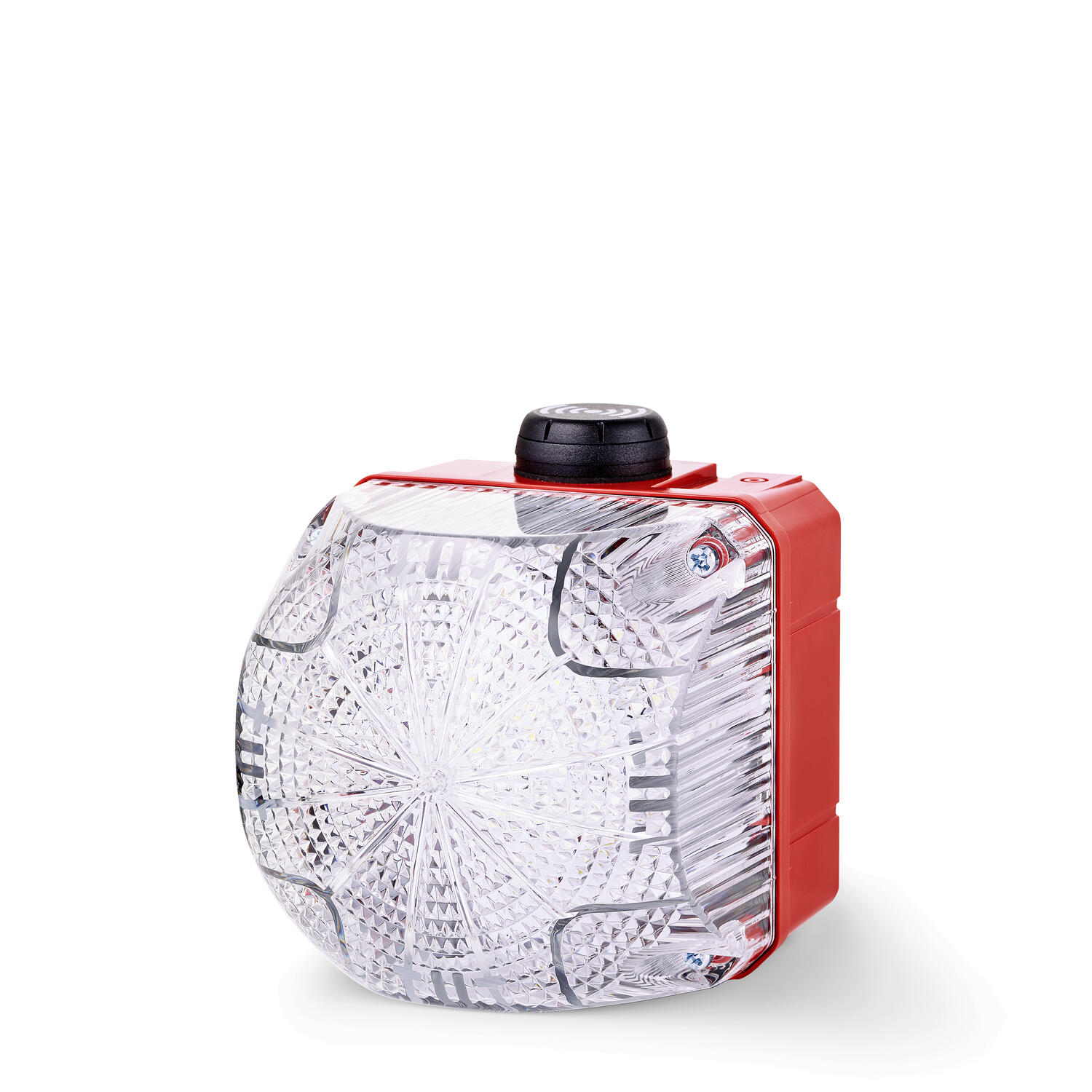

LED Steady/flashing+Buzzer, 94mm, Clear, 230-240 V ac, QSS Art: 876164313 Copied	Clear	94mm	LED	White LED		240 V AC	230 V AC	80 dB
LED Steady/flashing+Buzzer, 94mm, Clear, 24 V ac/dc, QSS Art: 876164405 Copied	Clear	94mm	LED	White LED	24 V			80 dB	24 V

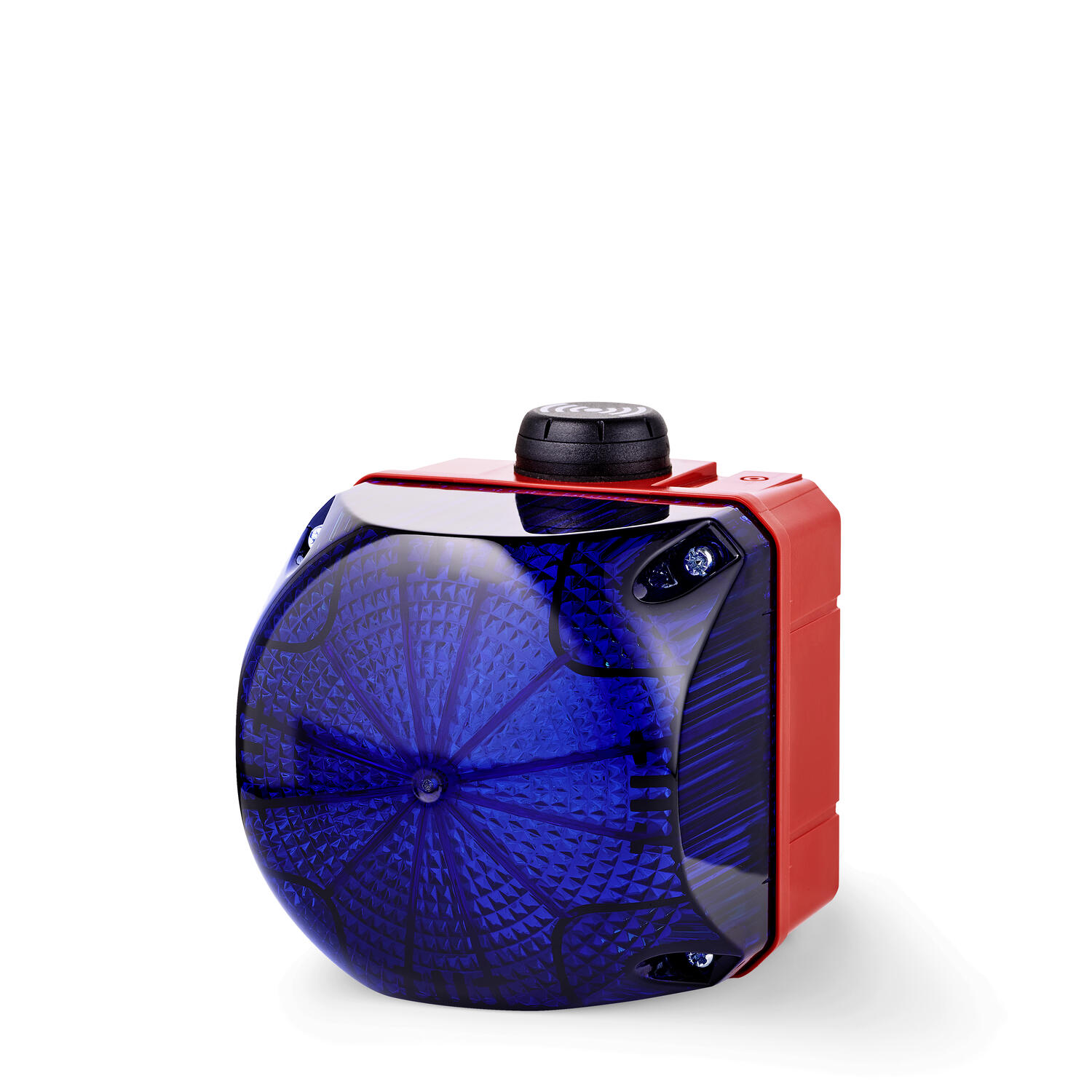

LED Steady/flashing+Buzzer, 94mm, Blue, 230-240 V ac, QSS Art: 876165313 Copied	Blue	94mm	LED	Blue LED		240 V AC	230 V AC	80 dB
LED Steady/flashing+Buzzer, 94mm, Blue, 24 V ac/dc, QSS Art: 876165405 Copied	Blue	94mm	LED	Blue LED	24 V			80 dB	24 V
LED Steady/flashing+Buzzer, 94mm, Green, 230-240 V ac, QSS Art: 876166313 Copied	Green	94mm	LED	Green LED		240 V AC	230 V AC	80 dB
LED Steady/flashing+Buzzer, 94mm, Green, 24 V ac/dc, QSS Art: 876166405 Copied	Green	94mm	LED	Green LED	24 V			80 dB	24 V

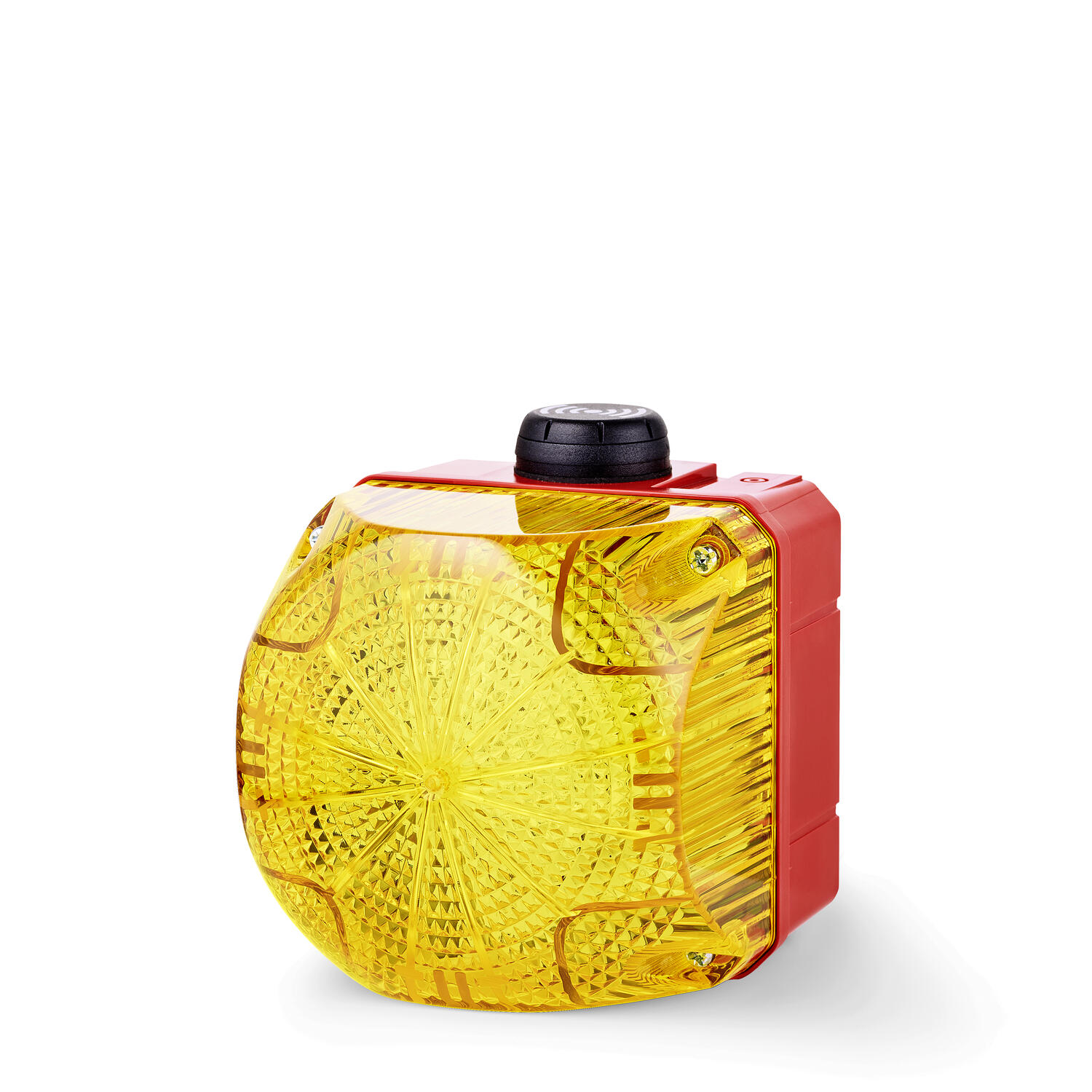

LED Steady/flashing+Buzzer, 94mm, Yell, 230-240 V ac, QSS Art: 876167313 Copied	Yellow	94mm	LED	Yellow LED		240 V AC	230 V AC	80 dB
QSS /yellow / with buzzer indicator. Art: 876167405 Copied	Yellow	94mm	LED	Yellow LED	24 V			80 dB	24 V
LED Steady/flashing+Buzzer, 132mm, Amber, 230-240 V ac, QSM Art: 876261313 Copied	Orange	132mm	LED	Orange LED		240 V AC	230 V AC	100 dB
LED Steady/flashing+Buzzer, 132mm, Amber, 24 V ac/dc, QSM Art: 876261405 Copied	Orange	132mm	LED	Orange LED	24 V			100 dB	24 V
LED Steady/flashing+Buzzer, 132mm, Red, 230-240 V ac, QSM Art: 876262313 Copied	Red	132mm	LED	Red LED		240 V AC	230 V AC	100 dB
LED Steady/flashing+Buzzer, 132mm, Red, 24 V ac/dc, QSM Art: 876262405 Copied	Red	132mm	LED	Red LED	24 V			100 dB	24 V

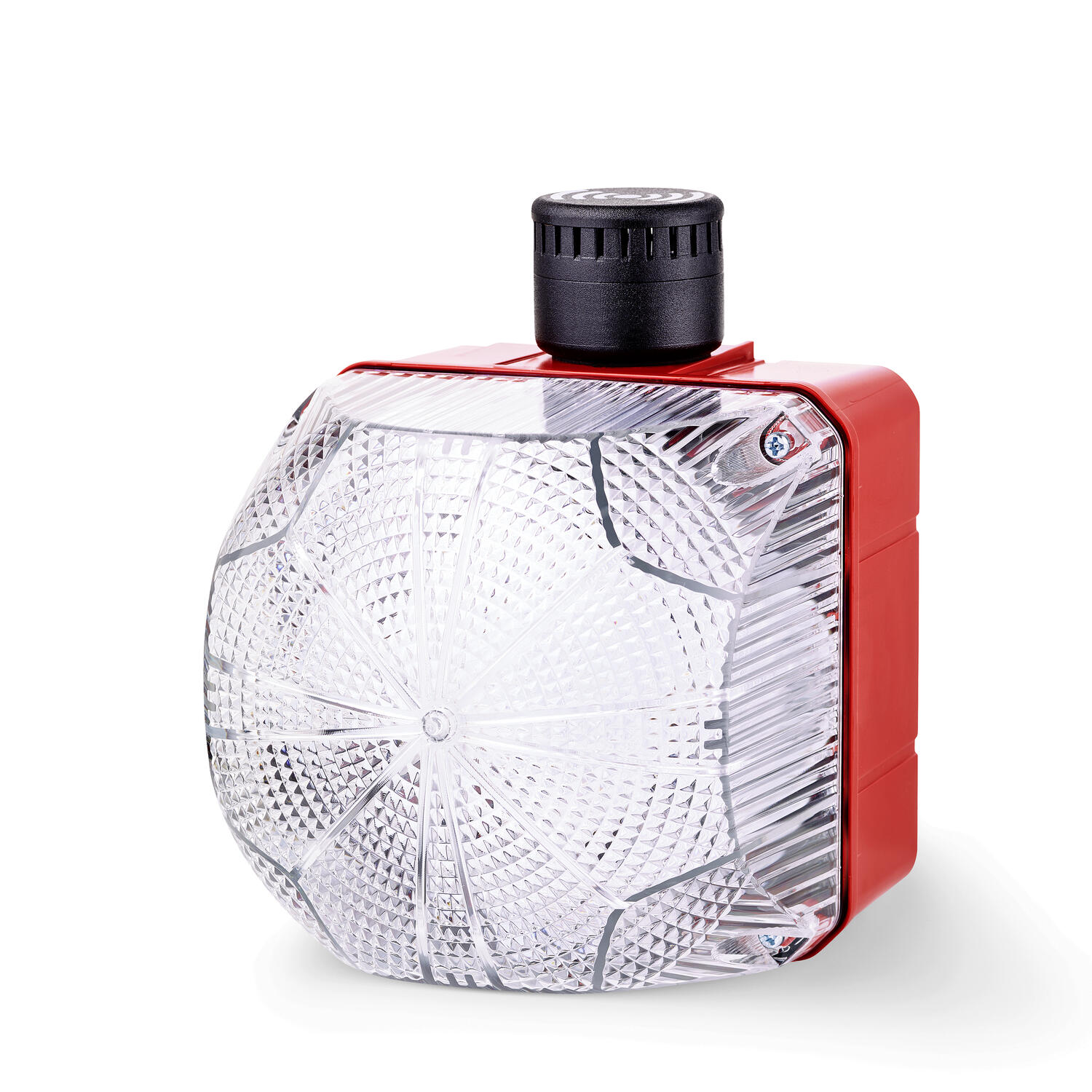

LED Steady/flashing+Buzzer, 132mm, Clear, 230-240 V ac, QSM Art: 876264313 Copied	Clear	132mm	LED	White LED		240 V AC	230 V AC	100 dB
LED Steady/flashing+Buzzer, 132mm, Clear, 24 V ac/dc, QSM Art: 876264405 Copied	Clear	132mm	LED	White LED	24 V			100 dB	24 V

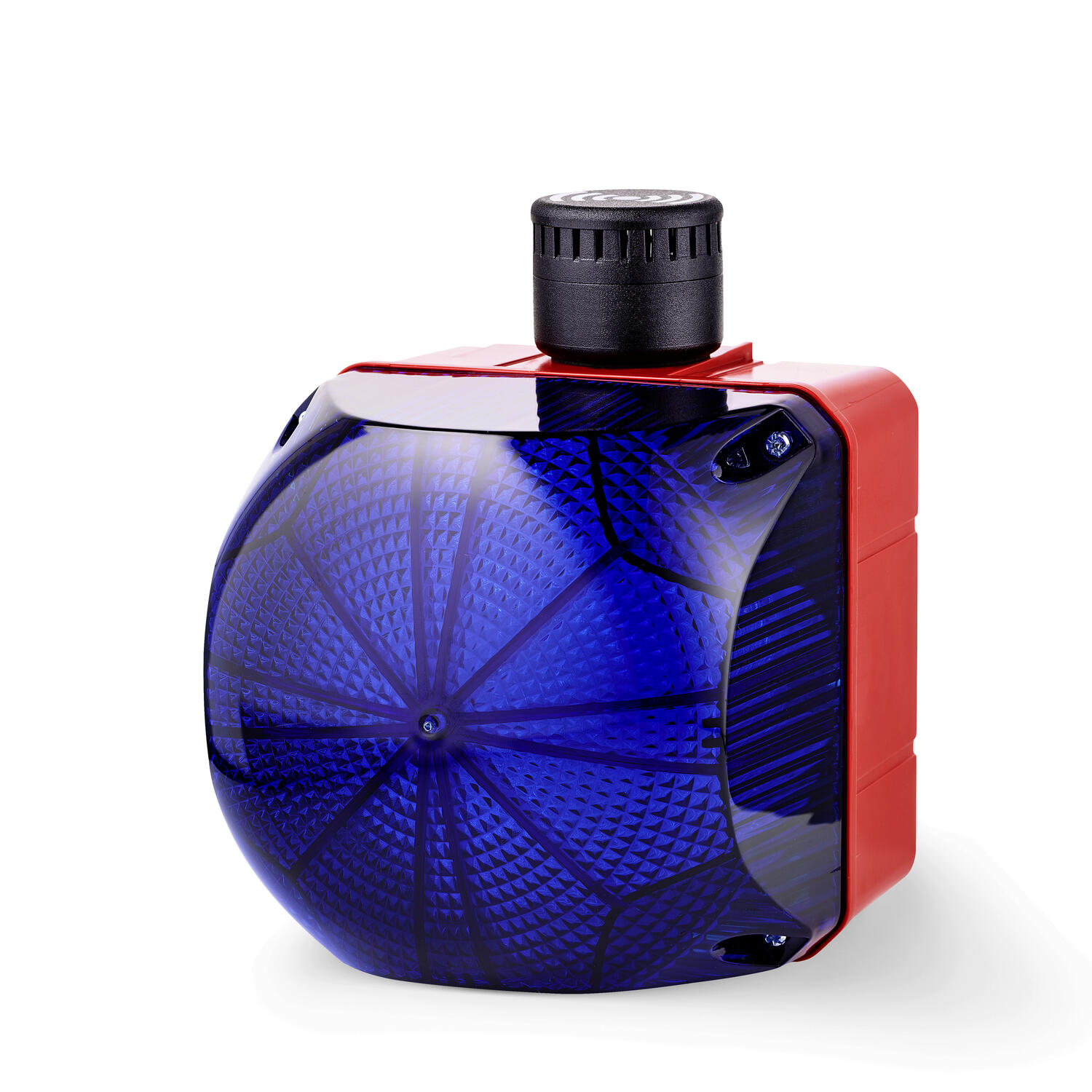

LED Steady/flashing+Buzzer, 132mm, Blue, 230-240 V ac, QSM Art: 876265313 Copied	Blue	132mm	LED	Blue LED		240 V AC	230 V AC	100 dB
LED Steady/flashing+Buzzer, 132mm, Blue, 24 V ac/dc, QSM Art: 876265405 Copied	Blue	132mm	LED	Blue LED	24 V			100 dB	24 V

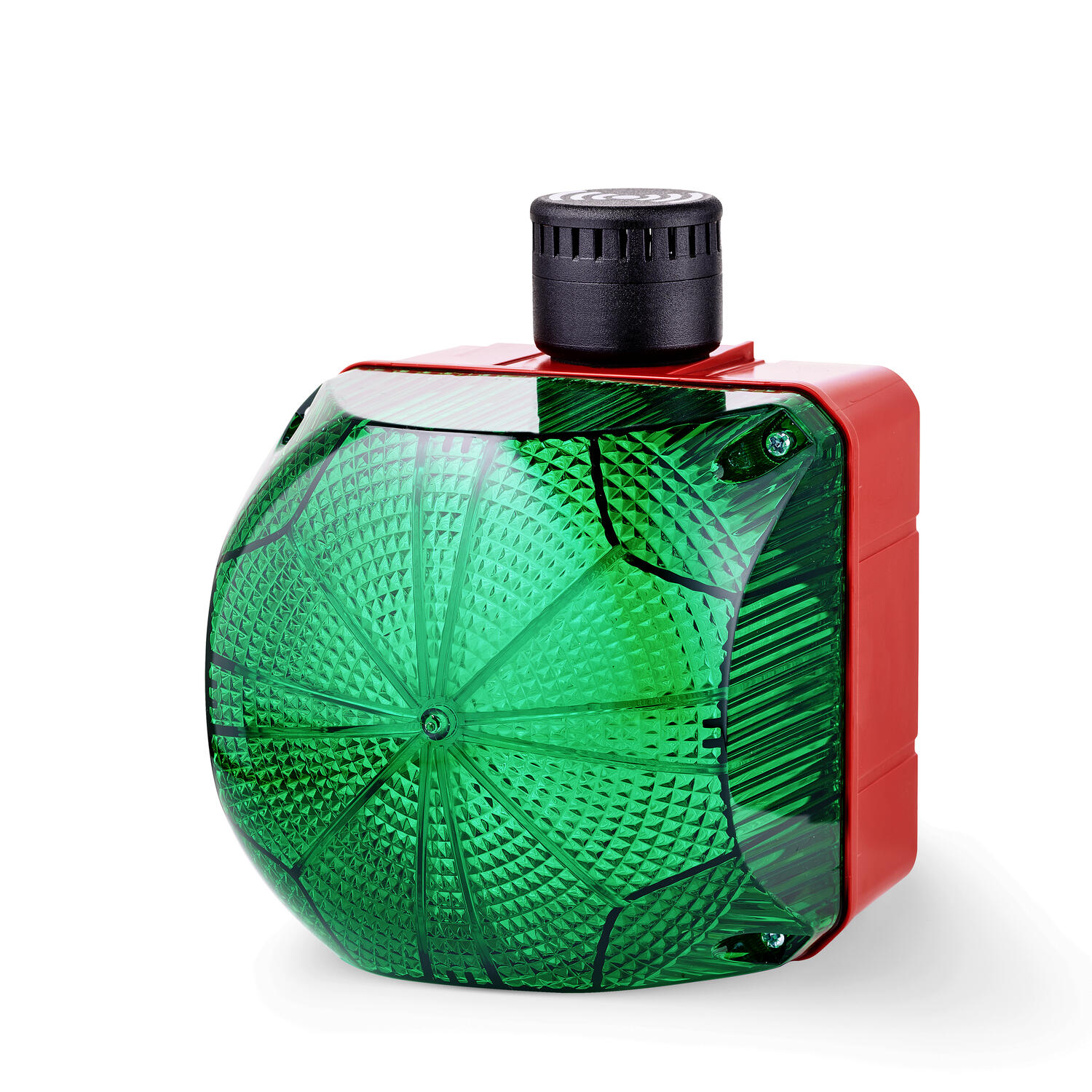

LED Steady/flashing+Buzzer, 132mm, Green, 230-240 V ac, QSM Art: 876266313 Copied	Green	132mm	LED	Green LED		240 V AC	230 V AC	100 dB
QSM LED / BUZZER 24VAD GREEN Art: 876266405 Copied	Green	132mm	LED	Green LED	24 V			100 dB	24 V

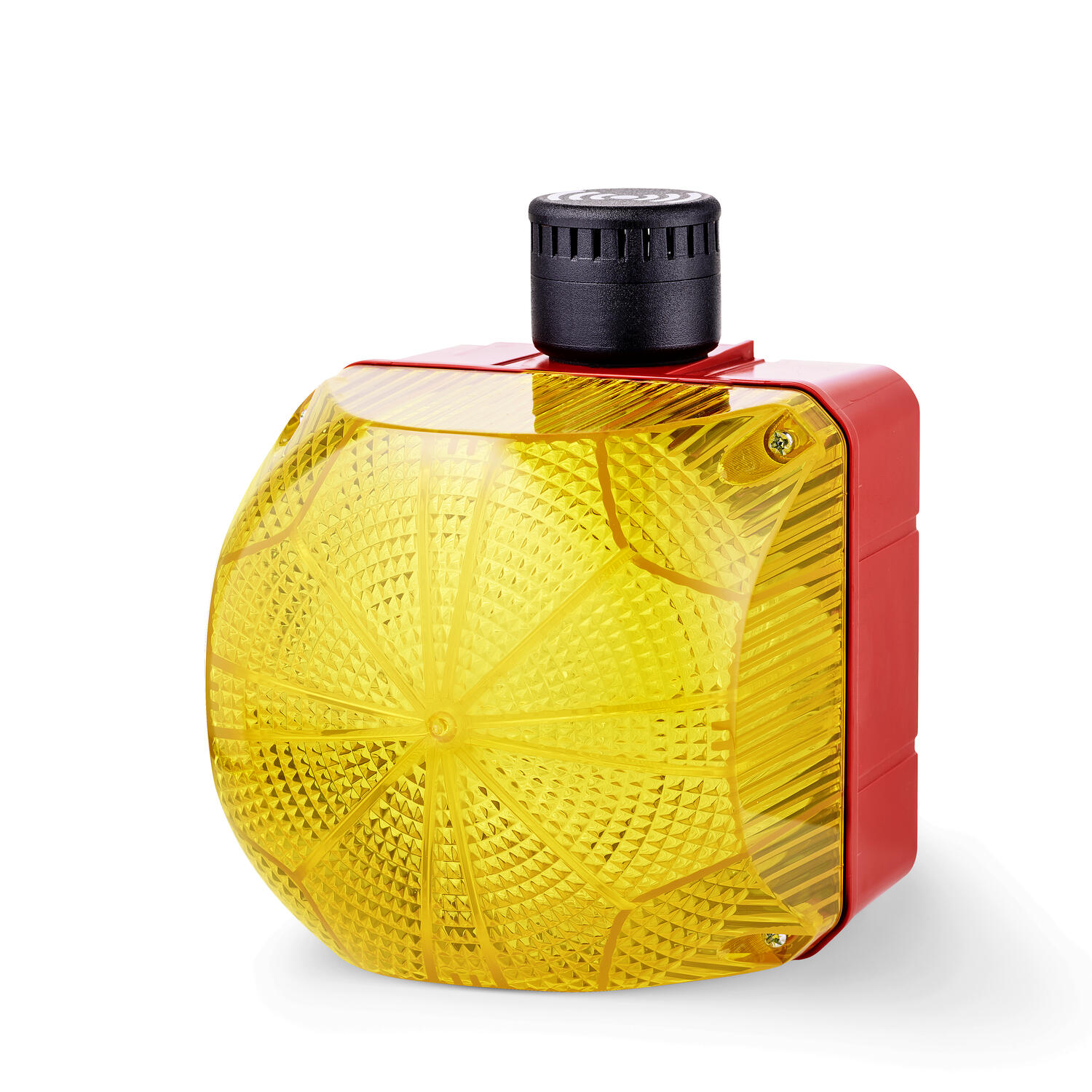

LED Steady/flashing+Buzzer, 132mm, Yell, 230-240 V ac, QSM Art: 876267313 Copied	Yellow	132mm	LED	Yellow LED		240 V AC	230 V AC	100 dB
LED Steady/flashing+Buzzer, 132mm, Yell, 24 V ac/dc, QSM Art: 876267405 Copied	Yellow	132mm	LED	Yellow LED	24 V			100 dB	24 V

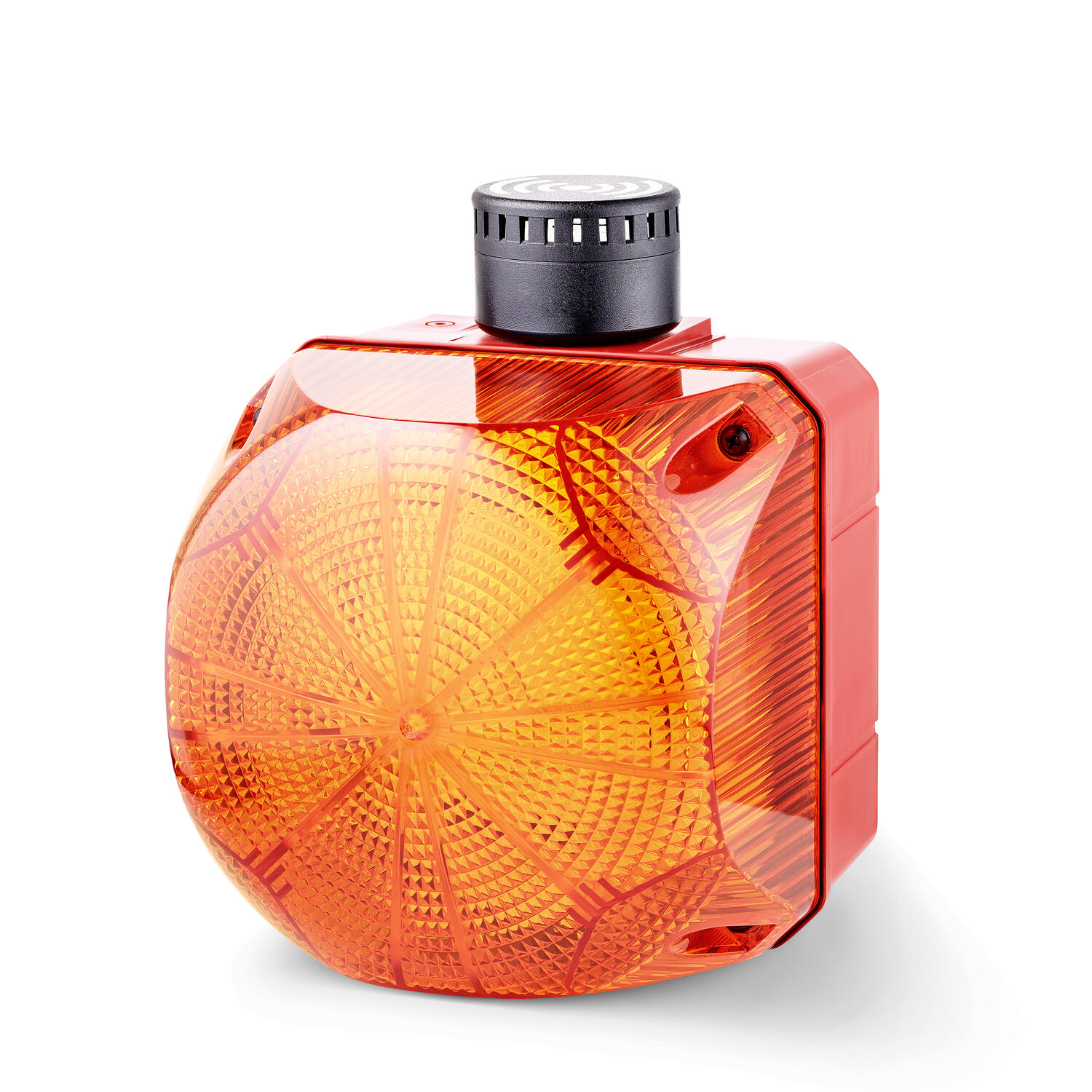

LED Steady/flashing+Buzzer, 184mm, Amber, 230-240 V ac, QSL Art: 876361313 Copied	Orange	184mm	LED	Orange LED		240 V AC	230 V AC	105 dB
LED Steady/flashing+Buzzer, 184mm, Amber, 24 V ac/dc, QSL Art: 876361405 Copied	Orange	184mm	LED	Orange LED	24 V			105 dB	24 V
LED Steady/flashing+Buzzer, 184mm, Red, 230-240 V ac, QSL Art: 876362313 Copied	Red	184mm	LED	Red LED		240 V AC	230 V AC	105 dB
LED Steady/flashing+Buzzer, 184mm, Red, 24 V ac/dc, QSL Art: 876362405 Copied	Red	184mm	LED	Red LED	24 V			105 dB	24 V

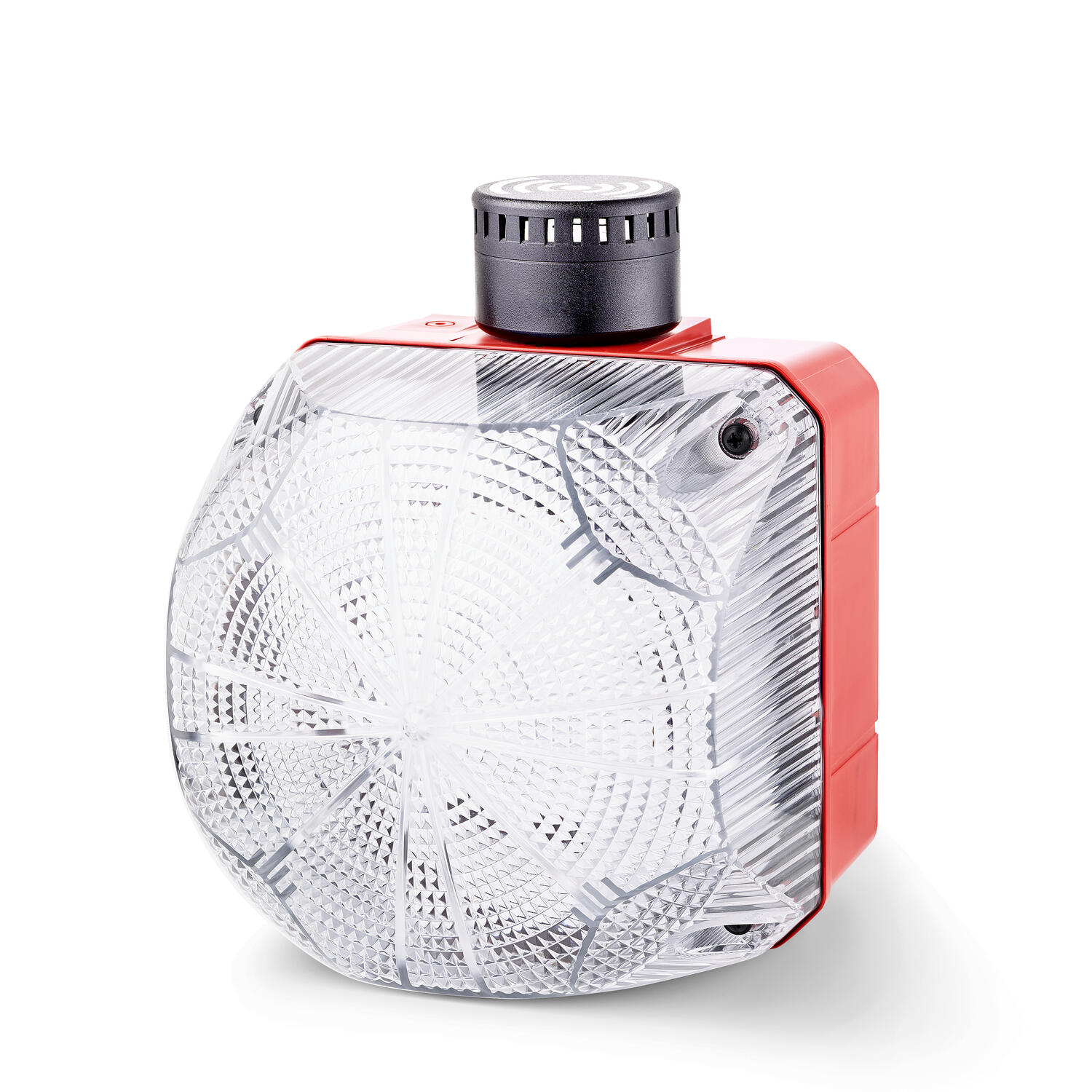

LED Steady/flashing+Buzzer, 184mm, Clear, 230-240 V ac, QSL Art: 876364313 Copied	Clear	184mm	LED	White LED		240 V AC	230 V AC	105 dB
LED Steady/flashing+Buzzer, 184mm, Clear, 24 V ac/dc, QSL Art: 876364405 Copied	Clear	184mm	LED	White LED	24 V			105 dB	24 V
LED Steady/flashing+Buzzer, 184mm, Blue, 230-240 V ac, QSL Art: 876365313 Copied	Blue	184mm	LED	Blue LED		240 V AC	230 V AC	105 dB
LED Steady/flashing+Buzzer, 184mm, Blue, 24 V ac/dc, QSL Art: 876365405 Copied	Blue	184mm	LED	Blue LED	24 V			105 dB	24 V
LED Steady/flashing+Buzzer, 184mm, Green, 230-240 V ac, QSL Art: 876366313 Copied	Green	184mm	LED	Green LED		240 V AC	230 V AC	105 dB
LED Steady/flashing+Buzzer, 184mm, Green, 24 V ac/dc, QSL Art: 876366405 Copied	Green	184mm	LED	Green LED	24 V			105 dB	24 V

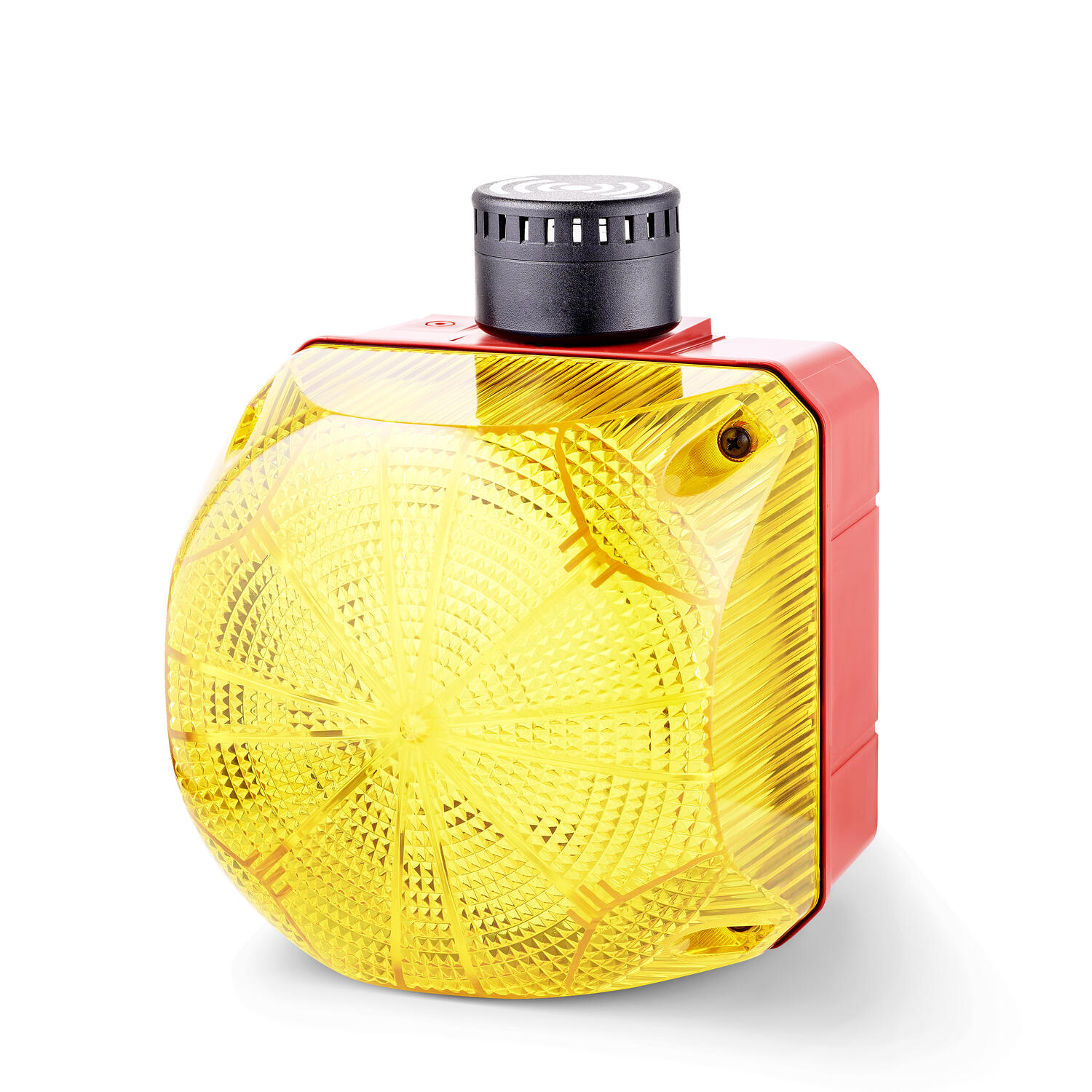

LED Steady/flashing+Buzzer, 184mm, Yell, 230-240 V ac, QSL Art: 876367313 Copied	Yellow	184mm	LED	Yellow LED		240 V AC	230 V AC	105 dB
LED Steady/flashing+Buzzer, 184mm, Yell, 24 V ac/dc, QSL Art: 876367405 Copied	Yellow	184mm	LED	Yellow LED	24 V			105 dB	24 V
LED Steady/flashing+Buzzer, 228mm, Amber, 230-240 V ac, QSX Art: 876461313 Copied	Orange	228mm	LED	Orange LED		240 V AC	230 V AC	105 dB
LED Steady/flashing+Buzzer, 228mm, Amber, 24 V ac/dc, QSX Art: 876461405 Copied	Orange	228mm	LED	Orange LED	24 V			105 dB	24 V
LED Steady/flashing+Buzzer, 228mm, Red, 230-240 V ac, QSX Art: 876462313 Copied	Red	228mm	LED	Red LED		240 V AC	230 V AC	105 dB
LED Steady/flashing+Buzzer, 228mm, Red, 24 V ac/dc, QSX Art: 876462405 Copied	Red	228mm	LED	Red LED	24 V			105 dB	24 V
LED Steady/flashing+Buzzer, 228mm, Clear, 230-240 V ac, QSX Art: 876464313 Copied	Clear	228mm	LED	White LED		240 V AC	230 V AC	105 dB
LED Steady/flashing+Buzzer, 228mm, Clear, 24 V ac/dc, QSX Art: 876464405 Copied	Clear	228mm	LED	White LED	24 V			105 dB	24 V

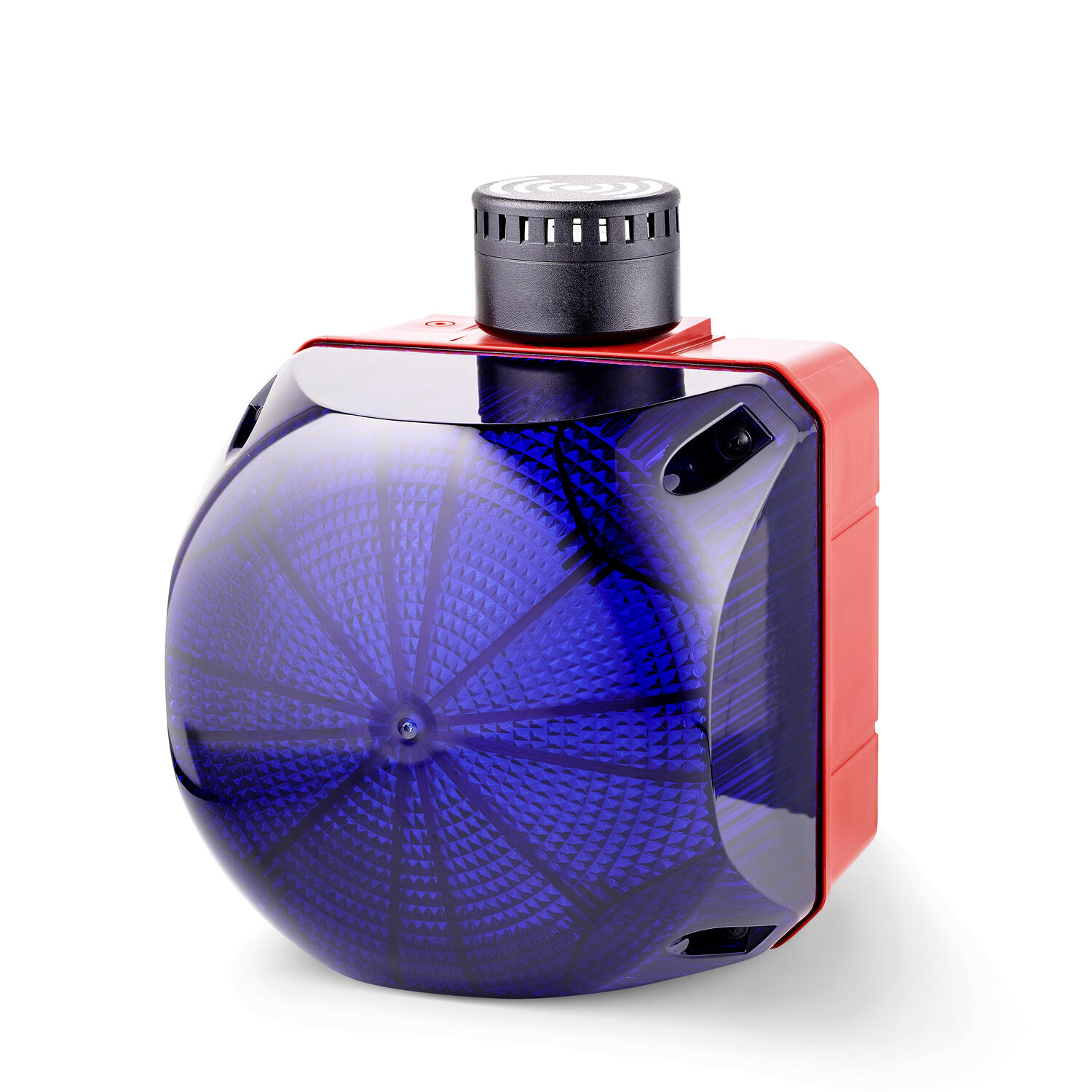

LED Steady/flashing+Buzzer, 228mm, Blue, 230-240 V ac, QSX Art: 876465313 Copied	Blue	228mm	LED	Blue LED		240 V AC	230 V AC	105 dB
LED Steady/flashing+Buzzer, 228mm, Blue, 24 V ac/dc, QSX Art: 876465405 Copied	Blue	228mm	LED	Blue LED	24 V			105 dB	24 V
LED Steady/flashing+Buzzer, 228mm, Green, 230-240 V ac, QSX Art: 876466313 Copied	Green	228mm	LED	Green LED		240 V AC	230 V AC	105 dB
LED Steady/flashing+Buzzer, 228mm, Green, 24 V ac/dc, QSX Art: 876466405 Copied	Green	228mm	LED	Green LED	24 V			105 dB	24 V
LED Steady/flashing+Buzzer, 228mm, Yell, 230-240 V ac, QSX Art: 876467313 Copied	Yellow	228mm	LED	Yellow LED		240 V AC	230 V AC	105 dB
LED Steady/flashing+Buzzer, 228mm, Yell, 24 V ac/dc, QSX Art: 876467405 Copied	Yellow	228mm	LED	Yellow LED	24 V			105 dB	24 V
Xenon strobe+buzzer, 94mm, Amber, 230-240 V ac, QTS Art: 876561313 Copied	Orange	94mm	Xenon	Xenon		240 V AC	230 V AC	85 dB
QTS Beacons with buzzer,xenon/Amber ST.1 Art: 876561405 Copied	Orange	94mm	Xenon	Xenon	24 V			85 dB	24 V
Xenon strobe+buzzer, 94mm, Red, 230-240 V ac, QTS Art: 876562313 Copied	Red	94mm	Xenon	Xenon		240 V AC	230 V AC	85 dB
Xenon strobe+buzzer, 94mm, Red, 24 V ac/dc, QTS Art: 876562405 Copied	Red	94mm	Xenon	Xenon	24 V			85 dB	24 V
Xenon strobe+buzzer, 94mm, Clear, 230-240 V ac, QTS Art: 876564313 Copied	Clear	94mm	Xenon	Xenon		240 V AC	230 V AC	85 dB
Xenon strobe+buzzer, 94mm, Clear, 24 V ac/dc, QTS Art: 876564405 Copied	Clear	94mm	Xenon	Xenon	24 V			85 dB	24 V
Xenon strobe+buzzer, 94mm, Blue, 230-240 V ac, QTS Art: 876565313 Copied	Blue	94mm	Xenon	Xenon		240 V AC	230 V AC	85 dB
Xenon strobe+buzzer, 94mm, Blue, 24 V ac/dc, QTS Art: 876565405 Copied	Blue	94mm	Xenon	Xenon	24 V			85 dB	24 V
Xenon strobe+buzzer, 94mm, Green, 230-240 V ac, QTS Art: 876566313 Copied	Green	94mm	Xenon	Xenon		240 V AC	230 V AC	85 dB
QTS Beacons with buzzer,xenon/Green ST.1 Art: 876566405 Copied	Green	94mm	Xenon	Xenon	24 V			85 dB	24 V
Xenon strobe+buzzer, 132mm, Amber, 230-240 V ac, QTM Art: 876661313 Copied	Orange	132mm	Xenon	Xenon		240 V AC	230 V AC	100 dB
QTM Kubisk kombi.2ton/amber ST.2 Art: 876661405 Copied	Orange	132mm	Xenon	Xenon	24 V			100 dB	24 V
QTM Kubisk kombi.2ton/Röd ST.2 Art: 876662313 Copied	Red	132mm	Xenon	Xenon		240 V AC	230 V AC	100 dB
QTM Kubisk kombi.2ton/Röd ST.2 Art: 876662405 Copied	Red	132mm	Xenon	Xenon	24 V			100 dB	24 V
Xenon strobe+buzzer, 132mm, Clear, 230-240 V ac, QTM Art: 876664313 Copied	Clear	132mm	Xenon	Xenon		240 V AC	230 V AC	100 dB
Xenon strobe+buzzer, 132mm, Clear, 24 V ac/dc, QTM Art: 876664405 Copied	Clear	132mm	Xenon	Xenon	24 V			100 dB	24 V
Xenon strobe+buzzer, 132mm, Blue, 230-240 V ac, QTM Art: 876665313 Copied	Blue	132mm	Xenon	Xenon		240 V AC	230 V AC	100 dB
Xenon strobe+buzzer, 132mm, Blue, 24 V ac/dc, QTM Art: 876665405 Copied	Blue	132mm	Xenon	Xenon	24 V			100 dB	24 V
Xenon strobe+buzzer, 132mm, Green, 230-240 V ac, QTM Art: 876666313 Copied	Green	132mm	Xenon	Xenon		240 V AC	230 V AC	100 dB
Xenon strobe+buzzer, 132mm, Green, 24 V ac/dc, QTM Art: 876666405 Copied	Green	132mm	Xenon	Xenon	24 V			100 dB	24 V
QTM Beacon /buzzer .2ton/Yellow ST.2 Art: 876667313 Copied	Yellow	132mm	Xenon	Xenon		240 V AC	230 V AC	100 dB
Xenon strobe+buzzer, 132mm, Yellow, 24 V ac/dc, QTM Art: 876667405 Copied	Yellow	132mm	Xenon	Xenon	24 V			100 dB	24 V
QCL M-strobe beacons/amb./ with buzzer. Art: 876761313 Copied	Orange	184mm	LED	Orange LED		240 V AC	230 V AC	105 dB
Xenon strobe+buzzer, 184mm, Amber, 24 V ac/dc, QCL Art: 876761405 Copied	Orange	184mm	LED	Orange LED	24 V			105 dB	24 V
Xenon strobe+buzzer, 184mm, Red, 230-240 V ac, QCL Art: 876762313 Copied	Red	184mm	LED	Red LED		240 V AC	230 V AC	105 dB
Xenon strobe+buzzer, 184mm, Red, 24 V ac/dc, QCL Art: 876762405 Copied	Red	184mm	LED	Red LED	24 V			105 dB	24 V
Xenon strobe+buzzer, 184mm, Clear, 230-240 V ac, QCL Art: 876764313 Copied	Clear	184mm	LED	White LED		240 V AC	230 V AC	105 dB
Xenon strobe+buzzer, 184mm, Clear, 24 V ac/dc, QCL Art: 876764405 Copied	Clear	184mm	LED	White LED	24 V			105 dB	24 V
Xenon strobe+buzzer, 184mm, Blue, 230-240 V ac, QCL Art: 876765313 Copied	Blue	184mm	LED	Blue LED		240 V AC	230 V AC	105 dB
Xenon strobe+buzzer, 184mm, Blue, 24 V ac/dc, QCL Art: 876765405 Copied	Blue	184mm	LED	Blue LED	24 V			105 dB	24 V
Xenon strobe+buzzer, 184mm, Green, 230-240 V ac, QCL Art: 876766313 Copied	Green	184mm	LED	Green LED		240 V AC	230 V AC	105 dB
Xenon strobe+buzzer, 184mm, Green, 24 V ac/dc, QCL Art: 876766405 Copied	Green	184mm	LED	Green LED	24 V			105 dB	24 V
Xenon strobe+buzzer, 184mm, Yellow, 230-240 V ac, QCL Art: 876767313 Copied	Yellow	184mm	LED	Yellow LED		240 V AC	230 V AC	105 dB
Xenon strobe+buzzer, 184mm, Yellow, 24 V ac/dc, QCL Art: 876767405 Copied	Yellow	184mm	LED	Yellow LED	24 V			105 dB	24 V
Xenon strobe+buzzer, 228mm, Amber, 230-240 V ac, QCX Art: 876861313 Copied	Orange	228mm	LED	Orange LED		240 V AC	230 V AC	105 dB
Xenon strobe+buzzer, 228mm, Amber, 24 V ac/dc, QCX Art: 876861405 Copied	Orange	228mm	LED	Orange LED	24 V			105 dB	24 V
Xenon strobe+buzzer, 228mm, Red, 230-240 V ac, QCX Art: 876862313 Copied	Red	228mm	LED	Red LED		240 V AC	230 V AC	105 dB
Xenon strobe+buzzer, 228mm, Red, 24 V ac/dc, QCX Art: 876862405 Copied	Red	228mm	LED	Red LED	24 V			105 dB	24 V
Xenon strobe+buzzer, 228mm, Clear, 230-240 V ac, QCX Art: 876864313 Copied	Clear	228mm	LED	White LED		240 V AC	230 V AC	105 dB
Xenon strobe+buzzer, 228mm, Clear, 24 V ac/dc, QCX Art: 876864405 Copied	Clear	228mm	LED	White LED	24 V			105 dB	24 V
Xenon strobe+buzzer, 228mm, Blue, 230-240 V ac, QCX Art: 876865313 Copied	Blue	228mm	LED	Blue LED		240 V AC	230 V AC	105 dB
Xenon strobe+buzzer, 228mm, Blue, 24 V ac/dc, QCX Art: 876865405 Copied	Blue	228mm	LED	Blue LED	24 V			105 dB	24 V
Xenon strobe+buzzer, 228mm, Green, 230-240 V ac, QCX Art: 876866313 Copied	Green	228mm	LED	Green LED		240 V AC	230 V AC	105 dB
Xenon strobe+buzzer, 228mm, Green, 24 V ac/dc, QCX Art: 876866405 Copied	Green	228mm	LED	Green LED	24 V			105 dB	24 V
Xenon strobe+buzzer, 228mm, Yellow, 230-240 V ac, QCX Art: 876867313 Copied	Yellow	228mm	LED	Yellow LED		240 V AC	230 V AC	105 dB
Xenon strobe+buzzer, 228mm, Yellow, 24 V ac/dc, QCX Art: 876867405 Copied	Yellow	228mm	LED	Yellow LED	24 V			105 dB	24 V
