COMATRELECO

Timer module for C3 relays

Example of use

The CT3 Timecube is an electronic timer that is inserted between the plug-in industrial relay and the socket. This combination is a modular complete time relay without additional space requirement. It offers up to three changeover contacts with a variety of signal contacts and power contacts.

The Timecubes are suitable for all 8 pin and 11 pin standard industrial relays of the C2 and C3 series according to IEC 67 and also for relays of other manufacturers.

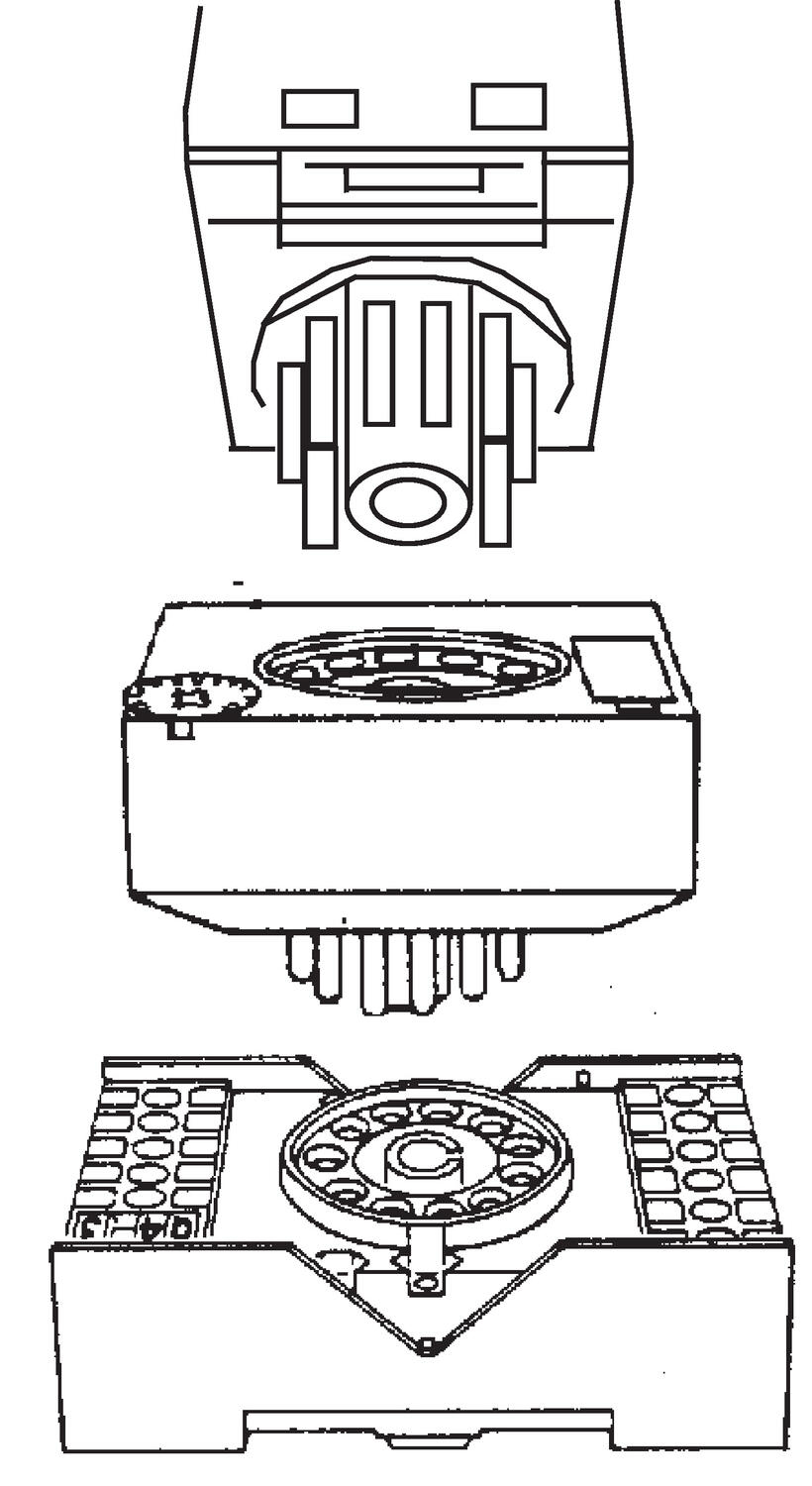

Drawing to CT3-user example

Relay C3-A30
Time cube CT3
Socket S3-B



Read more
  • Provides 3 change-over contacts
  • Wide input voltage range, AC/DC

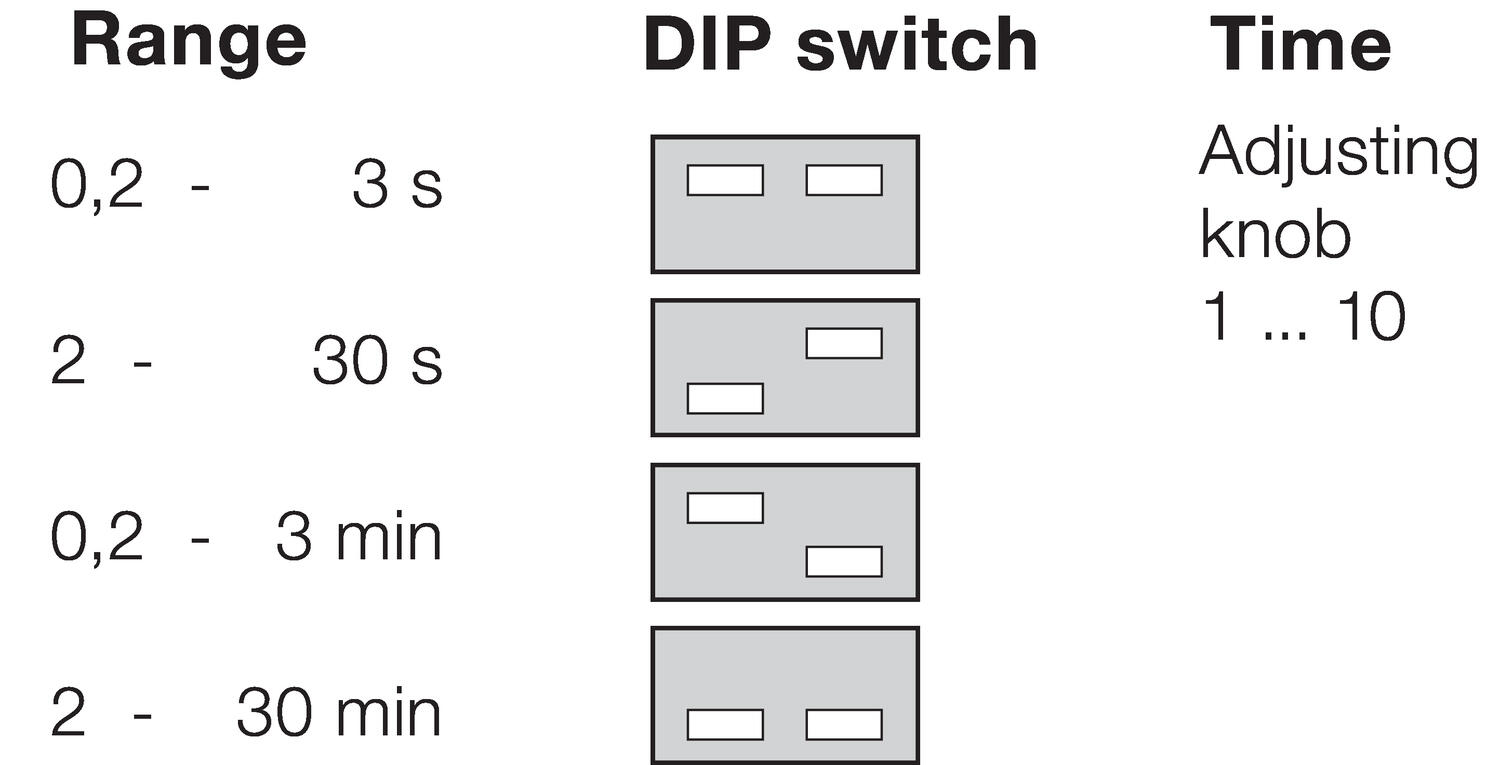

  • Multi-time 0.2 s – 30 min.

Selected variant

Selected variant

Specifications

Response time AC-80 ms / DC-50 ms
Power Consumption 6 mA
Nominal Voltage 20-65 V AC/DC
Leakage current ≤ 0.3 mA
IP Class IP40
Temperature range bearing, from -40 °C
Material Lexan
Temperature range to 60 °C
Weight 35 g
Temperature range bearing, to 70 °C
Temperature range from -25 °C
Time Range 0,2 s - 30 min
Recovery Time 200 ms
Approvals CE, CSA, RoHS, UL

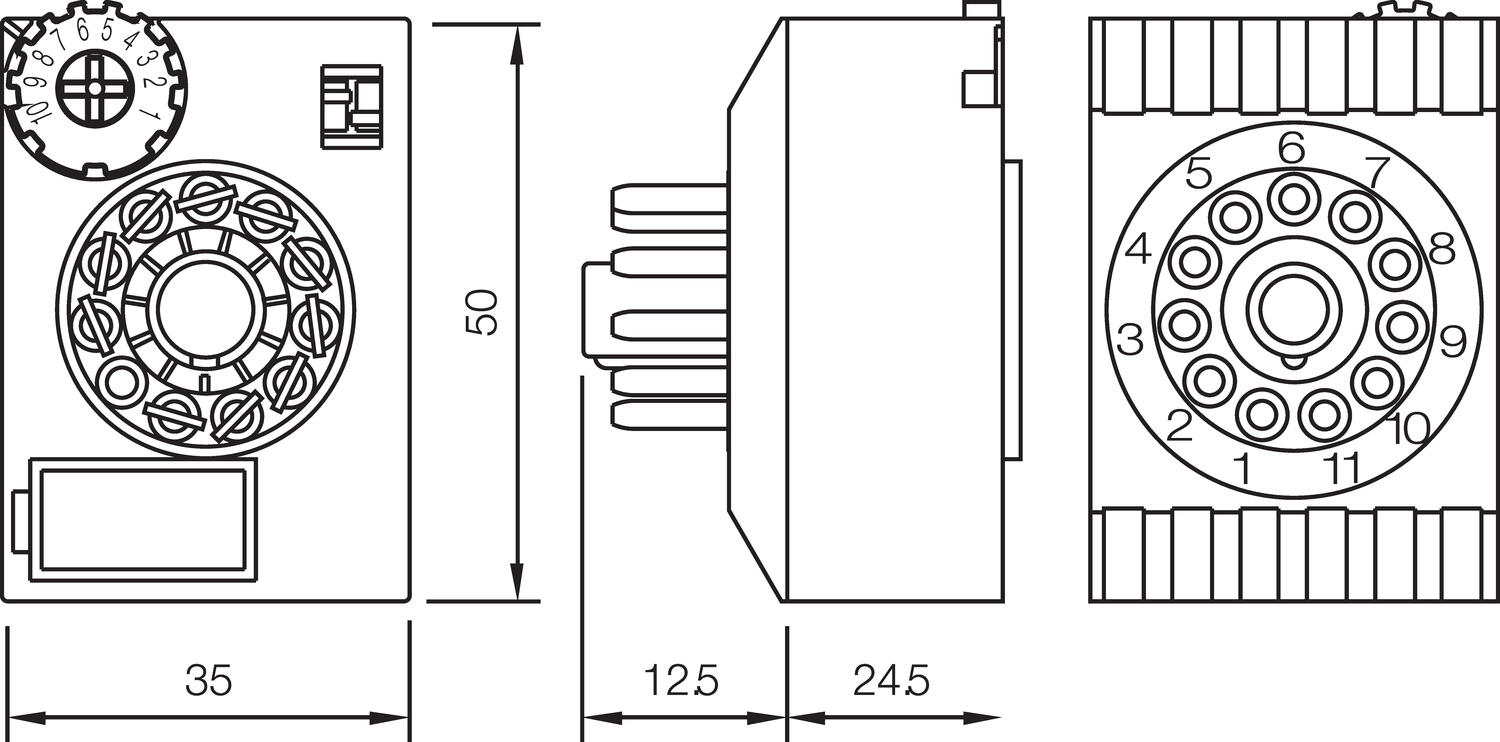

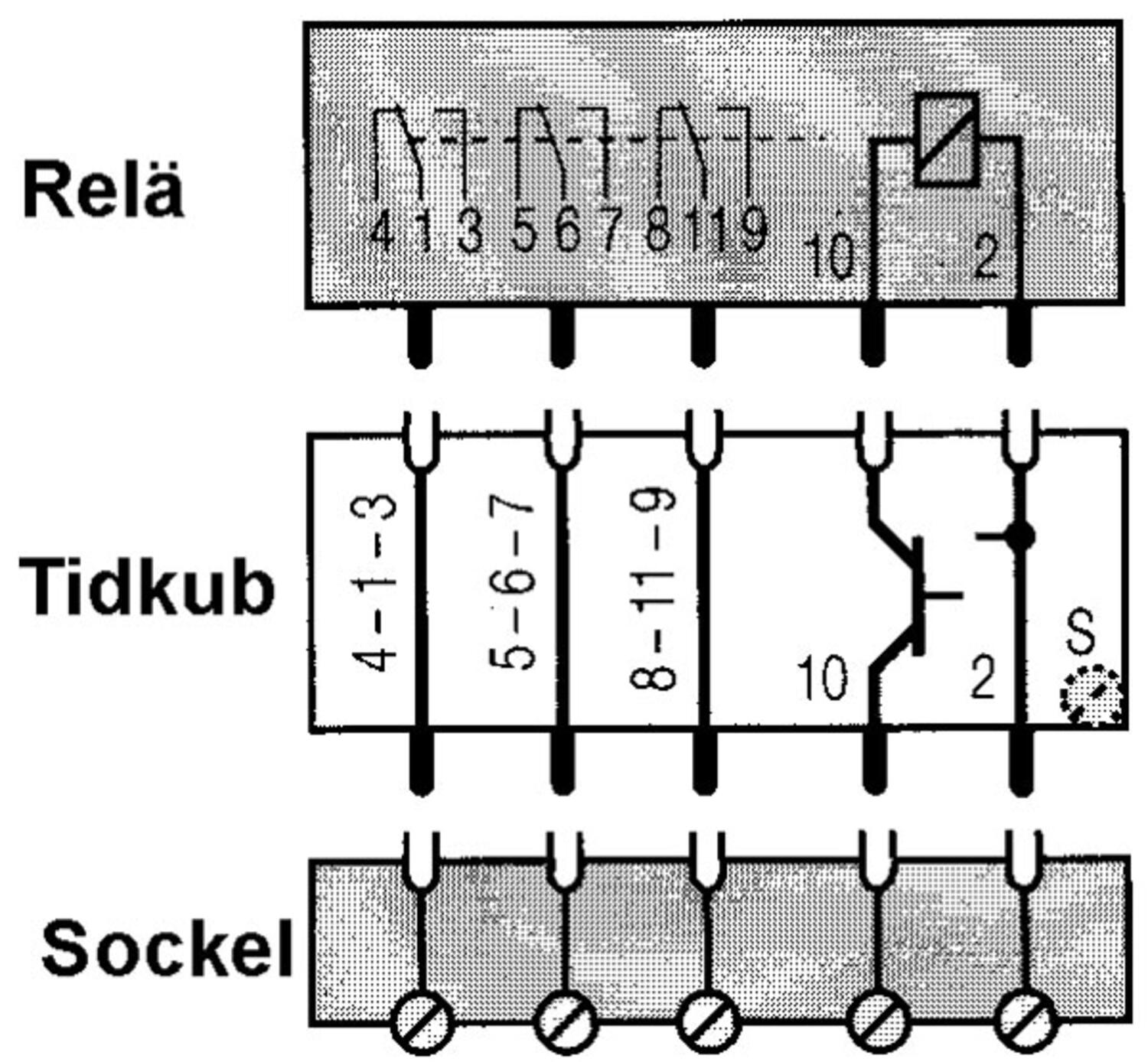

Measurements and connections

Technical illustrations

Product description

Example of use

The CT3 Timecube is an electronic timer that is inserted between the plug-in industrial relay and the socket. This combination is a modular complete time relay without additional space requirement. It offers up to three changeover contacts with a variety of signal contacts and power contacts.

The Timecubes are suitable for all 8 pin and 11 pin standard industrial relays of the C2 and C3 series according to IEC 67 and also for relays of other manufacturers.

Drawing to CT3-user example

Relay C3-A30
Time cube CT3
Socket S3-B



Accessories

Articles Response time Power Consumption Nominal Voltage Leakage current IP Class Temperature range bearing, from Material Temperature range to Weight Temperature range bearing, to Temperature range from Time Range Recovery Time Approvals
AC-80 ms / DC-50 ms
6 mA
20-65 V AC/DC
≤ 0.3 mA
IP40
-40 °C
Lexan
60 °C
35 g
70 °C
-25 °C
0,2 s - 30 min
200 ms
CE, CSA, RoHS, UL
AC-80 ms / DC-50 ms
2 mA
90-265 V AC/DC
≤ 0.3 mA
IP40
-40 °C
Lexan
60 °C
35 g
70 °C
-25 °C
0,2 s - 30 min
200 ms
CE, CSA, RoHS, UL
AC-80 ms / DC-50 ms
6 mA
20-65 V AC/DC
≤ 0.3 mA
IP40
-40 °C
Lexan
60 °C
35 g
70 °C
-25 °C
0,2 s - 30 min
200 ms
CE, CSA, RoHS, UL
AC-80 ms / DC-50 ms
2 mA
90-265 V AC/DC
≤ 0.3 mA
IP40
-40 °C
Lexan
60 °C
35 g
70 °C
-25 °C
0,2 s - 30 min
200 ms
CE, CSA, RoHS, UL
AC-80 ms / DC-50 ms
6 mA
20-65 V AC/DC
≤ 0.2 mA
IP40
-40 °C
Lexan
60 °C
35 g
70 °C
-25 °C
0,2 s - 30 min
200 ms
CE, CSA, RoHS, UL
AC-80 ms / DC-50 ms
2 mA
90-150 V AC/DC
≤ 0.2 mA
IP40
-40 °C
Lexan
60 °C
35 g
70 °C
-25 °C
0,2 s - 30 min
200 ms
CE, CSA, RoHS, UL
AC-80 ms / DC-50 ms
2 mA
180-265 V AC/DC
≤ 0.2 mA
IP40
-40 °C
Lexan
60 °C
35 g
70 °C
-25 °C
0,2 s - 30 min
200 ms
CE, CSA, RoHS, UL
AC-80 ms / DC-50 ms
6 mA
20-65 V AC/DC
≤ 0.2 mA
IP40
-40 °C
Lexan
60 °C
35 g
70 °C
-25 °C
0,2 s - 30 min
200 ms
CE, CSA, RoHS, UL
AC-80 ms / DC-50 ms
2 mA
90-150 V AC/DC
≤ 0.2 mA
IP40
-40 °C
Lexan
60 °C
35 g
70 °C
-25 °C
0,2 s - 30 min
200 ms
CE, CSA, RoHS, UL
AC-80 ms / DC-50 ms
6 mA
180-265 V AC/DC
≤ 0.2 mA
IP40
-40 °C
Lexan
60 °C
35 g
70 °C
-25 °C
0,2 s - 30 min
200 ms
CE, CSA, RoHS, UL
