COMATRELECO

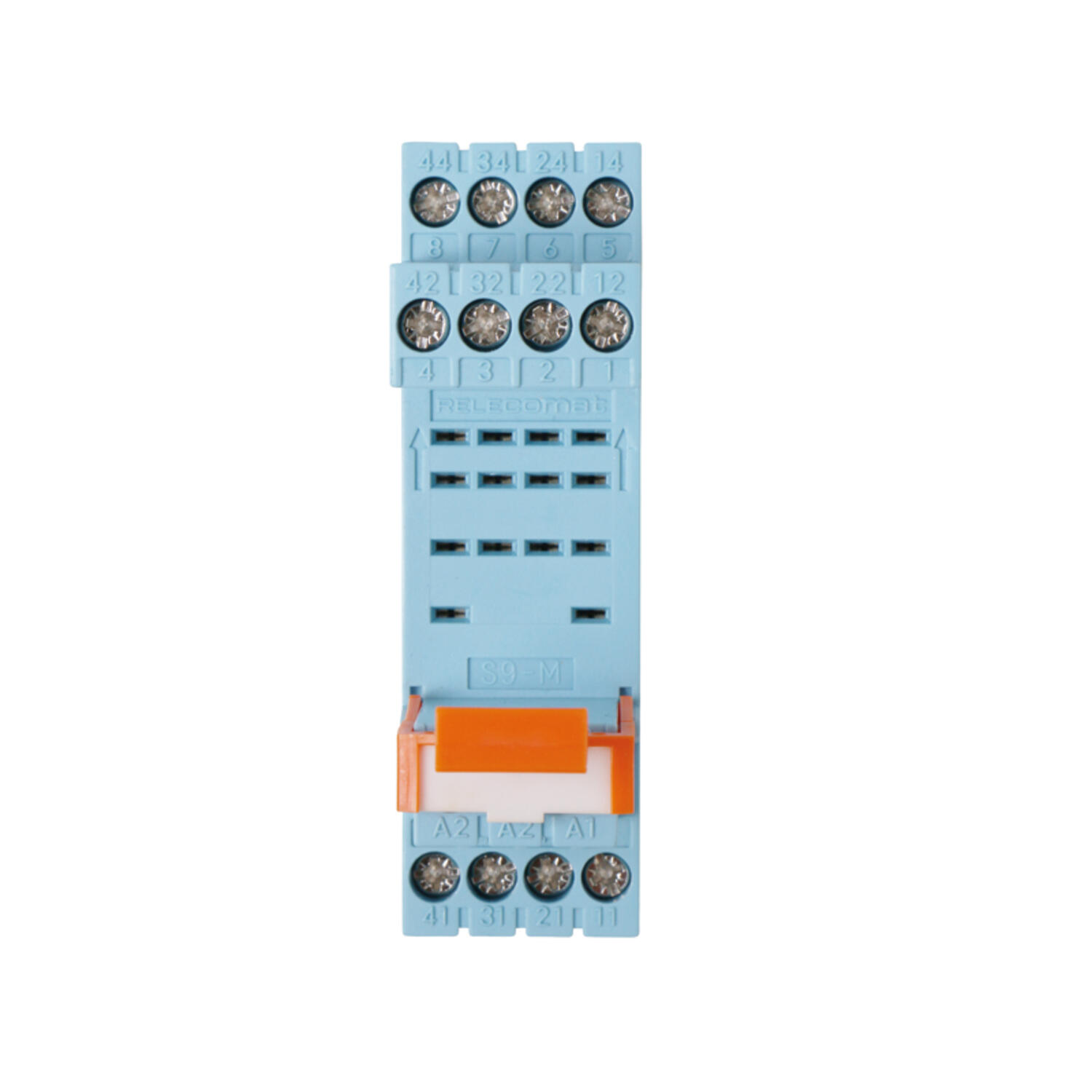

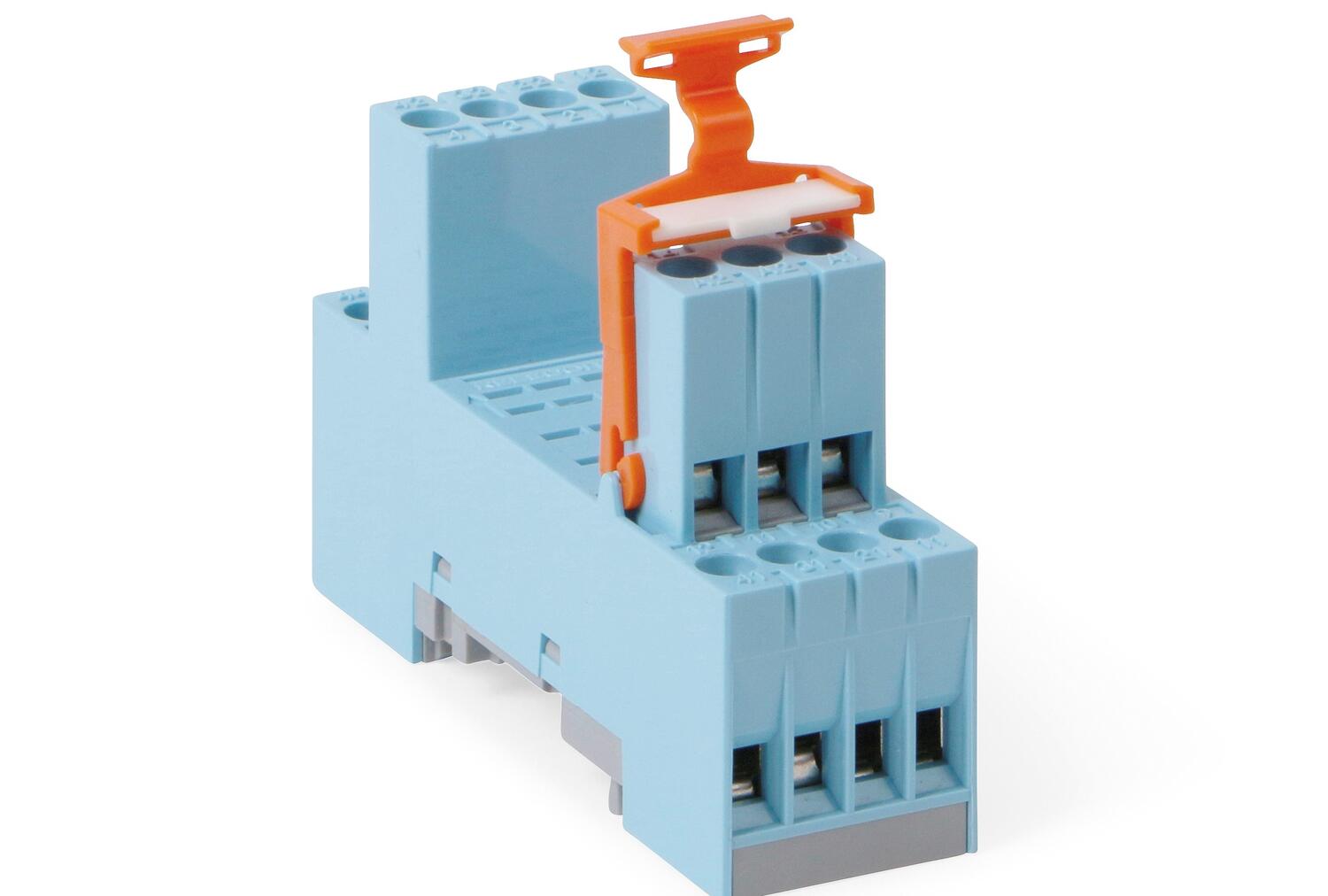

Sockets for C9 miniature relays

4-pole

  • DIN-rail or bottom mount
  • Semi-protected
  • Small construction dimensions, only 22.5 mm wide
  • Supplied with open connections

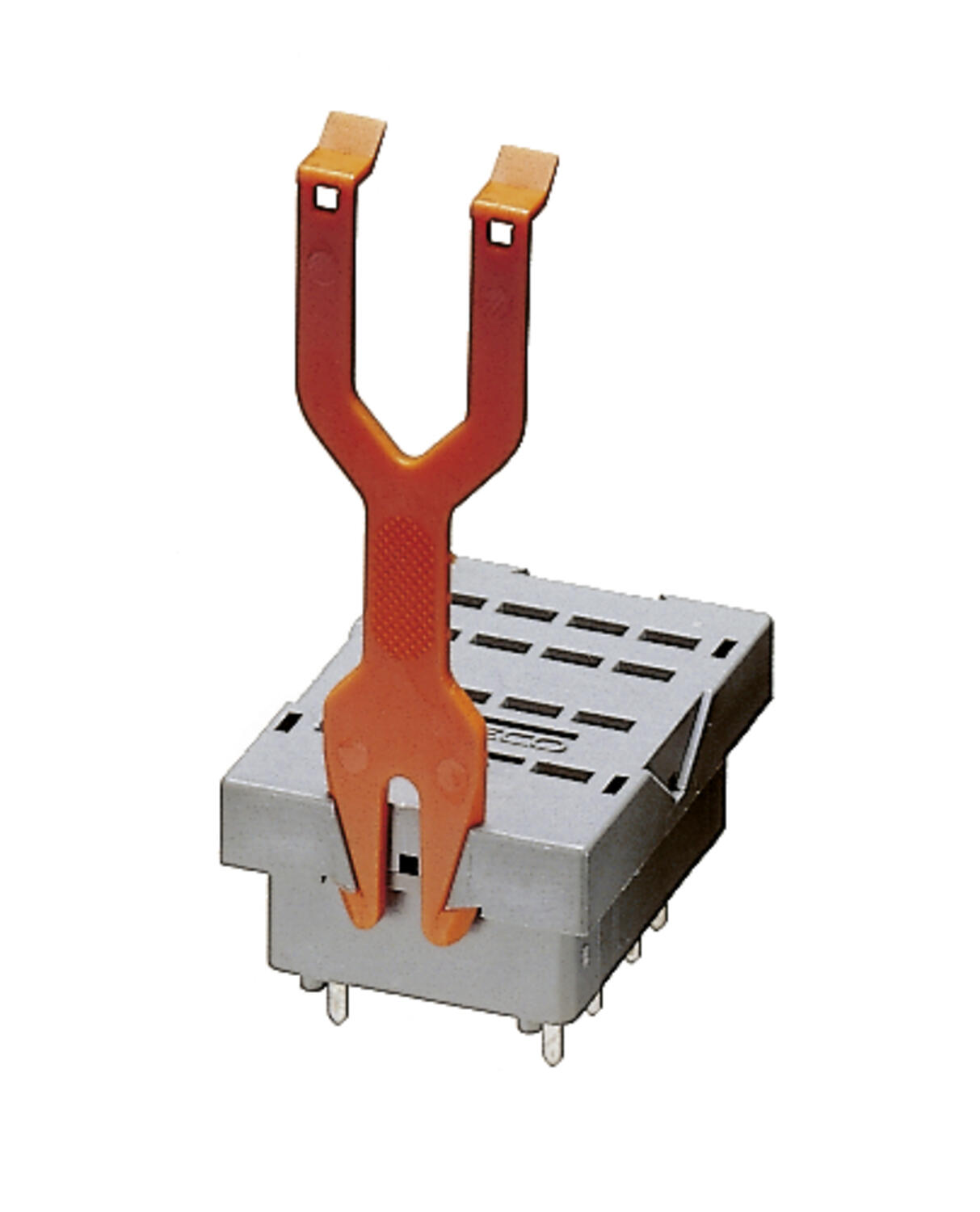

  • Retaining bow included

Selected variant

Selected variant

Specifications

Breaking Capacity Current 6 A
Switching Capability Voltage 250 V
Torque Connection 0,7 Nm
Cross section stranded 0,35-2,5 mm²
Temperature range bearing, from -40 °C
Material Lexan
Temperature range to 60 °C
Screw size M3, Pozi
Weight 54 g
Temperature range bearing, to 80 °C
Isolation connection/rail 2500 V
Temperature range from -40 °C
Isolation conn./conn. 2500 V

Downloads

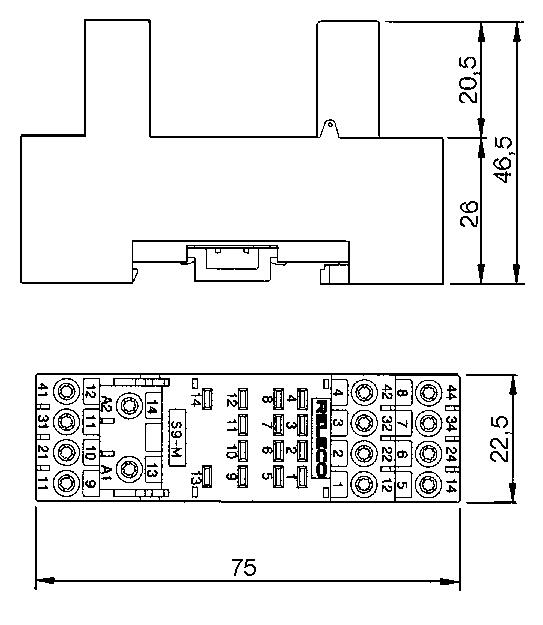

Measurements and connections

Accessories

Articles Breaking Capacity Current Switching Capability Voltage Torque Connection Cross section stranded Temperature range bearing, from Material Temperature range to Screw size Weight Temperature range bearing, to Isolation connection/rail Temperature range from Isolation conn./conn.
6 A
250 V
0,7 Nm
0,35-2,5 mm²
-40 °C
Lexan
60 °C
M3, Pozi
54 g
80 °C
2500 V
-40 °C
2500 V
6 A
250 V
-40 °C
60 °C
12 g
80 °C
-40 °C

Selected variant

Select a variant in the list
