| Breaking Capacity Current | 10 A |
|---|---|
| Switching Capability Voltage | 250 V |
| Torque Connection | 0,7 Nm |
| Cross section stranded | 0,75-1,5 mm² |
| Temperature range bearing, from | -40 °C |
| Material | Lexan |
| Temperature range to | 60 °C |
| Screw size | M3, Pozi |
|---|---|
| Weight | 37 g |
| Temperature range bearing, to | 80 °C |
| Isolation connection/rail | 2500 V |
| Temperature range from | -40 °C |
| Isolation conn./conn. | 2500 V |
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Articles | Breaking Capacity Current | Switching Capability Voltage | Torque Connection | Cross section stranded | Temperature range bearing, from | Material | Temperature range to | Screw size | Weight | Temperature range bearing, to | Isolation connection/rail | Temperature range from | Isolation conn./conn. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

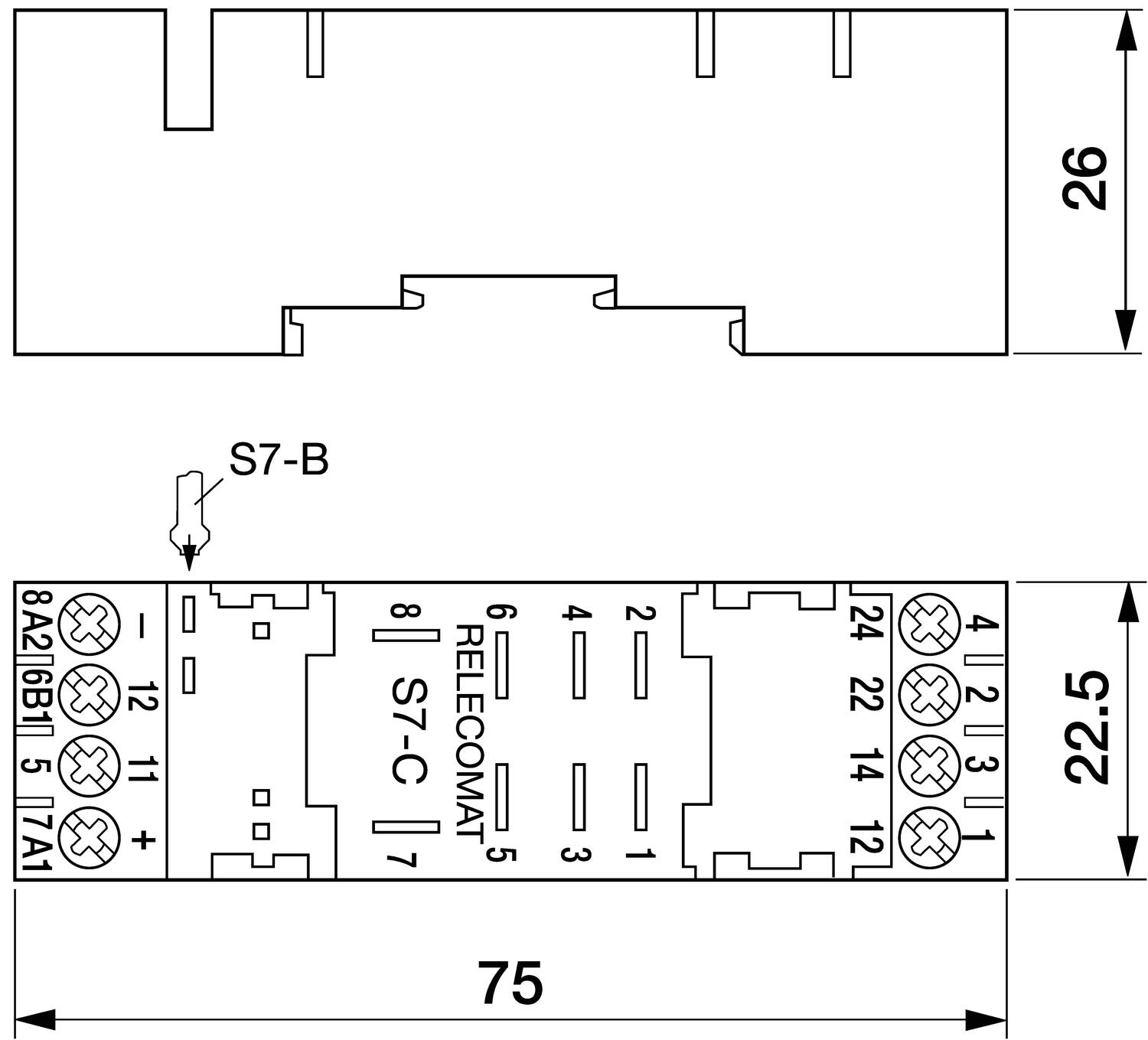

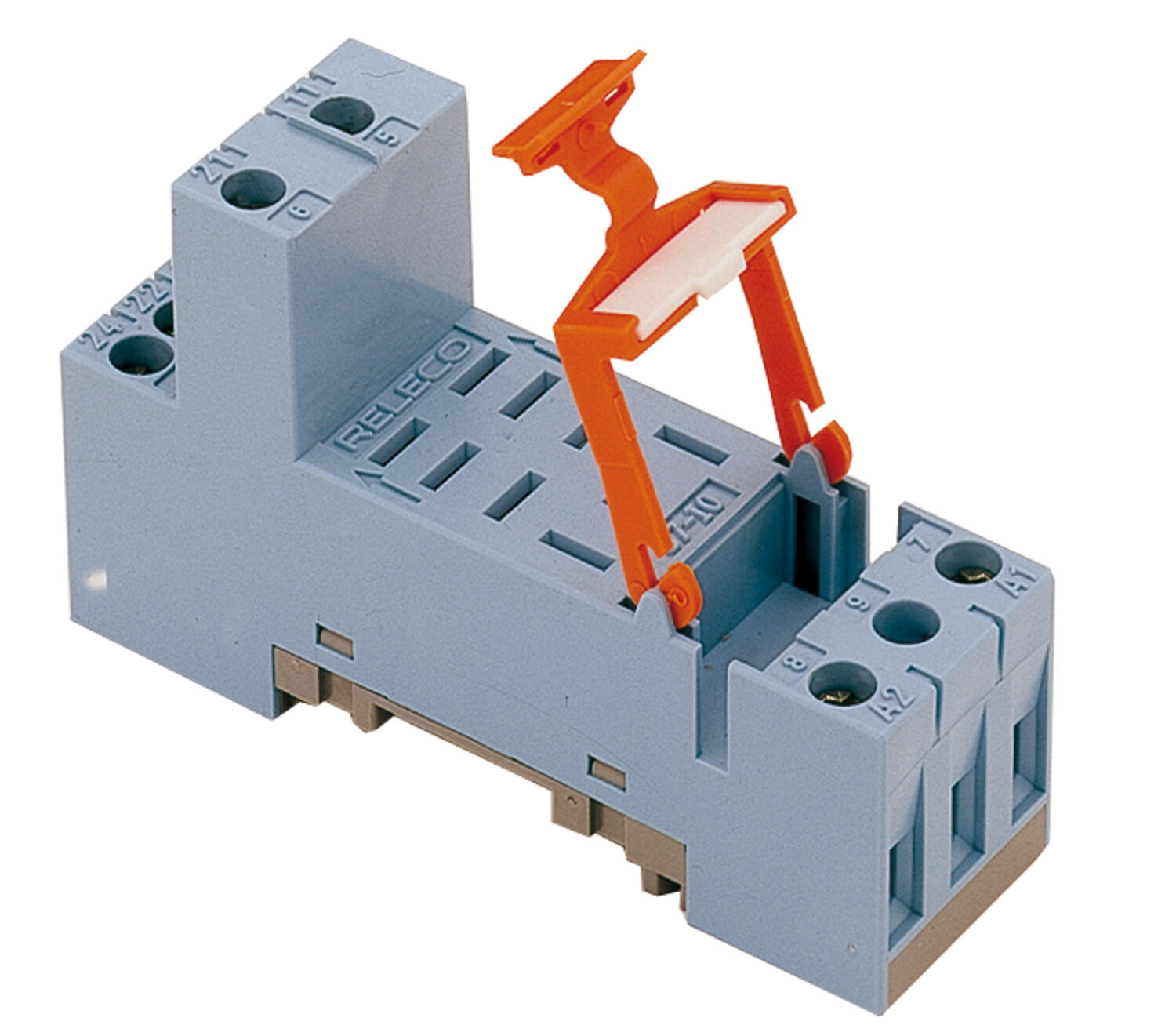

SOCKET QRC 8 PIN
Art:
S7C
Copied
|
10 A
|
250 V
|
0,7 Nm
|
0,75-1,5 mm²
|
-40 °C
|
Lexan
|
60 °C
|
M3, Pozi
|
37 g
|
80 °C
|
2500 V
|
-40 °C
|
2500 V
|
| |

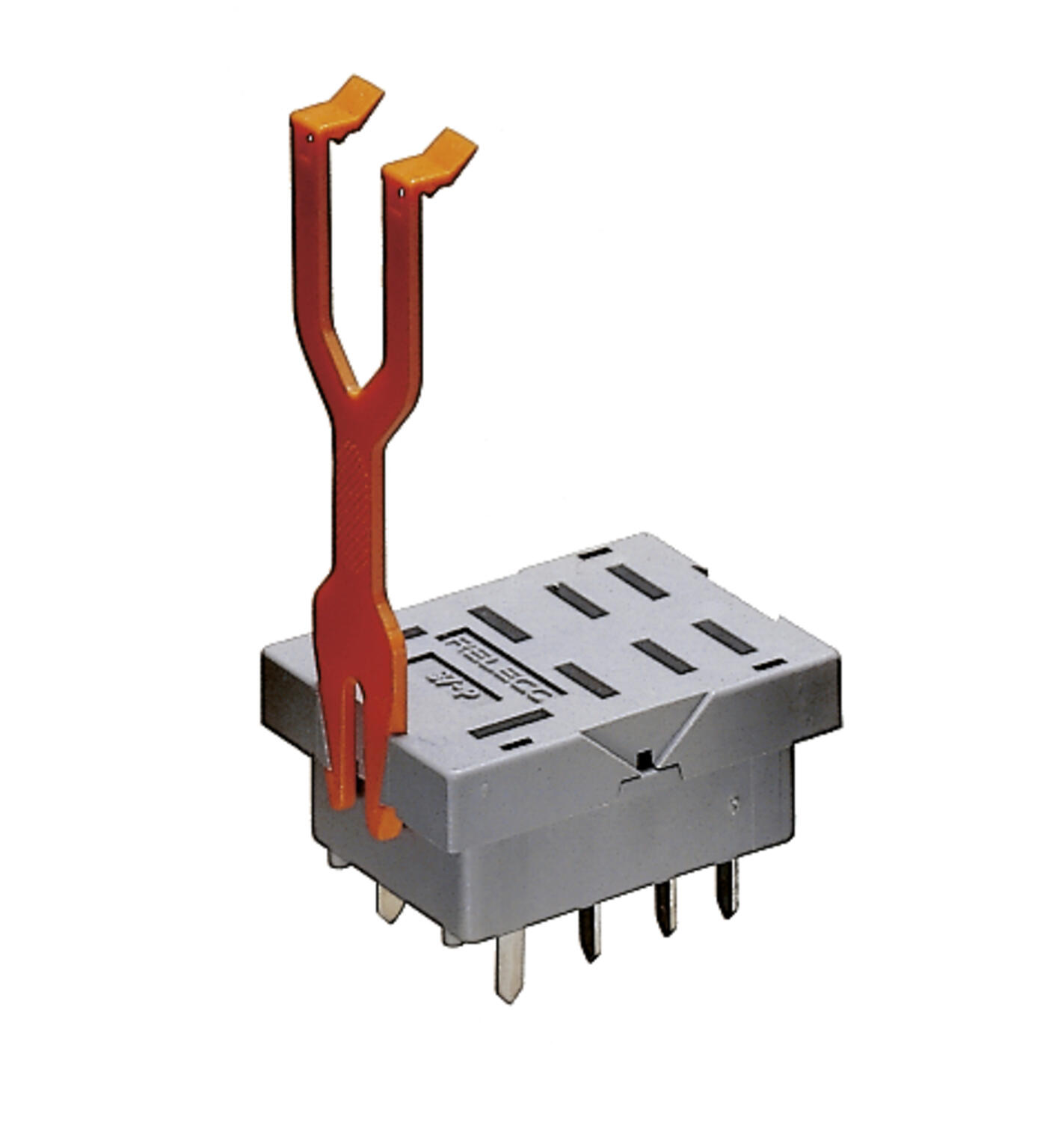

SOCKET QRC 8 PIN PCB MOUNT
Art:
S7P
Copied
|
10 A
|
250 V
|
|
|
-40 °C
|
|
60 °C
|
|
10 g
|
80 °C
|
|
-40 °C
|
|
| |
SOCKET INTERFACE FOR C7 RELAYS
Art:
S7IO
Copied
|
10 A
|
250 V
|
0,7 Nm
|
0,35-2,5 mm²
|
-40 °C
|
Lexan
|
60 °C
|
M3, Pozi
|
38 g
|
80 °C
|
2500 V
|
-40 °C
|
2500 V
|
|
Select a variant in the list
