Breaking Capacity Current | 5 A |
---|---|
Switching Capability Voltage | 250 V |
Torque Connection | 0,7 Nm |
Cross section stranded | 0,35-2,5 mm² |
Temperature range bearing, from | -40 °C |
Material | Lexan |
Temperature range to | 60 °C |
Screw size | M3, Pozi |
---|---|
Weight | 31 g |
Temperature range bearing, to | 80 °C |
Isolation connection/rail | 5000 V |
Temperature range from | -40 °C |
Isolation conn./conn. | 2500 V |
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Articles | Breaking Capacity Current | Switching Capability Voltage | Torque Connection | Cross section stranded | Temperature range bearing, from | Material | Temperature range to | Screw size | Weight | Temperature range bearing, to | Isolation connection/rail | Temperature range from | Isolation conn./conn. | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()

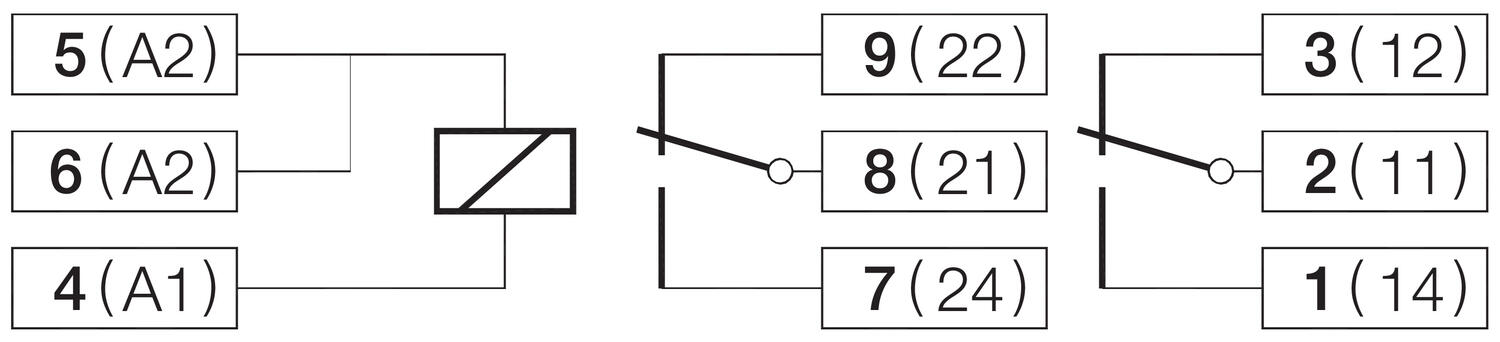

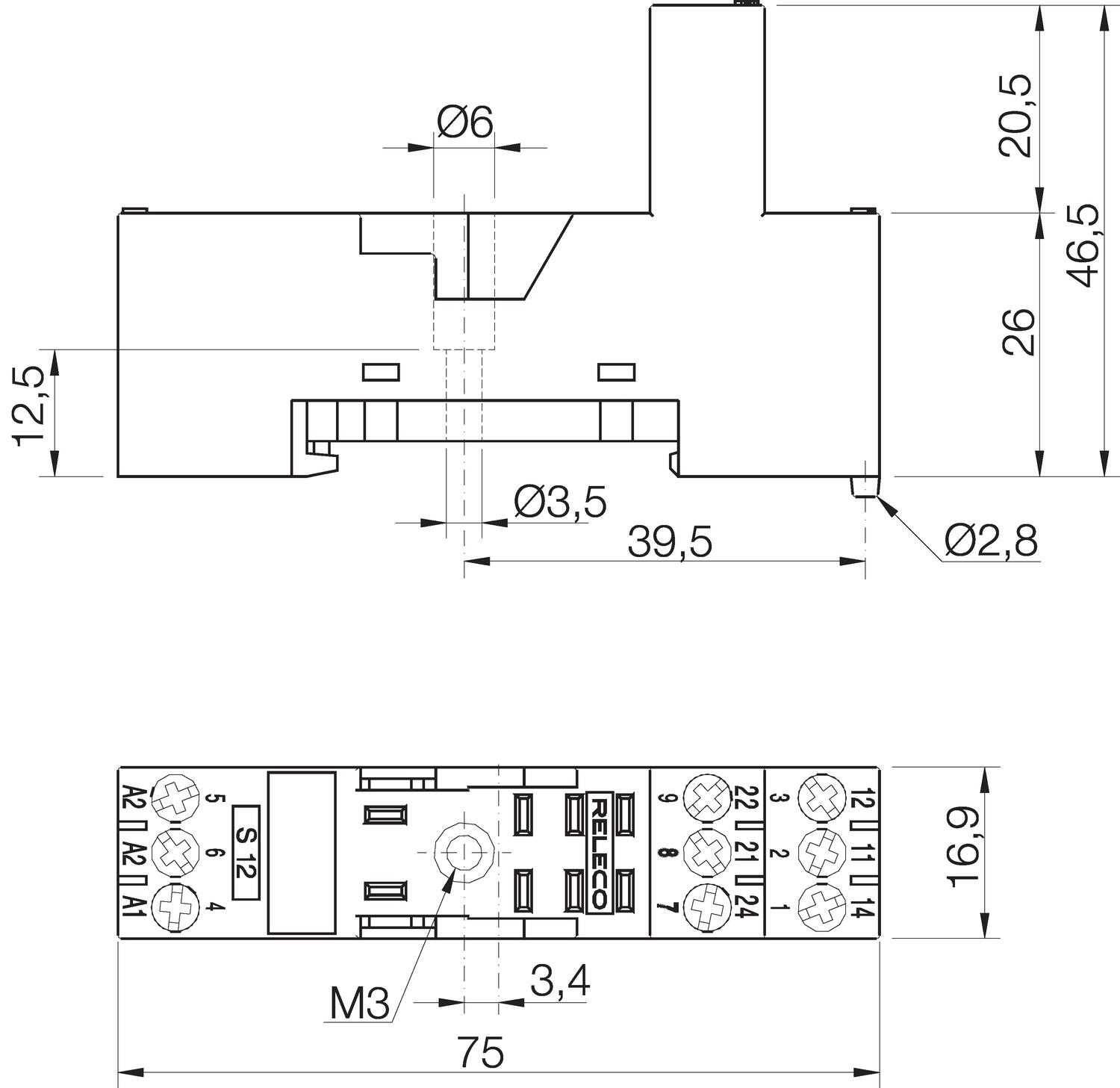

SOCKET IRC FOR DPDT RELAYS
Art:
S-12
Copied
|
5 A
|
250 V
|
0,7 Nm
|
0,35-2,5 mm²
|
-40 °C
|
Lexan
|
60 °C
|
M3, Pozi
|
31 g
|
80 °C
|
5000 V
|
-40 °C
|
2500 V
|
| |
![]()
Socket For C12 Interface Relay 8 Pin PCB
Art:
S-12P
Copied
|
5 A
|
250 V
|
|
|
-40 °C
|
|
60 °C
|
|
7 g
|
80 °C
|
|
-40 °C
|
|
|
Select a variant in the list
