Control voltage DC min | 5 V |
---|---|
Power Consumption | 4 mA |
Response Time | 0,06 ms |
Control voltage DC max | 48 V |
Voltage Drop Max | 0,14 |
Recommended Min Load | 1 mA |
Peak current | 40 A / 10ms A |
Release Time | 0,06 ms |
Breaking Capacity Current | 6 A |
Load Voltage DC max | 48 V |
Load Voltage DC min | 5 V |
---|---|
Number Of Contacts | 1 |
Temperature range bearing, from | -40 °C |
Temperature range to | 70 °C |
Weight | 28 g |

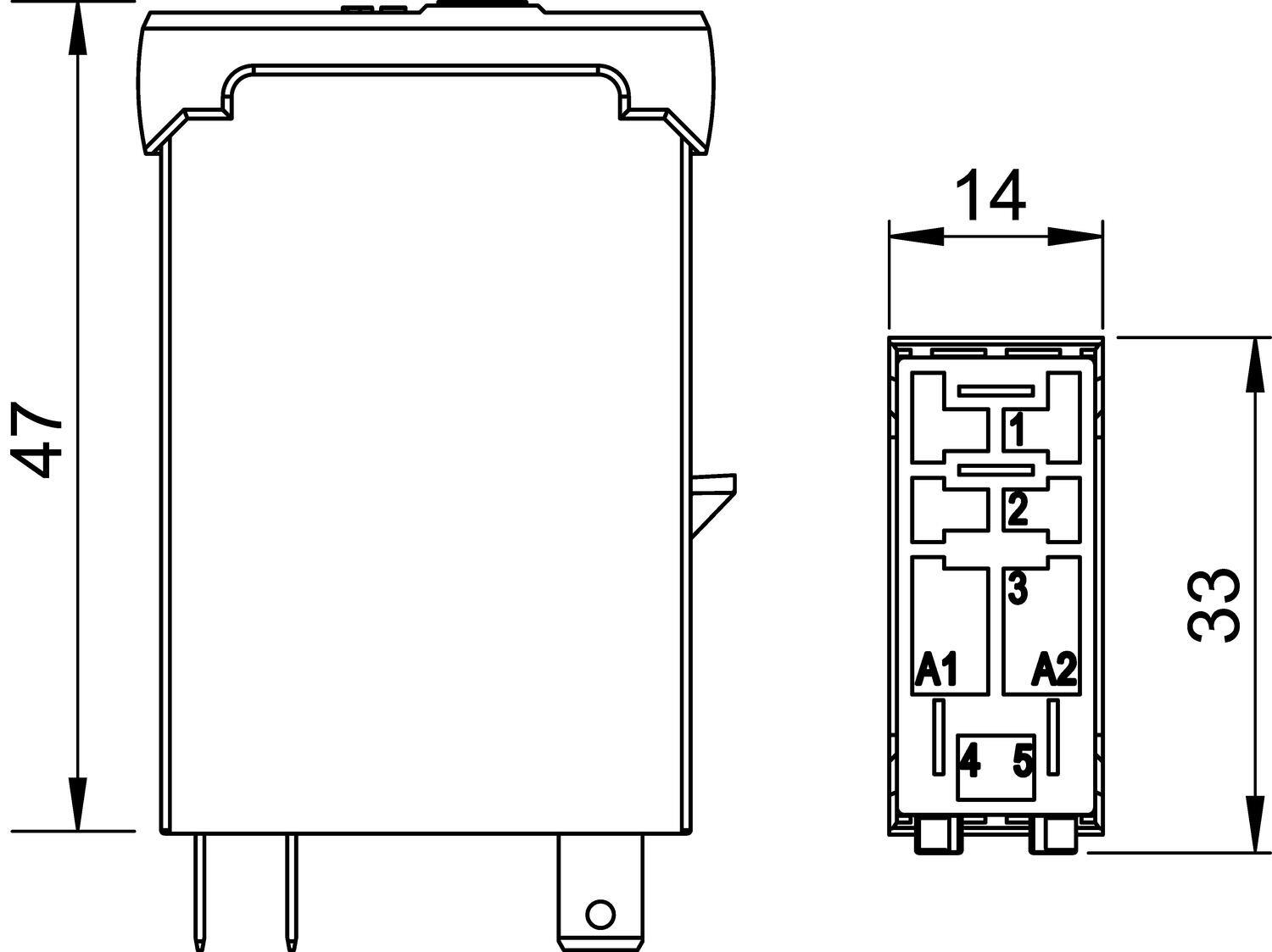

Width | 14 mm |
Temperature range bearing, to | 85 °C |
Temperature range from | -40 °C |
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Articles | Control voltage DC min | Power Consumption | Response Time | Control voltage DC max | Voltage Drop Max | Recommended Min Load | Load Voltage AC min | Peak current | Release Time | Load Voltage AC max | Breaking Capacity Current | Load Voltage DC max | Load Voltage DC min | Number Of Contacts | Temperature range bearing, from | Temperature range to | Weight | Width | Temperature range bearing, to | Temperature range from | I2t Value | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()

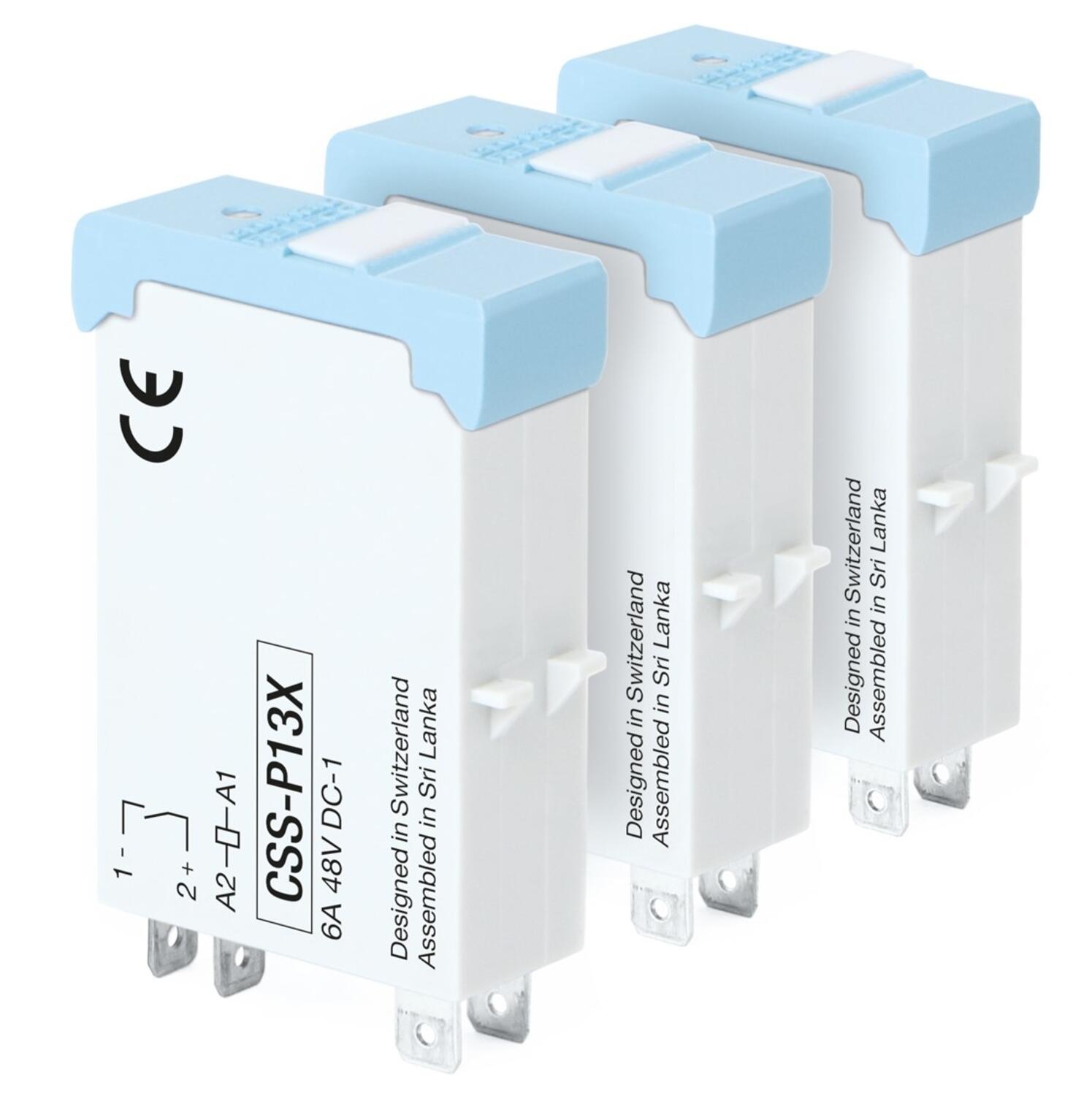

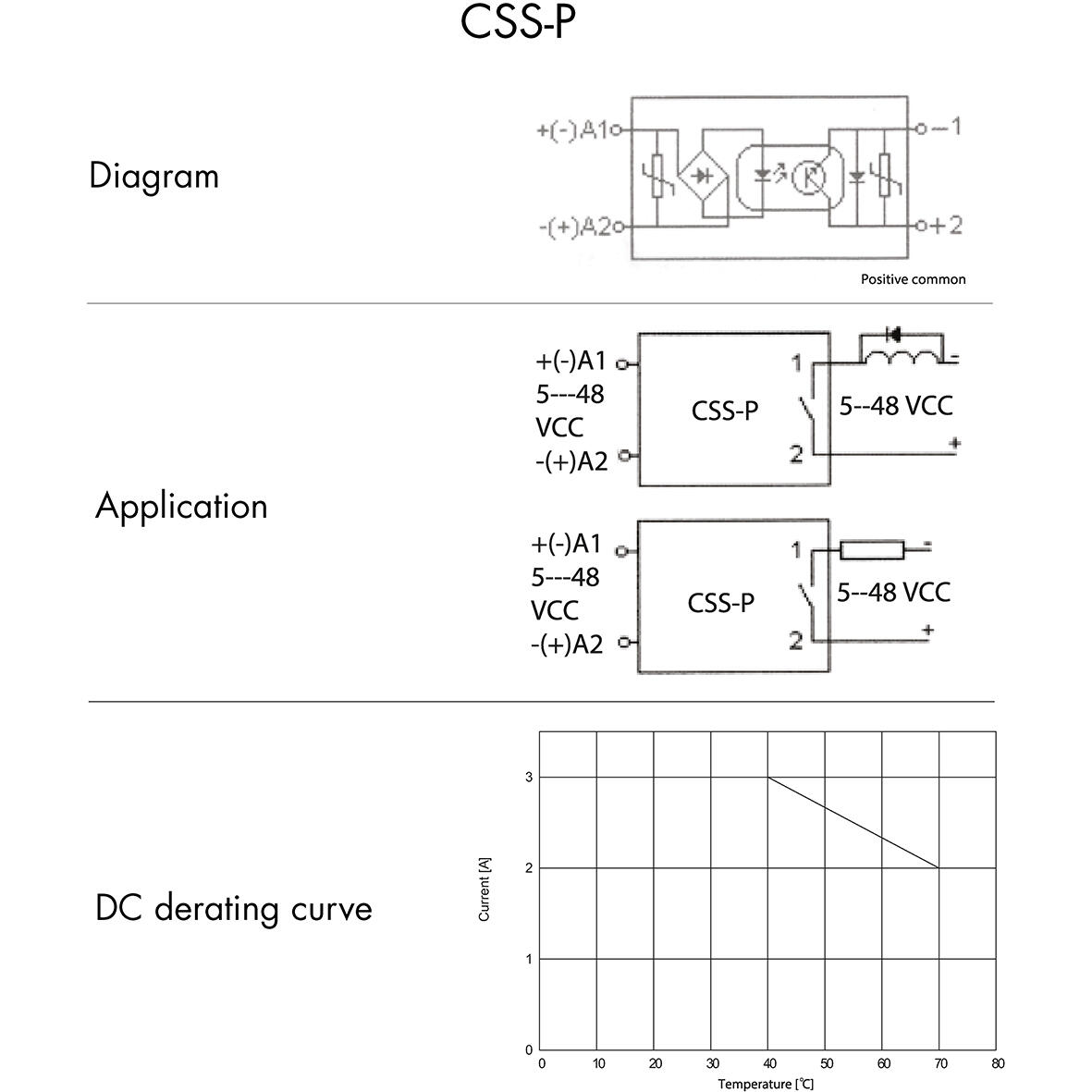

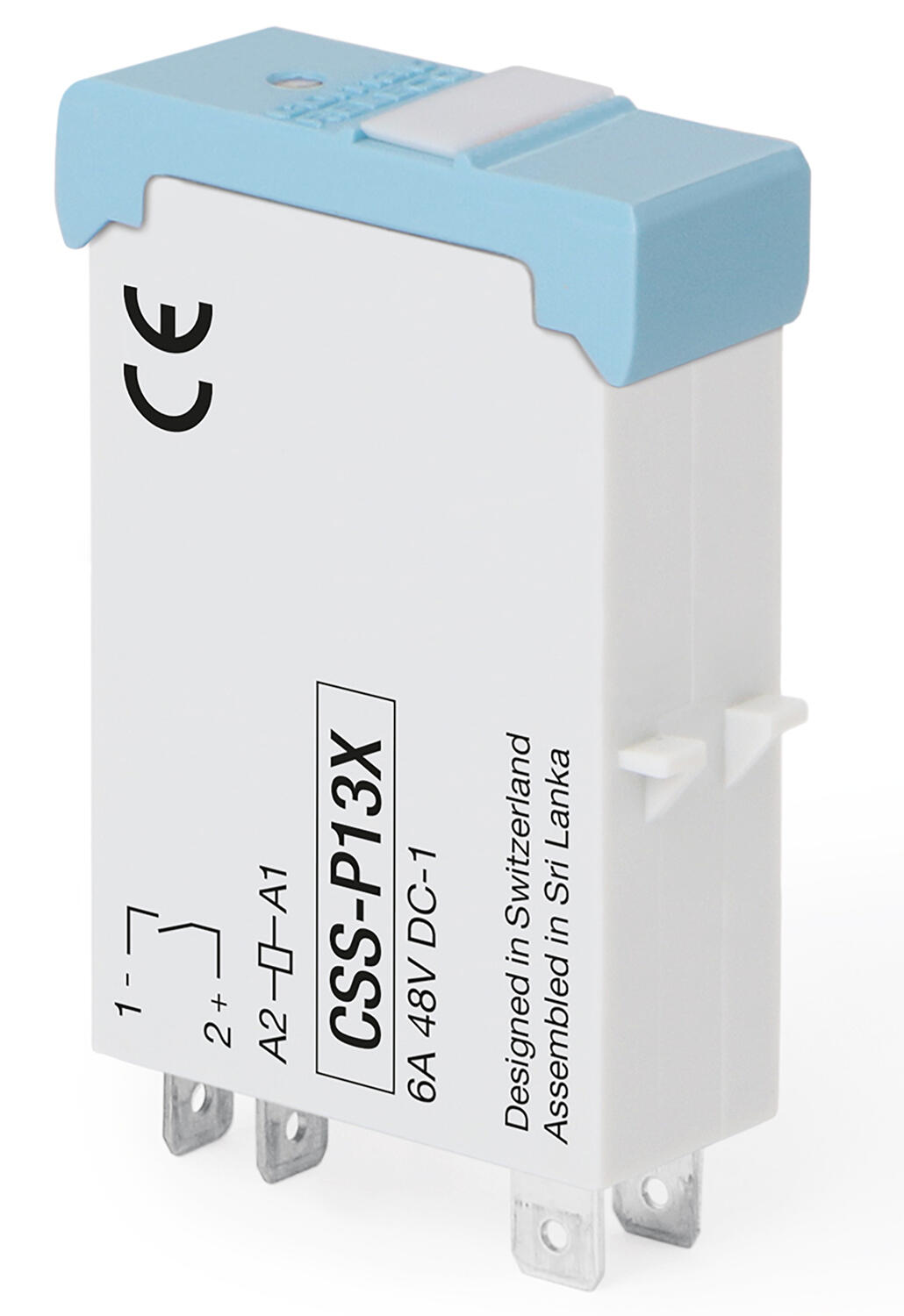

SSR 5 Pin 5-48V dc 6A 5-48V dc PNP
Art:
CSS-P13X
Copied
|
5 V
|
4 mA
|
0,06 ms
|
48 V
|
0,14
|
1 mA
|
|
40 A / 10ms A
|
0,06 ms
|
|
6 A
|
48 V
|
5 V
|
1
|
-40 °C
|
70 °C
|
28 g
|
14 mm
|
85 °C
|
-40 °C
|
|
| |
![]()

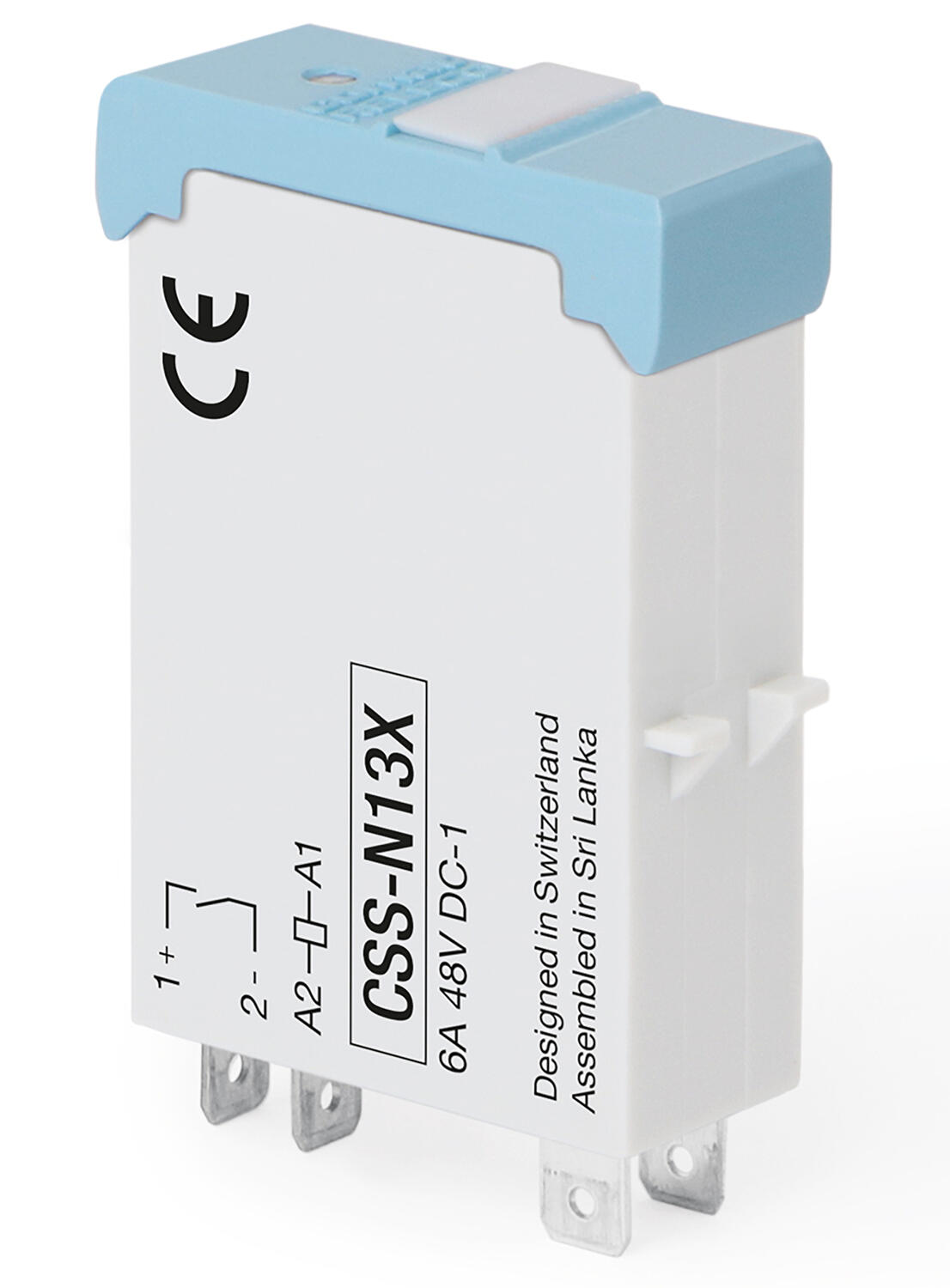

SSR 5 Pin 5-48V dc 6A 5-48V dc NPN
Art:
CSS-N13X
Copied
|
5 V
|
4 mA
|
0,06 ms
|
48 V
|
0,14
|
1 mA
|
|
40 A / 10ms A
|
0,06 ms
|
|
6 A
|
48 V
|
5 V
|
1
|
-40 °C
|
70 °C
|
28 g
|
14 mm
|
85 °C
|
-40 °C
|
|
| |
![]()

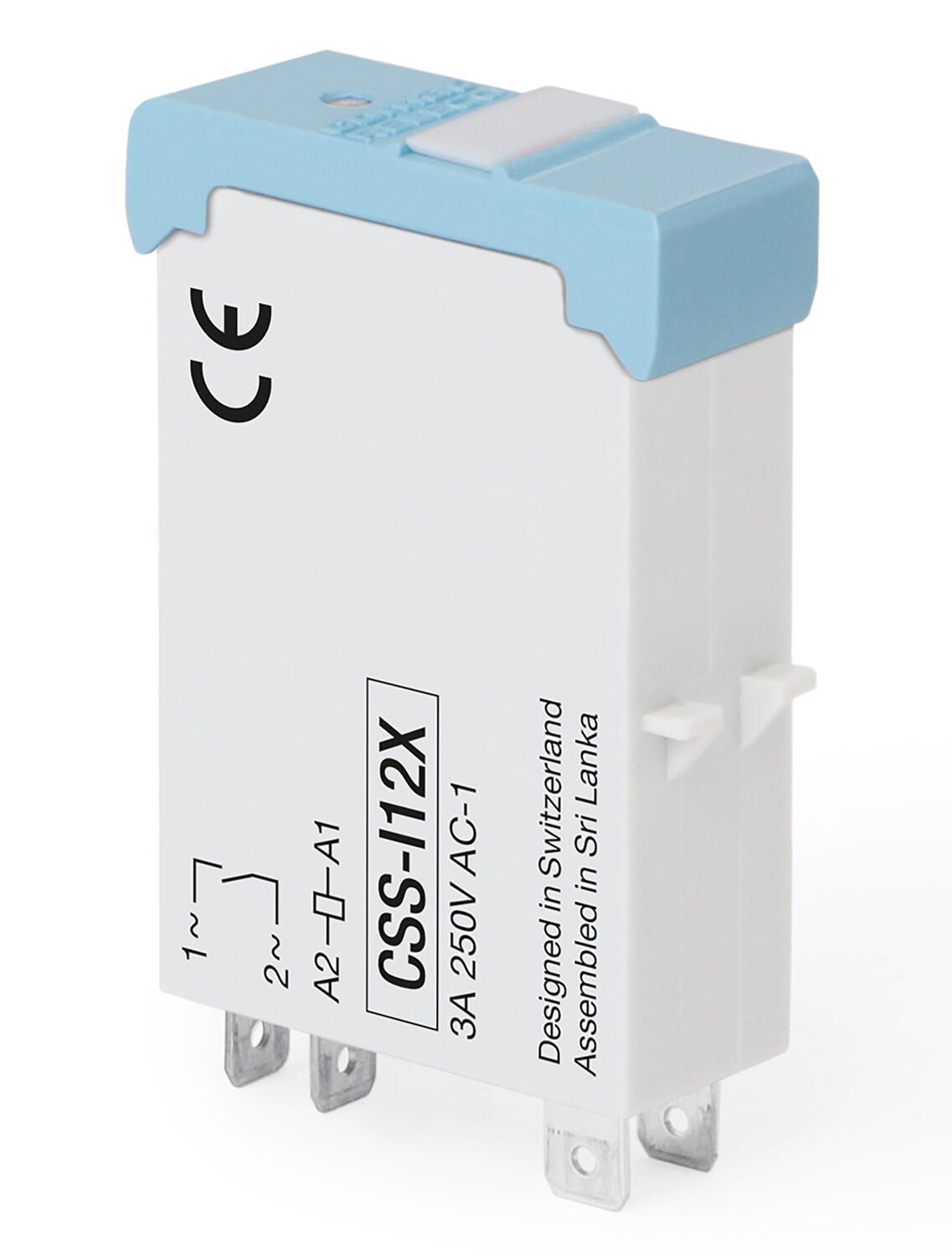

SSR 5 Pin 5-48V dc 3A 24-250V ac
Art:
CSS-I12X
Copied
|
5 V
|
10 mA
|
10 ms
|
48 V
|
|
35 mA
|
24 V
|
150 A / 10ms A
|
10 ms
|
250 V
|
3 A
|
|
|
1
|
-40 °C
|
70 °C
|
28 g
|
14 mm
|
85 °C
|
-40 °C
|
210 A²s
|
| |
![]()
SSR 5 Pin 5-48V dc 3A 24-250V ac Zero Cross
Art:
CSS-Z12X
Copied
|
5 V
|
10 mA
|
10 ms
|
48 V
|
|
35 mA
|
24 V
|
150 A / 10ms A
|
10 ms
|
250 V
|
3 A
|
|
|
1
|
-40 °C
|
70 °C
|
28 g
|
14 mm
|
85 °C
|
-40 °C
|
210 A²s
|
|
