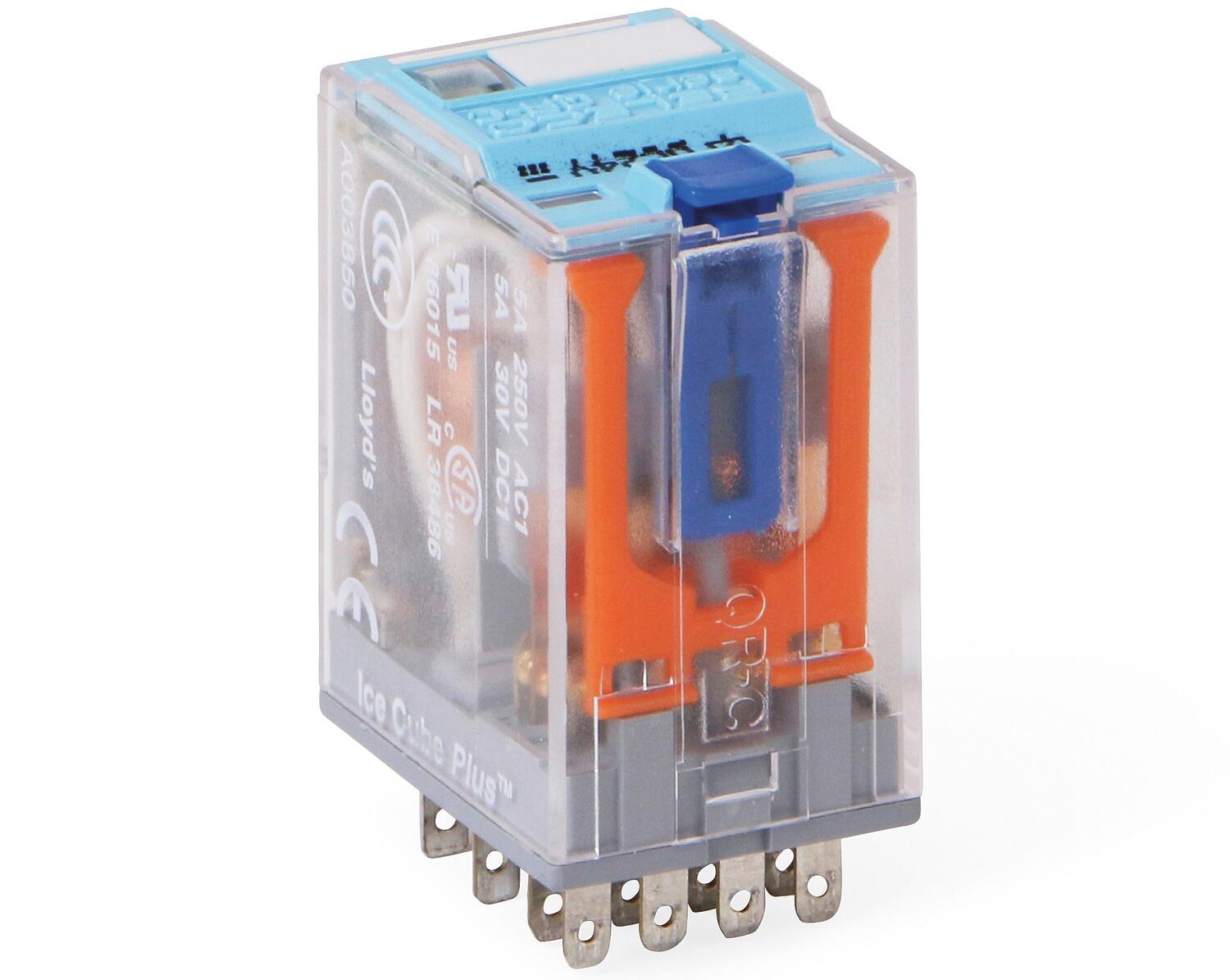

C9 miniature relay

4-pole 5 A

  • Colour-coded test button, both lockable and non-locking
  • Marking system
  • Mechanical indication

Selected variant

Releco_2019.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Working Un 0,8-1,1
Nominal power ac 1,2 VA
Coil Voltage AC 24 V AC
OFF-Voltage Un Max 0,25
Number Of Contacts 4
Contact Material AgNi + 0,2 µ Au
Switching Capability Voltage 250 V
Breaking Capacity Current 5 A
The Recommended Maximum Load 5 A/250V AC-1; 5 A/30 V DC-1
Recommended Min Load 10 mA/10 V
Resistive Load 110 V DC Max 50 W
Resistive Load 24 V dc Max 100 W
Surge Current (20Ms) 15 A
Release Time 6 ms
Release Time Kontaktstudstid 7 ms
IP Class IP40
Isolation Contact / Contact 2500 V
Isolation Contact / Coil 2000 V
Temperature range from -40 °C
Temperature range bearing, from -40 °C
Temperature range bearing, to 80 °C
Temperature range to 60 °C
Frequency 50 Hz
Weight 43 g
Approvals CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL

Downloads

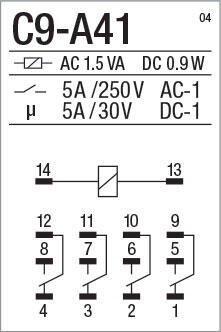

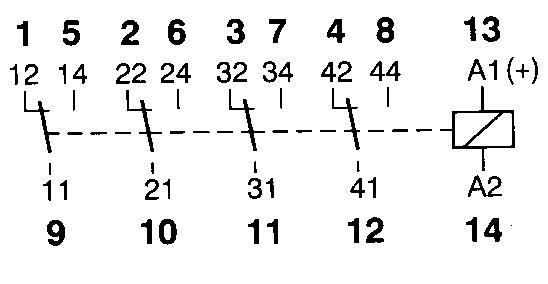

Measurements and connections

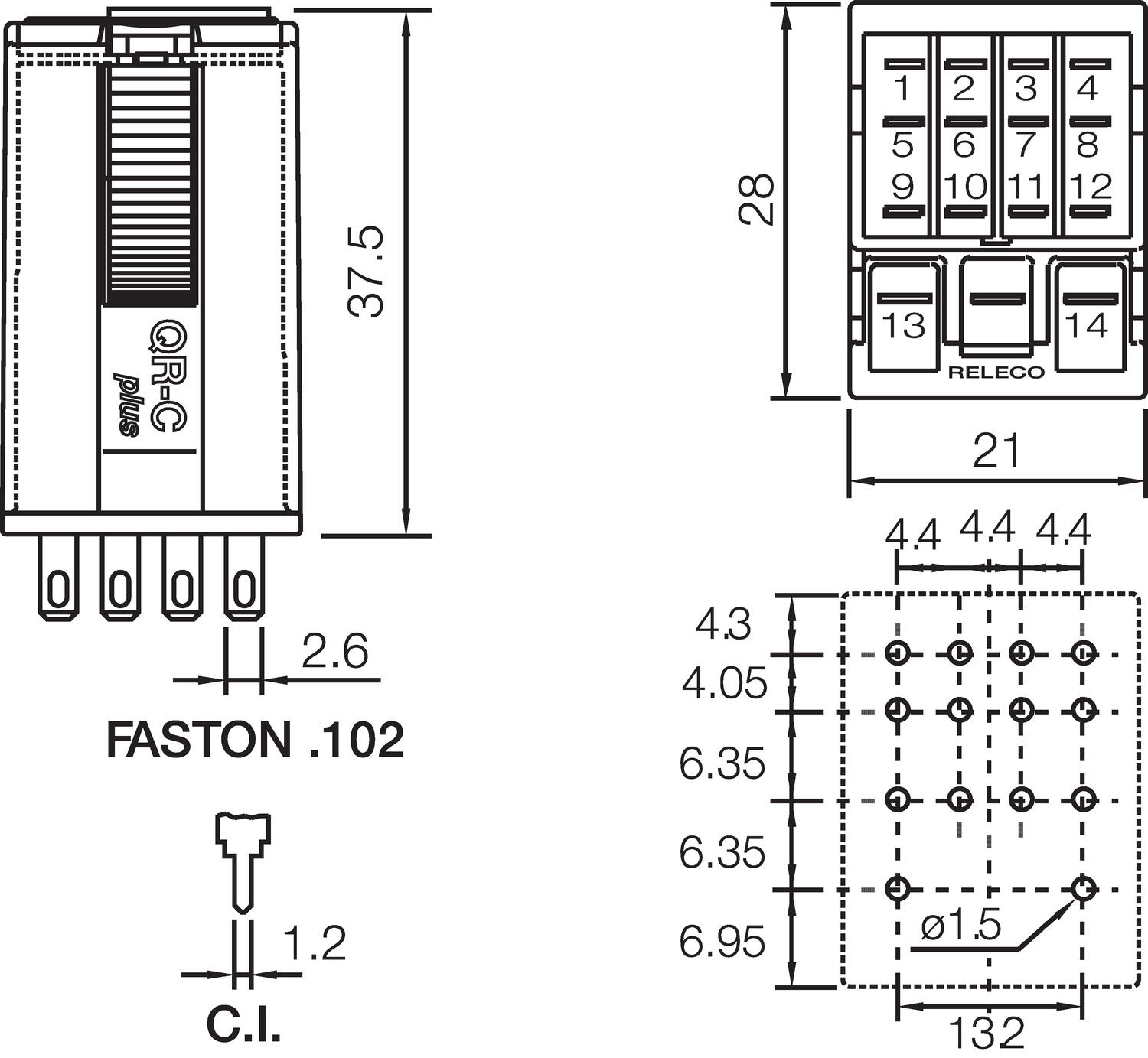

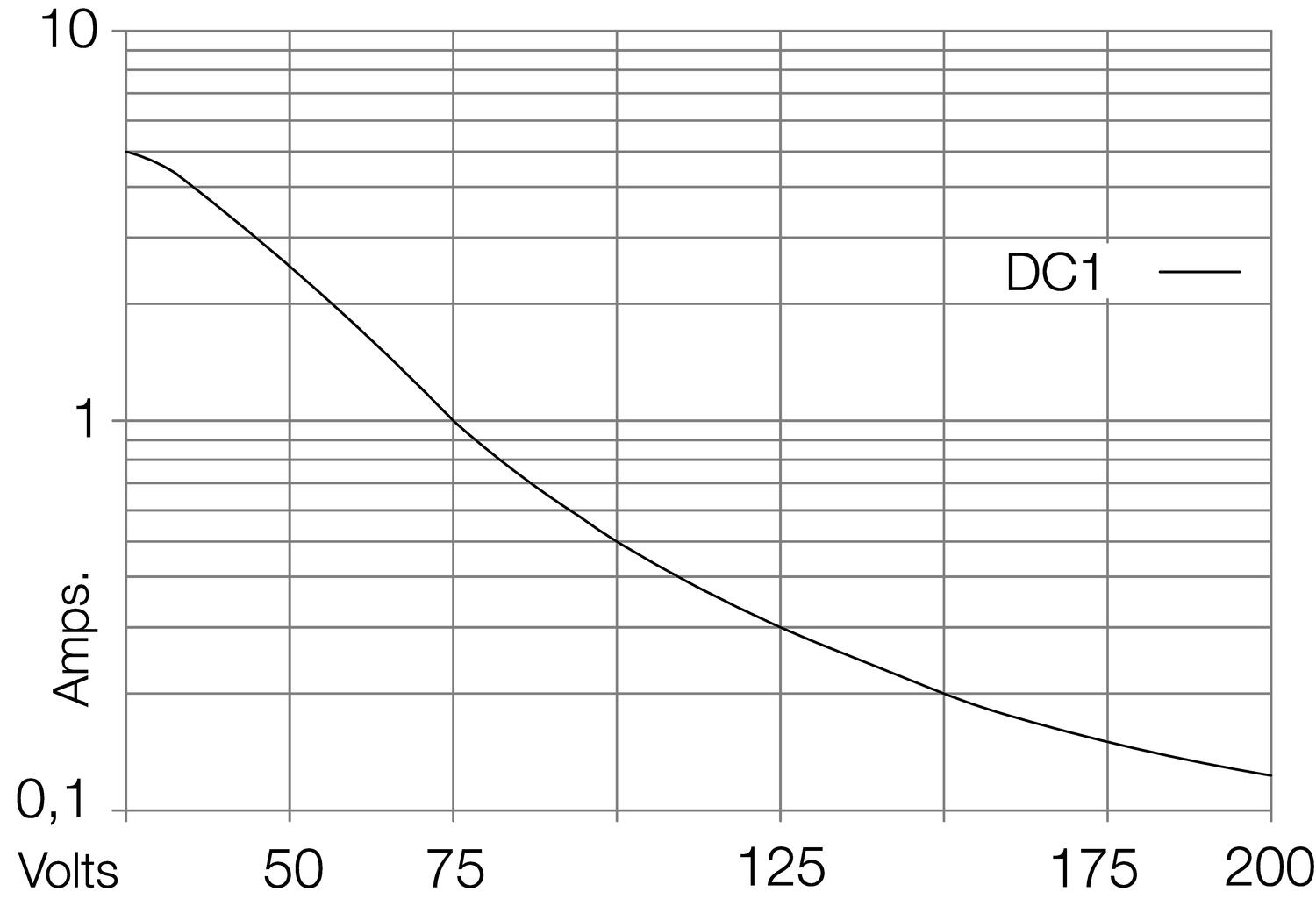

Technical illustrations
