COMATRELECO

C3 industrial relay

3-pole 10 A

  • Colour-coded test button
  • Marking system that can be custom-marked at factory
  • Mechanical indication, double windows

Selected variant

Releco_2019.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

OFF-Voltage Un Max 0,15
Spoleffekt AC 2,2 VA
Coil Voltage AC 12 V AC
Working Un 0,8-1,1
Surge Current (20Ms) 30 A
Recommended Min Load 10 mA/10 V
Resistive Load 110 V DC Max 55 W
Release Time 8 ms
The Recommended Maximum Load 10 A/250 V AC-1; 0,5 A/110 V DC-1
Breaking Capacity Current 10 A
Release Time Kontaktstudstid 9 ms
Switching Capability Voltage 250 V
Number Of Contacts 3
Contact Material AgNi
Resistive Load 24 V dc Max 240 W
Frequency 50 Hz
IP Class IP40
Temperature range bearing, from -40 °C
Isolation Contact / Coil 2500 V
Insulation Class EN60947 250 V, Pollution 3, Group C
Temperature range to 60 °C
Weight 81 g
Temperature range bearing, to 80 °C
Temperature range from -40 °C
Isolation Contact / Contact 2500 V
Approvals CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL

Downloads

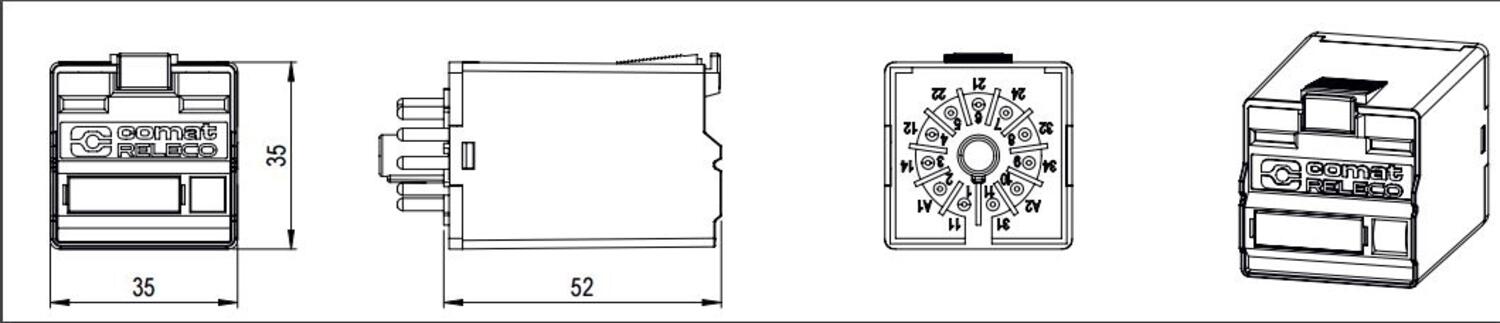

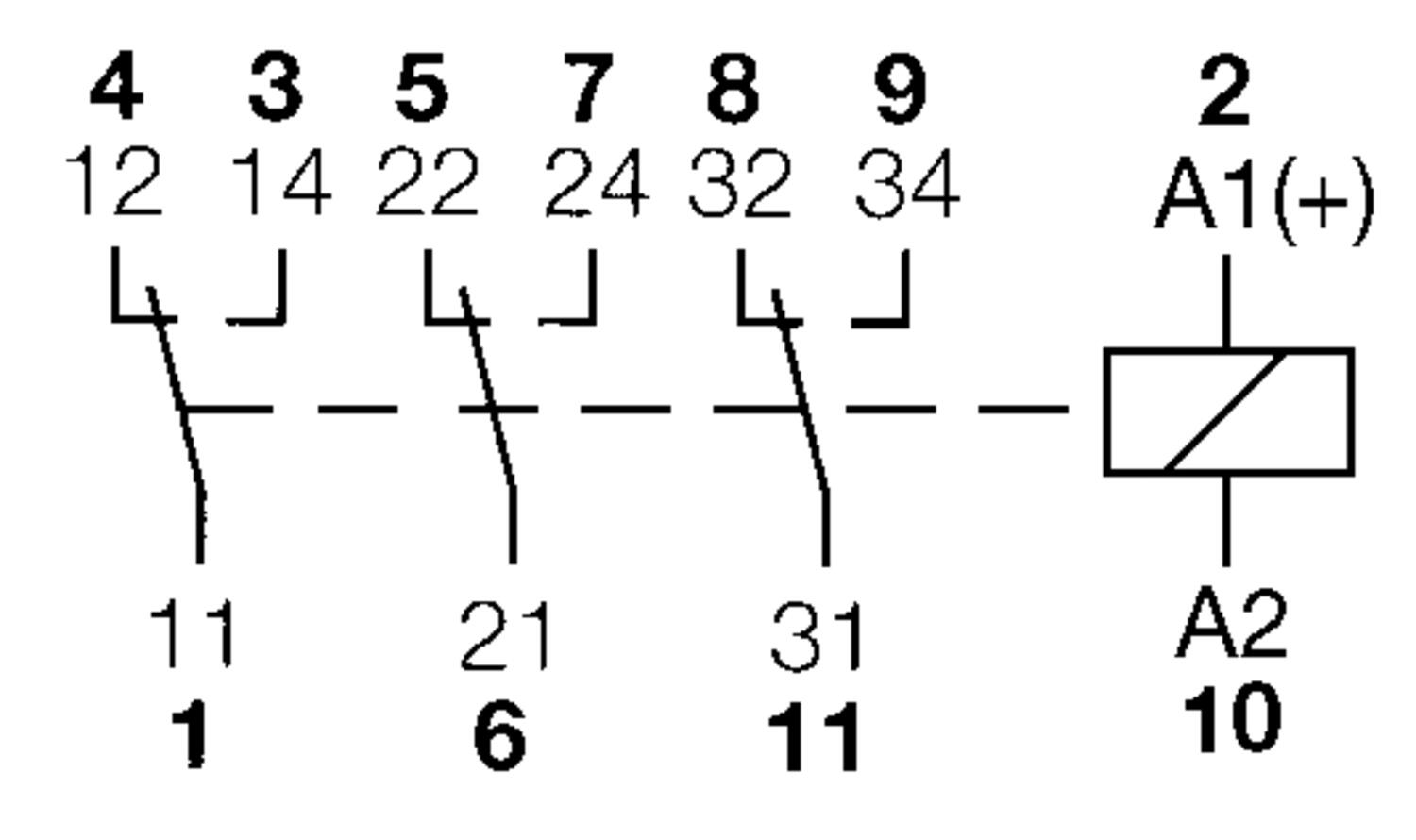

Measurements and connections

Technical illustrations

Accessories

Articles OFF-Voltage Un Max Spoleffekt AC Nominal power dc Coil Voltage AC Coil Voltage DC Working Un Surge Current (20Ms) Recommended Min Load Resistive Load 110 V DC Max Release Time The Recommended Maximum Load Breaking Capacity Current Release Time Kontaktstudstid Switching Capability Voltage Number Of Contacts Contact Material Resistive Load 24 V dc Max Frequency IP Class Temperature range bearing, from Optional Coil Isolation Contact / Coil Insulation Class EN60947 Temperature range to Weight Temperature range bearing, to Temperature range from Isolation Contact / Contact Approvals
Relay MRC 3-pole 12 VAC
Art:
C3-A3012A Copied
0,15
2,2 VA
12 V AC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole 24V ac
Art:
C3-A3024A Copied
0,15
2,2 VA
24 V AC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole 48V ac
Art:
C3-A3048A Copied
0,15
2,2 VA
48 V AC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole 115V ac
Art:
C3-A30115A Copied
0,15
2,2 VA
115 V AC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole 230V ac
Art:
C3-A30230A Copied
0,15
2,2 VA
230 V AC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole 380V ac
Art:
C3-A30380A Copied
0,15
2,2 VA
380 V AC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay MRC 3-pole LED 12VAC
Art:
C3-A30X12A Copied
0,15
2,2 VA
12 V AC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
X (LED)
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole LED 24V ac
Art:
C3-A30X24A Copied
0,15
2,2 VA
24 V AC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
X (LED)
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole LED 48V ac
Art:
C3-A30X48A Copied
0,15
2,2 VA
48 V AC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
X (LED)
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole LED 115V ac
Art:
C3-A30X115A Copied
0,15
2,2 VA
115 V AC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
X (LED)
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole LED 230V ac
Art:
C3-A30X230A Copied
0,15
2,2 VA
230 V AC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
X (LED)
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole 12V dc
Art:
C3-A3012D Copied
0,1
1,3 W
12 V DC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole 24V dc
Art:
C3-A3024D Copied
0,1
1,3 W
24 V DC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole 48V dc
Art:
C3-A3048D Copied
0,1
1,3 W
48 V DC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay MRC 3-pole 60 VDC
Art:
C3-A3060D Copied
0,1
1,3 W
60 V DC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole 110V dc
Art:
C3-A30110D Copied
0,1
1,3 W
110 V DC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay MRC 3-pole 120-125VDC
Art:
C3-A30125D Copied
0,1
1,3 W
125 V DC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole 220V dc
Art:
C3-A30220D Copied
0,1
1,3 W
220 V DC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole LED 12V dc
Art:
C3-A30X12D Copied
0,1
1,3 W
12 V DC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
X (LED)
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole LED 24V dc
Art:
C3-A30X24D Copied
0,1
1,3 W
24 V DC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
X (LED)
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole LED 48V dc
Art:
C3-A30X48D Copied
0,1
1,3 W
48 V DC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
X (LED)
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay MRC 3-pole 60 VDC LED
Art:
C3-A30X60D Copied
0,1
1,3 W
60 V DC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
X (LED)
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole LED 110V dc
Art:
C3-A30X110D Copied
0,1
1,3 W
110 V DC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
X (LED)
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole LED 220V dc
Art:
C3-A30X220D Copied
0,1
1,3 W
220 V DC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
X (LED)
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay MRC 3-pole 12VDC LED==diode==
Art:
C3-A30DX12D Copied
0,1
1,3 W
12 V DC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
DX (diode + LED)
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole Diode LED 24V dc
Art:
C3-A30DX24D Copied
0,1
1,3 W
24 V DC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
DX (diode + LED)
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole Diode LED 48V dc
Art:
C3-A30DX48D Copied
0,1
1,3 W
48 V DC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
DX (diode + LED)
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole Diode LED 110V dc
Art:
C3-A30DX110D Copied
0,1
1,3 W
110 V DC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
DX (diode + LED)
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole Diode LED 220V dc
Art:
C3-A30DX220D Copied
0,1
1,3 W
220 V DC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
DX (diode + LED)
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay MRC 12VDC,LED,diodepole.SK
Art:
C3-A30FX12D Copied
0,1
1,3 W
12 V DC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
FX (pole protection + LED)
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole Diode LED 24V dc
Art:
C3-A30FX24D Copied
0,1
1,3 W
24 V DC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
FX (pole protection + LED)
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole Diode LED 110V dc
Art:
C3-A30FX110D Copied
0,1
1,3 W
110 V DC
0,8-1,1
30 A
10 mA/10 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
FX (pole protection + LED)
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay MRC 3-pole, 115VAC Au
Art:
C3-A38115A Copied
0,15
2,2 VA
115 V AC
0,8-1,1
30 A
5 mA/5 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi + 10 µ Au
240 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay MRC 3-pole**Au** 230VAC
Art:
C3-A38230A Copied
0,15
2,2 VA
230 V AC
0,8-1,1
30 A
5 mA/5 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi + 10 µ Au
240 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay MRC 3-pole LED,Au, 24VAC
Art:
C3-A38X24A Copied
0,15
2,2 VA
24 V AC
0,8-1,1
30 A
5 mA/5 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi + 10 µ Au
240 W
50 Hz
IP40
-40 °C
X (LED)
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 11 Pin 3 Pole 10µ Au LED 230V ac
Art:
C3-A38X230A Copied
0,15
2,2 VA
230 V AC
0,8-1,1
30 A
5 mA/5 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi + 10 µ Au
240 W
50 Hz
IP40
-40 °C
X (LED)
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay MRC 3-pole Au 24VDC
Art:
C3-A3824D Copied
0,1
1,3 W
24 V DC
0,8-1,1
30 A
5 mA/5 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi + 10 µ Au
240 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay MRC 3-pole LED, Au, 24VDC
Art:
C3-A38X24D Copied
0,1
1,3 W
24 V DC
0,8-1,1
30 A
5 mA/5 V
55 W
8 ms
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi + 10 µ Au
240 W
50 Hz
IP40
-40 °C
X (LED)
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay MRC 1-pole BM 230VAC
Art:
C3-M10230A Copied
0,15
2,4 VA
230 V AC
0,8-1,1
30 A
10 ms
10 A/250 V AC-1; 10 A/220 V DC-1
10 A
11 ms
250 V
1
AgNi
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
70 °C
90 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC
Relay MRC 1-pole, NO LEDmagnetic b,24VDC
Art:
C3-M10X24D Copied
0,1
1,3 W
24 V DC
0,8-1,1
30 A
10 ms
10 A/250 V AC-1; 10 A/220 V DC-1
10 A
11 ms
250 V
1
AgNi
50 Hz
IP40
-40 °C
X (LED)
2500 V
250 V, Pollution 3, Group C
70 °C
90 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC
Relay MRC 3-pole 800MW==Au== 24VDC
Art:
C3-N3424D Copied
0,1
0,8 W
24 V DC
0,8-1,1
15 A
10 mA/10 V
10 ms
6 A/250 V AC-1; 6 A/30 V DC-1
6 A
11 ms
250 V
3
AgNi
144 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
90 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA
Relay 11 Pin 2 Pole Latching 24V ac
Art:
C3-R2024A Copied
0,15
24 V AC
0,7-1,25
30 A
10 mA/10 V; 5 mA/5 V
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
250 V
2
AgNi
50 Hz
IP40
-40 °C
Bistable
2500 V
250 V, Pollution 3, Group C
60 °C
95 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA
Relay 11 Pin 2 Pole Latching 230V ac
Art:
C3-R20230A Copied
0,15
230 V AC
0,7-1,25
30 A
10 mA/10 V; 5 mA/5 V
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
250 V
2
AgNi
50 Hz
IP40
-40 °C
Bistable
2500 V
250 V, Pollution 3, Group C
60 °C
95 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA
Relay 11 Pin 2 Pole Latching 12V dc
Art:
C3-R2012D Copied
0,1
12 V DC
0,7-1,25
30 A
10 mA/10 V; 5 mA/5 V
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
250 V
2
AgNi
50 Hz
IP40
-40 °C
Bistable
2500 V
250 V, Pollution 3, Group C
60 °C
95 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA
Relay 11 Pin 2 Pole Latching 24V dc
Art:
C3-R2024D Copied
0,1
24 V DC
0,7-1,25
30 A
10 mA/10 V; 5 mA/5 V
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
250 V
2
AgNi
50 Hz
IP40
-40 °C
Bistable
2500 V
250 V, Pollution 3, Group C
60 °C
95 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA
Relay 11 Pin 2 Pole Latching 48V dc
Art:
C3-R2048D Copied
0,1
48 V DC
0,7-1,25
30 A
10 mA/10 V; 5 mA/5 V
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
250 V
2
AgNi
50 Hz
IP40
-40 °C
Bistable
2500 V
250 V, Pollution 3, Group C
60 °C
95 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA
Relay 11 Pin 2 Pole Latching 110V dc
Art:
C3-R20110D Copied
0,1
110 V DC
0,7-1,25
30 A
10 mA/10 V; 5 mA/5 V
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 A
250 V
2
AgNi
50 Hz
IP40
-40 °C
Bistable
2500 V
250 V, Pollution 3, Group C
60 °C
95 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC, CSA
Relay MRC 3-pole open.230VAC 2mm GAP
Art:
C3-G30230A Copied
0,15
2,4 VA
230 V AC
0,8-1,1
30 A
132 W
8 ms
10 A/250 V AC-1; 1,2 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC
Relay MRC 3-pole NO24VDC 2mm GAP
Art:
C3-G3024D Copied
0,1
1,6 W
24 V DC
0,8-1,1
30 A
132 W
8 ms
10 A/250 V AC-1; 1,2 A/110 V DC-1
10 A
9 ms
250 V
3
AgNi
240 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC
"Relay MRC ""twin contact"" 230VAC"
Art:
C3-T31230A Copied
0,15
2,2 VA
230 V AC
0,8-1,1
15 A
5 mA/5 V
18 ms
6 A/250 V AC-1; 6 A/30 V DC-1
6 A
19 ms
250 V
3
AgNi + 0,2 µ Au
144 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
70 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC
Relay MRC twinINGKONT.LED 230VAC
Art:
C3-T31X230A Copied
0,15
2,2 VA
230 V AC
0,8-1,1
15 A
5 mA/5 V
18 ms
6 A/250 V AC-1; 6 A/30 V DC-1
6 A
19 ms
250 V
3
AgNi + 0,2 µ Au
144 W
50 Hz
IP40
-40 °C
X (LED)
2500 V
250 V, Pollution 3, Group C
70 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC
Relay 11 Pin 3 Pole Twin 0.2µ Au 24V dc
Art:
C3-T3124D Copied
0,1
1,3 W
24 V DC
0,8-1,1
15 A
5 mA/5 V
18 ms
6 A/250 V AC-1; 6 A/30 V DC-1
6 A
19 ms
250 V
3
AgNi + 0,2 µ Au
144 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
70 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC
Art:
C3-T31X24D Copied
0,1
1,3 W
24 V DC
0,8-1,1
15 A
5 mA/5 V
18 ms
6 A/250 V AC-1; 6 A/30 V DC-1
6 A
19 ms
250 V
3
AgNi + 0,2 µ Au
144 W
50 Hz
IP40
-40 °C
X (LED)
2500 V
250 V, Pollution 3, Group C
70 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC
Relay MRC 3-pole twin LED 110VDC
Art:
C3-T31X110D Copied
0,1
1,3 W
110 V DC
0,8-1,1
15 A
5 mA/5 V
18 ms
6 A/250 V AC-1; 6 A/30 V DC-1
6 A
19 ms
250 V
3
AgNi + 0,2 µ Au
144 W
50 Hz
IP40
-40 °C
X (LED)
2500 V
250 V, Pollution 3, Group C
70 °C
81 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC
Relay 11 Pin 3 Pole Twin 5µ Au LED 115V ac
Art:
C3-T32X115A Copied
0,1
2,2 VA
115 V AC
0,8-1,1
15 A
1mA/5 V
18 ms
6 A/250 V AC-1; 6 A/30 V DC-1
6 A
19 ms
250 V
3
AgNi + 5 µ Au
144 W
50 Hz
IP40
-40 °C
X (LED)
2500 V
250 V, Pollution 3, Group C
70 °C
81 g
80 °C
-40 °C
2500 V
Relay MRC 1-pole "NO" 48VDC
Art:
C3-X1048D Copied
0,1
1,3 W
48 V DC
0,8-1,1
30 A
770 W
8 ms
10 A/250 V AC-1; 7 A/110 V DC-1
10 A
9 ms
250 V
1
AgNi
240 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
90 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC
Relay MRC 1-pole, NO double make, 220VDC
Art:
C3-X10220D Copied
0,1
1,3 W
220 V DC
0,8-1,1
30 A
770 W
8 ms
10 A/250 V AC-1; 7 A/110 V DC-1
10 A
9 ms
250 V
1
AgNi
240 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
90 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC
Relay MRC 1-pole "NO" 24VDC
Art:
C3-X1024D Copied
0,1
1,3 W
24 V DC
0,8-1,1
30 A
770 W
8 ms
10 A/250 V AC-1; 7 A/110 V DC-1
10 A
9 ms
250 V
1
AgNi
240 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
90 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC
Relay 11 Pin 1 Pole N/O Diode LED 24V dc
Art:
C3-X10DX24D Copied
0,1
1,3 W
24 V DC
0,8-1,1
30 A
770 W
8 ms
10 A/250 V AC-1; 7 A/110 V DC-1
10 A
9 ms
250 V
1
AgNi
240 W
50 Hz
IP40
-40 °C
DX (diode + LED)
2500 V
250 V, Pollution 3, Group C
60 °C
90 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC
Relay 11 Pin 1 Pole N/O 110V dc
Art:
C3-X10110D Copied
0,1
1,3 W
110 V DC
0,8-1,1
30 A
770 W
8 ms
10 A/250 V AC-1; 7 A/110 V DC-1
10 A
9 ms
250 V
1
AgNi
240 W
50 Hz
IP40
-40 °C
2500 V
250 V, Pollution 3, Group C
60 °C
90 g
80 °C
-40 °C
2500 V
CE, Gost R, RoHS, CCC

Selected variant

Select a variant in the list

Contact us
Please contact us for more information.
Send e-mail
Do you need help?
Logo

Cookies on oem.ee

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

Functional cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analytics cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
