Power supply 1-Phase with built in redundancy, 24 V DC Dimension C series, Generation 2

Click below link to download the white paper

Efficient redundancy for power supplies



Also visit our page for Redundancy Modules

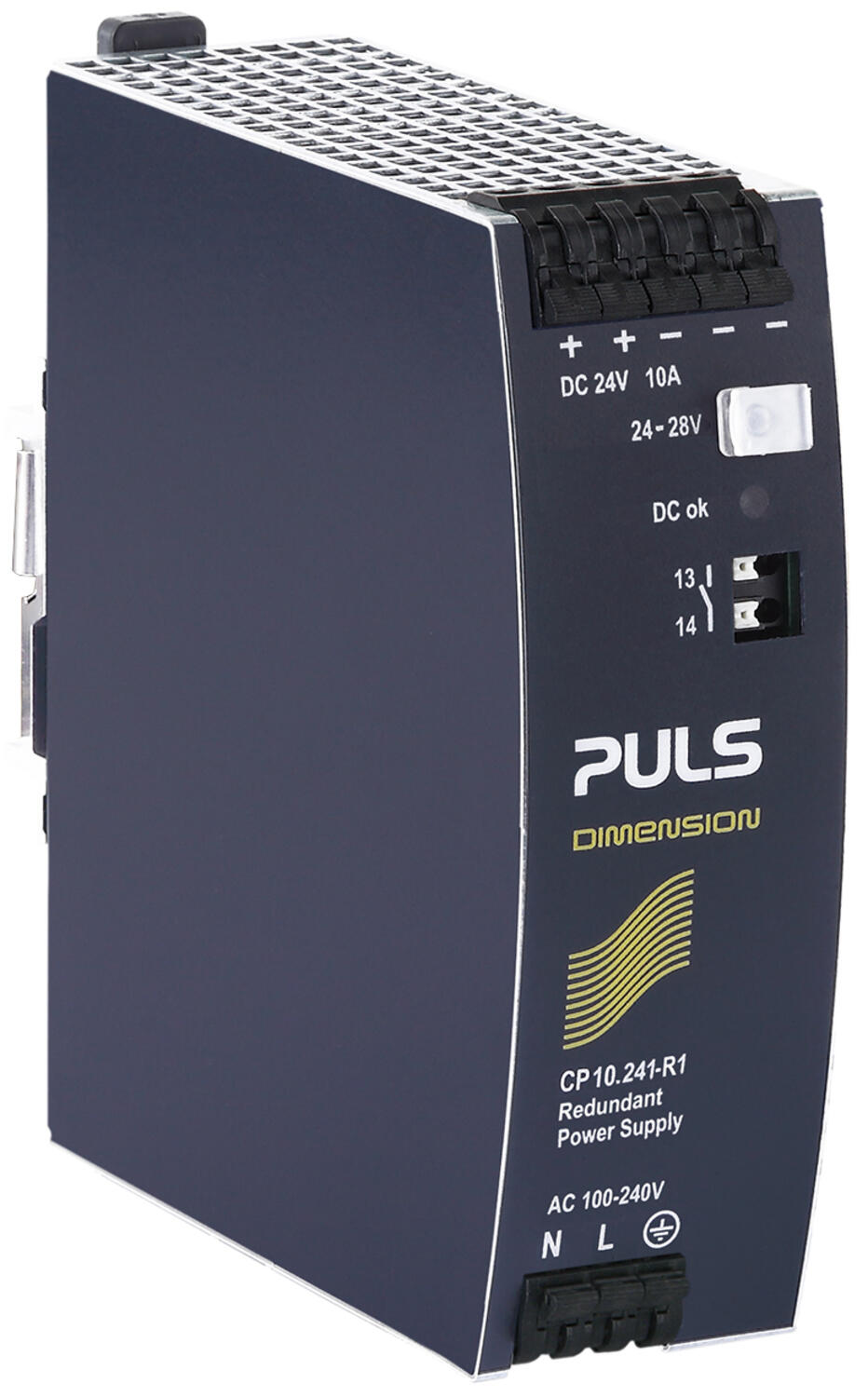

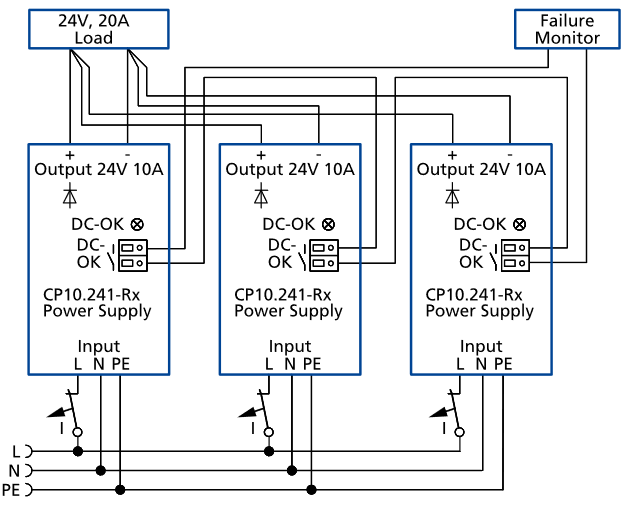

The Dimension CP-Series are cost optimized power supplies without compromising quality, reliability and performance. The most outstanding features of the CP20.241–R1/-R2/-R3 units are the high efficiency, electronic inrush current limitation, active PFC, wide operational temperature range and the extraordinary small size. The units include a decoupling MOSFET for building 1+1 or n+1 redundant power supply systems.

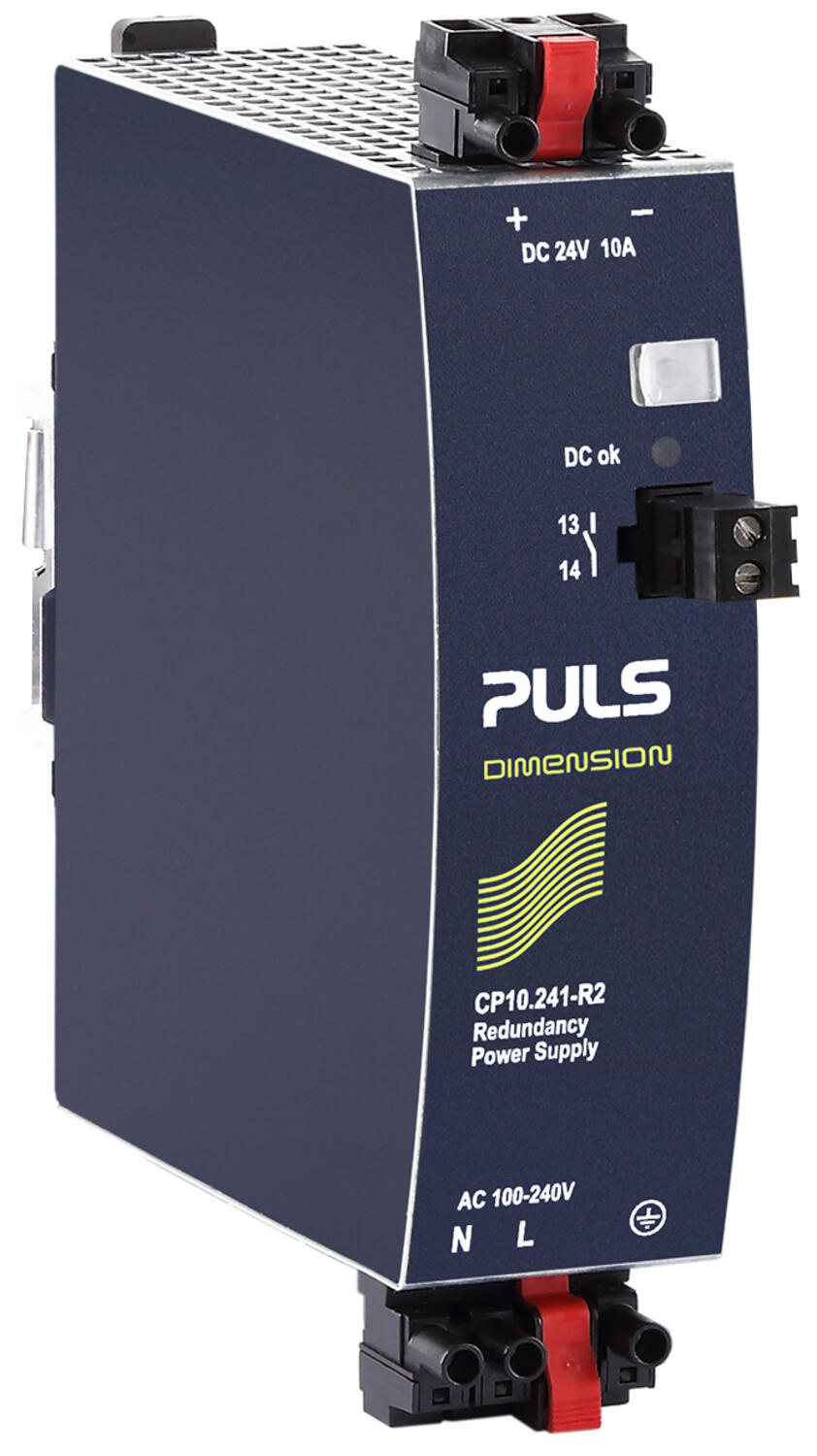

These redundancy power supplies come with three connection terminal options; screw terminals, spring-clamp terminals or plug connector terminals which allows replacement on an active application.

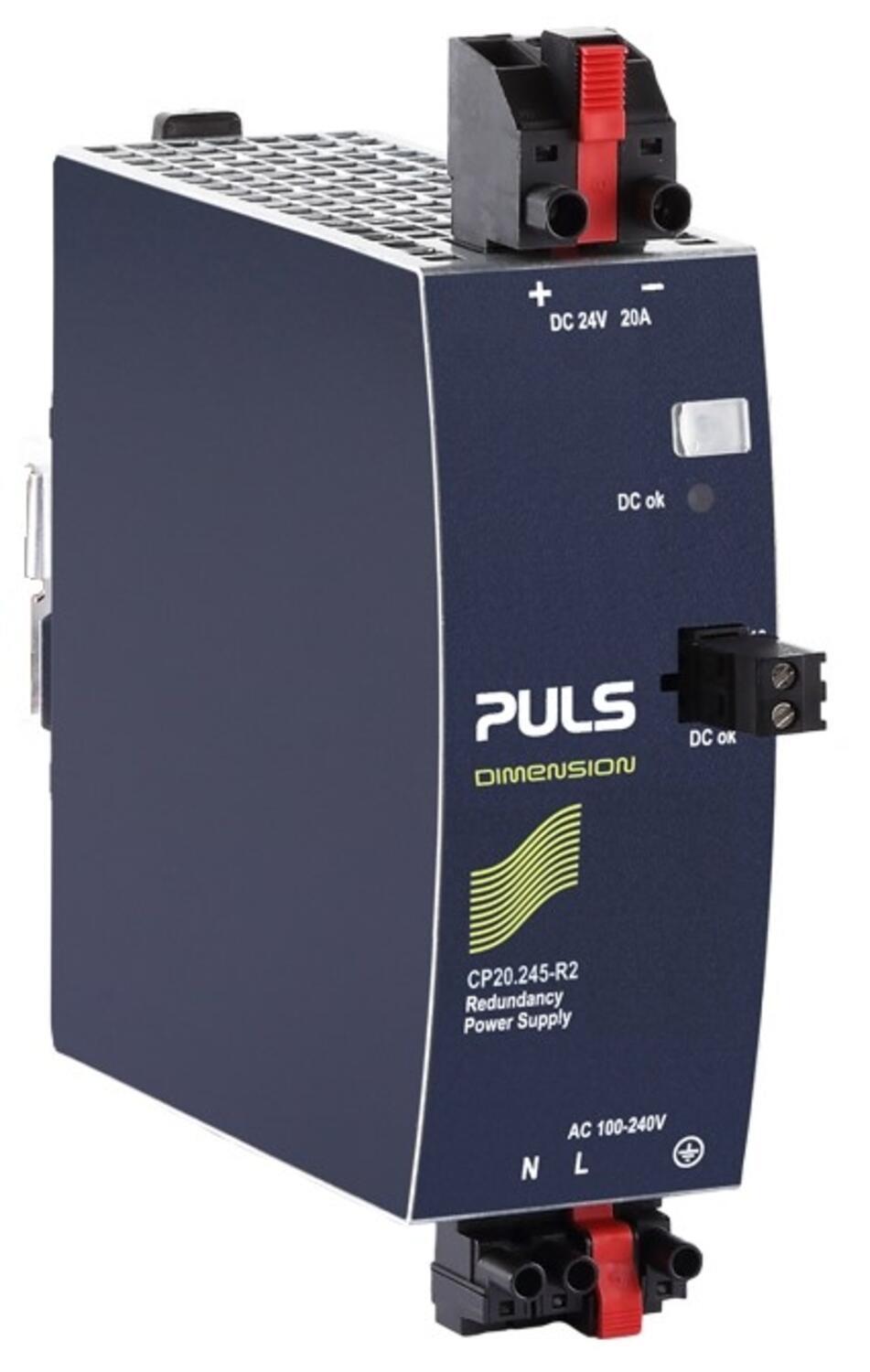

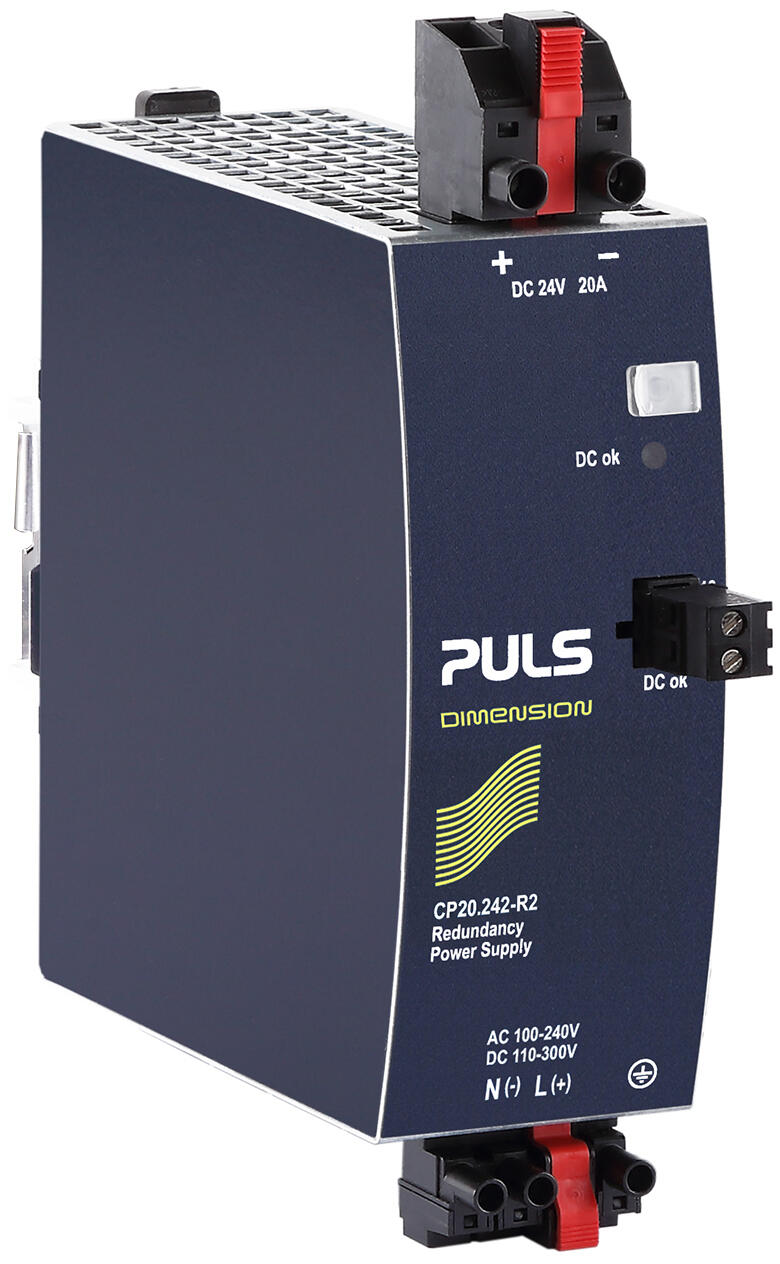

CP20.242-R2 version feature an enhanced DC input voltage range and the CP20.241-R2-C1 is additionally equipped with conformal coated pc-boards.

CP10.242-R2 version feature an enhanced DC input voltage range.

With high immunity to transients and power surges, low electromagnetic emission, a DC-OK signal contact for remote monitoring, and a large international approval package, makes this unit suitable for nearly every application.

  • AC 100-240V Wide-range Input
  • Width only 39 or 48 mm

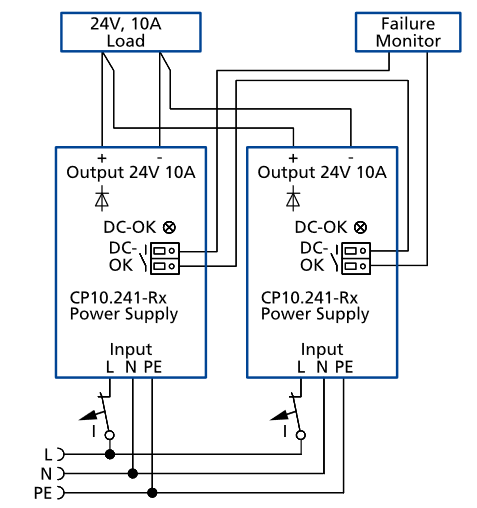

  • Built-in Decoupling Mosfet for 1+1 and n+1 Redundancy
  • Efficiency up to 94.7%
  • 20% Output Power Reserves

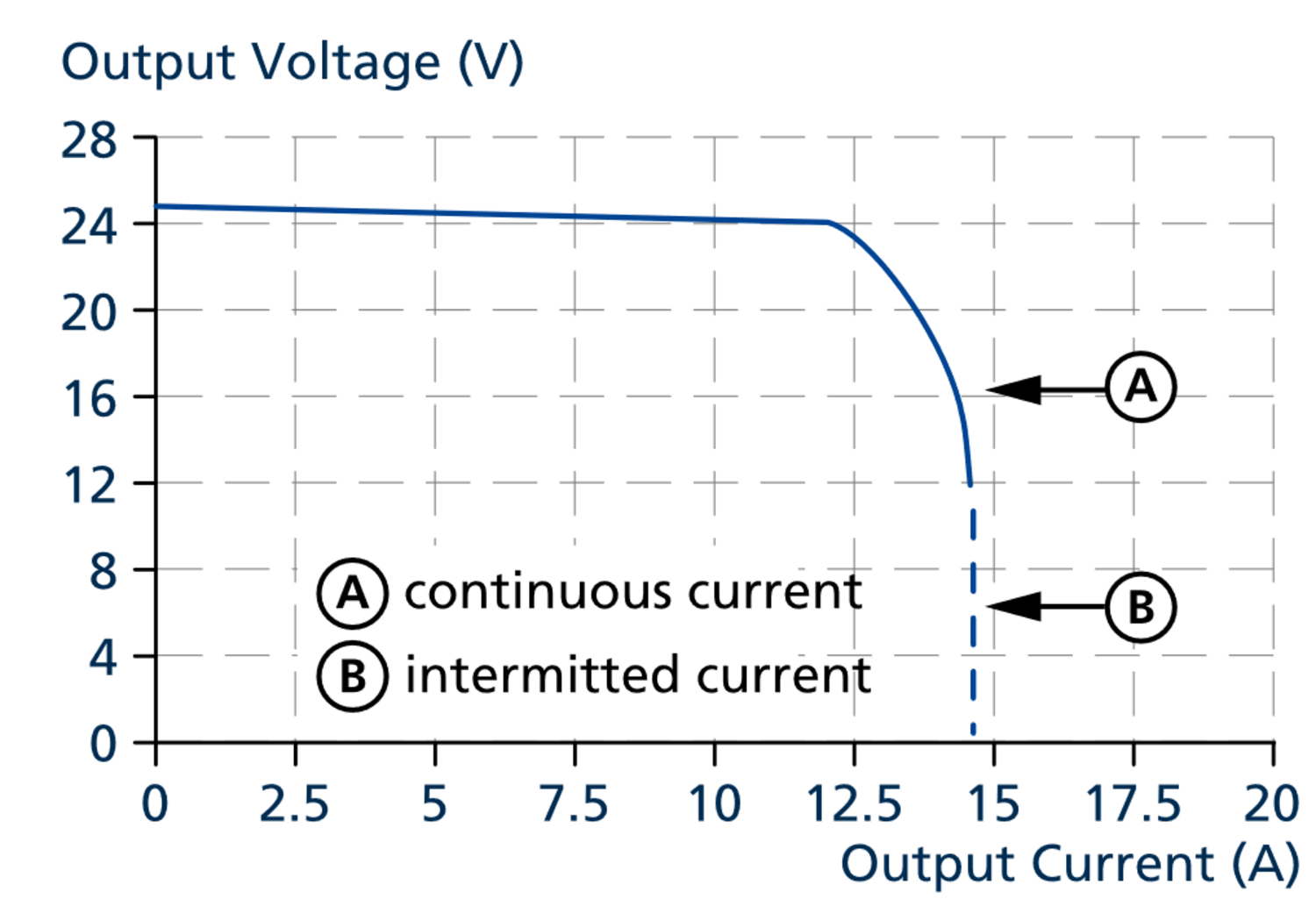

  • Safe HiccupPLUS Overload Mode
  • Easy Fuse Breaking – 3 times nominal current for 12ms
  • Active Power Factor Correction (PFC)
  • Minimal Inrush Current Surge
  • DC-OK Relay Contact
  • Current Sharing Feature Included
  • 3 Year Warranty
Read more
  • Output current of 10 or 20 A
  • Efficiency up to 95.2%
  • 20% power reserves
  • Built-in decoupling mosfet for 1+1 and n+1 redundancy
  • Hot-Swap

Selected variant

Selected variant

Specifications

Input voltage range Wide-range
Power Consumption At 120 V AC 2,17 A
Input voltage AC 100-240 V
Input voltage ac min 85 V AC
Input voltage dc max 180 V DC
Input voltage DC 110-150 V
Input voltage ac max 264 V AC
Input current at 230 V ac typical 9 A
Number of phases 1
Power Consumption At 230 V AC 1,14 A
Supply Frequency 50-60 ±6 %
Inrush current at 120 V ac typical 6 A
Power Factor at 120 V AC, full load. Typical 0,99
Power Factor at 230 V AC, full load. Typical 0,97
Input voltage dc min 88 V DC
Ripple. max 50 mV pp
Output voltage min 24 V DC
Power Reduction Of 60 To 70 ° C 6 W/°C
Temperature Range Without Derating From -25 °C
Output voltage 24 V DC
Output voltage max 28 V DC
Effect 240 W
Output Current 10 A
Temperature Range Without Derating To 60 °C
Lifetime at 120 V ac, full load and +40 ° C 78000 h
MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C 641000 h

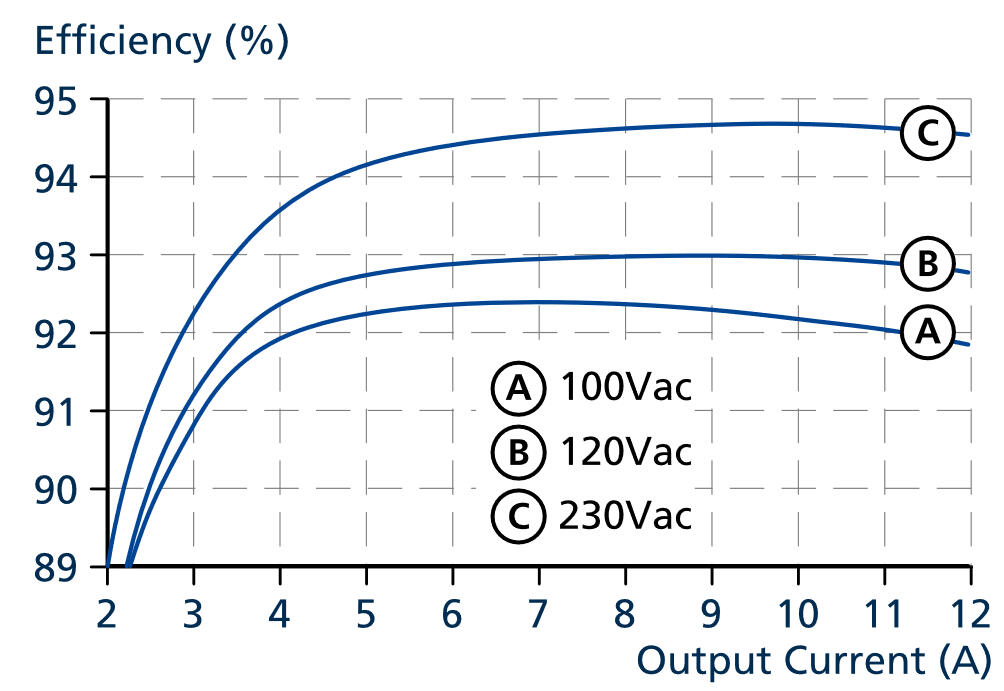

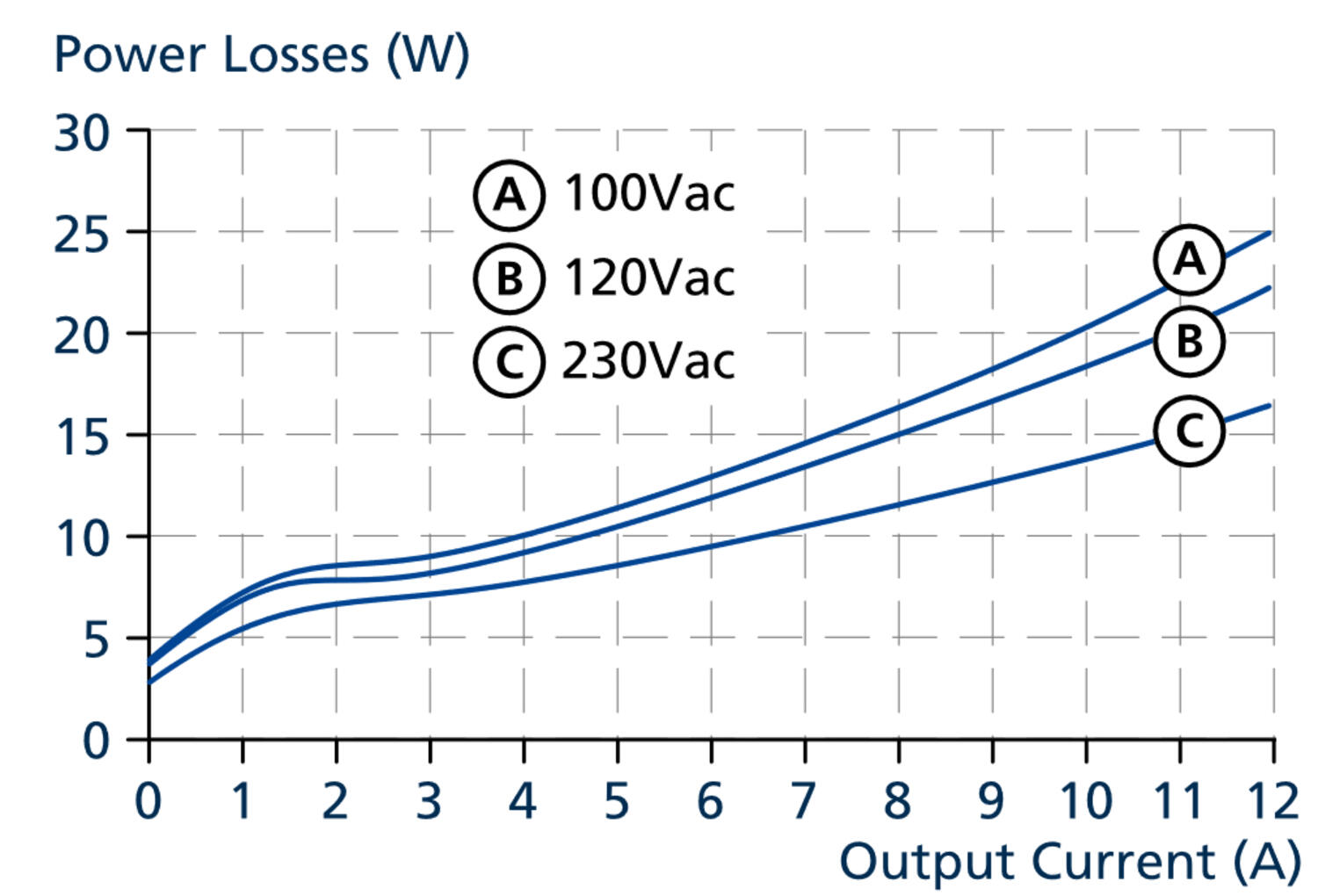

Efficiency At 230 V AC, full load. Typical 94,7 %
Efficiency At 230 V AC. Typical 93,9 %
Lifetime at 230 V ac, full load and +40 ° C 109000 h
Efficiency At 120 V AC, full load. Typical 93 %
Weight 0,6 kg

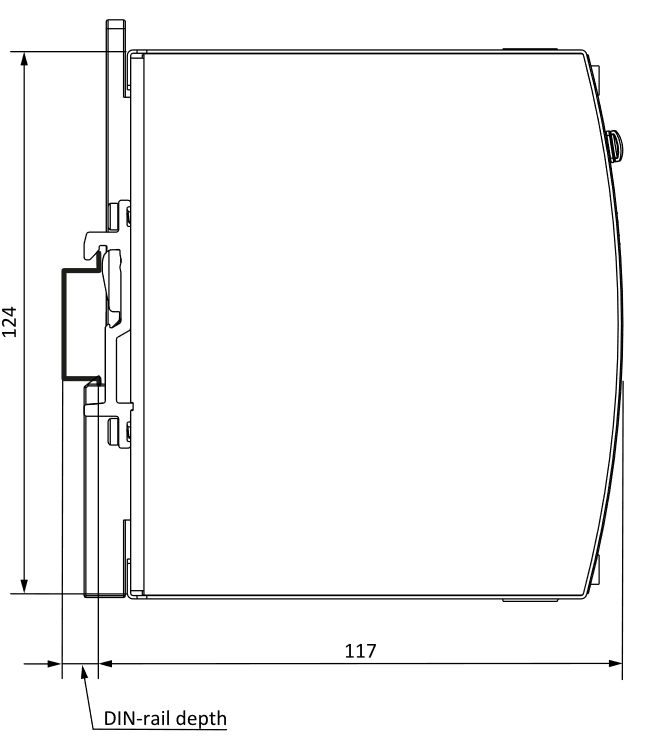

Depth 117 mm
Width 39 mm
Height 124 mm
Clamp type Spring-clamp
IP Class IP20
DC relay output Yes
Hold-up time at 120 V AC, full load. Typical. 37 ms
Series Dimension C
Hold-up time at 230 V AC, full load. Typical. 37 ms
Approvals ATEX, CE, CSA US, cULus, IECEx
Material Protection Aluminium
Active Transient Yes

Product description

Click below link to download the white paper

Efficient redundancy for power supplies



Also visit our page for Redundancy Modules



The Dimension CP-Series are cost optimized power supplies without compromising quality, reliability and performance. The most outstanding features of the CP20.241–R1/-R2/-R3 units are the high efficiency, electronic inrush current limitation, active PFC, wide operational temperature range and the extraordinary small size. The units include a decoupling MOSFET for building 1+1 or n+1 redundant power supply systems.

These redundancy power supplies come with three connection terminal options; screw terminals, spring-clamp terminals or plug connector terminals which allows replacement on an active application.

CP20.242-R2 version feature an enhanced DC input voltage range and the CP20.241-R2-C1 is additionally equipped with conformal coated pc-boards.

CP10.242-R2 version feature an enhanced DC input voltage range.

With high immunity to transients and power surges, low electromagnetic emission, a DC-OK signal contact for remote monitoring, and a large international approval package, makes this unit suitable for nearly every application.

  • AC 100-240V Wide-range Input
  • Width only 39 or 48 mm
  • Built-in Decoupling Mosfet for 1+1 and n+1 Redundancy
  • Efficiency up to 94.7%
  • 20% Output Power Reserves
  • Safe HiccupPLUS Overload Mode
  • Easy Fuse Breaking – 3 times nominal current for 12ms
  • Active Power Factor Correction (PFC)
  • Minimal Inrush Current Surge
  • DC-OK Relay Contact
  • Current Sharing Feature Included
  • 3 Year Warranty

Accessories

Related products

Articles Input voltage AC Clamp type Input voltage DC Output voltage Effect Output Current
100-240 V
Spring-clamp
110-150 V
24 V DC
240 W
10 A
100-240 V
Hot-swap
110-150 V
24 V DC
240 W
10 A
100-240 V
Hot-swap
110-300 V
24 V DC
240 W
10 A
100-240 V
Spring-clamp
110-150 V
24 V DC
480 W
20 A
100-240 V
Hot-swap
110-150 V
24 V DC
480 W
20 A
100-240 V
Hot-swap
110-300 V
24 V DC
480 W
20 A
100-240 V
Hot-swap
110-150 V
24 V DC
480 W
20 A
