PULS
Redundant module 40 A Dimension Series
24-56 V DC, 2x20 A

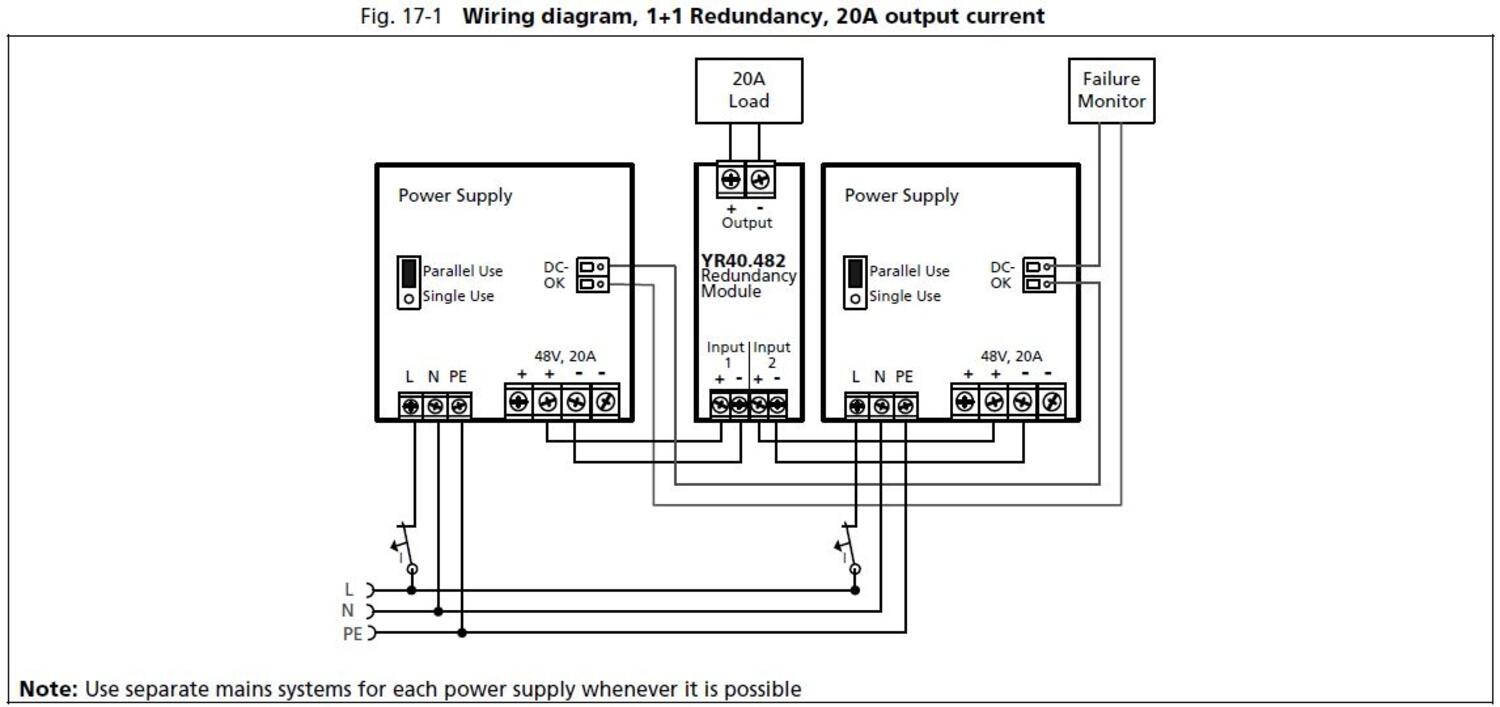

The YR40.482 is a redundancy module, which can be used to build 1+1 and N+1 redundant systems. It is
equipped with two input channels, which can be connected to power supplies with up to 20A output
current and one output, which can carry nominal currents up to 40A.
The novelty of this redundancy module is the utilization of mosfets instead of diodes for the decoupling of the two input channels. This reduces the heat generation and the voltage drop between input and output. The
redundancy module does not require an additional auxiliary voltage.
Due to the low power losses, the unit is very slender and only requires 46mm width on the DIN-rail. Large
connection terminals allow for a safe and fast installation. The large international approval package makes this unit suitable for nearly every application.
- For N+1 and 1+1 Redundant Systems
- MOSFET transistors
- Minimum power loss
Selected variant
Specifications
| Type Power Supply | Redundancy modules |
|---|---|
| Input voltage dc max | 64,4 V DC |
| Input voltage DC | 24-56 V |
| Input current at continuous overload or short circuit max | 2x32,5 A |
| Input current per channel max | 20 A |
| Input voltage dc min | 20,4 V DC |

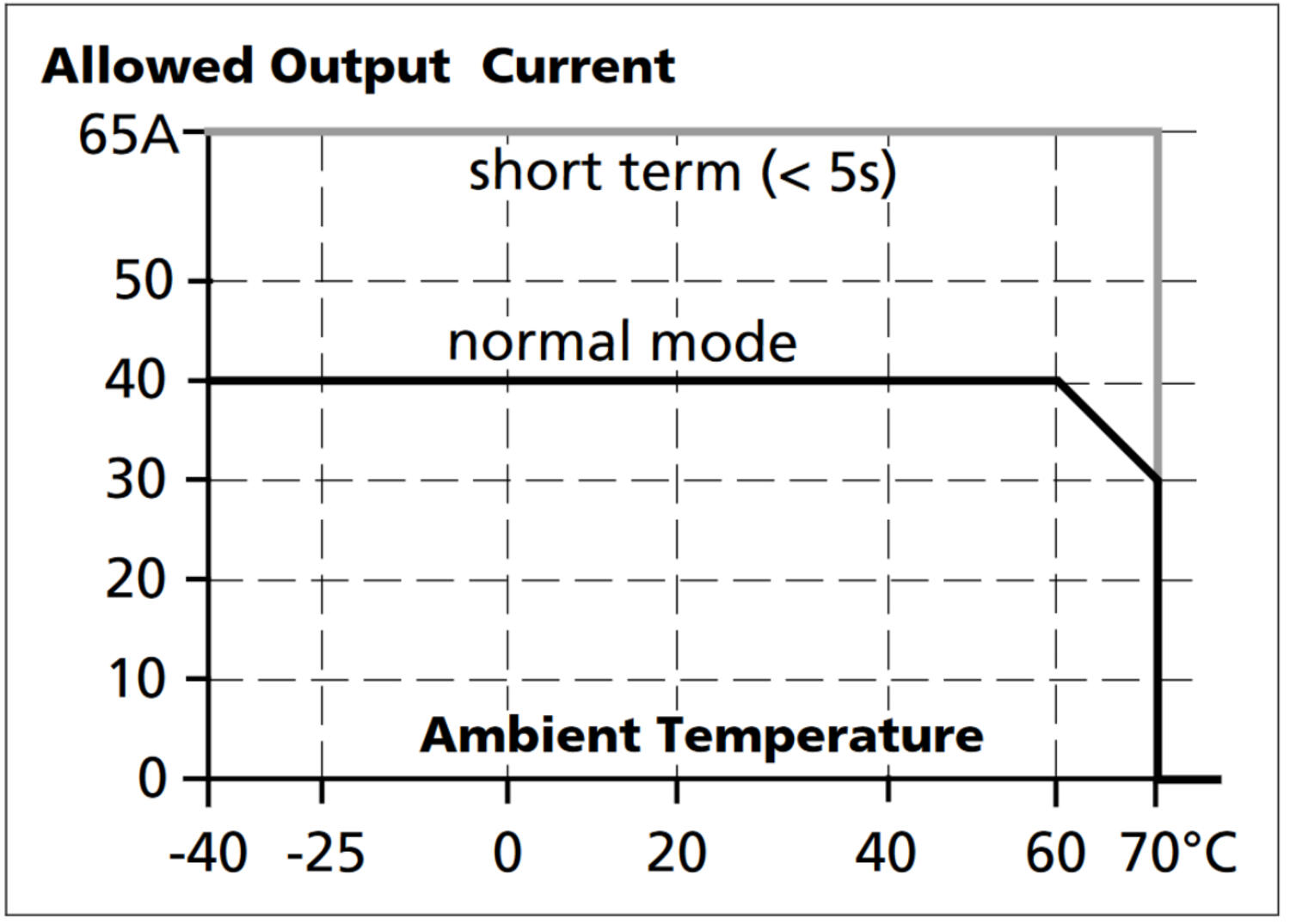

| Temperature Range Without Derating From | -40 °C |
| Output current max | 45 A |
| Output voltage | 48 V DC |
| Output Current | 40 A |
| Temperature Range Without Derating To | 70 °C |
| Life span | 222000 h @ 2x 20 A, 48 V DC, 40 °C |
| MTBF (IEC 61709) | 4098000 h @ 2x 20 A, 48 V DC, 40 °C |
|---|---|
| Weight | 0,36 kg |

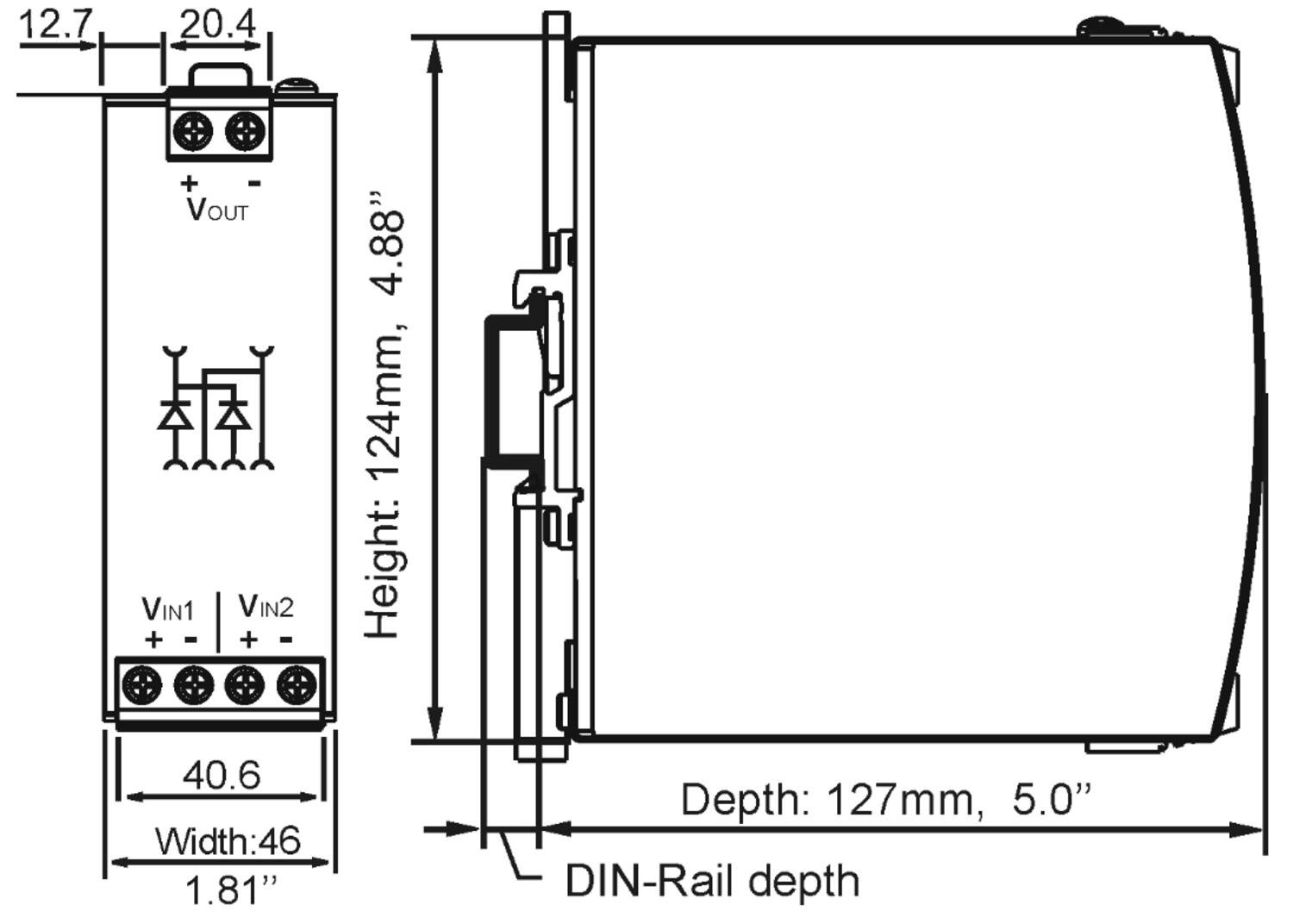

| Depth | 127 mm |
| Width | 46 mm |
| Height | 124 mm |
| IP Class | IP20 |
| Voltage Drop Over The Semi-Conductor | 120 mV |
| Series | Dimension Y |
| Approvals | ABS, ATEX, CB, CE, CSA, CSA US, GL, IECEx, UL |
| Material Protection | Aluminium |
Product description
The YR40.482 is a redundancy module, which can be used to build 1+1 and N+1 redundant systems. It is
equipped with two input channels, which can be connected to power supplies with up to 20A output
current and one output, which can carry nominal currents up to 40A.
The novelty of this redundancy module is the utilization of mosfets instead of diodes for the decoupling of the two input channels. This reduces the heat generation and the voltage drop between input and output. The
redundancy module does not require an additional auxiliary voltage.
Due to the low power losses, the unit is very slender and only requires 46mm width on the DIN-rail. Large
connection terminals allow for a safe and fast installation. The large international approval package makes this unit suitable for nearly every application.
