PULS
Redundant module 20 A Dimension Series
24-28 V DC, 2x10 A

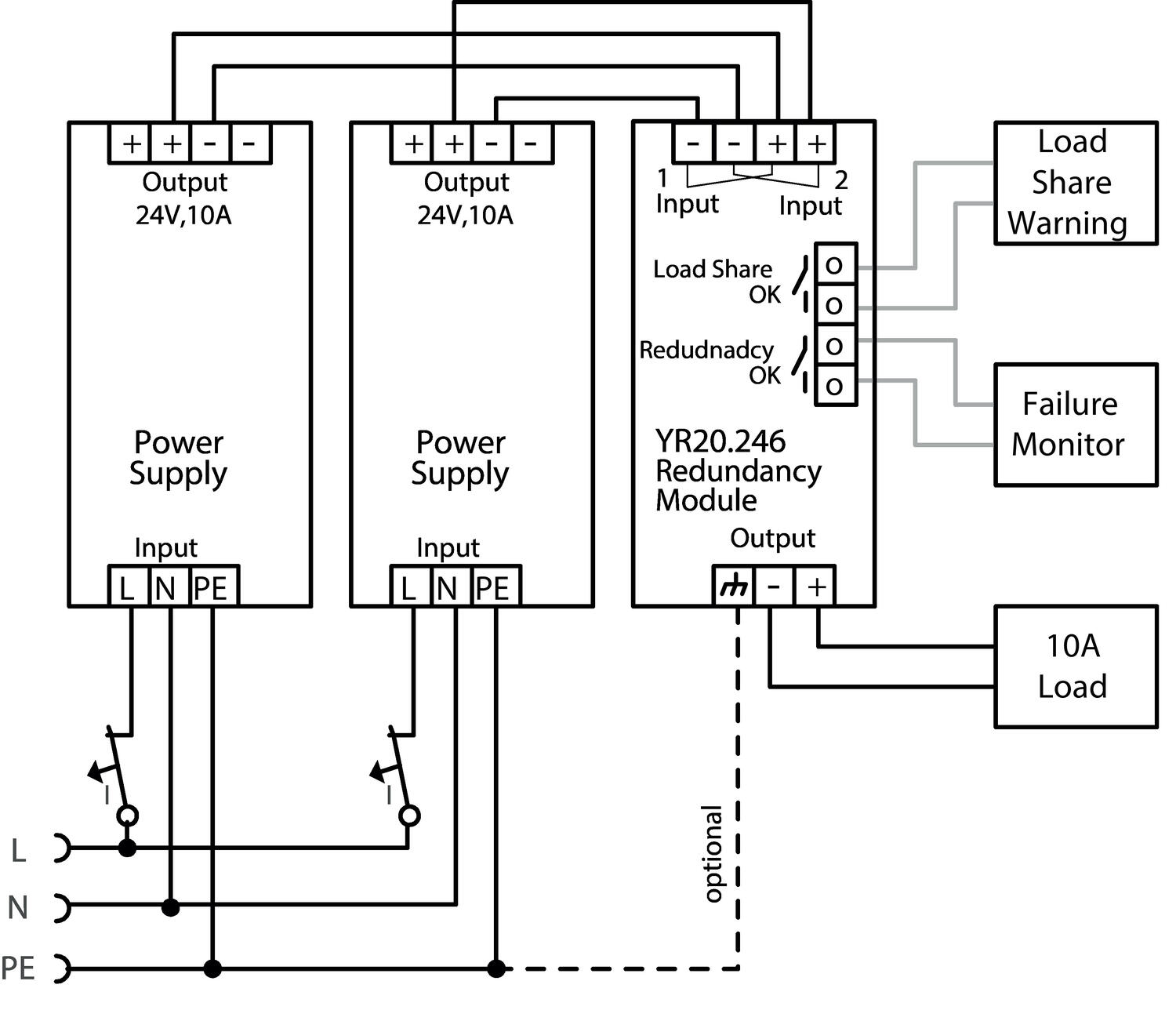

The YR20.246 is a redundancy module for building redundant power supply systems. It is equipped with
two input channels and one output. The two inputs are decoupled by MOSFET technology.

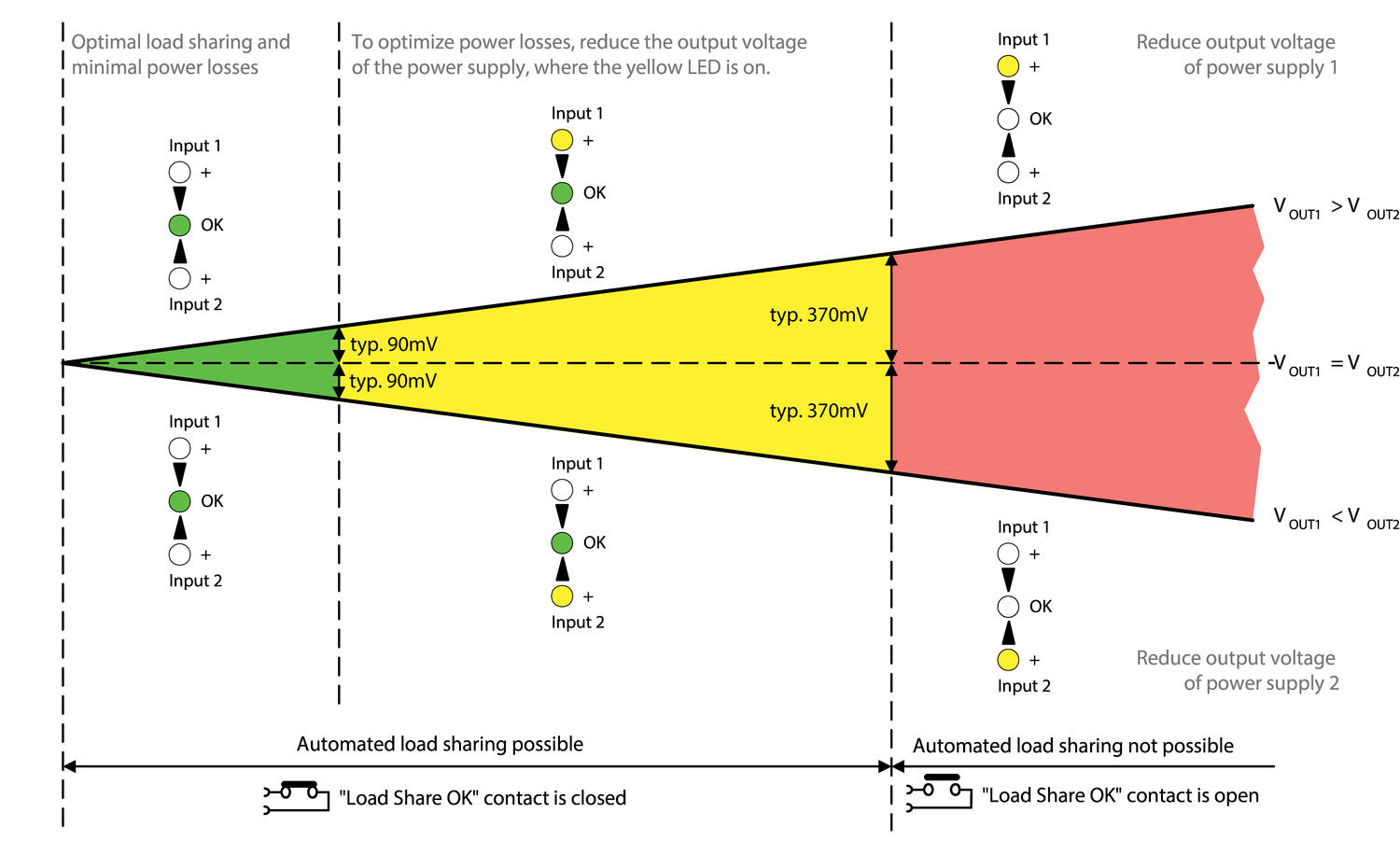

The device is equipped with an automated load sharing feature, which can compensate a small voltage imbalance between the power supplies connected to the inputs in order to achieve an even current share. It
also monitors the function of the redundancy circuitry and provides a signal in case of a failure or a high output current, which could prevent redundancy if one power supply fails. If this feature is not required the
YR20.242 is available.
The redundancy utilizes MOSFETs instead of diodes for the decoupling of the two input channels. This reduces the heat generation and the voltage drop between input and output. The redundancy module does not
require an additional auxiliary voltage.
Due to the low power losses, the unit is very slender and only requires 32mm width on the DIN-rail. Large
connection terminals allow for a safe and fast installation. The large international approval package makes this unit suitable for nearly every application.
- For 1+1 Redundancy
- MOSFET transistors
- Minimum power loss
- Automated Load Sharing
Selected variant
Specifications
| Type Power Supply | Redundancy modules |
|---|---|
| Input voltage dc max | 35 V DC |
| Input voltage DC | 24-28 V |
| Input current at continuous overload or short circuit max | 24 A |
| Input current per channel max | 12 A |
| Input voltage dc min | 18 V DC |
| Temperature Range Without Derating From | -40 °C |
| Output current max | 26 A |
| Output voltage | 24 V DC |
| Output Current | 20 A |
| Temperature Range Without Derating To | 70 °C |
| Life span | 182000 h @ 2x 20 A, 24 V DC, 40 °C |
| MTBF (IEC 61709) | 1954000 h @ 2x 20 A, 24 V DC, 40 °C |
|---|---|
| Weight | 0,31 kg |

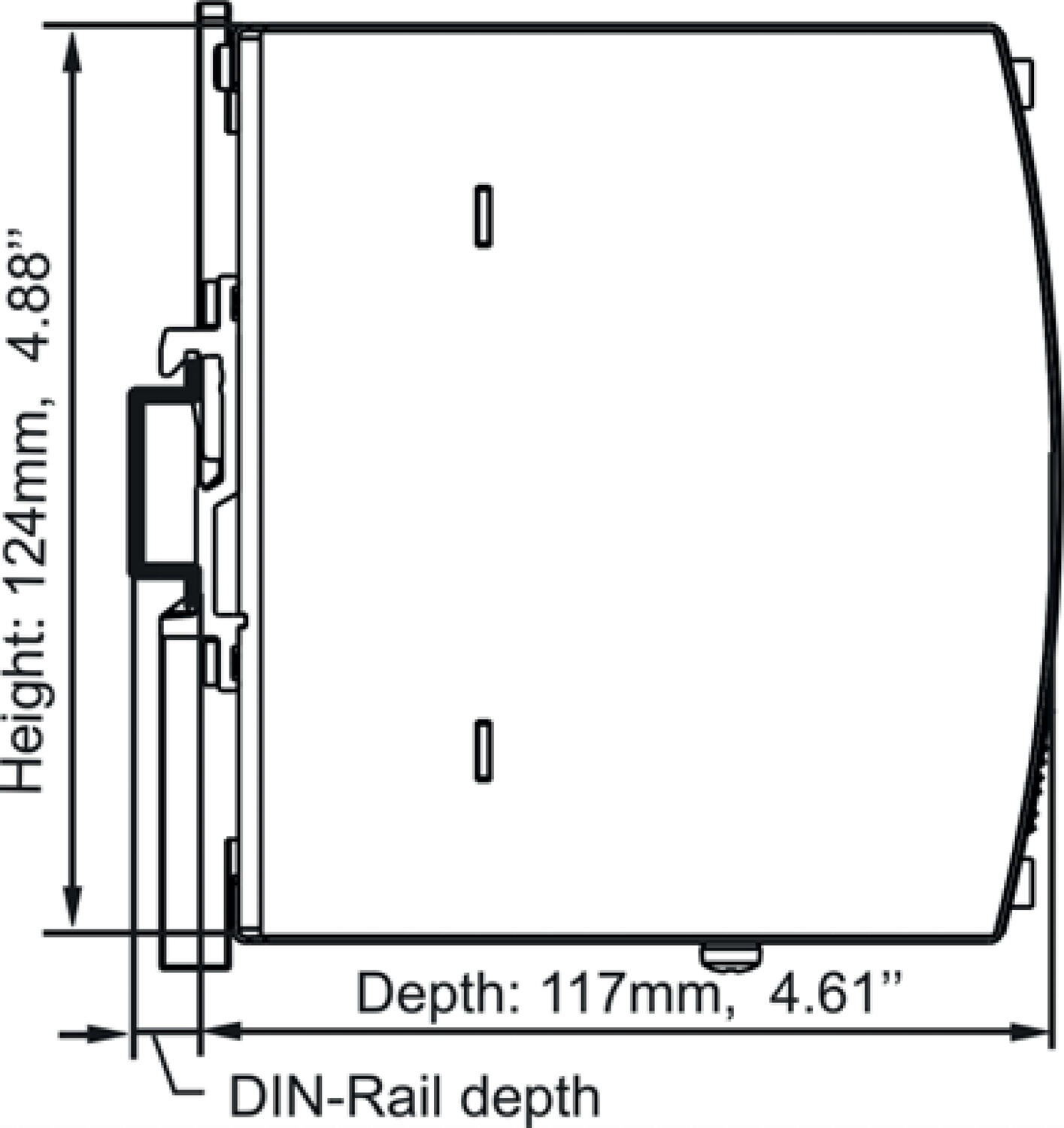

| Depth | 127 mm |

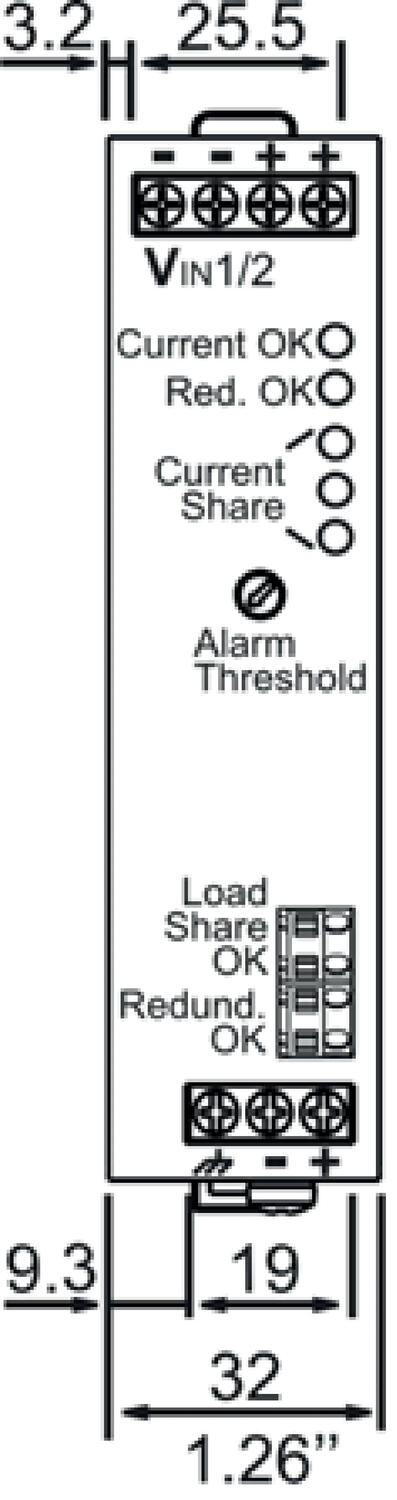

| Width | 32 mm |
| Height | 124 mm |
| IP Class | IP20 |
| Voltage Drop Over The Semi-Conductor | 500 mV |
| Series | Dimension Y |
| Approvals | ATEX, CB, CE, CSA, CSA US, UL |
| Material Protection | Aluminium |
Product description
The YR20.246 is a redundancy module for building redundant power supply systems. It is equipped with
two input channels and one output. The two inputs are decoupled by MOSFET technology.
The device is equipped with an automated load sharing feature, which can compensate a small voltage imbalance between the power supplies connected to the inputs in order to achieve an even current share. It
also monitors the function of the redundancy circuitry and provides a signal in case of a failure or a high output current, which could prevent redundancy if one power supply fails. If this feature is not required the
YR20.242 is available.
The redundancy utilizes MOSFETs instead of diodes for the decoupling of the two input channels. This reduces the heat generation and the voltage drop between input and output. The redundancy module does not
require an additional auxiliary voltage.
Due to the low power losses, the unit is very slender and only requires 32mm width on the DIN-rail. Large
connection terminals allow for a safe and fast installation. The large international approval package makes this unit suitable for nearly every application.
