PULS

FIEPOS eFuse

3x 380-480 V AC/24-28 V DC, 300 or 500 W

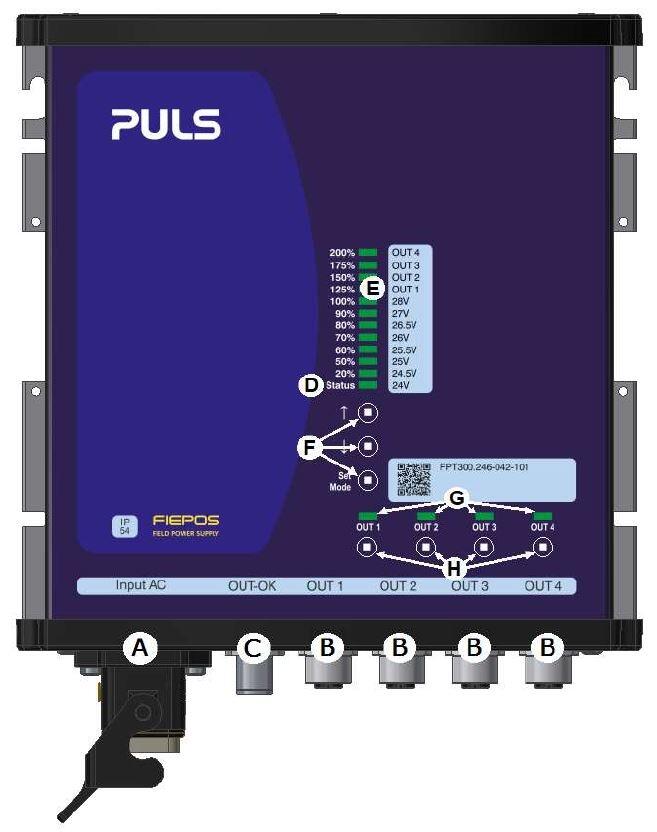

The FPT300is an industrial grade power supply for 3-phase networks incorporated in a rugged wall- mount housing with IP54 protection.

It provides two to four stabilized outputs that are galvanically separated from the input.

The negative potential of the outputs is permanently connected to PE within the unit.

The most outstanding features of the FPT series are the compact size, the wide operational temperature range, the extremely low input inrush current and the very high efficiencies, which are achieved by various design technologies.

Read more
  • IP54 or IP65/IP67
  • Up to 4 switchable outputs
  • Output power 360/600 W
  • 600/1000 Wpeak 5s
  • IP54

Selected variant

Selected variant

Specifications

Power consumption at 400 V ac 0,53 A
Input voltage AC 380-480
Input voltage ac min 323 V AC
Input voltage ac max 552 V AC
Inrush current at 400 V ac typical 2 A
Number of phases 3
Power Factor at 400 V AC, full load. Typical 0,9
Supply Frequency 50-60 Hz ±6 %
Back-feeding loads 35V / 4,3 J
Ripple. max 100 mV pp
Output voltage min 24 V DC

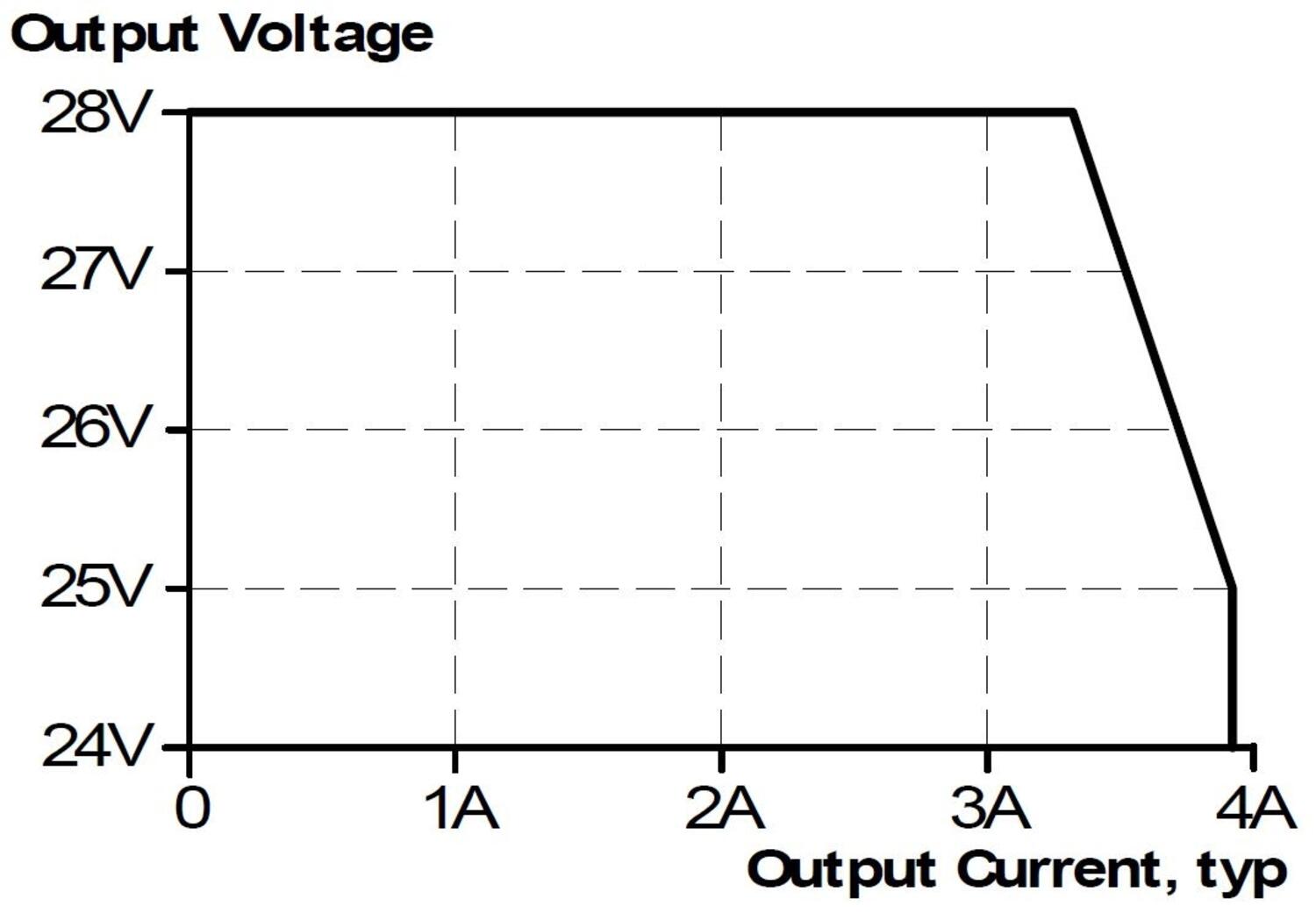

Max. Current per output 3,9 A
Total output power <+55°C 300 W

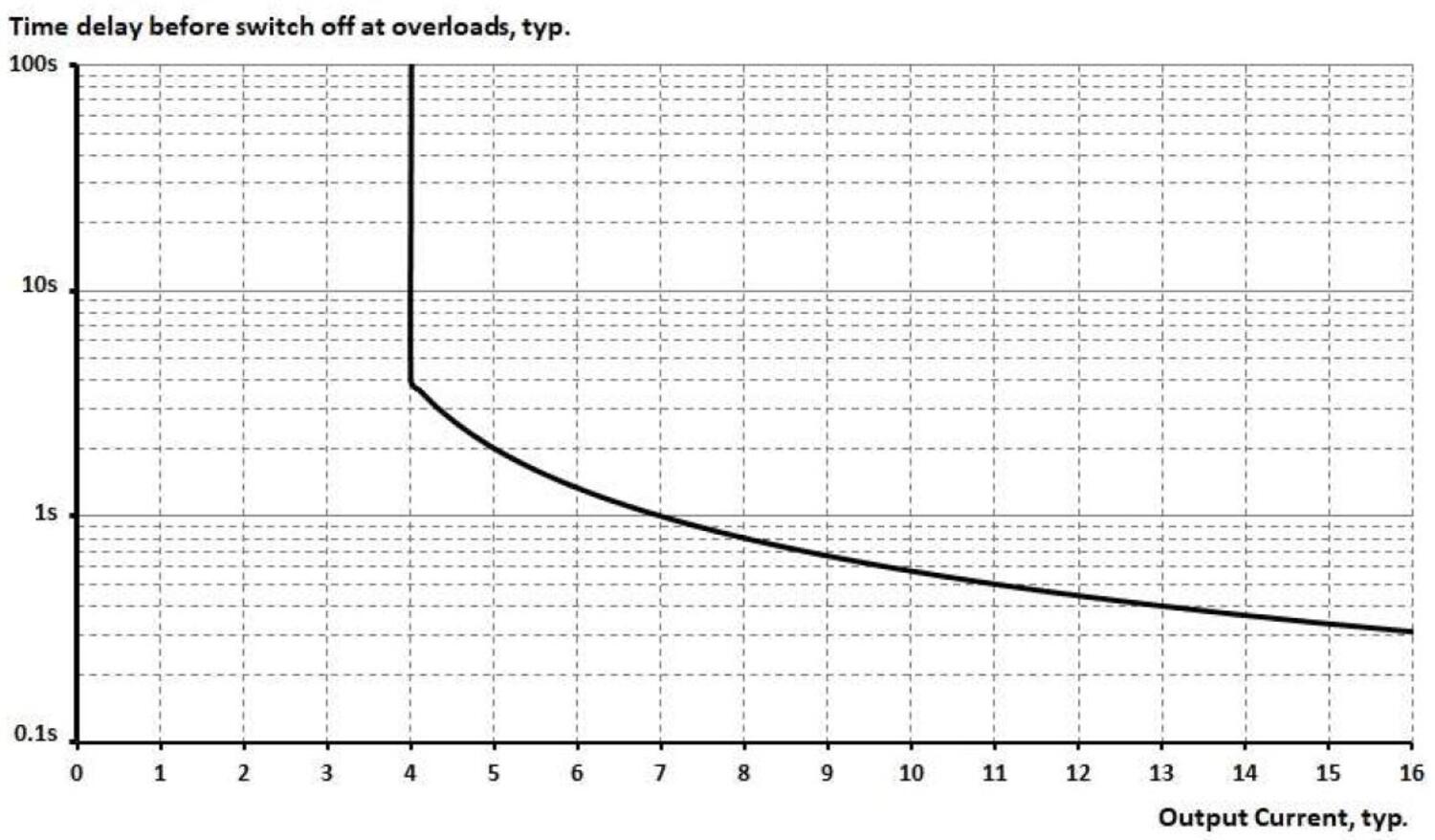

Total output power <1 s 600 W
Total output power <1 min 450 W
Temperature Range Without Derating From -25 °C
Output current max 25 A
Output voltage 24 V DC
Output voltage max 28 V DC
Effect 300 W
Output Current 12,5 A
Temperature Range Without Derating To 55 °C

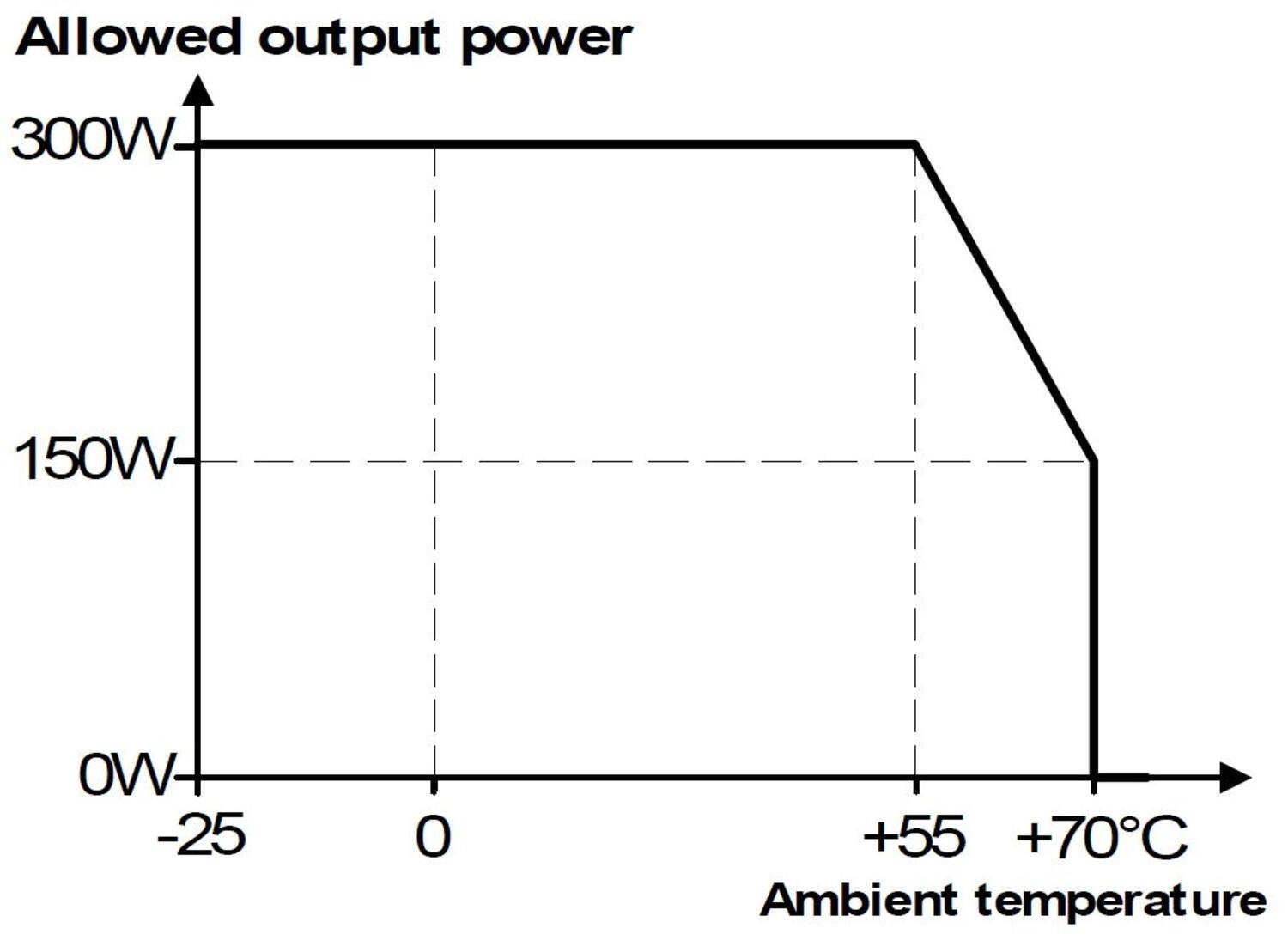

Total output power <+70°C 150 W
Power drop from +55 °C to + 70 °C 6 W/°C
MTBF (IEC 61709) 400 V ac, max loan, +40 °C 625000 h
Lifetime at 400 V ac, full load and +40 ° C 312000 h

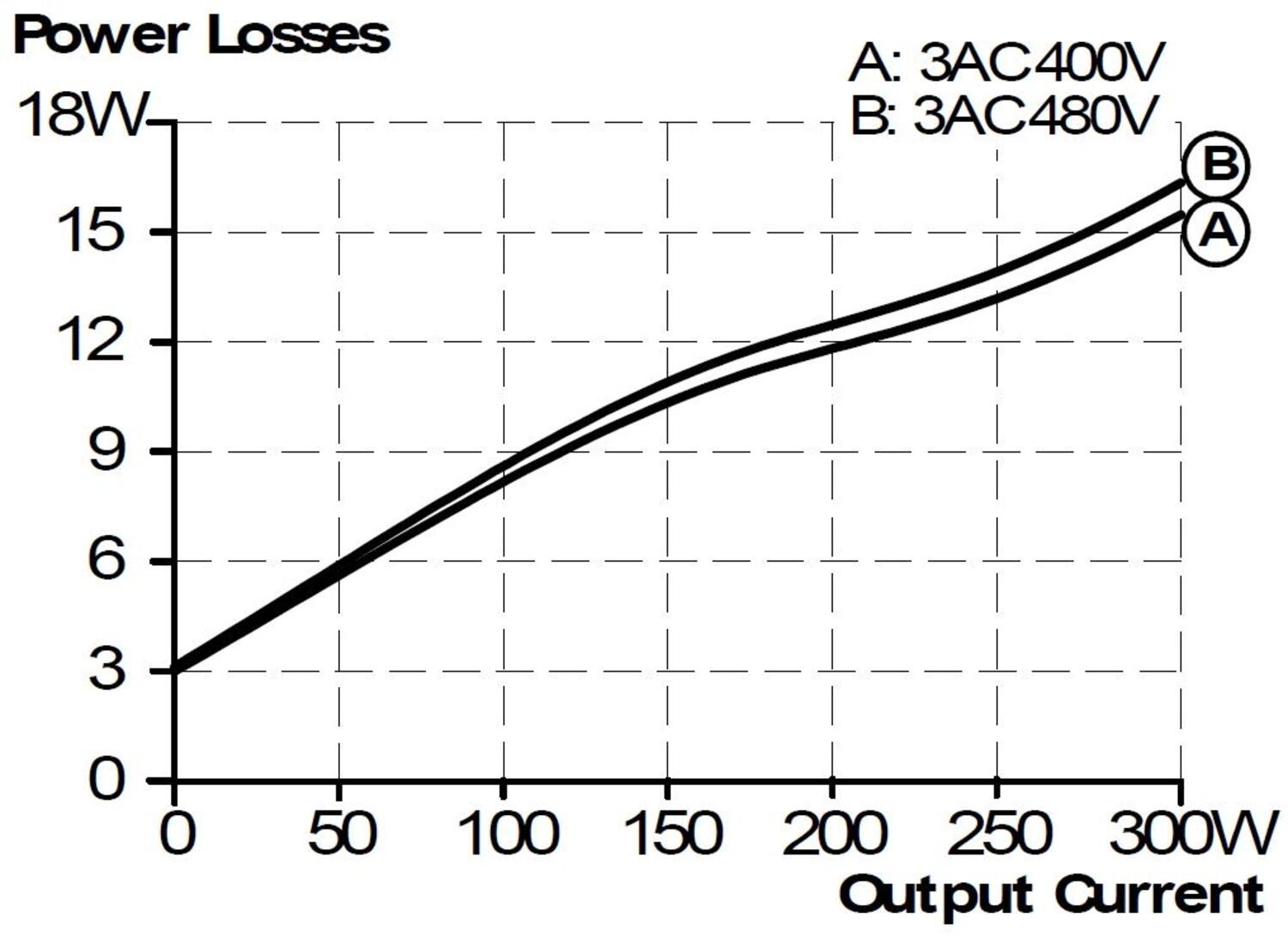

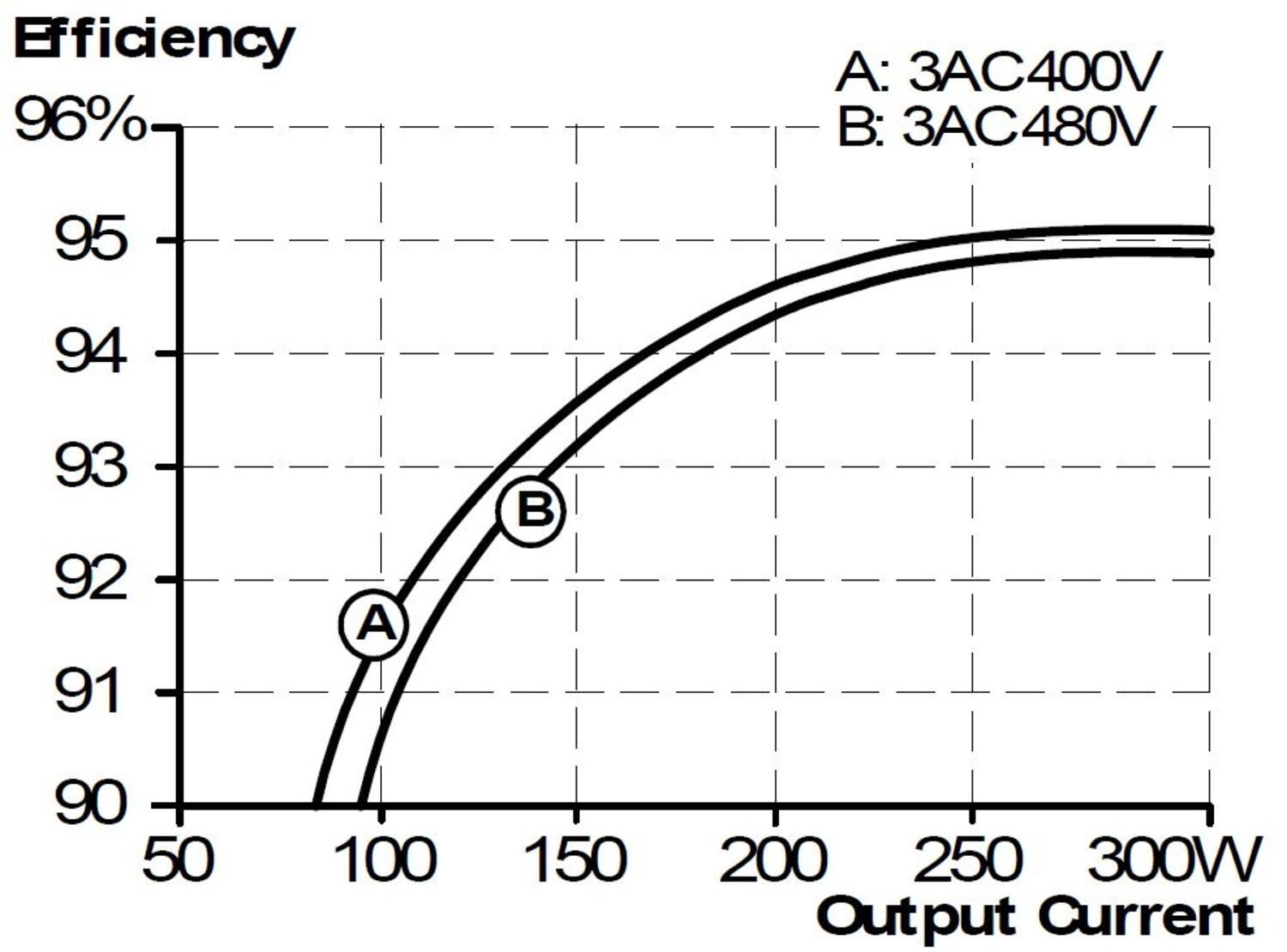

Efficiency At 400 V AC, full load. Typical 95,1 %
Efficiency At 400 V AC. Typical 93,5 %
Weight 1,55 kg

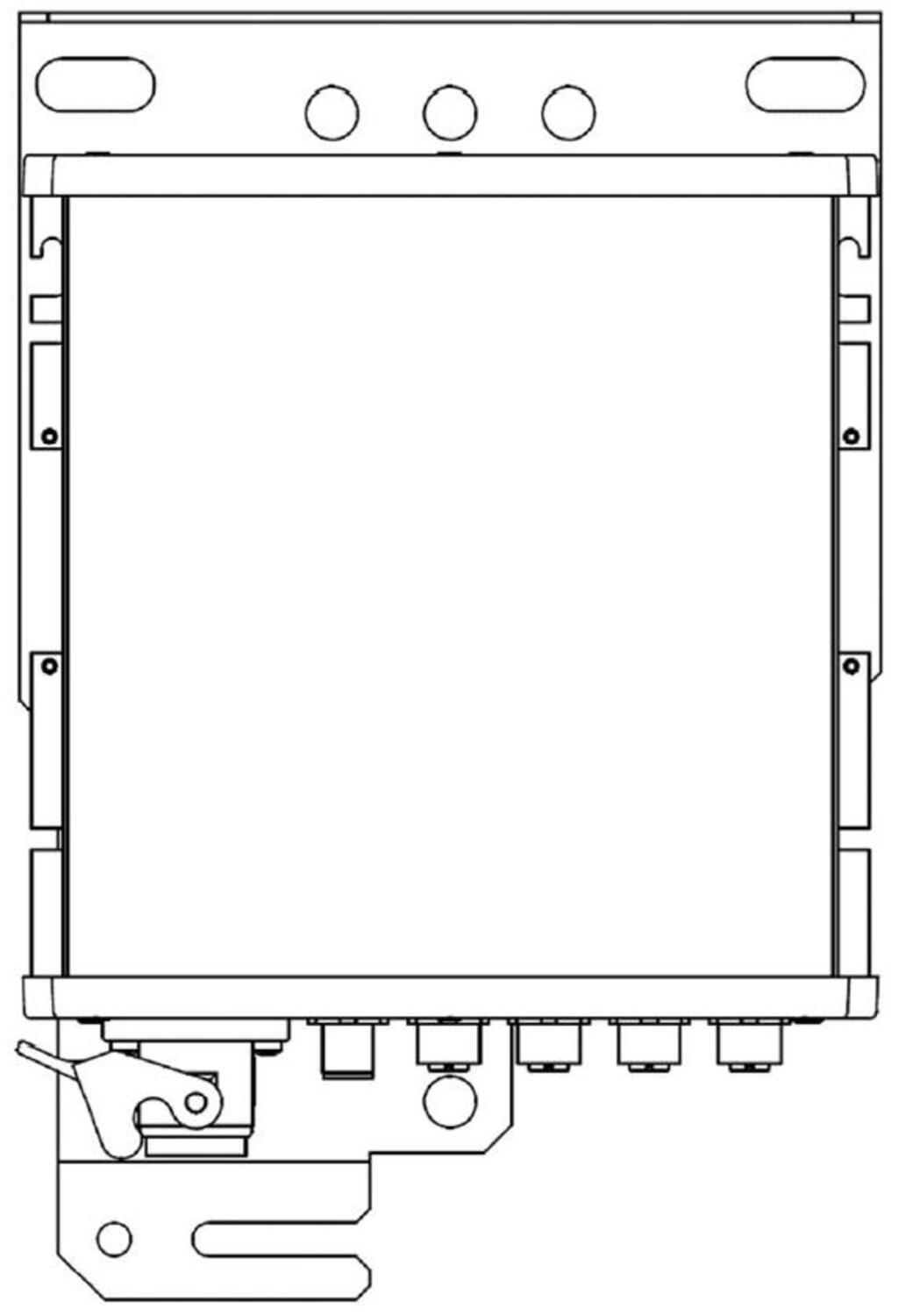

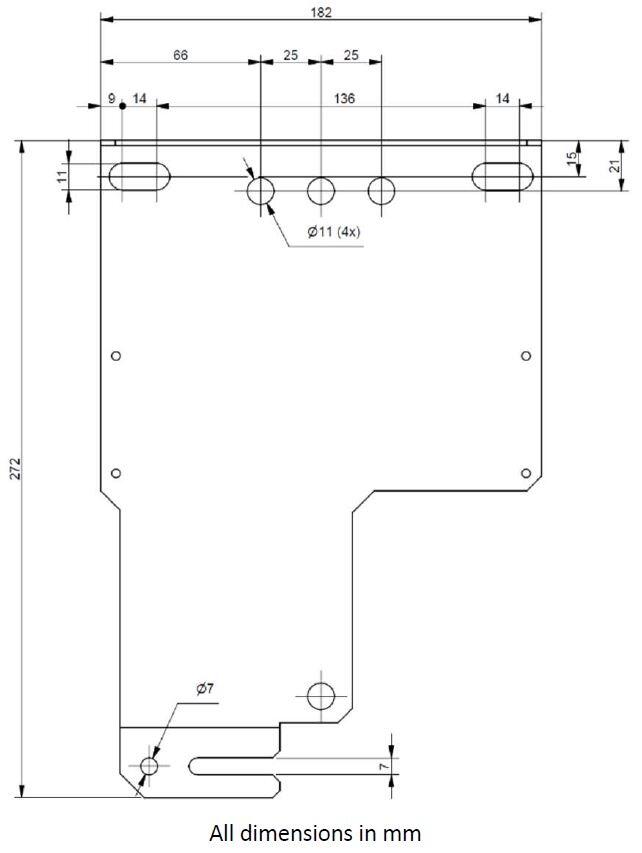

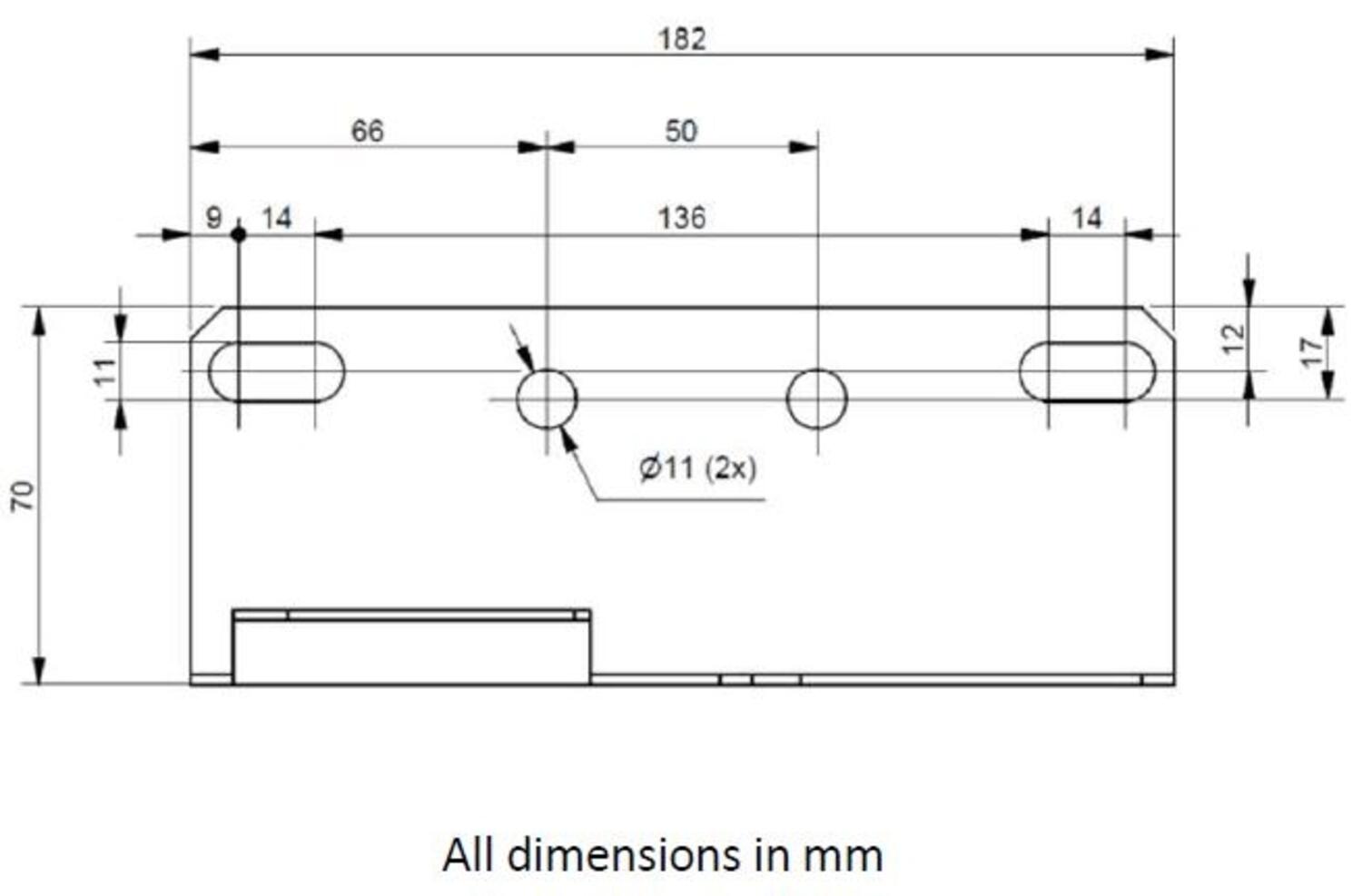

Depth 70 mm
Width 182 mm
Height 272 mm
DC-OK/IO-link connector M12-A
Input connector HAN Q5/0
Output connectors 4x M12-A
IP Class IP54
Hold-up time at 400 V AC, full load. Typical. 25 ms
DC relay output Yes
IO-LINK No
Series FIEPOS eFuse
Approvals CB, CE, cULus, NEC Class 2
Material Protection Aluminium
Active Transient Yes

Product description

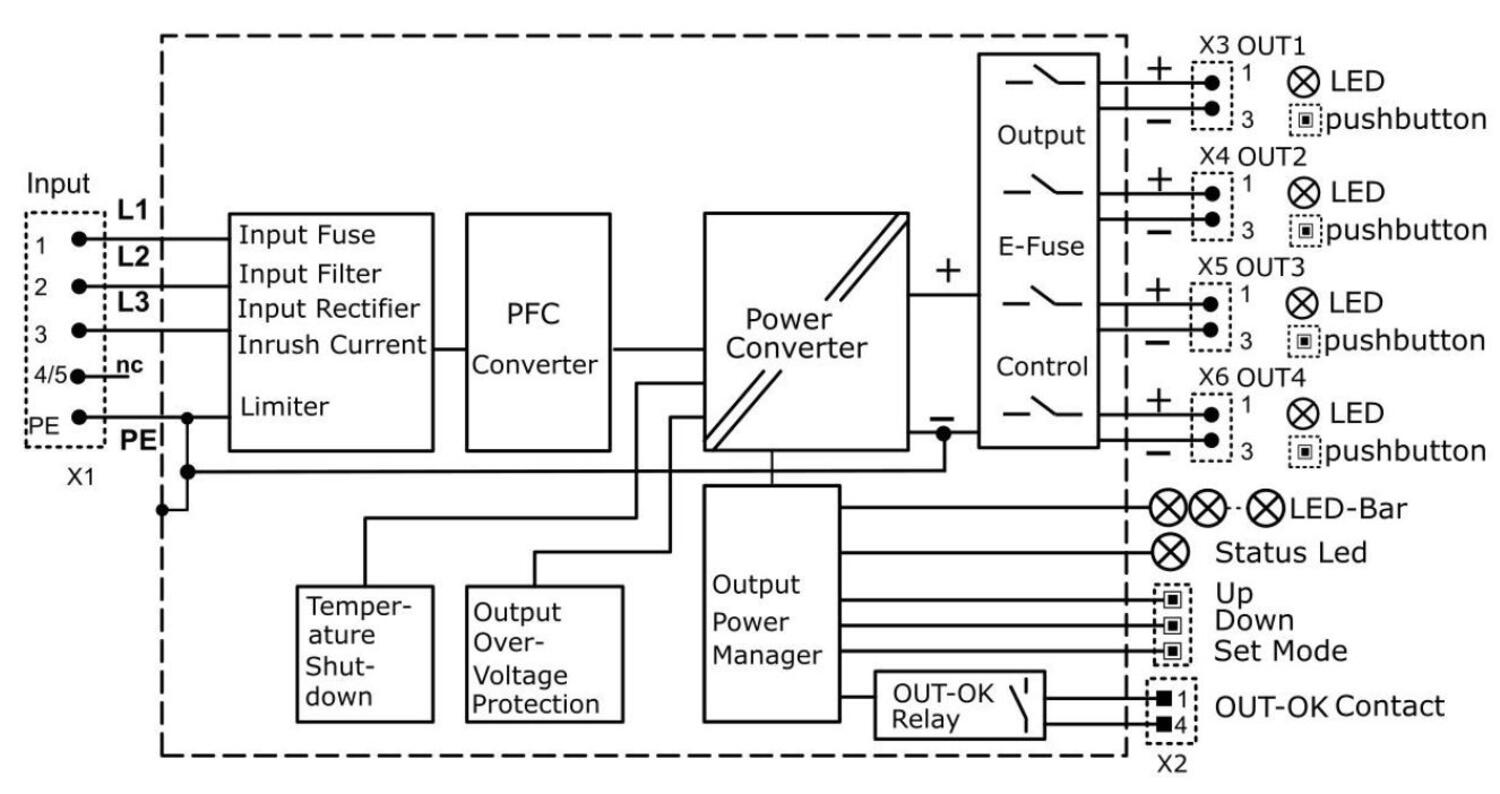

The FPT300is an industrial grade power supply for 3-phase networks incorporated in a rugged wall- mount housing with IP54 protection.

It provides two to four stabilized outputs that are galvanically separated from the input.

The negative potential of the outputs is permanently connected to PE within the unit.

The most outstanding features of the FPT series are the compact size, the wide operational temperature range, the extremely low input inrush current and the very high efficiencies, which are achieved by various design technologies.

Accessories

Articles Input voltage AC Output voltage Effect Output Current
380-480
24 V DC
300 W
12,5 A
380-480
24 V DC
500 W
20,8 A
380-480
24 V DC
500 W
20,8 A
