DC-DC converter 110/24 V dc
110/24,5 V DC, 16,3 A

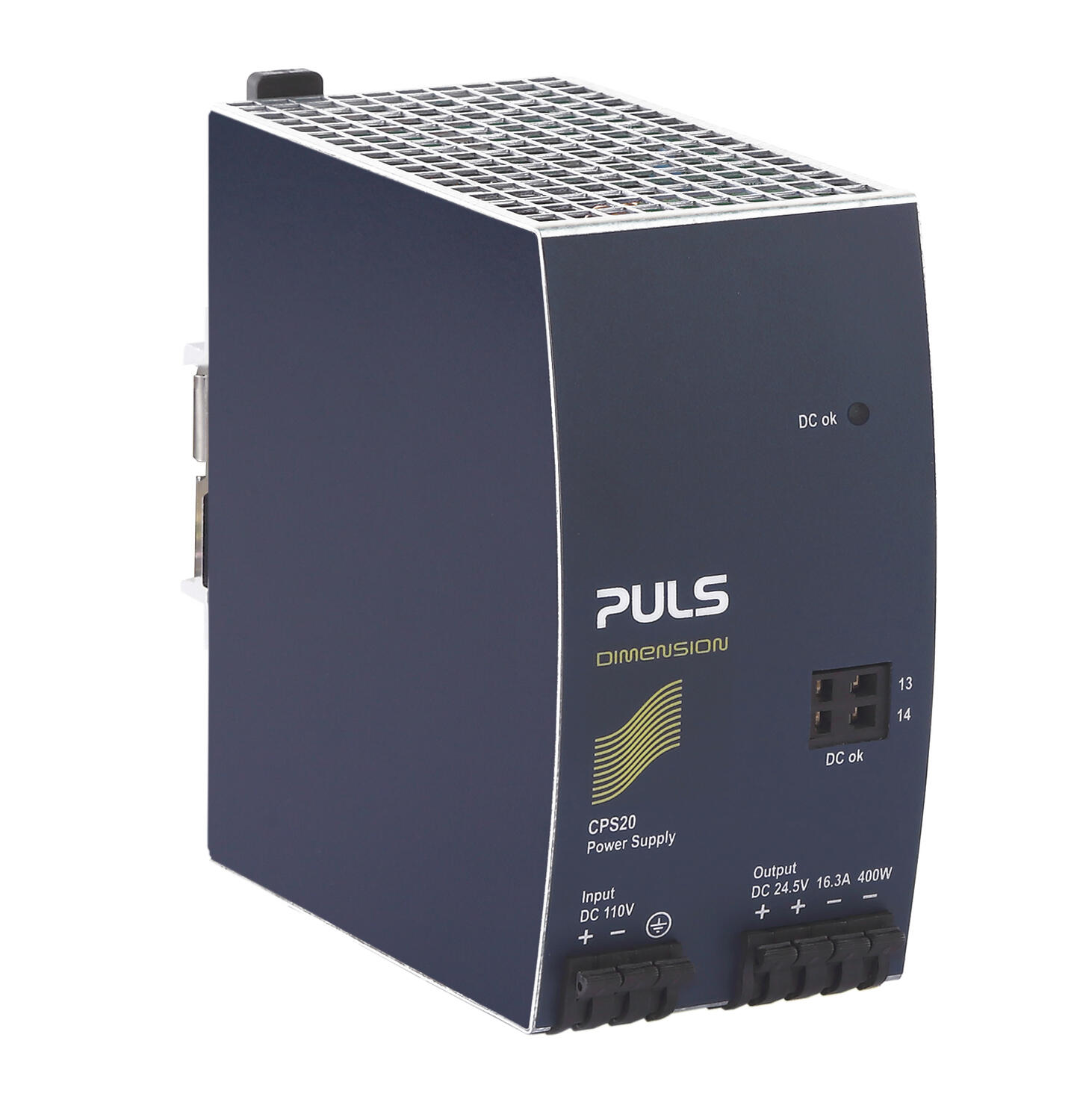

The CPS20.241-60 DC/DC converter is designed specifically for railway & transportation applications. It
is approved according to the EN 50155 standard, which is an international standard covering electronic
equipment used on rolling stock for railway applications. The standard covers aspects such as temperature, humidity, shock, vibration, EMI and other parameters. Because of these requirements, the unit is equipped with conformal coated pc-boards.
The unit features a DC-OK signal contact for remote monitoring, a decoupling MOSFET for building redundant power supply systems and quick-connect spring-clamp terminals for a reliable connection even when mechanical vibration and shock are involved. The unit also covers an extreme wide temperature range from -40°C up to +70°C with full output current.
This DC/DC converter comes in a very compact housing and requires only 65mm space on the DIN-rail due to the high efficiency and low power losses. The high efficiency is achieved by utilizing cutting edge technology and other unique design techniques.
- Width 65 mm
- 93,7 % efficiency
- Acc. to EN 50155 railway application standard
- Built-in Redundancy (Decoupling Mosfet at the Output)
- Conformal coated PC-boards
Selected variant
Specifications
| Max entrance tripple | 15 V pp |
|---|---|
| Start-Up Delay | 900 ms |
| Inrush current | Typ. 6 A @ 110 V DC |
| Input voltage dc max | 154 V DC |
| Input voltage DC | 110 V |
| Input voltage dc min | 77 V DC |
| Ripple. max | 70 mV pp |
| Output voltage min | 24,5 V DC |
| Temperature Range Without Derating From | -40 °C |
| Output voltage | 24,5 V DC |
| Output voltage max | 24,5 V DC |
| Effect | 400 W |
| Output Current | 16,3 A |
| Temperature Range Without Derating To | 70 °C |
| Life span | 151000 h @ 16,3 A, 40 °C |
| Efficiency | 93,7 % |
|---|---|
| MTBF (IEC 61709) | 571000 h @ 16,3 A, 40 °C |
| Weight | 0,98 kg |
| Depth | 127 mm |
| Width | 65 mm |
| Height | 124 mm |
| Clamp type | Spring-clamp |
| IP Class | IP20 |
| DC relay output | Yes |
| Series | Dimension C |
| Keep time | Typ. 35 ms @ 16,3 A |
| Approvals | CE, EN 50155 |
| Material Protection | Aluminium |
| Conformal coated | Yes |
Product description
The CPS20.241-60 DC/DC converter is designed specifically for railway & transportation applications. It
is approved according to the EN 50155 standard, which is an international standard covering electronic
equipment used on rolling stock for railway applications. The standard covers aspects such as temperature, humidity, shock, vibration, EMI and other parameters. Because of these requirements, the unit is equipped with conformal coated pc-boards.
The unit features a DC-OK signal contact for remote monitoring, a decoupling MOSFET for building redundant power supply systems and quick-connect spring-clamp terminals for a reliable connection even when mechanical vibration and shock are involved. The unit also covers an extreme wide temperature range from -40°C up to +70°C with full output current.
This DC/DC converter comes in a very compact housing and requires only 65mm space on the DIN-rail due to the high efficiency and low power losses. The high efficiency is achieved by utilizing cutting edge technology and other unique design techniques.
