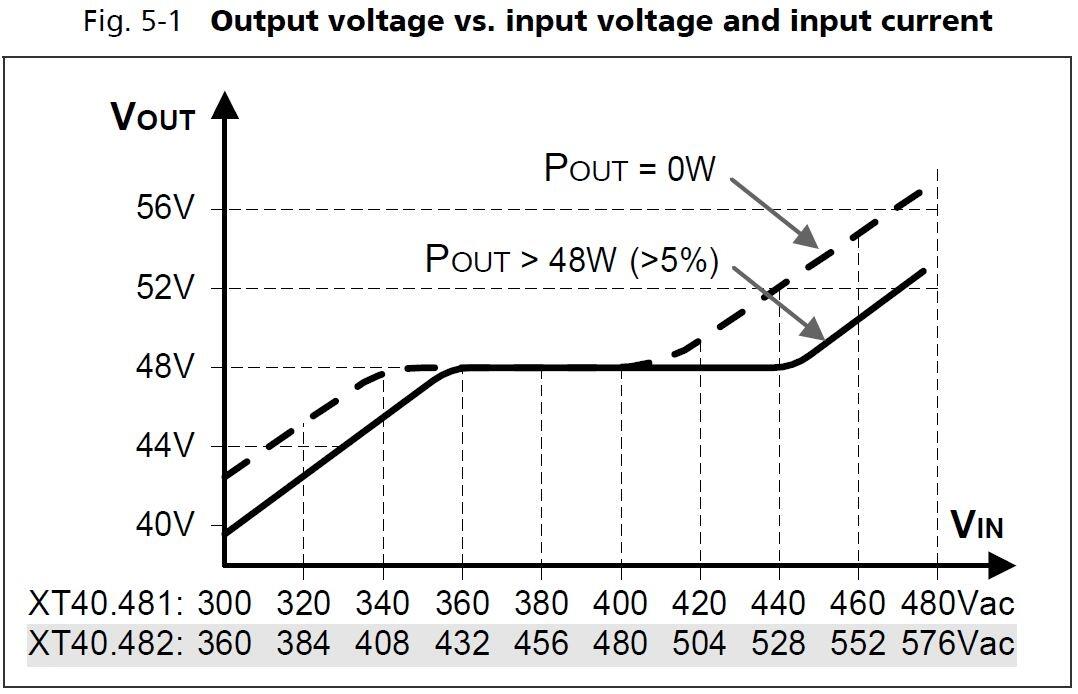

Dimension X series is a series of semi-regulated power supplies. A so-called semi-controlled unit means that the output voltage is regulated within the specified input voltage range. Outside this range decreases / increases the output voltage compared to the input voltage.

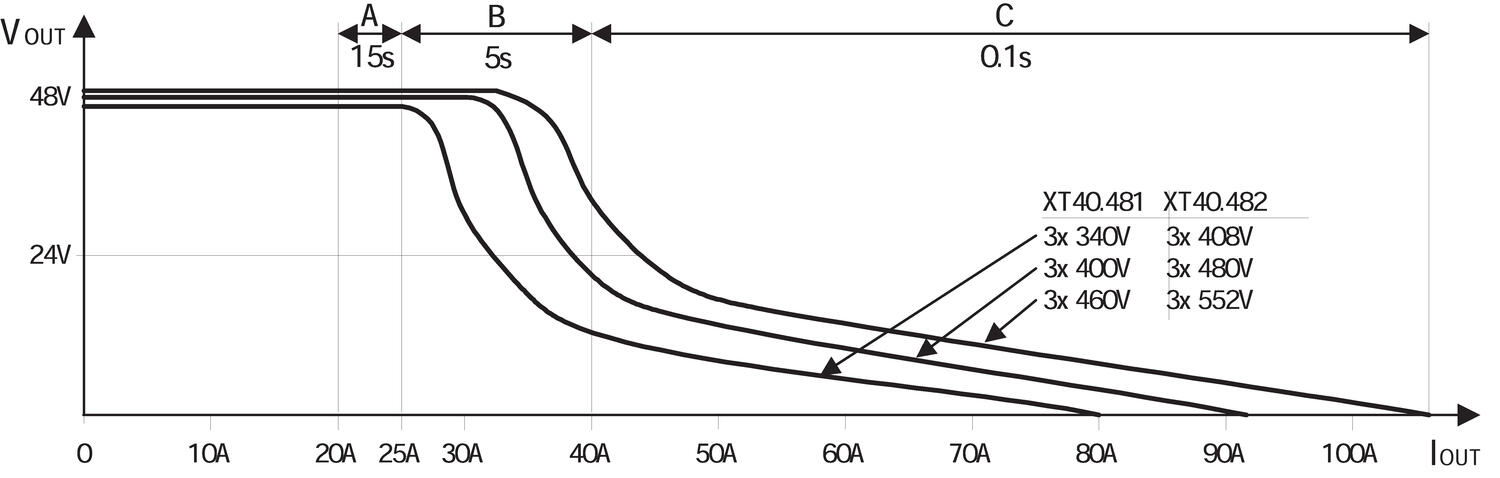

The unit has a bonus effect of 25% (25 A) to cope with high starting currents, as well as a very high short-circuit current enables safe trips for eg MCB. The unit leaves up to 90 A at 100 ms. Lasts short circuit longer than 100 ms, the unit shuts off automatically. See chart below for details. Recovery occurs in the front, or by disconnecting the primary voltage.

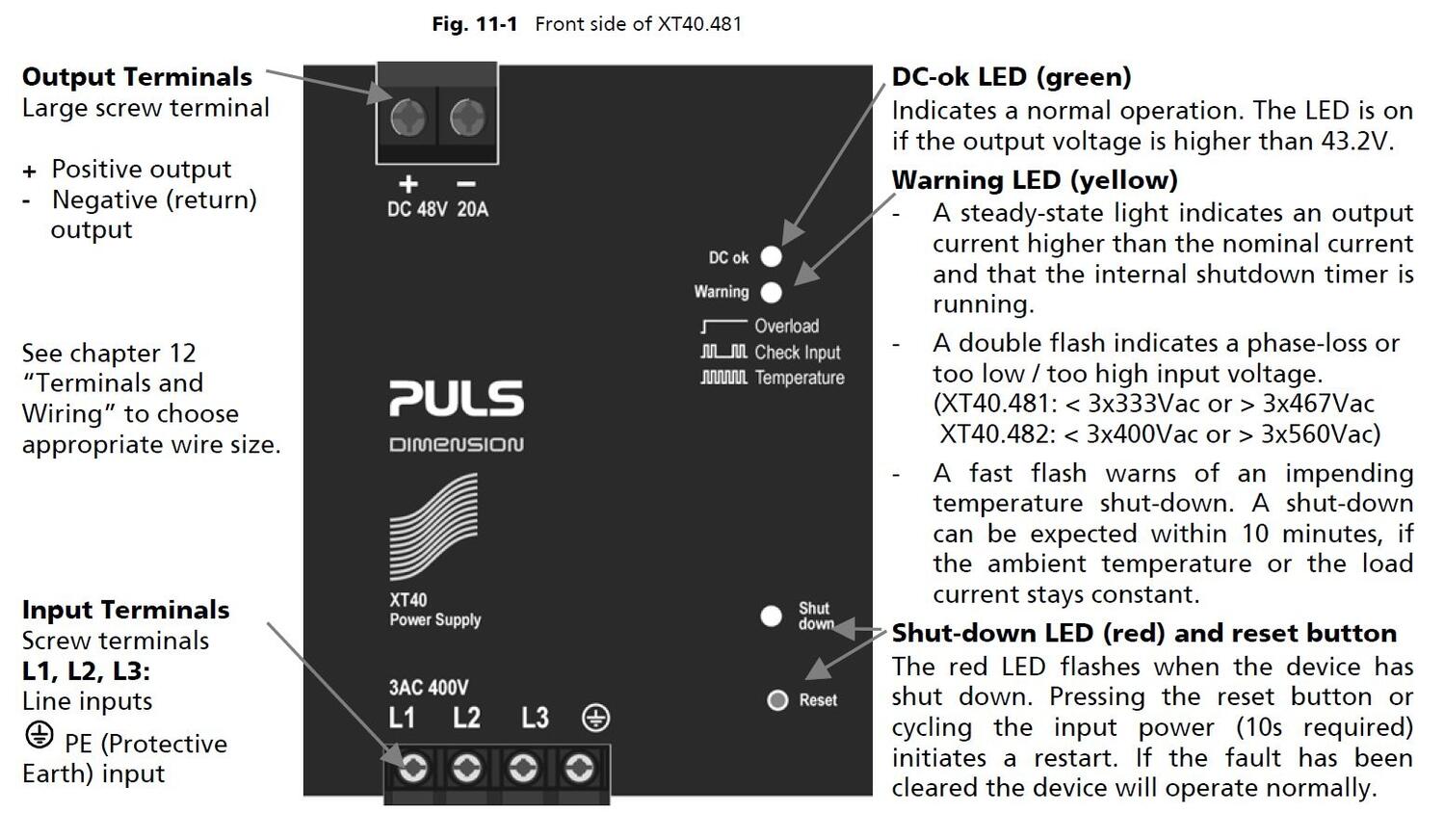

A yellow LED indicates the status and warns of the following errors; phase failure, over-temperature and high load current.
The unit has a low weight (1.4 kg), no inrush current and active transient filter that protects the secondary side from transients on the primary side.
Typical applications include motors, solenoids or other "power hungry" loads that do not have requirements for accurate voltage regulation. X series are a great alternative to traditional transformers. With lower energy costs and easier installation, along with an attractive price concept means a low total cost.
We recommend free space of 40 mm above and 20 mm under the power supply, and 5 mm at the sides. (if neighbouring products are counted as a heat source spacing of 15 mm is recommended).
Input voltage range/regulation |
Output characteristics |

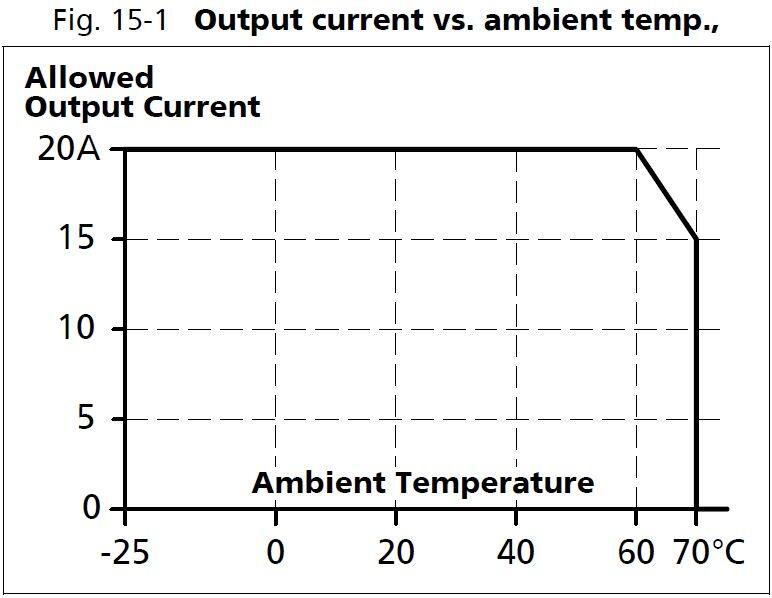

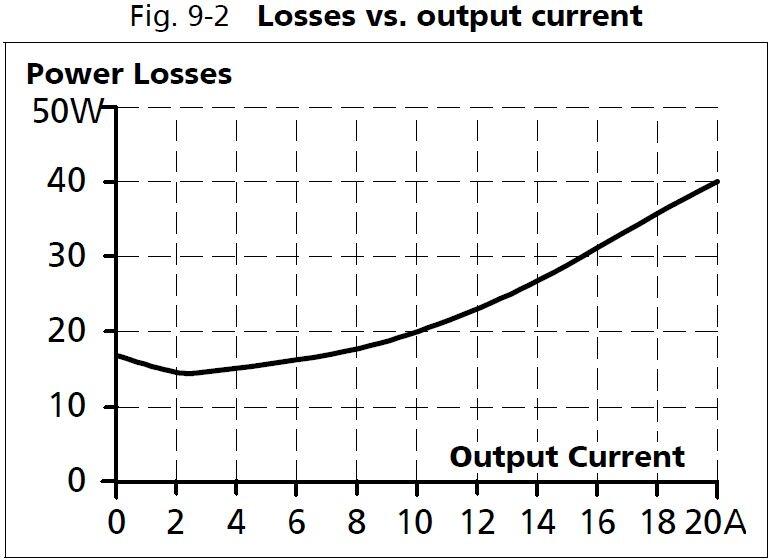

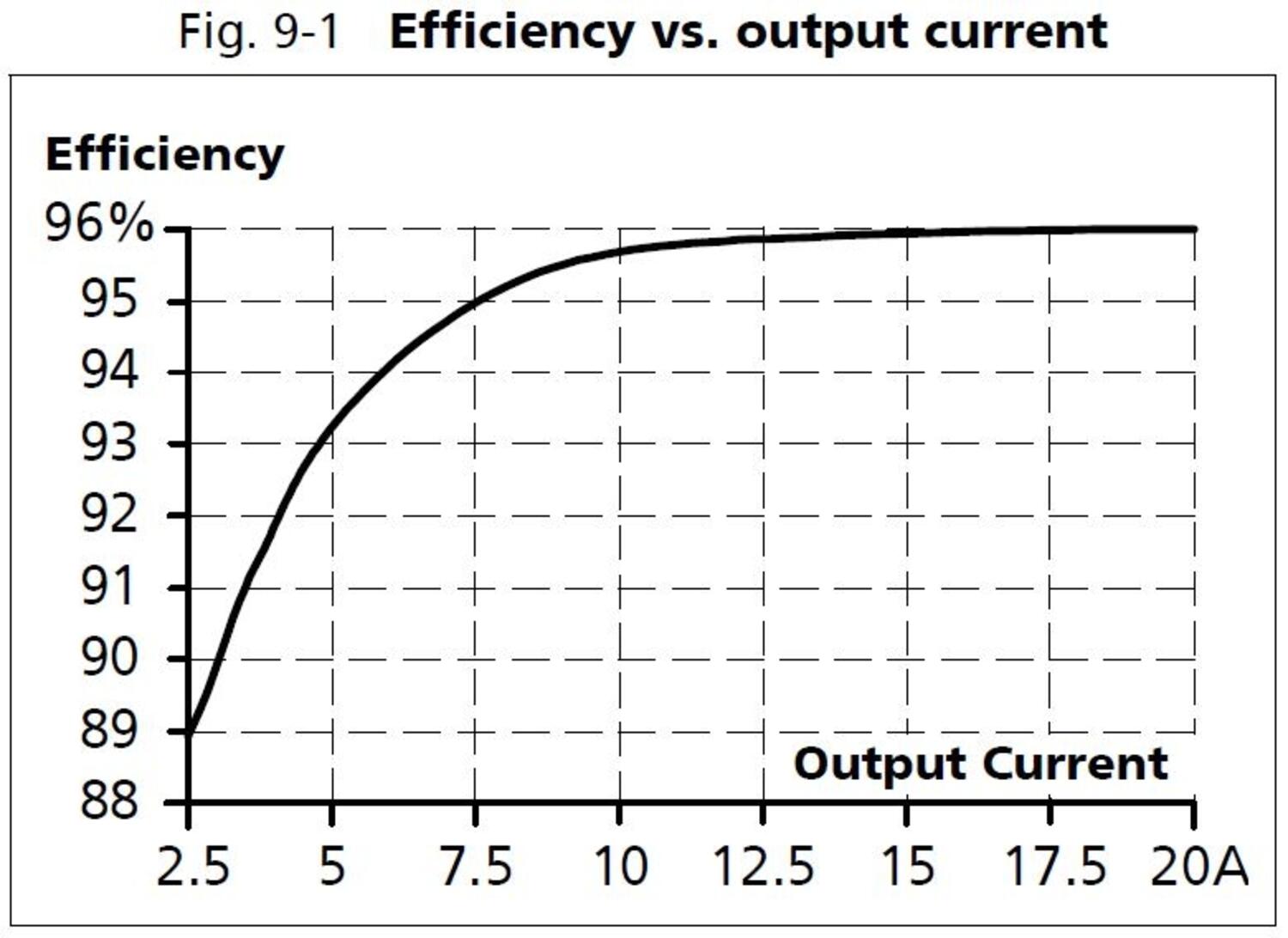

Type Power Supply | AC-DC |
---|---|
Power consumption at 400 V ac | 1,65 A |
Input voltage AC | 400 V |
Input voltage ac min | 360 V AC |
Input voltage ac max | 440 V AC |
Inrush current at 400 V ac typical | 4 A |
Number of phases | 3 |
Power Factor at 400 V AC, full load. Typical | 0,93 |
Supply Frequency | 50-60 ±6 % |
Ripple. max | 300 mV pp |
Output voltage min | 48 V DC |
Power Reduction Of 60 To 70 ° C | 24 W/°C |
Temperature Range Without Derating From | -25 °C |
Output voltage | 48 V DC |
Output voltage max | 48 V DC |
Effect | 960 W |
Output Current | 20 A |
---|---|
Temperature Range Without Derating To | 60 °C |
MTBF (IEC 61709) 400 V ac, max loan, +40 °C | 541000 h |
Lifetime at 400 V ac, full load and +40 ° C | 77000 h |
Efficiency At 400 V AC, full load. Typical | 96 % |
Weight | 1,4 kg |
Depth | 159 mm |
Width | 96 mm |
Height | 124 mm |
IP Class | IP20 |
Hold-up time at 400 V AC, full load. Typical. | 3 ms |
Series | Dimension X |
Approvals | CB, CE, CSA, UL |
Material Protection | Aluminium |
Active Transient | Yes |
Dimension X series is a series of semi-regulated power supplies. A so-called semi-controlled unit means that the output voltage is regulated within the specified input voltage range. Outside this range decreases / increases the output voltage compared to the input voltage.
The unit has a bonus effect of 25% (25 A) to cope with high starting currents, as well as a very high short-circuit current enables safe trips for eg MCB. The unit leaves up to 90 A at 100 ms. Lasts short circuit longer than 100 ms, the unit shuts off automatically. See chart below for details. Recovery occurs in the front, or by disconnecting the primary voltage.
A yellow LED indicates the status and warns of the following errors; phase failure, over-temperature and high load current.
The unit has a low weight (1.4 kg), no inrush current and active transient filter that protects the secondary side from transients on the primary side.
Typical applications include motors, solenoids or other "power hungry" loads that do not have requirements for accurate voltage regulation. X series are a great alternative to traditional transformers. With lower energy costs and easier installation, along with an attractive price concept means a low total cost.
We recommend free space of 40 mm above and 20 mm under the power supply, and 5 mm at the sides. (if neighbouring products are counted as a heat source spacing of 15 mm is recommended).
Input voltage range/regulation |
Output characteristics |
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Articles | Input voltage AC | Output voltage | Effect | Output Current | ||
---|---|---|---|---|---|---|
![]()
POWER SUPPLY 400V 48VDC 960W
Art:
XT40.481
Copied
|
400 V
|
48 V DC
|
960 W
|
20 A
|
| |
![]()
PSU 3PH 480V ac I/P 48V dc 20A 960W O/P
Art:
XT40.482
Copied
|
480 V
|
48 V DC
|
960 W
|
20 A
|
|
