PULS

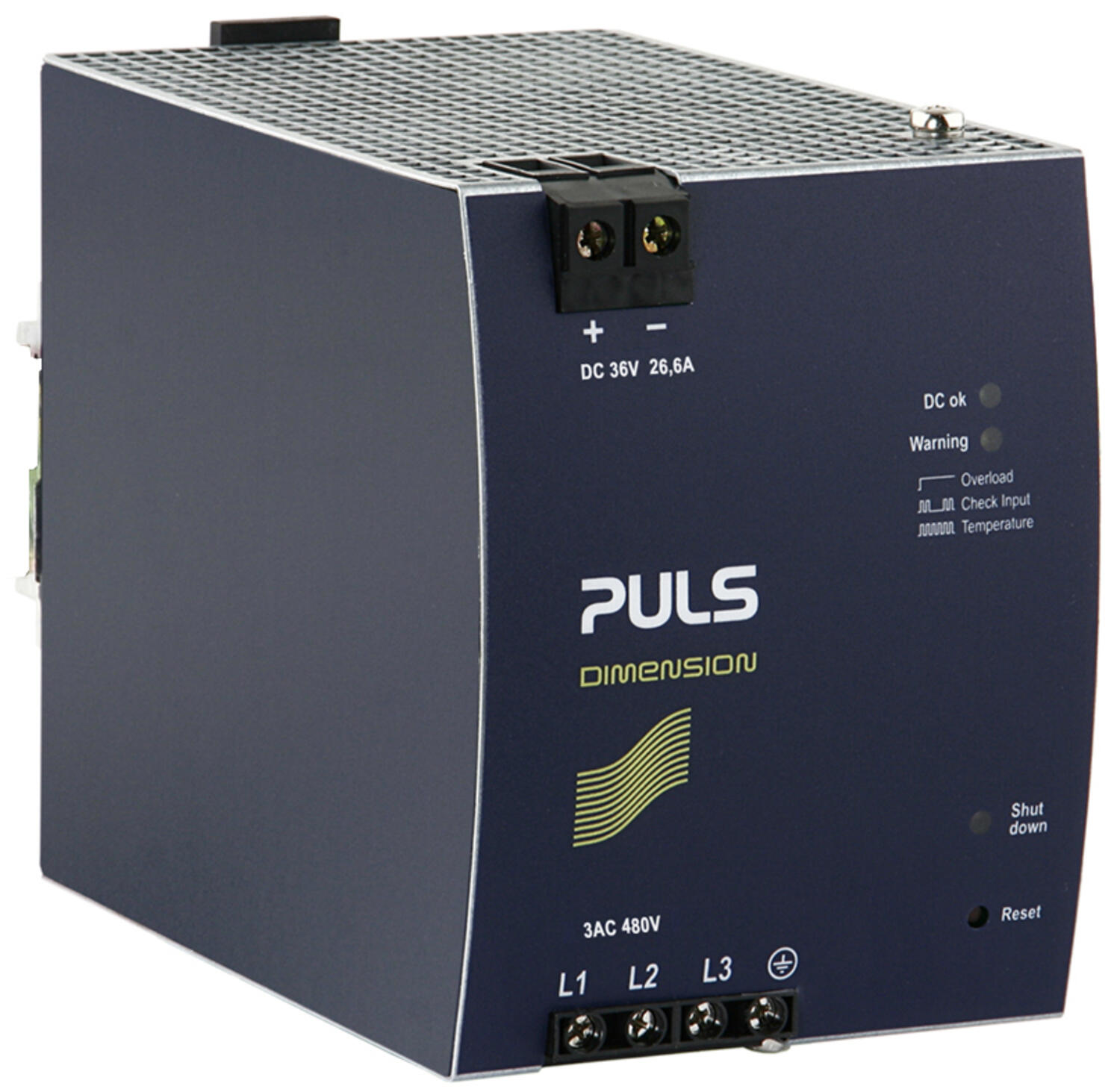

Power supply 3-phase, 36 V DC Dimension X Series

36 V DC, 26,6 A, semi-regulated

The power supplies in the Dimension X-Series include a new and innovative concept for generating an

isolated DC voltage from a three-phase mains system.



A semi-regulated resonant converter enables a very compact design, maximum efficiency and extremely competitive pricing with only a small compromise in the output voltage regulation, output ripple and hold-up time.



Weighing just 1.4 kg, the device provides 960 watts of continuous output power and an additional 25% power reserve for dynamic loads. The light-weight design along with compact dimensions facilitate straightforward mounting on DIN-rail.



Primary use are applications involving supplies to motors, valves and other load circuits with a high power consumption, where an accurate output voltage regulation which is standard on traditional switched-mode power supplies is not required. Furthermore, these switched-mode power supplies can often replace mains transformers with rectifiers.

Read more
  • Width 96mm
  • Up to 95,5% efficiency
  • 125 % power boost
  • Suitable for eg. supply for motors

Selected variant

Selected variant

Specifications

Power consumption at 400 V ac 1,65 A

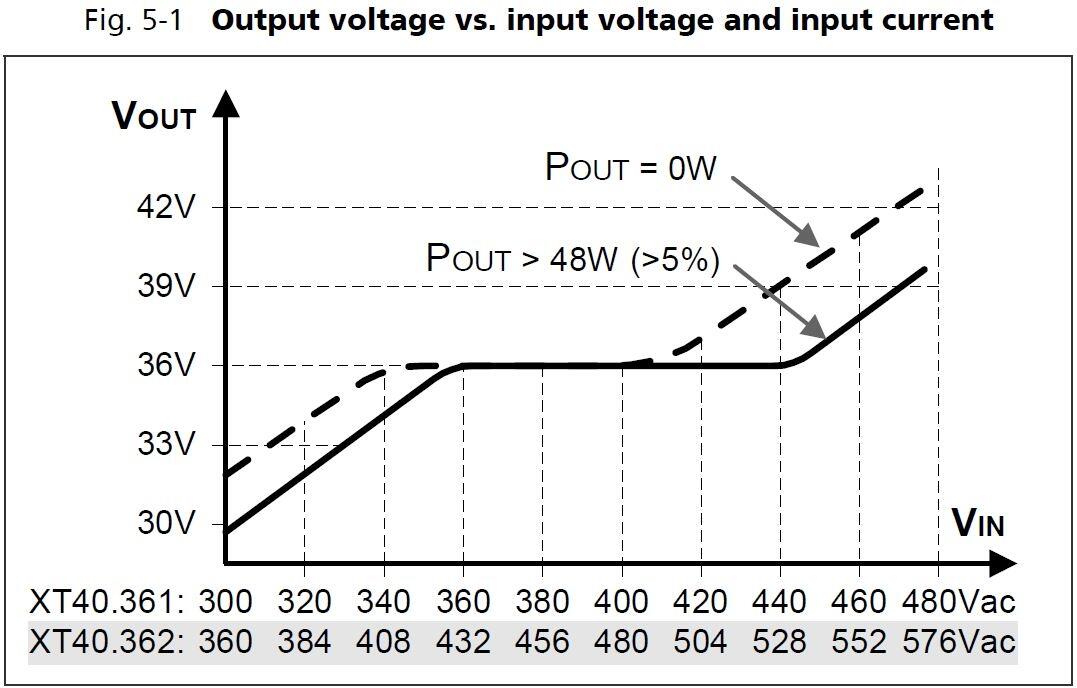

Input voltage AC 400 V
Input voltage ac min 360 V AC
Input voltage ac max 440 V AC
Inrush current at 400 V ac typical 4 A
Power Factor at 400 V AC, full load. Typical 0,93
Supply Frequency 50-60 ±6 %
Ripple. max 250 mV pp
Output voltage min 36 V DC

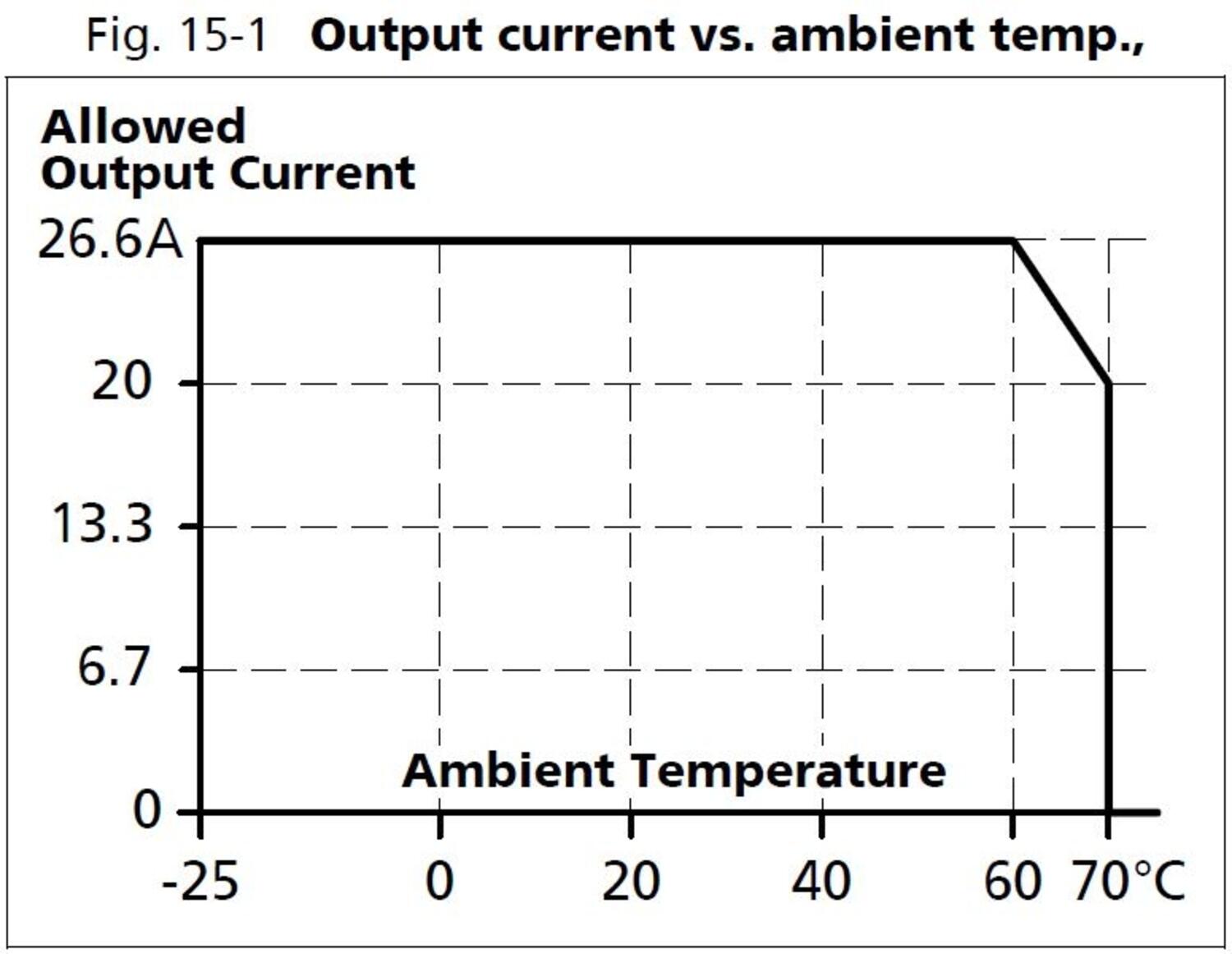

Power Reduction Of 60 To 70 ° C 24 W/°C
Temperature Range Without Derating From -25 °C
Output voltage 36 V DC
Output voltage max 36 V DC
Effect 960 W

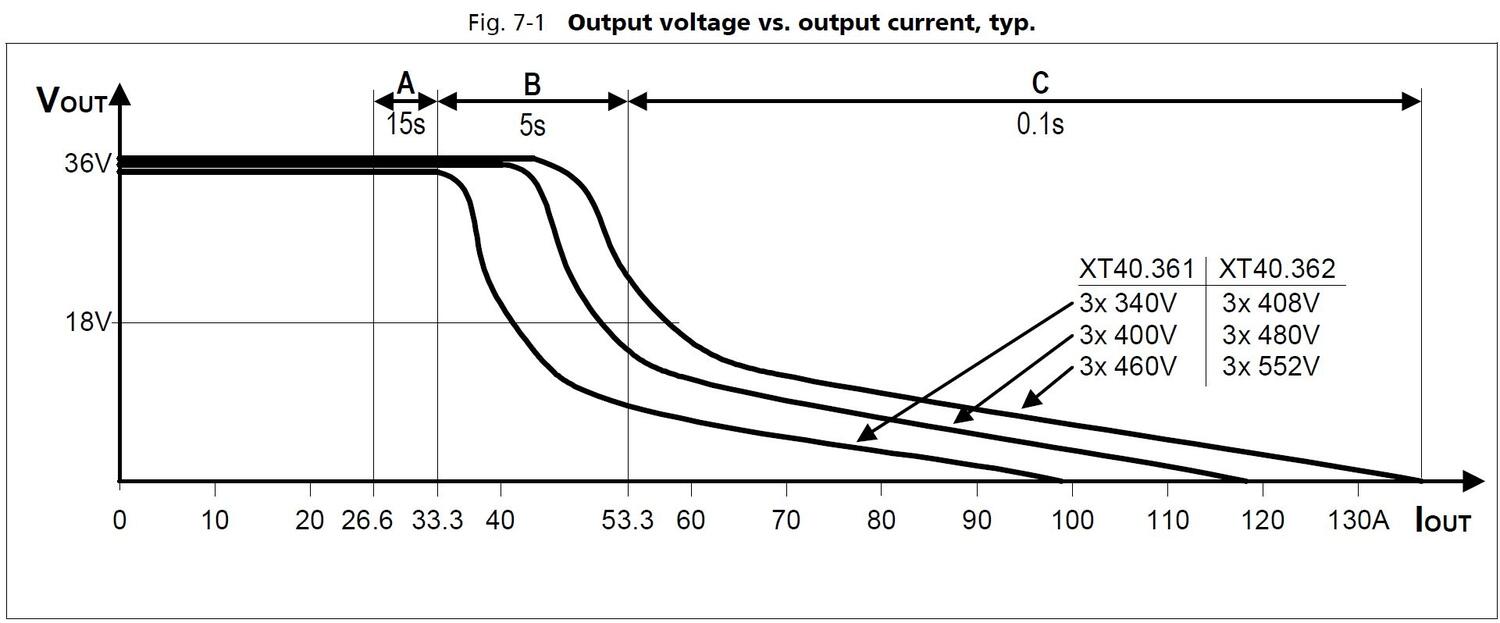

Output Current 26,6 A
Temperature Range Without Derating To 60 °C
MTBF (IEC 61709) 400 V ac, max loan, +40 °C 529000 h

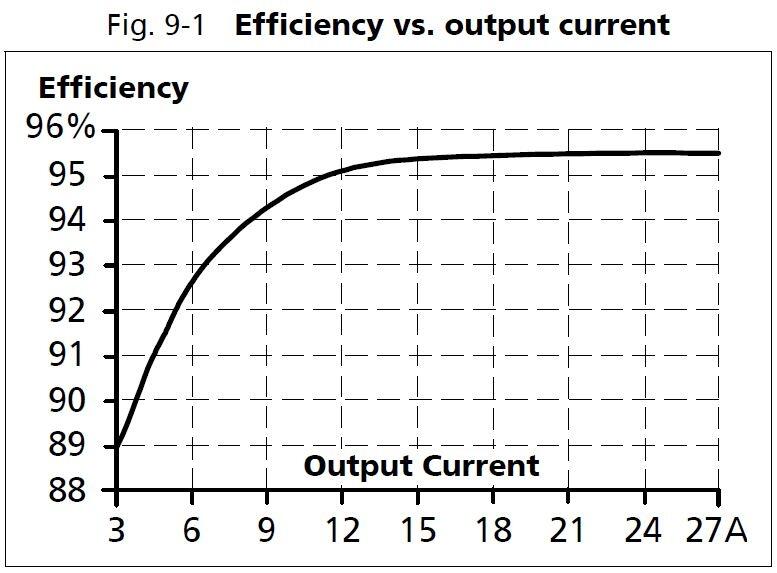

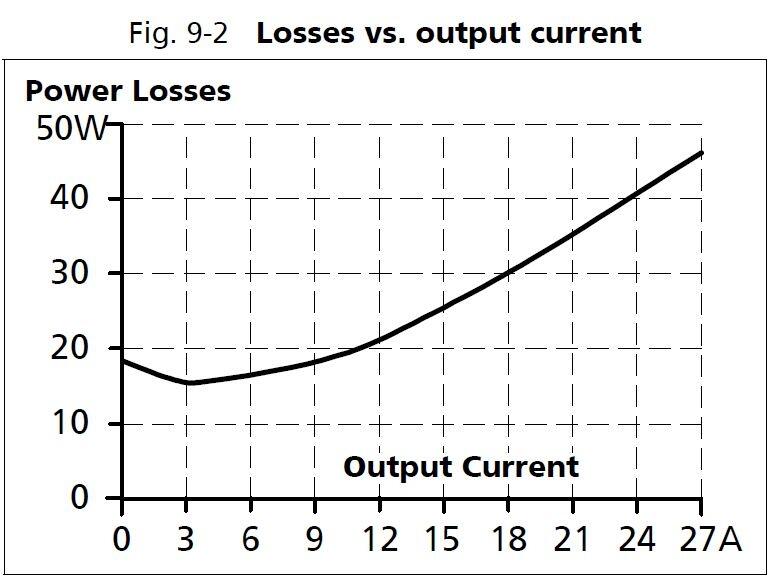

Efficiency At 400 V AC, full load. Typical 95,5 %
Weight 1,4 kg

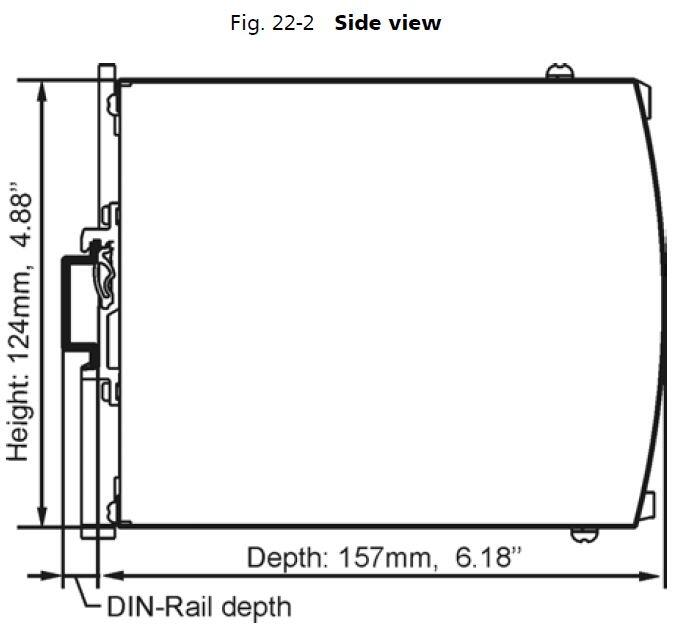

Depth 159 mm

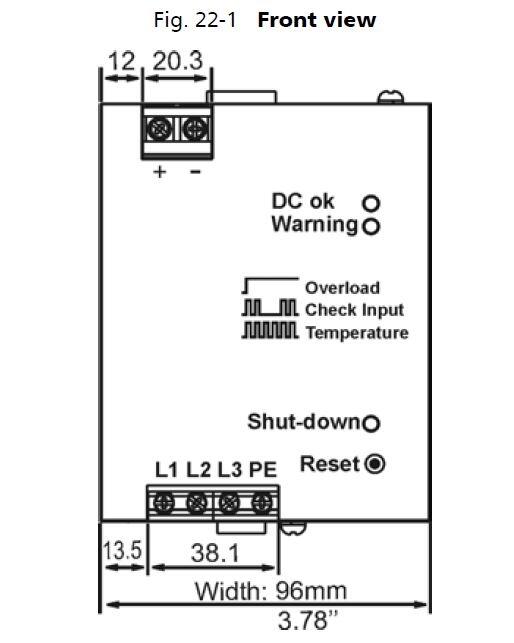

Width 96 mm
Height 124 mm
IP Class IP20
Hold-up time at 400 V AC, full load. Typical. 3 ms
Series Dimension X
Approvals CB, CE, CSA, UL
Material Protection Aluminium
Active Transient Yes

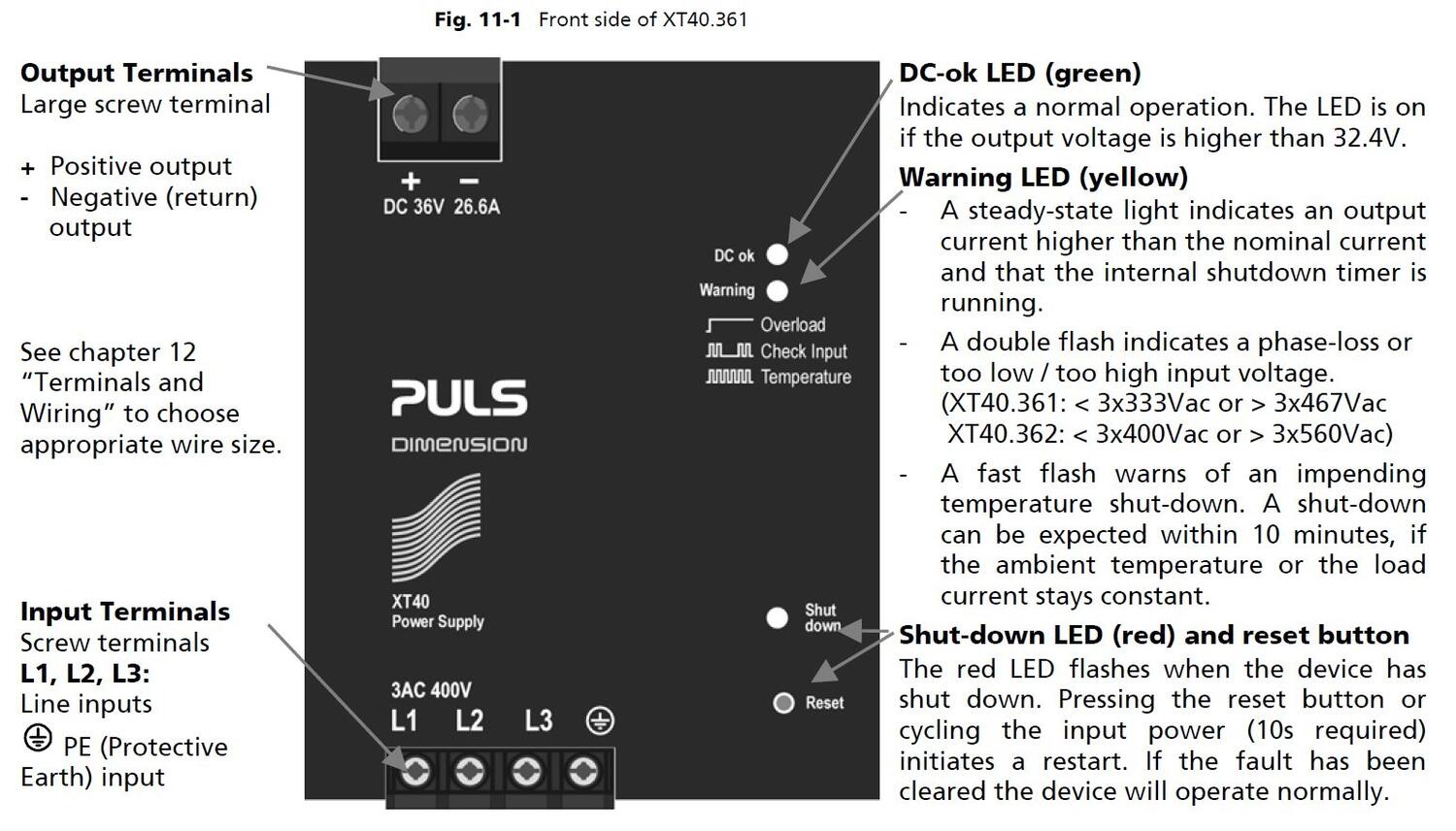

Product description

The power supplies in the Dimension X-Series include a new and innovative concept for generating an

isolated DC voltage from a three-phase mains system.



A semi-regulated resonant converter enables a very compact design, maximum efficiency and extremely competitive pricing with only a small compromise in the output voltage regulation, output ripple and hold-up time.



Weighing just 1.4 kg, the device provides 960 watts of continuous output power and an additional 25% power reserve for dynamic loads. The light-weight design along with compact dimensions facilitate straightforward mounting on DIN-rail.



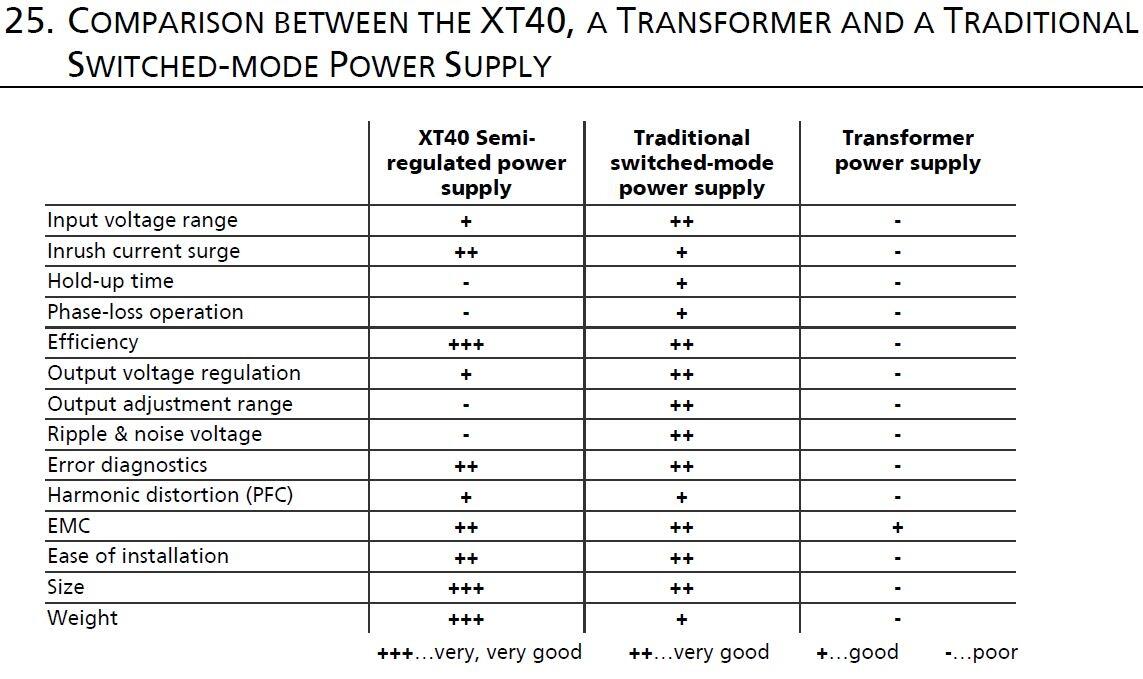

Primary use are applications involving supplies to motors, valves and other load circuits with a high power consumption, where an accurate output voltage regulation which is standard on traditional switched-mode power supplies is not required. Furthermore, these switched-mode power supplies can often replace mains transformers with rectifiers.
