The power supplies in the Dimension X-Series include a new and innovative concept for generating an isolated DC voltage from a three-phase mains system.

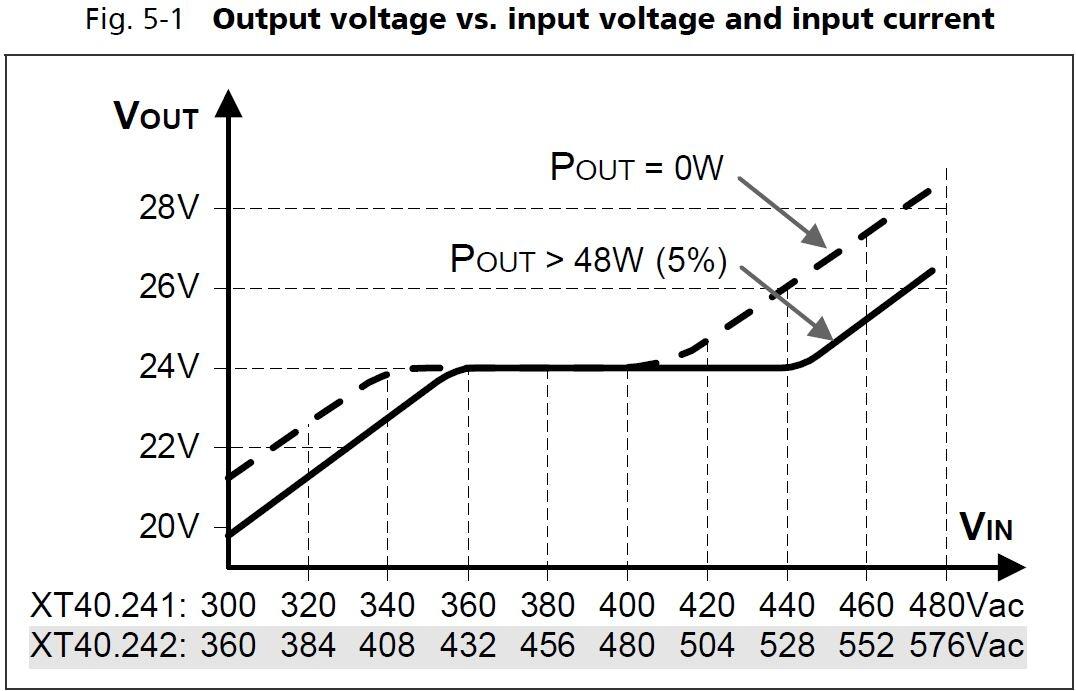

A semi-regulated resonant converter enables a very compact design, maximum efficiency and extremely competitive pricing with only a small compromise in the output voltage regulation, output ripple and hold-up time.

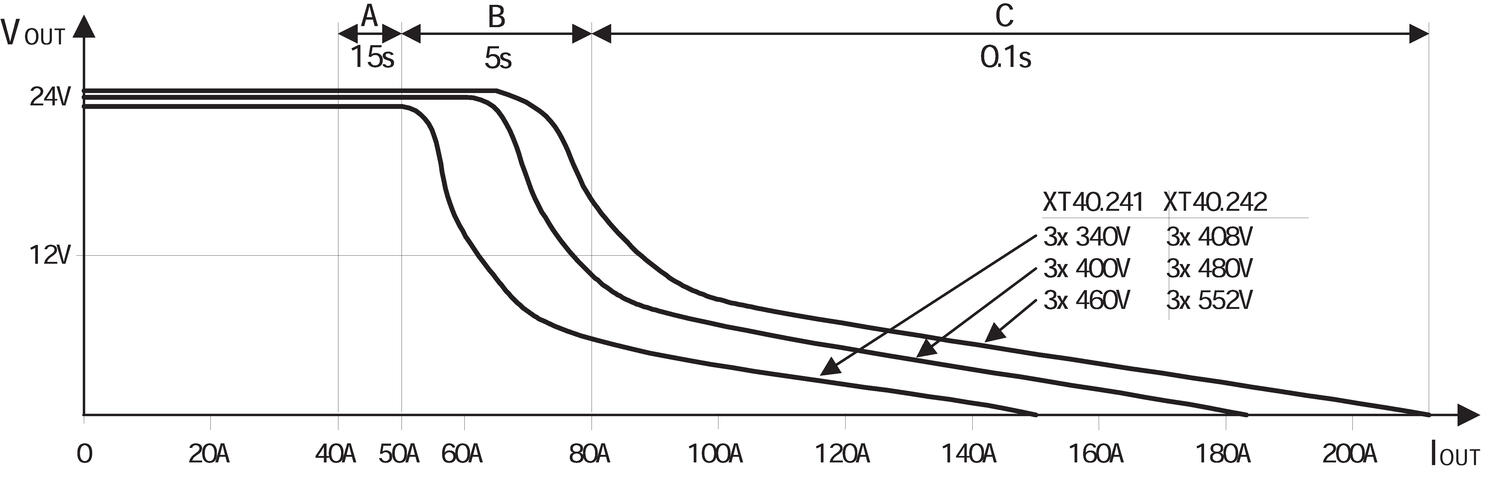

Weighing just 1.4 kg, the device provides 960 watts of continuous output power and an additional 25% power reserve for dynamic loads. The light-weight design along with compact dimensions facilitate straightforward mounting on DIN-rail.
Primary use are applications involving supplies to motors, valves and other load circuits with a high power consumption, where an accurate output voltage regulation which is standard on traditional switched-mode power supplies is not required.
Furthermore, these switched-mode power supplies can often replace mains transformers with rectifiers.
We recommend free space of 40 mm above and 20 mm under the unit, and 5 mm at the sides. (If adjacent components are considered as heat sources, a distance of 15 mm is recommended.)
Input voltage range/regulation | Output characteristics |
Type Power Supply | AC-DC |
---|---|
Power consumption at 400 V ac | 1,65 A |
Input voltage AC | 400 V |
Input voltage ac min | 360 V AC |
Input voltage ac max | 440 V AC |
Inrush current at 400 V ac typical | 4 A |
Number of phases | 3 |
Power Factor at 400 V AC, full load. Typical | 0,93 |
Supply Frequency | 50-60 ±6 % |
Ripple. max | 200 mV pp |
Output voltage min | 24 V DC |

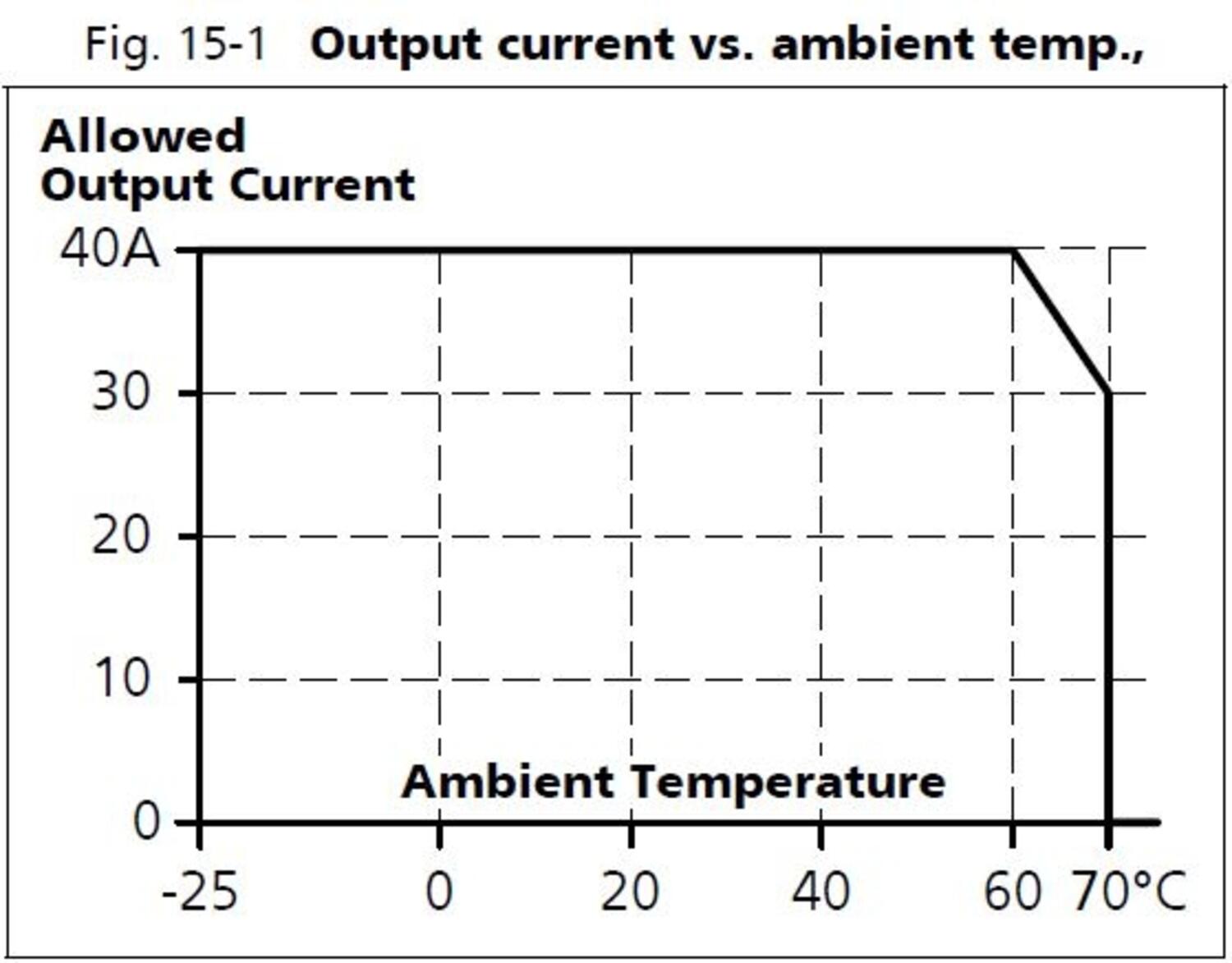

Power Reduction Of 60 To 70 ° C | 24 W/°C |
Temperature Range Without Derating From | -25 °C |
Output voltage | 24 V DC |
Output voltage max | 24 V DC |
Effect | 960 W |
Output Current | 40 A |
---|---|
Temperature Range Without Derating To | 60 °C |
MTBF (IEC 61709) 400 V ac, max loan, +40 °C | 529000 h |
Lifetime at 400 V ac, full load and +40 ° C | 51000 h |

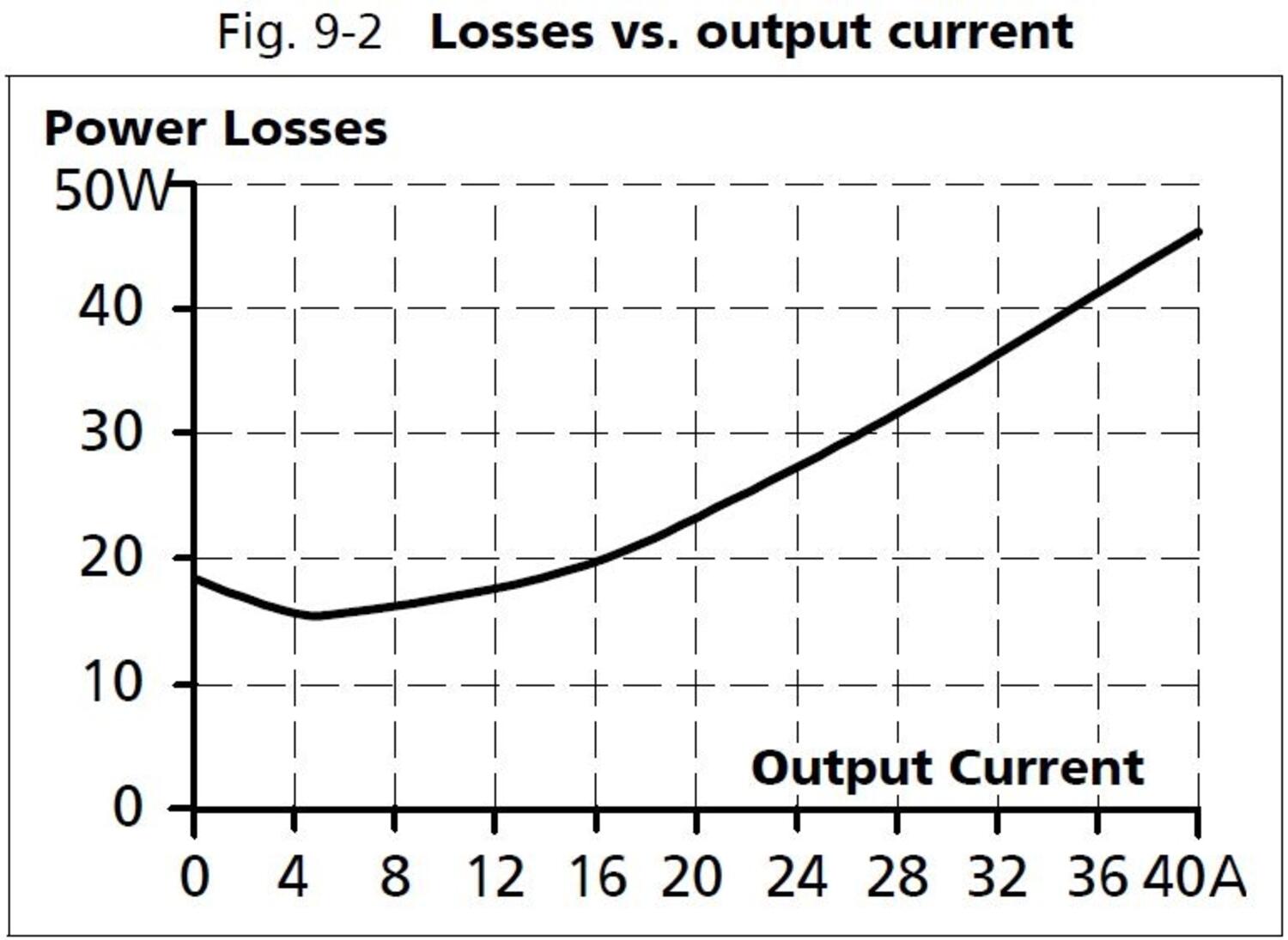

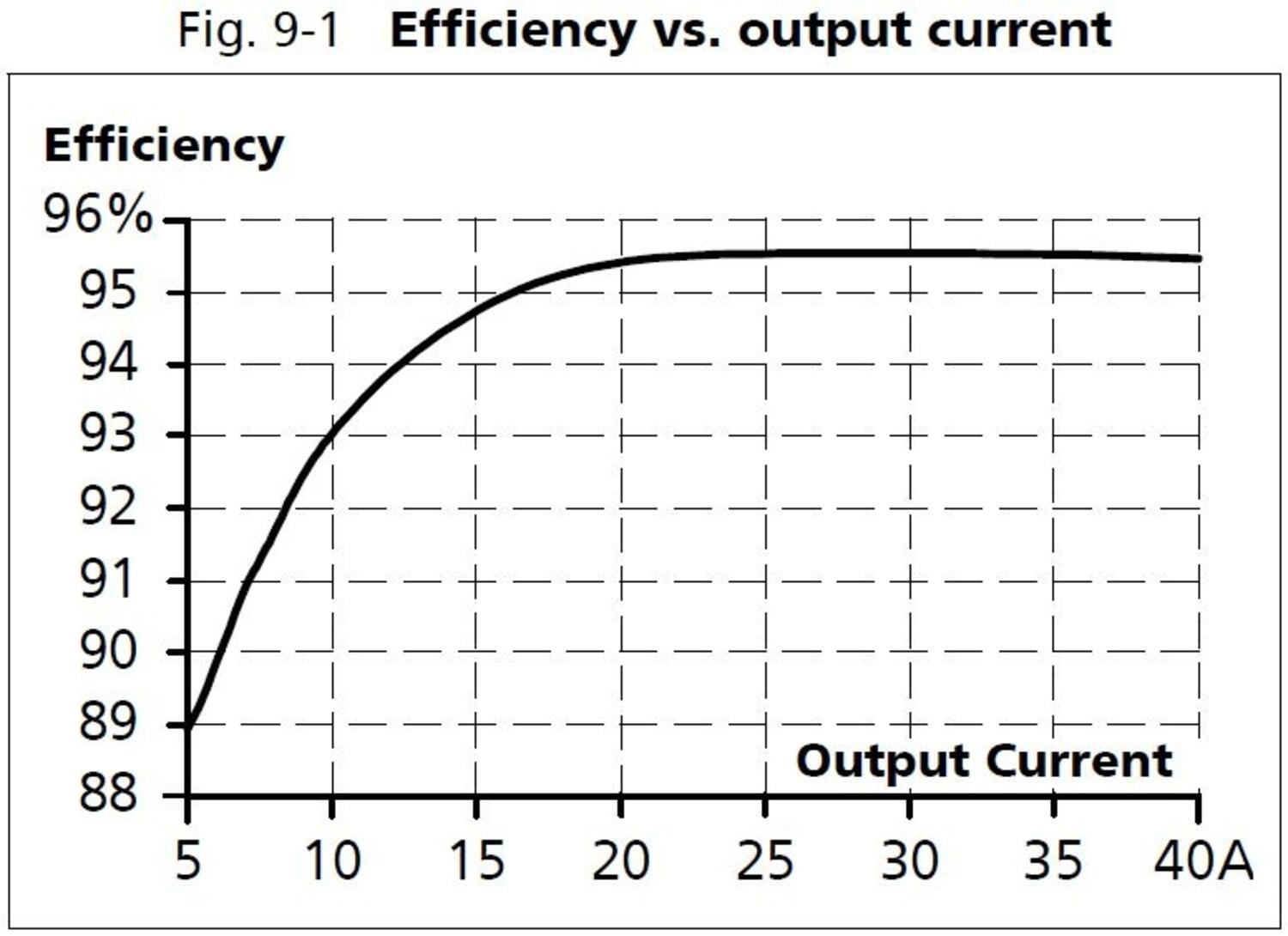

Efficiency At 400 V AC, full load. Typical | 95,5 % |
Weight | 1,4 kg |
Depth | 159 mm |
Width | 96 mm |
Height | 124 mm |
IP Class | IP20 |
Hold-up time at 400 V AC, full load. Typical. | 2 ms |
Series | Dimension X |
Approvals | CB, CE, CSA, UL |
Material Protection | Aluminium |
Active Transient | Yes |
The power supplies in the Dimension X-Series include a new and innovative concept for generating an isolated DC voltage from a three-phase mains system.
A semi-regulated resonant converter enables a very compact design, maximum efficiency and extremely competitive pricing with only a small compromise in the output voltage regulation, output ripple and hold-up time.
Weighing just 1.4 kg, the device provides 960 watts of continuous output power and an additional 25% power reserve for dynamic loads. The light-weight design along with compact dimensions facilitate straightforward mounting on DIN-rail.
Primary use are applications involving supplies to motors, valves and other load circuits with a high power consumption, where an accurate output voltage regulation which is standard on traditional switched-mode power supplies is not required.
Furthermore, these switched-mode power supplies can often replace mains transformers with rectifiers.
We recommend free space of 40 mm above and 20 mm under the unit, and 5 mm at the sides. (If adjacent components are considered as heat sources, a distance of 15 mm is recommended.)
Input voltage range/regulation | Output characteristics |
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Articles | Input voltage AC | Output voltage | Effect | Output Current | ||
---|---|---|---|---|---|---|
![]()

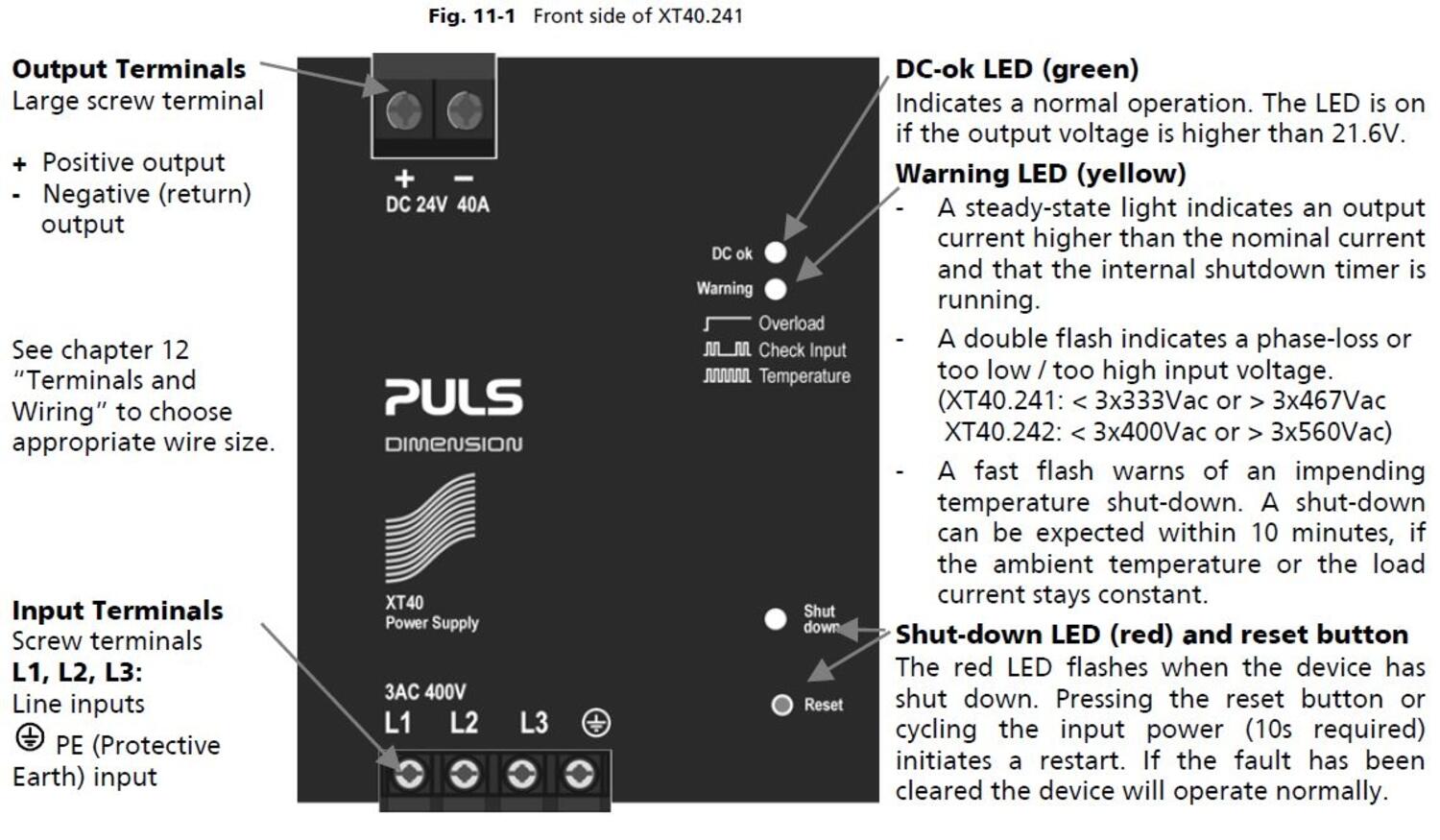

POWER SUPPLY 400V 24VDC 960W
Art:
XT40.241
Copied
|
400 V
|
24 V DC
|
960 W
|
40 A
|
| |
![]()
POWER SUPPLY 480V 24VDC 960W
Art:
XT40.242
Copied
|
480 V
|
24 V DC
|
960 W
|
40 A
|
|
