PULS

Power supply 3-phase, 24 V dc Dimension C Series

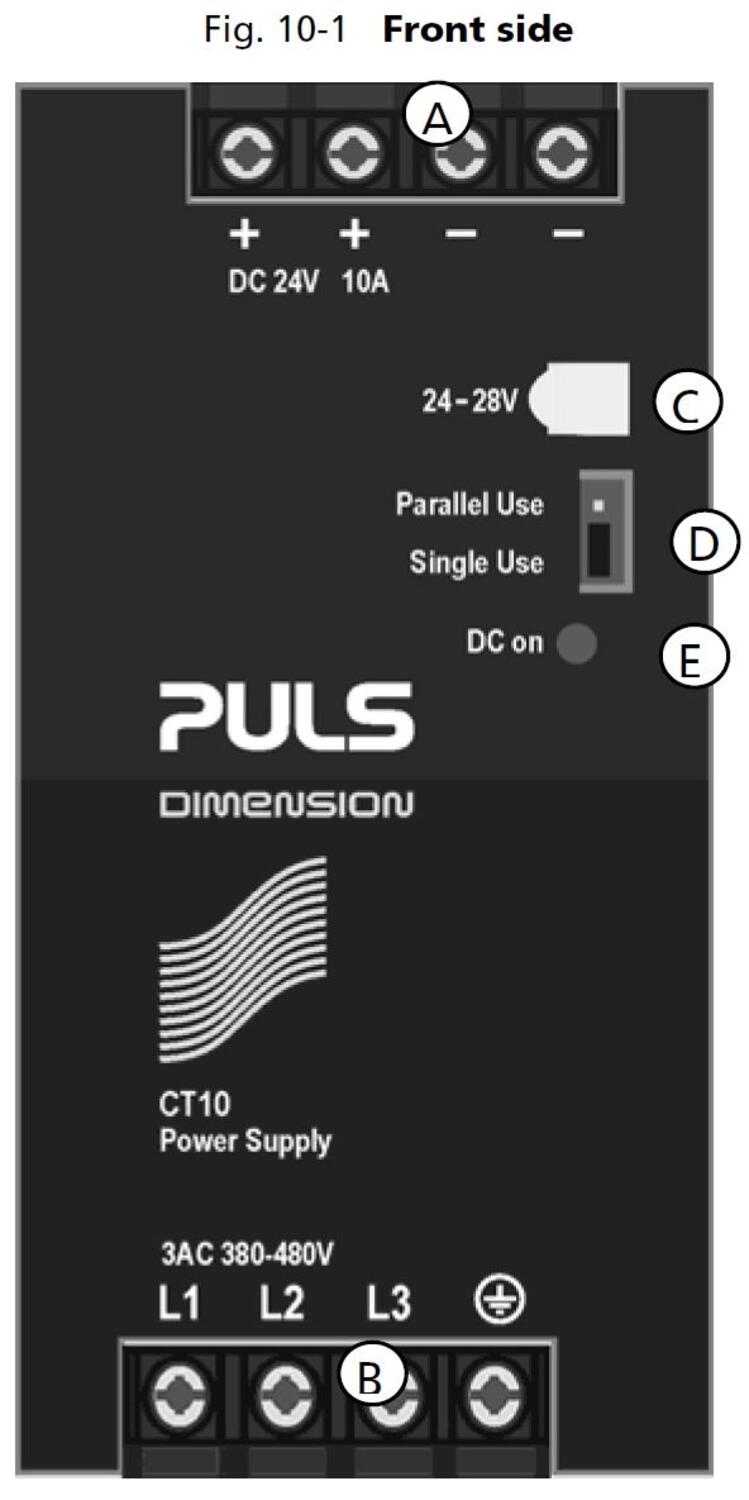

Puls Dimension C is a series of very high quality, reliability and performance.

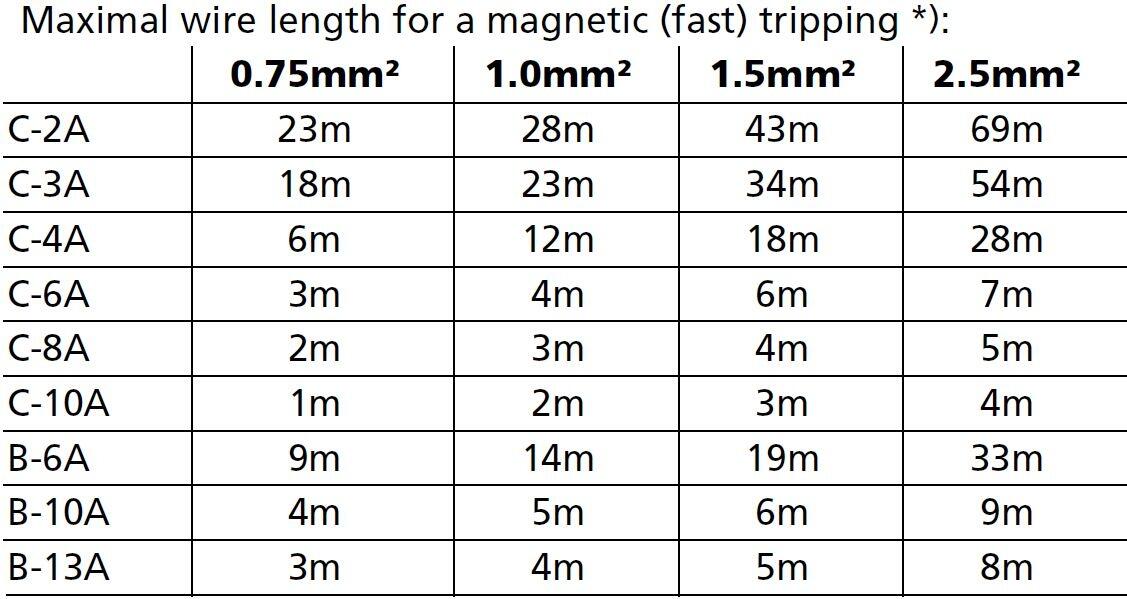

CT10 has built primary fuses that make it possible to connect the unit without the need for intermediate fuses up to 32 A (UL) which saves space and money.

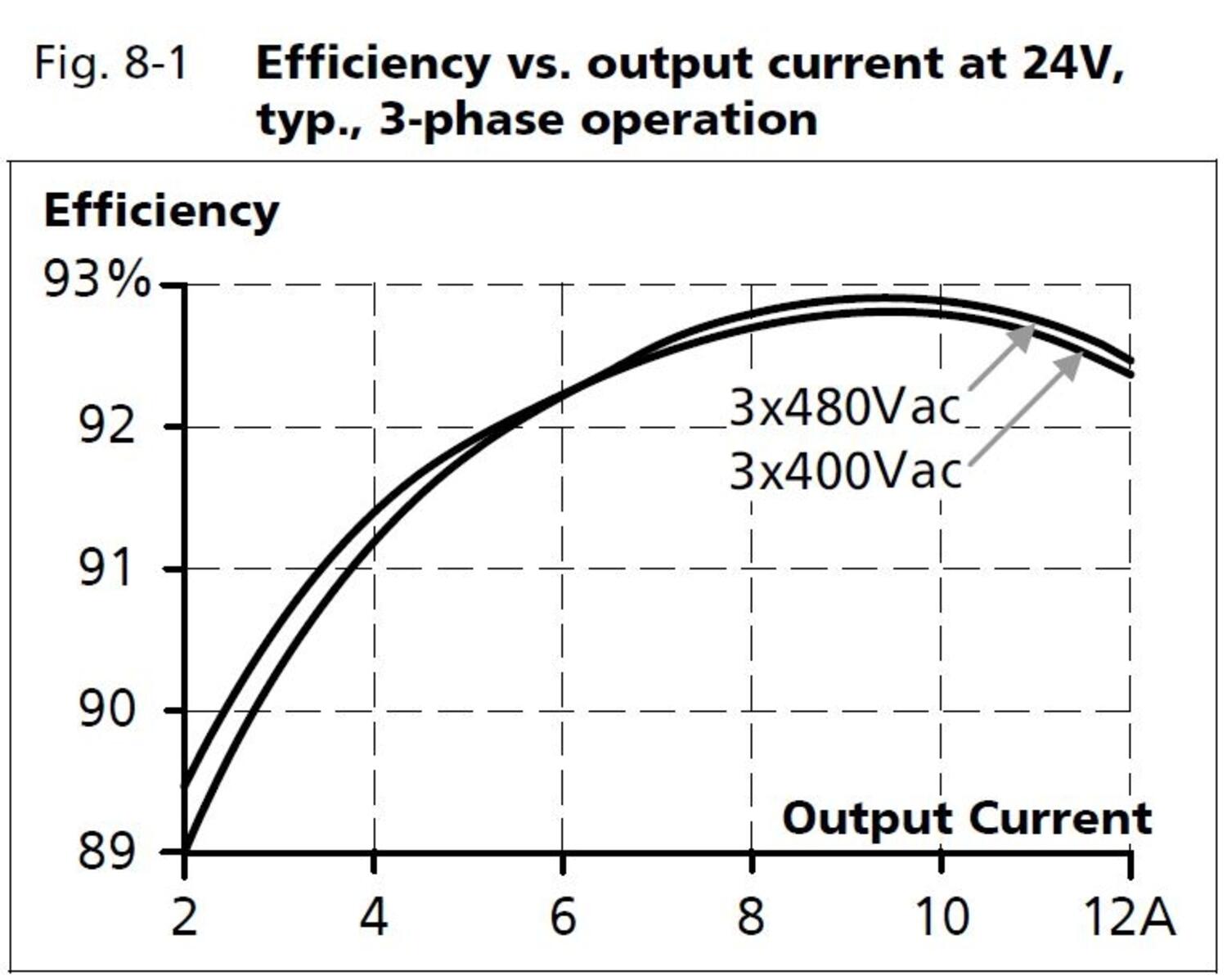

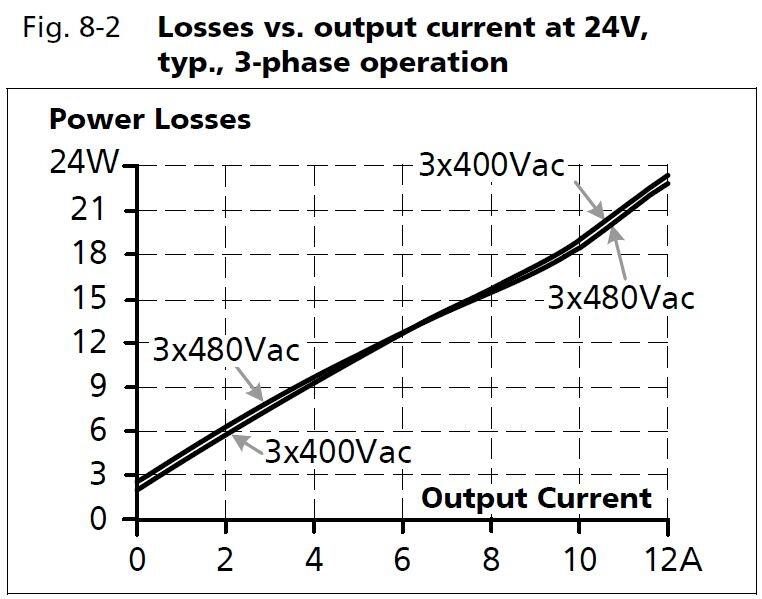

The efficiency is high over a wide load range, which results in reduced power consumption and longer life regardless of load current. A mean value of the efficiency from 50% to 100% load is 92.6% with a peak value of 93.2%.

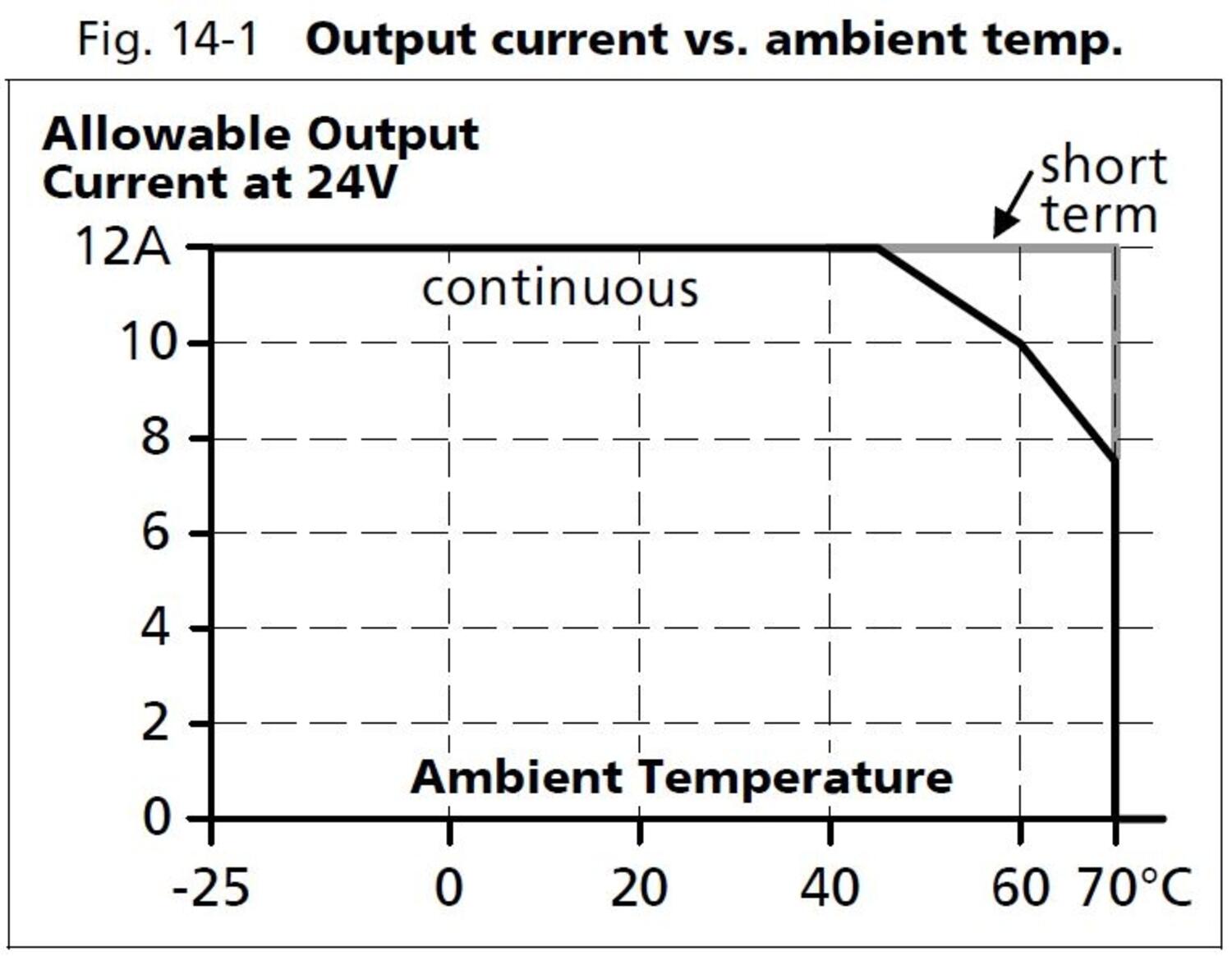

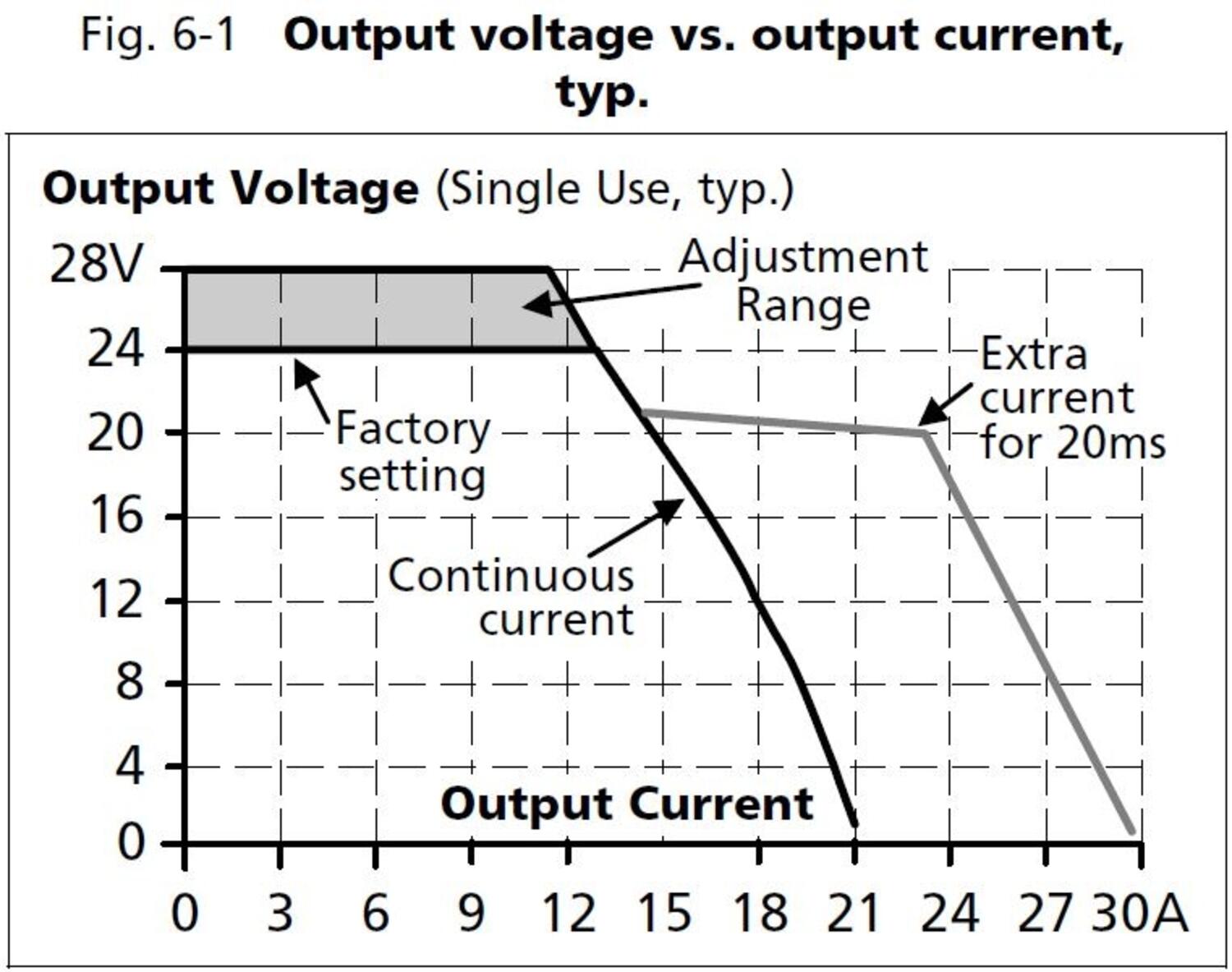

The short circuit current is 3 x rated current for 20 ms, which helps secondary fuses. Power boost of 20% enables higher current extraction without voltage drops. This is especially useful during start-ups and to bridge the current peaks in the application. Power can be used continually up to +45°C and short periods from +45 to +60°C.

Active transient ensure operation also in very störrik electrical environment in addition, CT10 active inrush current protection, which means a very low starting current, even if the unit has been in operation for a longer time. Especially useful for redundant / parallel-connected systems.

Power supply connected with 3 stages but can operate on only two phases, taking into account the load and ambient temperature.



We recommend free space of 40 mm above and 20 mm under the power supply, and 5 mm at the sides.



Read more
  • Output current of 10 A
  • Up to 92.9% efficiency
  • High reliability
  • Integrated primary fuses

Selected variant

Selected variant

Specifications

Type Power Supply AC-DC
Input voltage range Wide-range
Power consumption at 400 V ac 0,7 A
Input voltage AC 380-480 V
Input voltage ac min 323 V AC
Input voltage ac max 576 V AC
Inrush current at 400 V ac typical 4 A
Number of phases 3
Power Factor at 400 V AC, full load. Typical 0,53
Supply Frequency 50-60 ±6 %
Ripple. max 50 mV pp
Output voltage min 24 V DC
Power Reduction Of 60 To 70 ° C 6 W/°C
Temperature Range Without Derating From -25 °C
Output voltage 24 V DC
Output voltage max 28 V DC
Effect 240 W
Output Current 10 A
Temperature Range Without Derating To 60 °C
MTBF (IEC 61709) 400 V ac, max loan, +40 °C 975000 h
Lifetime at 400 V ac, full load and +40 ° C 54000 h
Efficiency At 400 V AC, full load. Typical 92,8 %
Efficiency At 400 V AC. Typical 92,2 %
Weight 0,75 kg
Depth 117 mm
Width 62 mm
Height 124 mm
Clamp type Screw
IP Class IP20
Hold-up time at 400 V AC, full load. Typical. 34 ms
Series Dimension C
Approvals ABS, CB, CE, CSA US, cRUus, cULus, GL
Material Protection Aluminium
Active Transient Yes

Product description

Puls Dimension C is a series of very high quality, reliability and performance.

CT10 has built primary fuses that make it possible to connect the unit without the need for intermediate fuses up to 32 A (UL) which saves space and money.

The efficiency is high over a wide load range, which results in reduced power consumption and longer life regardless of load current. A mean value of the efficiency from 50% to 100% load is 92.6% with a peak value of 93.2%.

The short circuit current is 3 x rated current for 20 ms, which helps secondary fuses. Power boost of 20% enables higher current extraction without voltage drops. This is especially useful during start-ups and to bridge the current peaks in the application. Power can be used continually up to +45°C and short periods from +45 to +60°C.

Active transient ensure operation also in very störrik electrical environment in addition, CT10 active inrush current protection, which means a very low starting current, even if the unit has been in operation for a longer time. Especially useful for redundant / parallel-connected systems.

Power supply connected with 3 stages but can operate on only two phases, taking into account the load and ambient temperature.



We recommend free space of 40 mm above and 20 mm under the power supply, and 5 mm at the sides.
