PULS

Power supply 1-phase, 5 V dc Miniline Series

3 A model included in Pulse series Mini Line 2 is the latest development series of small power supplies with very compact dimensions and low weight. The units have high efficiency, low EMC interference and good protection against mains transients. This makes them useful in almost all electrical environments and are a great addition to the earlier Mini Line series.

Very low quiescent current and high efficiency even at loads down to 60% makes the aggregates at a good energy and environmental choices.

5 A model is included in the earlier series Miniline having a very proven design and spring terminals for the best connection.



For good cooling free space of 40 mm above and 20 mm under the power supply is recommended. The sides 0 mm unless neighbouring products are a heat source, for example, a power supply unit. Leave then a 15 mm air gap

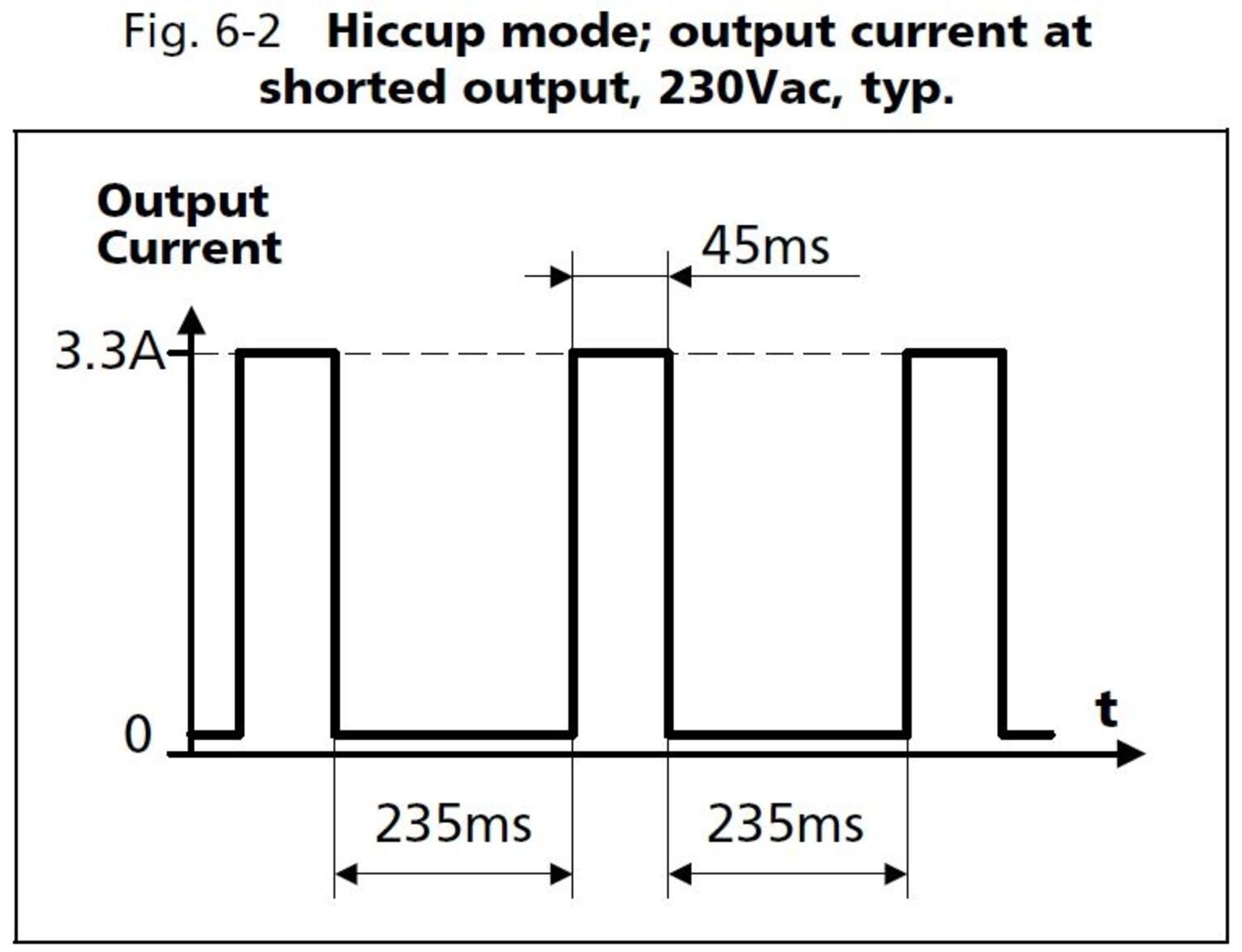

Output characteristics

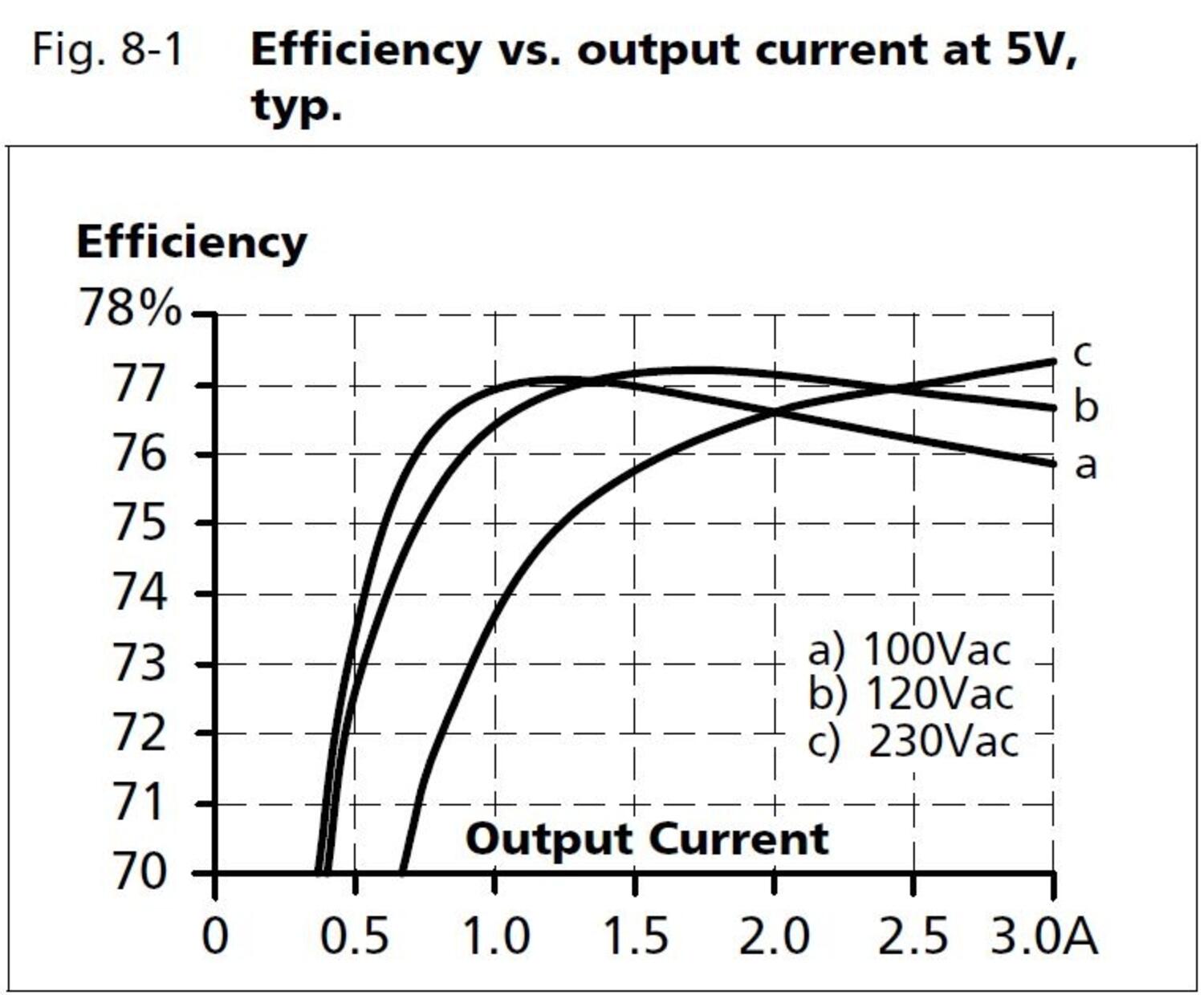

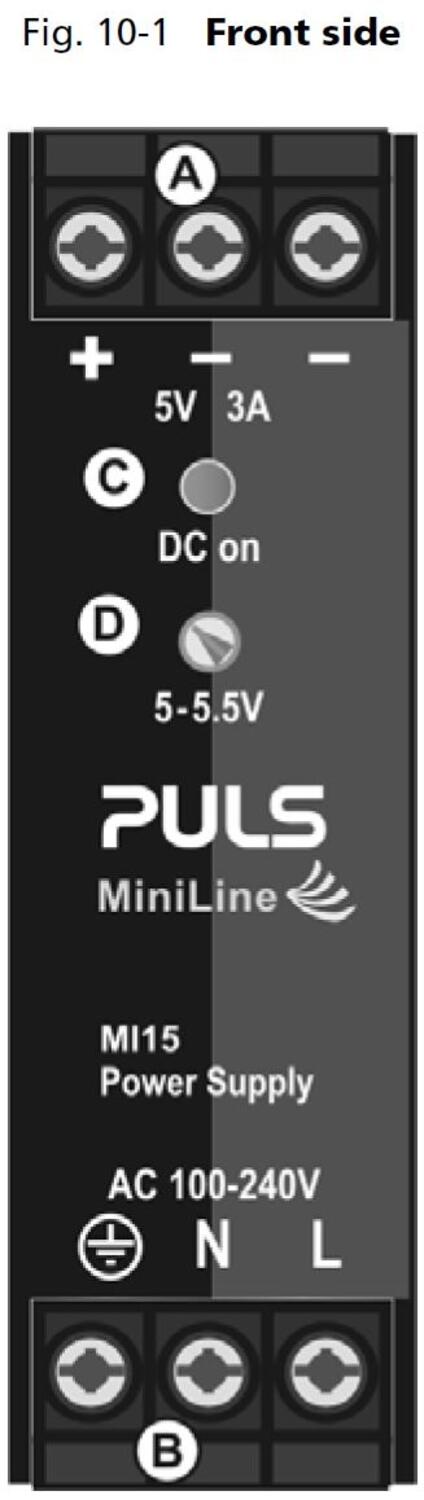

ML15.051 (3 A)

ML30.101 (5A)

273018_812.eps

273912_812.eps



Read more
  • Output current 3 A and 5 A
  • Up to 80% efficiency
  • AC and dc input voltage
  • Width of 22.5 mm
  • 5 V, 12 V and 24 V DC options

Selected variant

Selected variant

Specifications

Type Power Supply AC-DC
Input voltage range Wide-range
Power Consumption At 120 V AC 0,28 A
Input voltage AC 100-240 V
Input voltage ac min 85 V AC
Input voltage dc max 375 V DC
Input voltage DC 110-300 V
Input voltage ac max 264 V AC
Number of phases 1
Inrush current at 230 V ac typical 26 A
Power Consumption At 230 V AC 0,17 A
Supply Frequency 50-60 ±6 %
Inrush current at 120 V ac typical 13 A
Power Factor at 120 V AC, full load. Typical 0,51
Power Factor at 230 V AC, full load. Typical 0,44
Input voltage dc min 88 V DC
Ripple. max 50 mV pp
Output voltage min 5 V DC

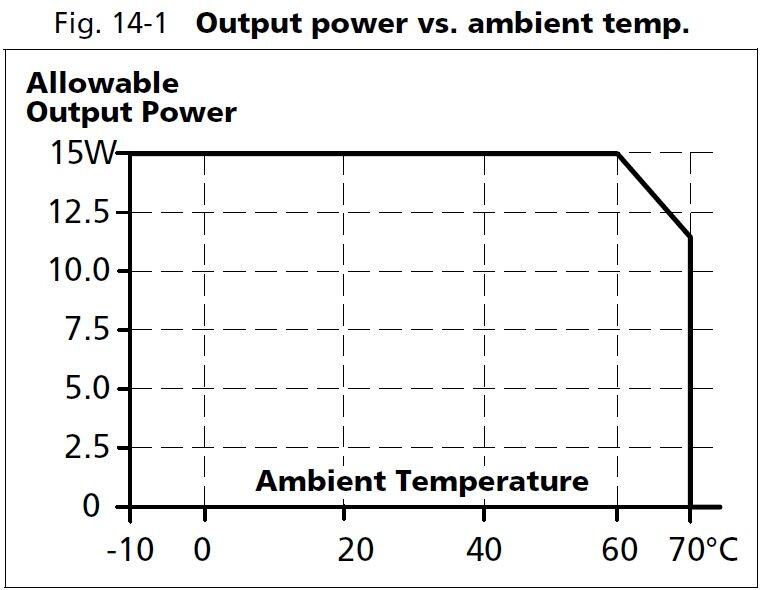

Power Reduction Of 60 To 70 ° C 0,4 W/°C
Temperature Range Without Derating From -10 °C
Output voltage 5 V DC
Output voltage max 5,5 V DC
Effect 15 W
Output Current 3 A
Temperature Range Without Derating To 60 °C
Lifetime at 120 V ac, full load and +40 ° C 70000 h
MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C 2686000 h

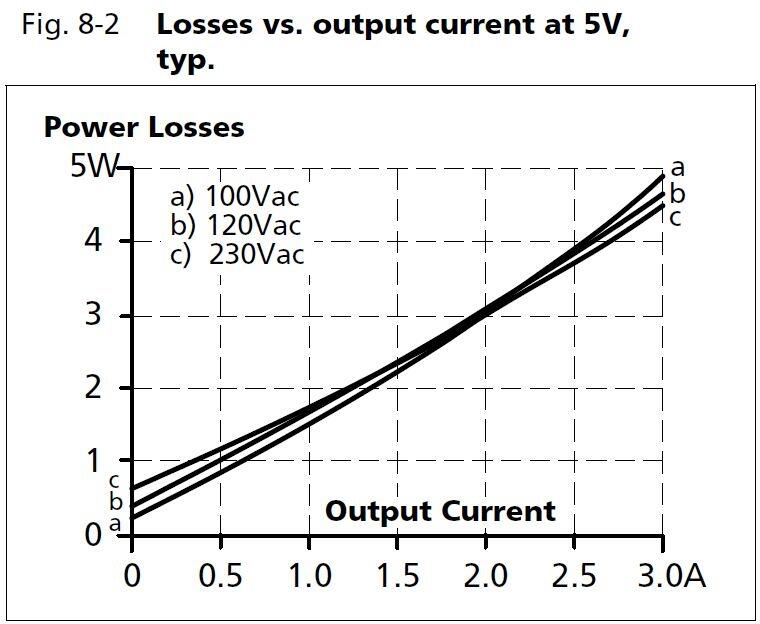

Efficiency At 230 V AC, full load. Typical 77,2 %
Lifetime at 230 V ac, full load and +40 ° C 93000 h
Efficiency At 120 V AC, full load. Typical 76,8 %
Weight 0,13 kg

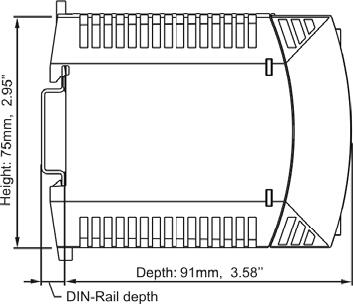

Depth 91 mm

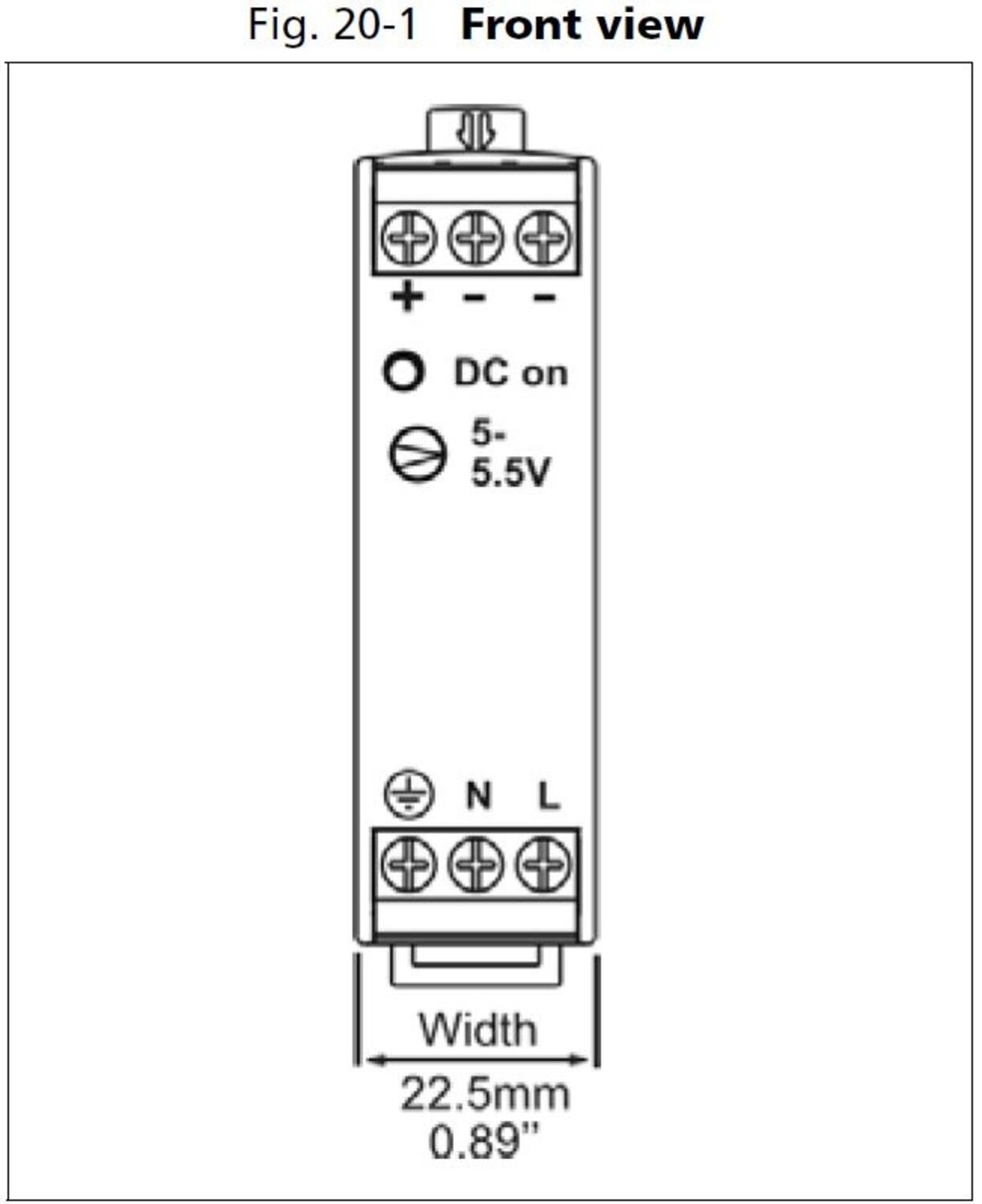

Width 22,5 mm
Height 75 mm
Clamp type Screw on
IP Class IP20
Hold-up time at 120 V AC, full load. Typical. 45 ms
Series Miniline
Hold-up time at 230 V AC, full load. Typical. 186 ms
Approvals ABS, CB, CE, CSA, GL, NEC Class 2, UL
Material Protection ABS plastic

Product description

3 A model included in Pulse series Mini Line 2 is the latest development series of small power supplies with very compact dimensions and low weight. The units have high efficiency, low EMC interference and good protection against mains transients. This makes them useful in almost all electrical environments and are a great addition to the earlier Mini Line series.

Very low quiescent current and high efficiency even at loads down to 60% makes the aggregates at a good energy and environmental choices.

5 A model is included in the earlier series Miniline having a very proven design and spring terminals for the best connection.



For good cooling free space of 40 mm above and 20 mm under the power supply is recommended. The sides 0 mm unless neighbouring products are a heat source, for example, a power supply unit. Leave then a 15 mm air gap

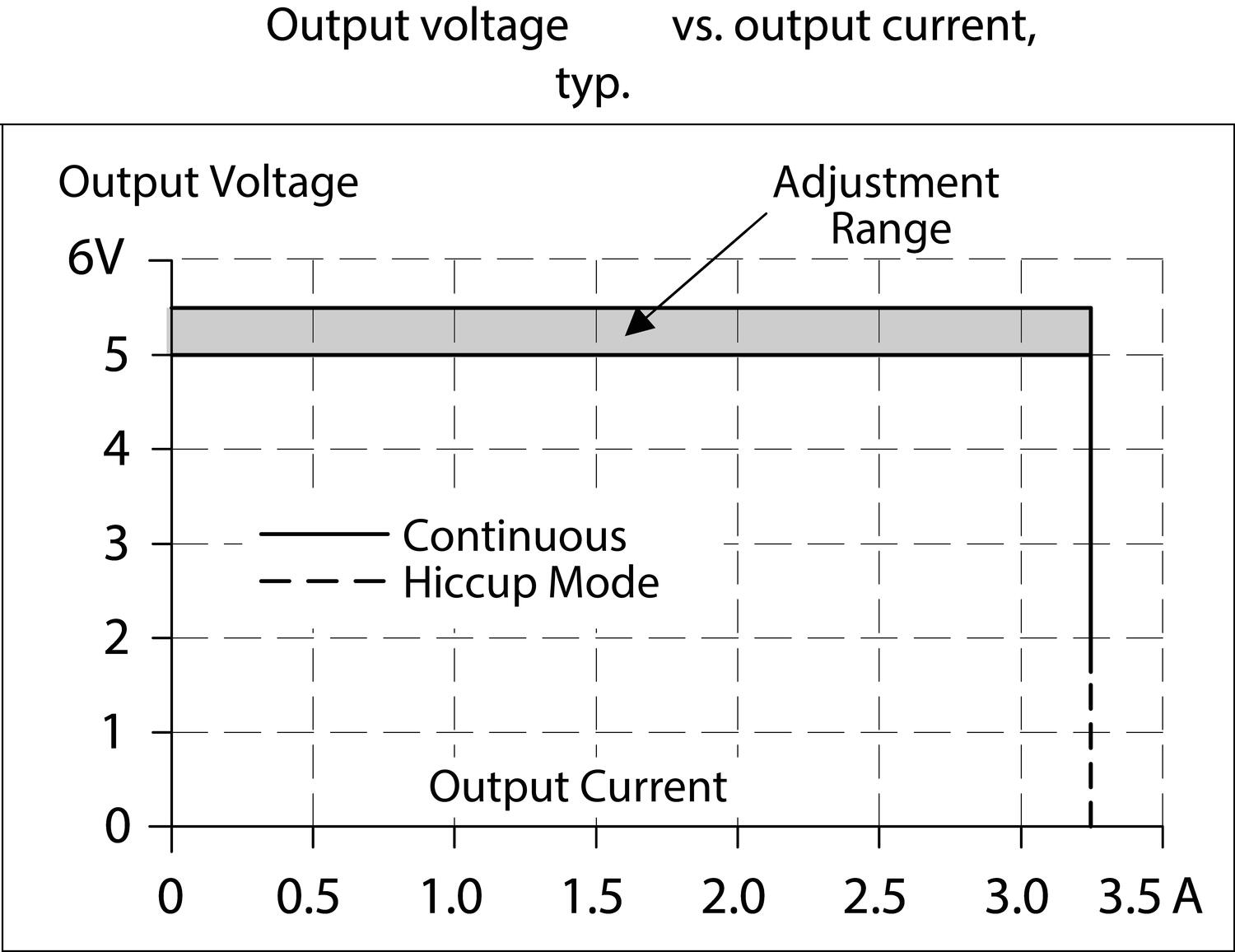

Output characteristics

ML15.051 (3 A)

ML30.101 (5A)

273018_812.eps

273912_812.eps



Accessories

Related products

Articles Input voltage AC Clamp type Input voltage DC Output voltage Effect Output Current
100-240 V
Screw on
110-300 V
5 V DC
15 W
3 A
100-240 V
Screw
110-300 V
12 V DC
15 W
1,3 A
100-240 V
Screw
110-300 V
12 V DC
60 W
4,5 A
100-240 V
Screw on
110-300 V
12 V DC
60 W
4,5 A
100-240 V
Screw on
110-300 V
24 V DC
15 W
0,63 A
100-240 V
Screw on
110-300 V
24 V DC
30 W
1,3 A
100-240 V
Screw on
110-300 V
24 V DC
60 W
2,5 A
100-240 V
Screw on
110-300 V
24 V DC
60 W
2,5 A

Selected variant

Select a variant in the list
