PULS

Power supply 1-phase, 36 V dc Dimension Q series

  • Width 125mm
  • 94,6% efficiency

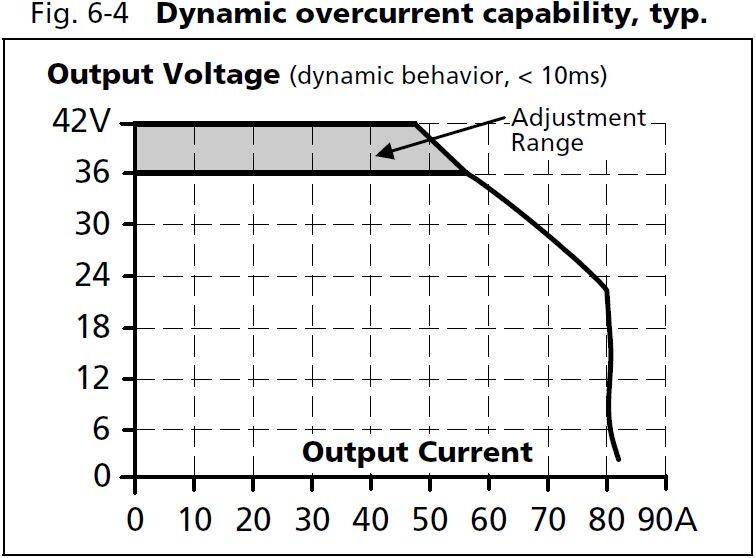

  • 50 % Bonuspower 4s

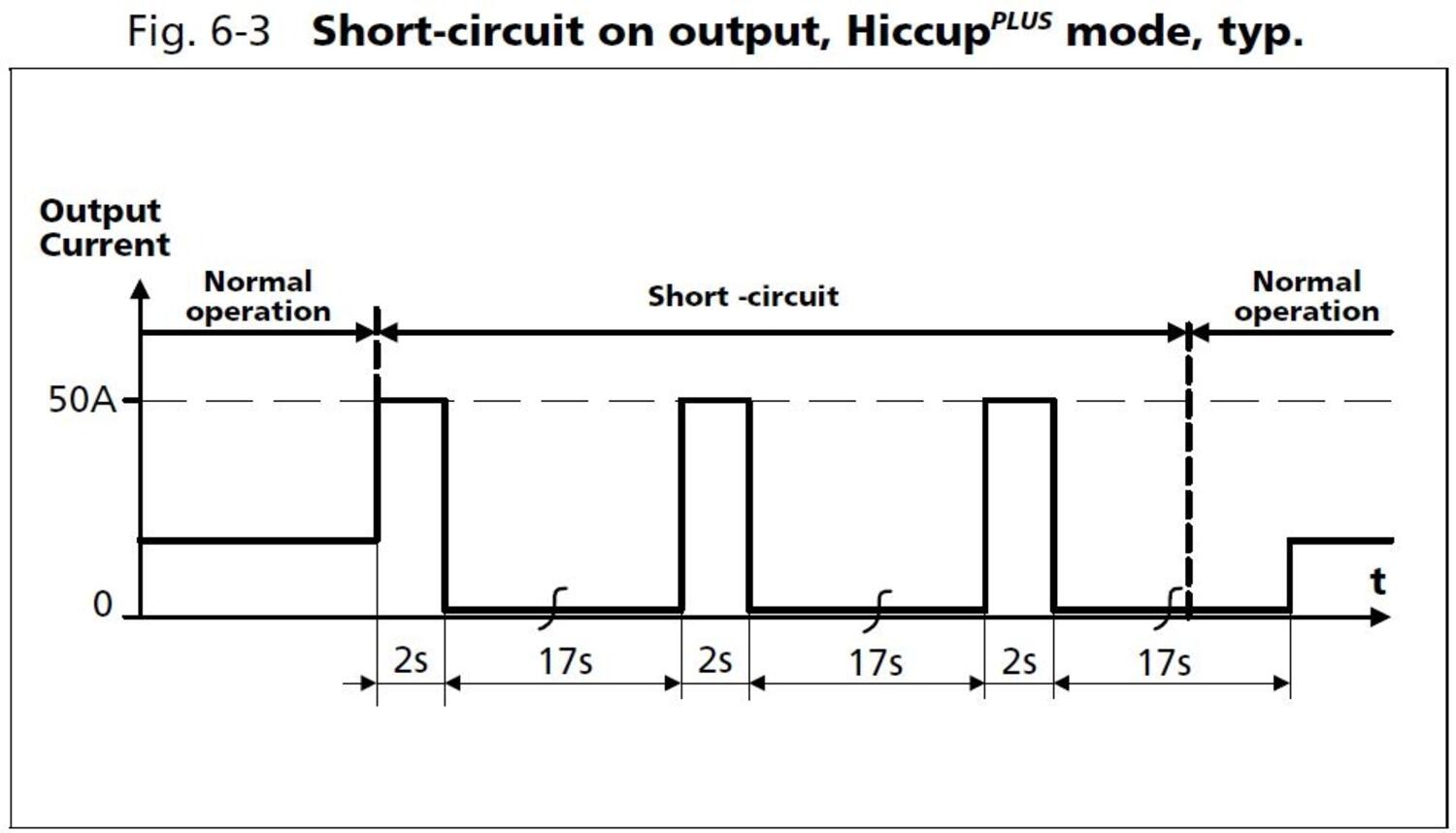

  • DC-OK relay, Hiccup Plus, active PFC and remote shut-down

Selected variant


POWER SUPPLY 36VDC 20A

Art:

Selected variant

Specifications

Input voltage range Wide-range
Power Consumption At 120 V AC 8,6 A
Input voltage AC 100-240 V
Input voltage ac min 90 V AC
Input voltage ac max 264 V AC
Number of phases 1
Inrush current at 230 V ac typical 11 A
Power Consumption At 230 V AC 4,5 A
Supply Frequency 50-60 ±6 %
Inrush current at 120 V ac typical 17 A
Power Factor at 120 V AC, full load. Typical 0,99
Power Factor at 230 V AC, full load. Typical 0,99
Ripple. max 130 mV pp
Output voltage min 36 V DC
Power Reduction Of 60 To 70 ° C 24 W/°C
Temperature Range Without Derating From -25 °C
Output voltage 36 V DC

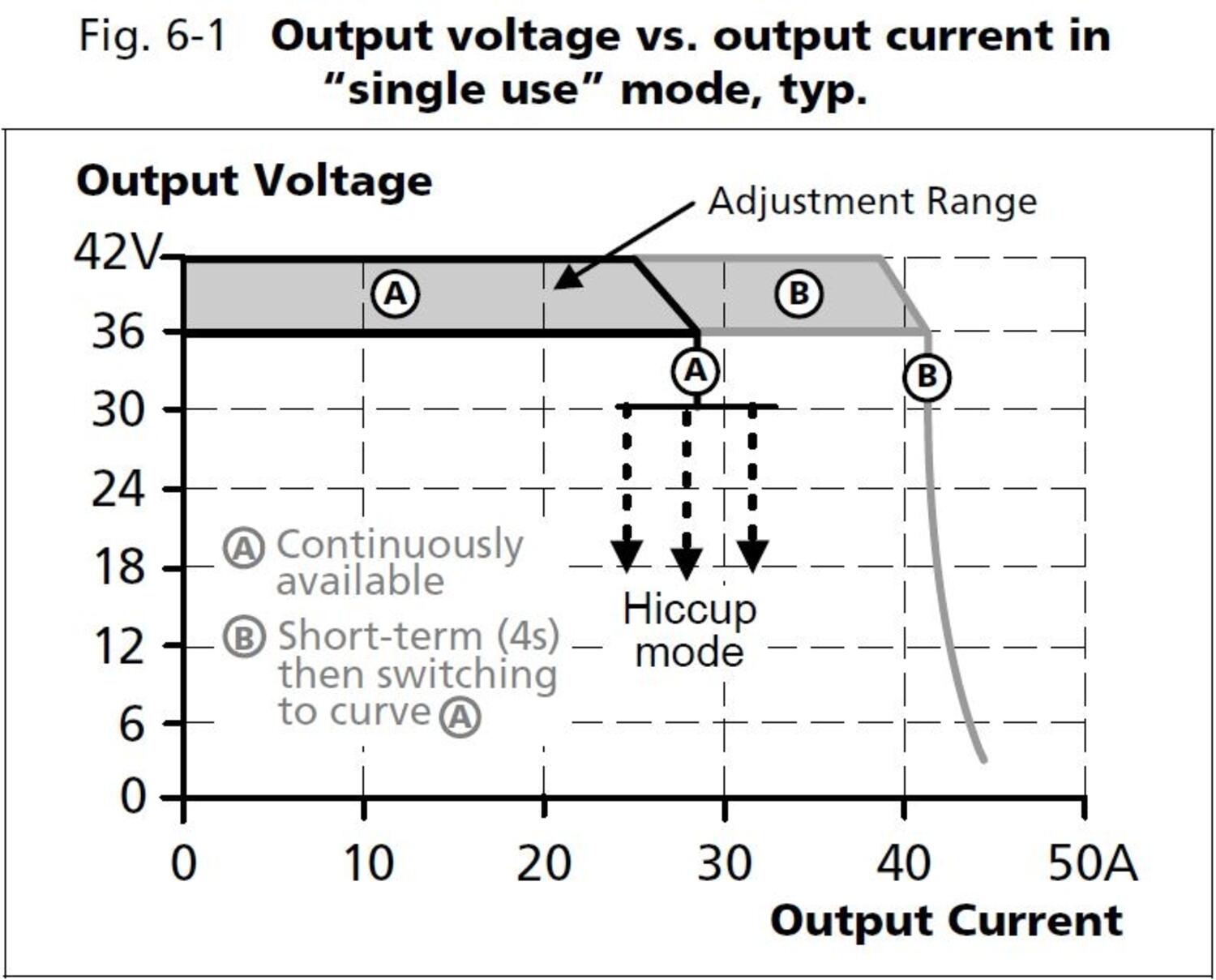

Output voltage max 42 V DC
Effect 960 W
Output Current 26,7 A
Temperature Range Without Derating To 60 °C
Lifetime at 120 V ac, full load and +40 ° C 55000 h
MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C 537000 h

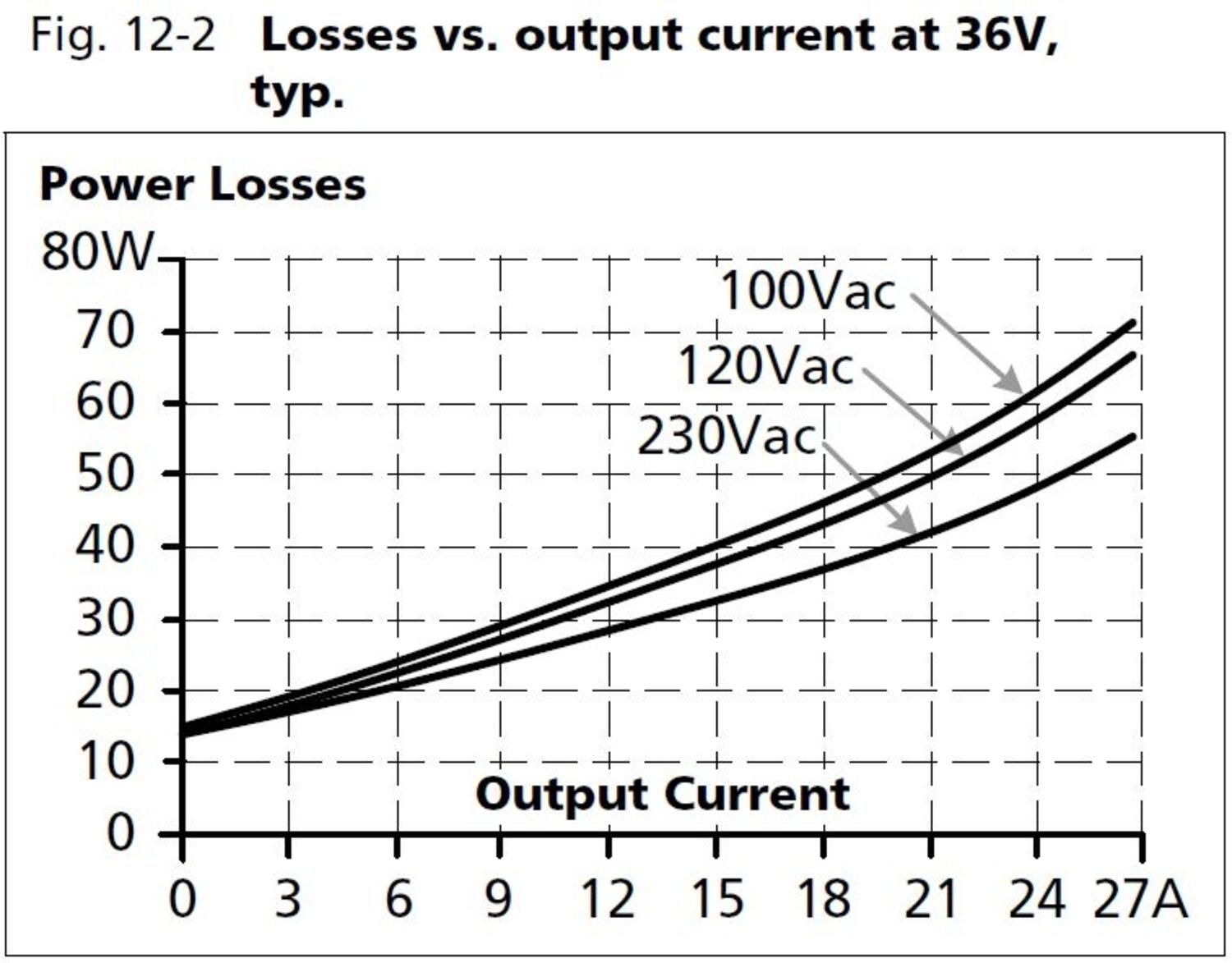

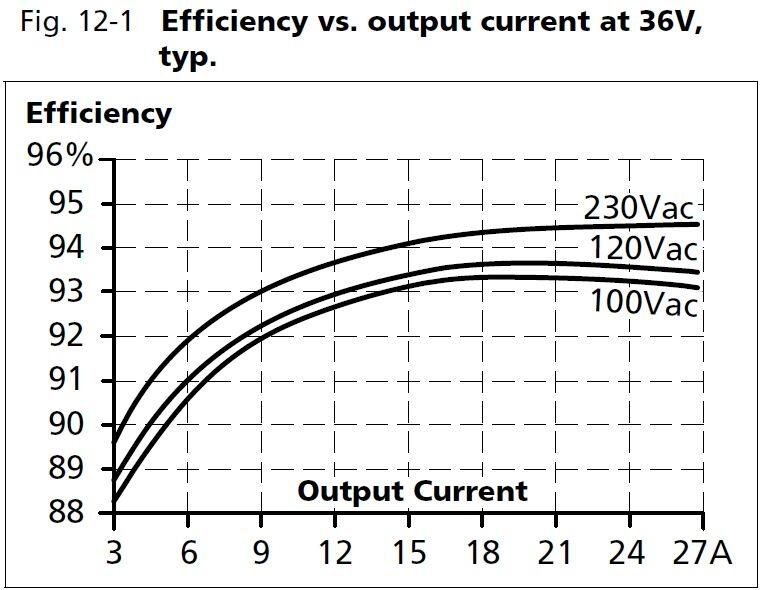

Efficiency At 230 V AC, full load. Typical 94,6 %
Efficiency At 230 V AC. Typical 93,6 %
Lifetime at 230 V ac, full load and +40 ° C 58000 h
Efficiency At 120 V AC, full load. Typical 93,5 %
Weight 1,9 kg
Depth 127 mm

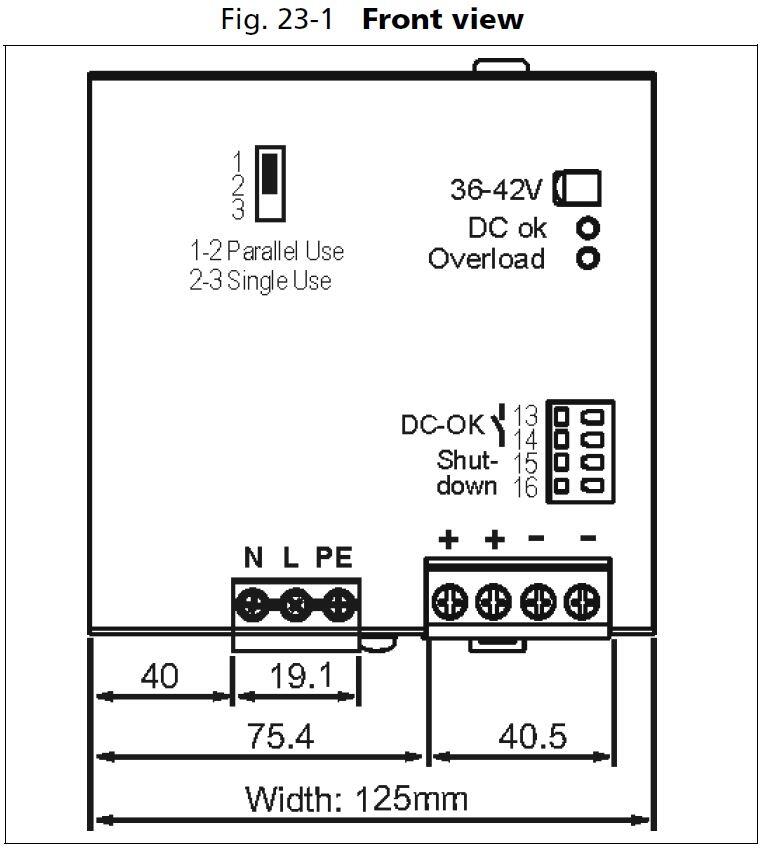

Width 125 mm
Height 124 mm
Clamp type Spring-clamp
IP Class IP20
DC relay output Yes
Hold-up time at 120 V AC, full load. Typical. 27 ms
Series Dimension Q
Hold-up time at 230 V AC, full load. Typical. 27 ms
Approvals ABS, CB, CE, CSA, EX, GL, IECEx, UL
Material Protection Aluminium
