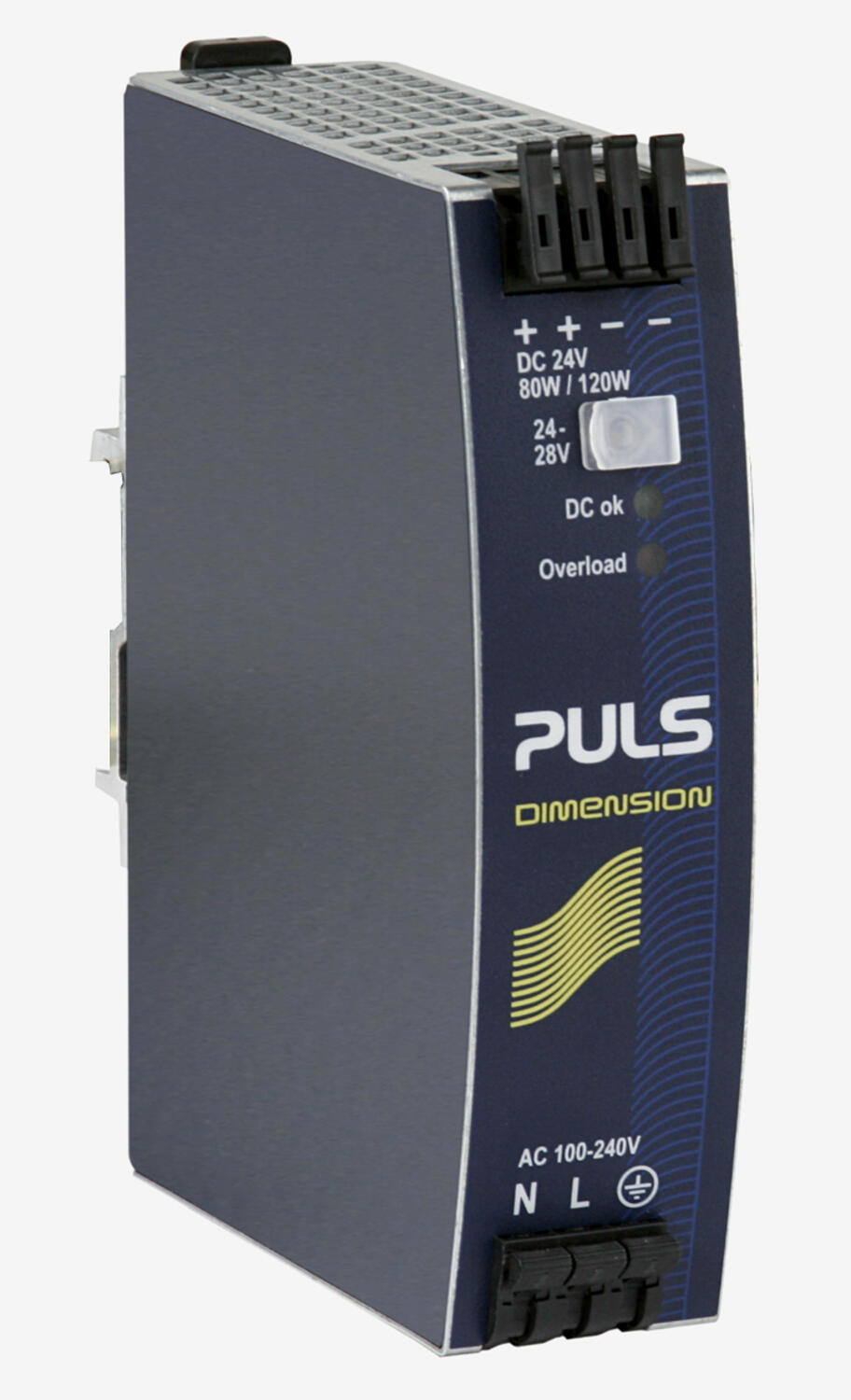

Power supply 1-phase, 24 V DC Dimension Q series

The most outstanding features of this Dimension Q-Series DIN-rail power supply are the high efficiency and the small size, which are achieved by a synchronous rectification and further novel design details. The Q-Series is part of the Dimension family, existing alongside the lower featured C-Series.

With short-term peak power capability of 150% and built-in large sized output capacitors, these features help start motors, charge capacitors and absorb reverse energy and often allow a unit of a lower wattage class to be used

High immunity to transients and power surges as well as low electromagnetic emission makes usage in nearly every environment possible.

Unique quick-connect spring-clamp terminals allow a safe and fast installation and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.

  • AC 100-240V Wide-range Input
  • Width only 40mm
  • Efficiency up to 92.7%
  • 150% Peak Load Capability
  • Easy Fuse Tripping due to High Overload Current
  • Active Power Factor Correction (PFC)
  • DC Input from 88 to 360Vdc
  • Negligible low Inrush Current Surge
  • Short-term Operation down to 60Vac and up to 300Vac
  • Full Power Between -25°C and +60°C
  • DC-OK Relay Contact
  • Quick-connect Spring-clamp Terminals
  • 3 Year Warranty
Read more
  • Output currents of 3.4 and 5 A
  • Up to 90% efficiency

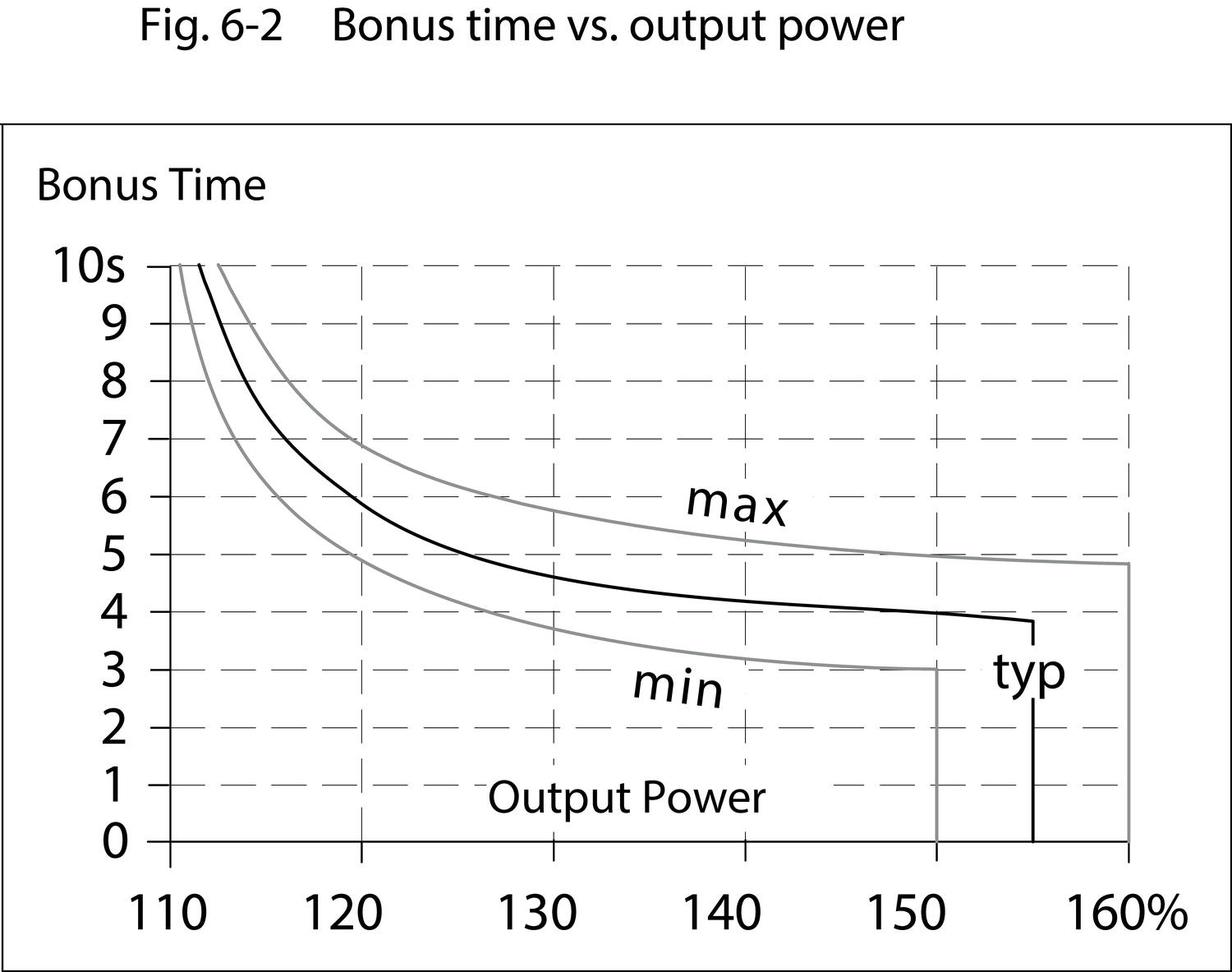

  • 50% bonus power up to 4 seconds
  • Spring clamp terminals

Selected variant

Selected variant

Specifications

Type Power Supply AC-DC
Input voltage range Wide-range
Power Consumption At 120 V AC 1,42 A
Input voltage AC 100-240 V
Input voltage ac min 85 V AC
Input voltage dc max 150 V DC
Input voltage DC 110-150 V
Input voltage ac max 276 V AC
Number of phases 1
Inrush current at 230 V ac typical 10 A
Power Consumption At 230 V AC 0,82 A
Supply Frequency 50-60 ±6 %
Inrush current at 120 V ac typical 5 A
Power Factor at 120 V AC, full load. Typical 0,53
Power Factor at 230 V AC, full load. Typical 0,47
Input voltage dc min 88 V DC
Ripple. max 50 mV pp

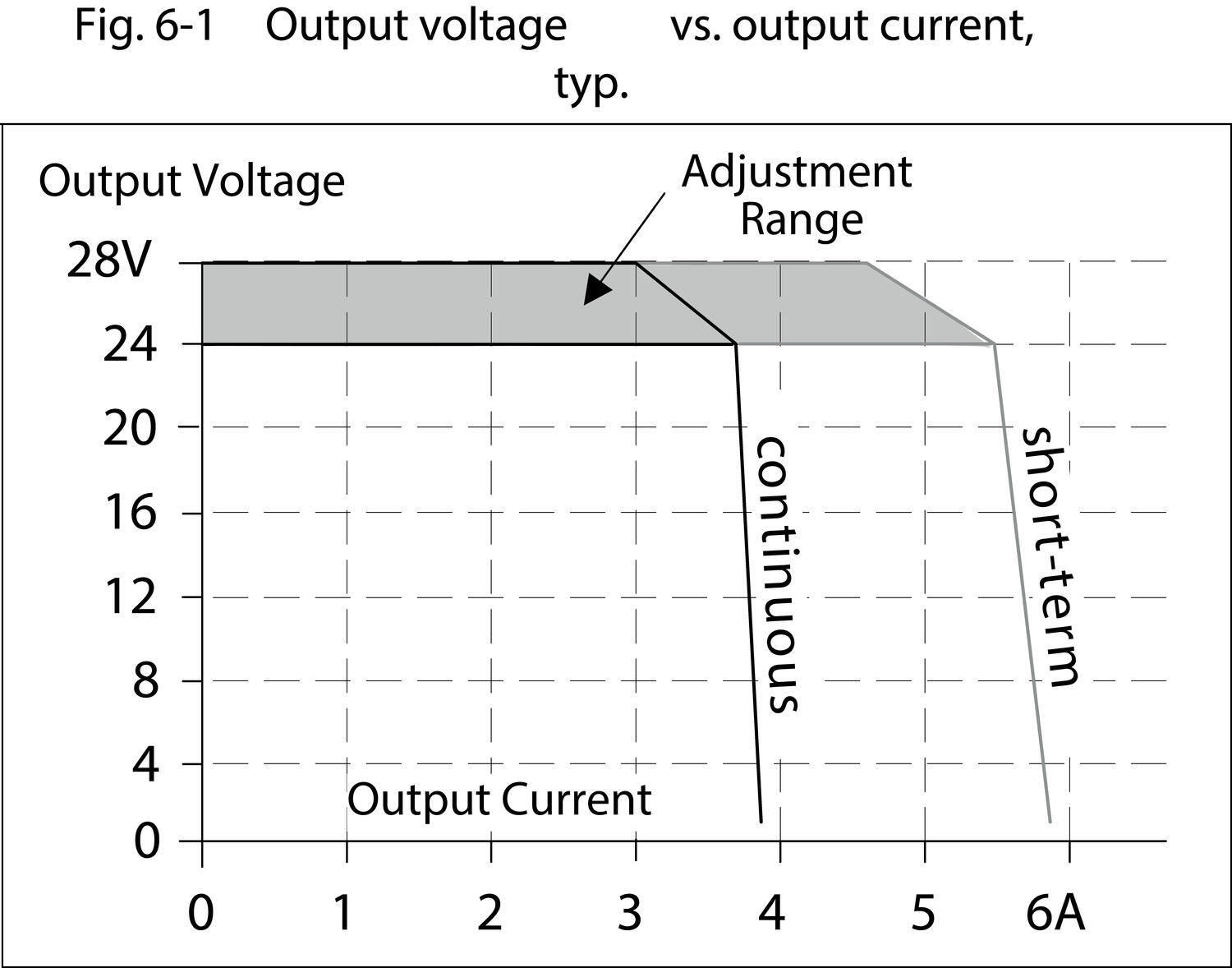

Output voltage min 24 V DC

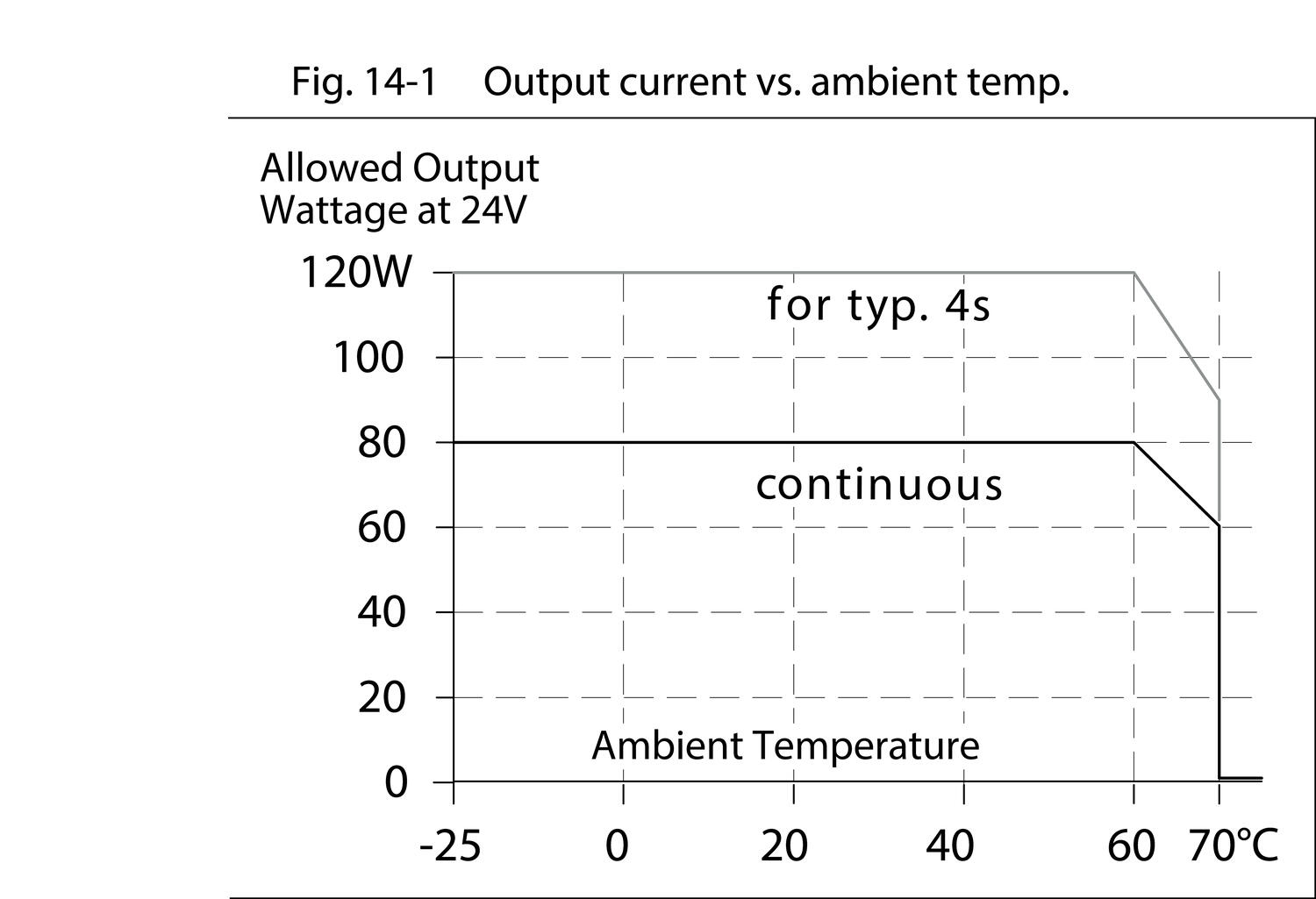

Power Reduction Of 60 To 70 ° C 2 W/°C
Temperature Range Without Derating From -25 °C
Output voltage 24 V DC
Output voltage max 28 V DC
Effect 80 W
Output Current 3,4 A
Temperature Range Without Derating To 60 °C
Lifetime at 120 V ac, full load and +40 ° C 62000 h
MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C 1451000 h

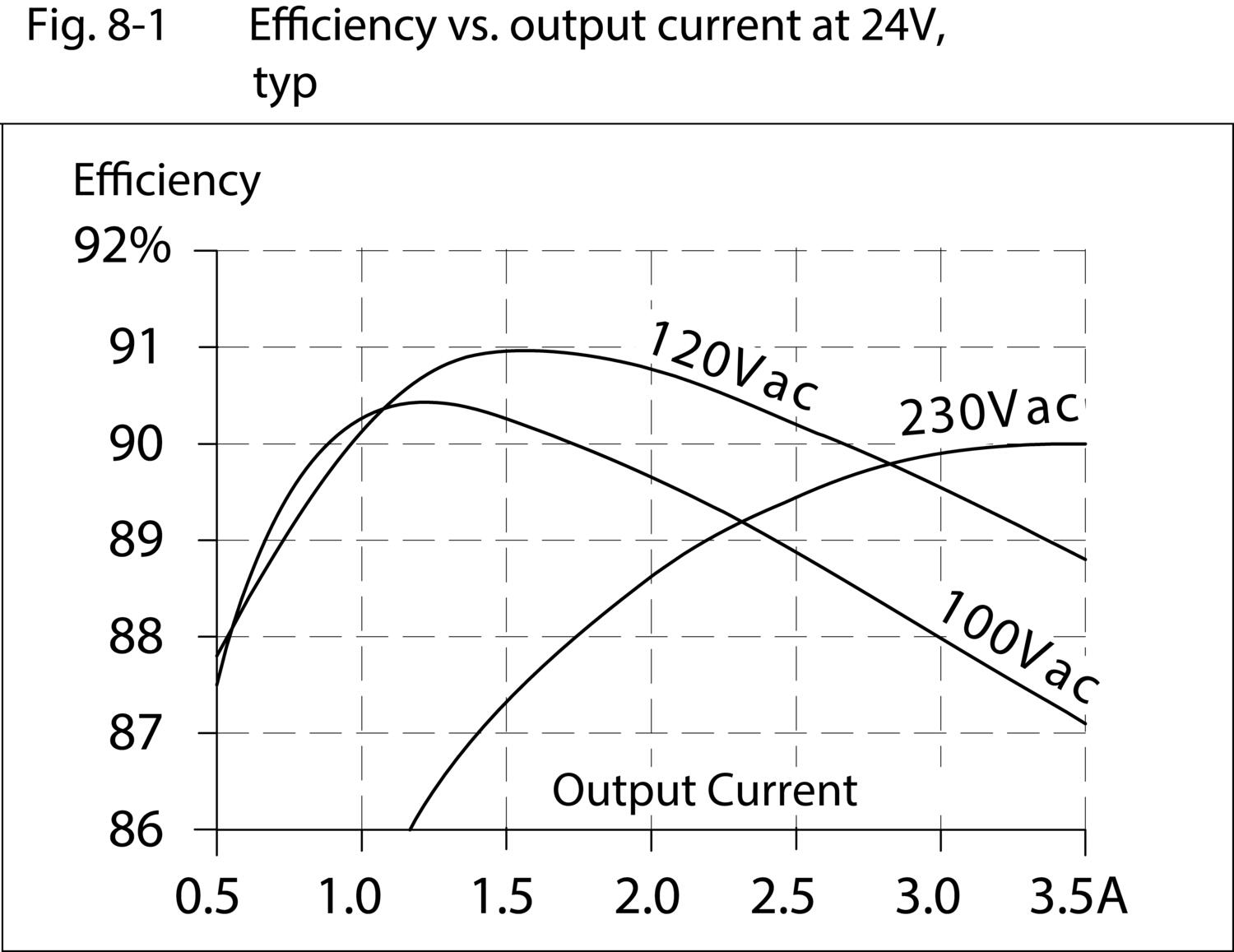

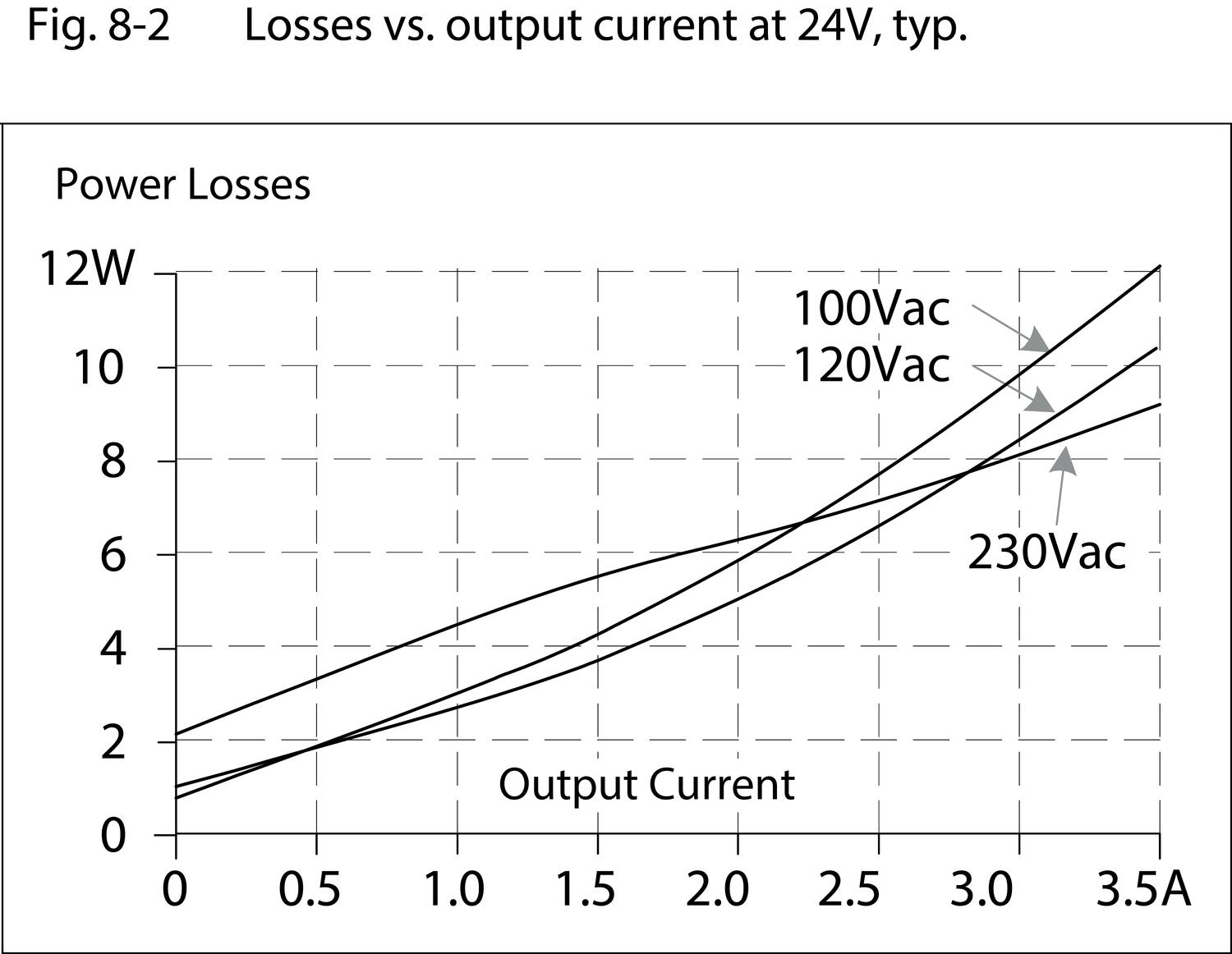

Efficiency At 230 V AC, full load. Typical 90 %
Efficiency At 230 V AC. Typical 88,3 %
Lifetime at 230 V ac, full load and +40 ° C 79000 h
Efficiency At 120 V AC, full load. Typical 88,7 %
Weight 0,44 kg

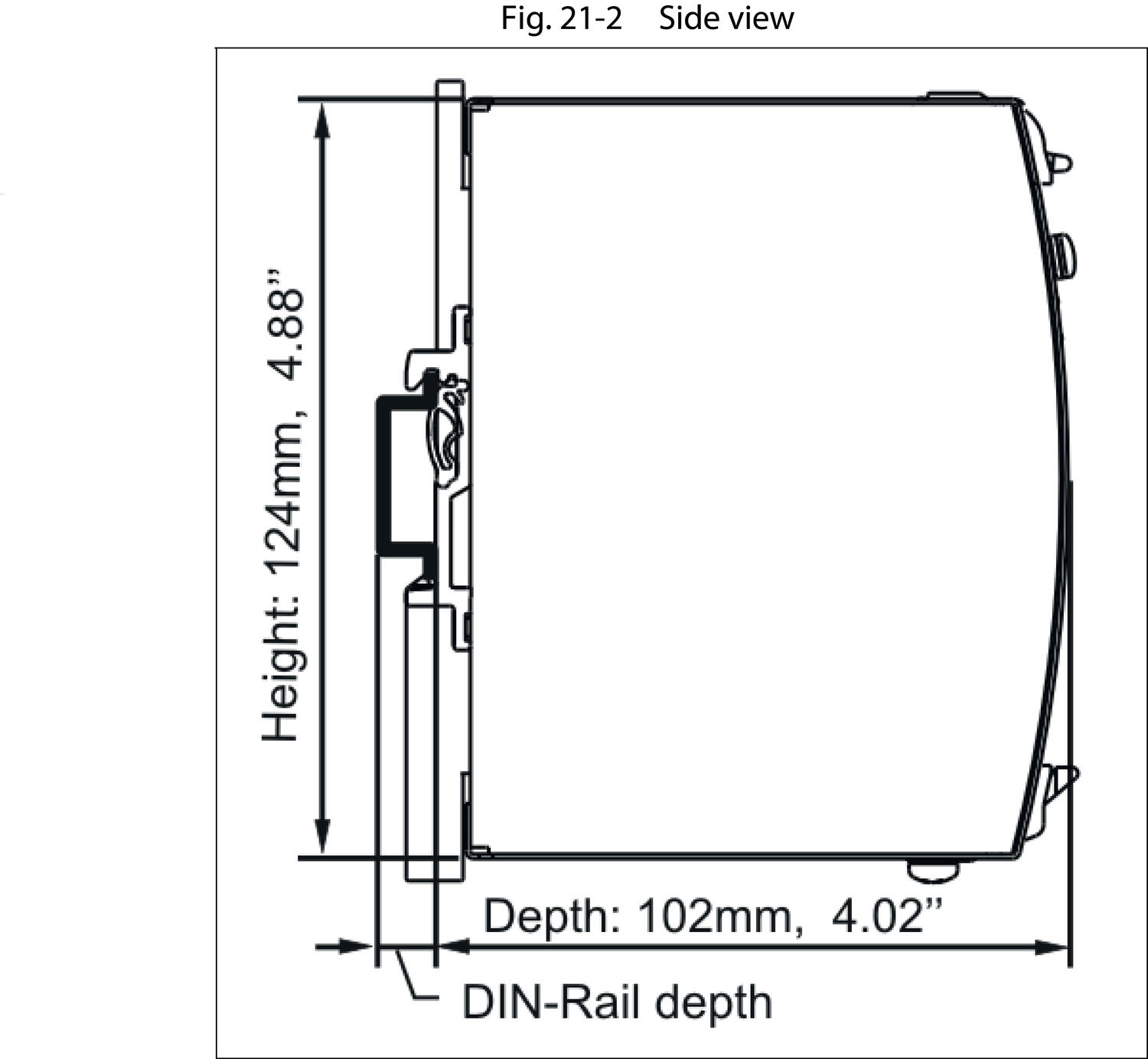

Depth 102 mm

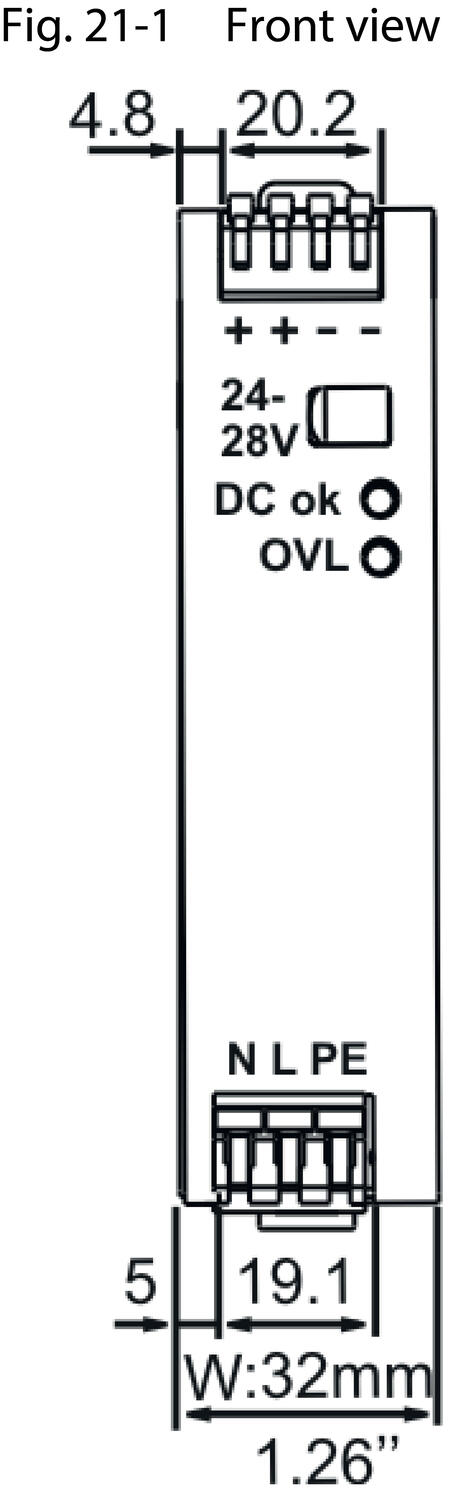

Width 32 mm
Height 124 mm
Clamp type Spring-clamp
IP Class IP20
Hold-up time at 120 V AC, full load. Typical. 41 ms
Series Dimension Q
Hold-up time at 230 V AC, full load. Typical. 174 ms
Approvals ABS, CB, CE, CSA, GL, UL
Material Protection Aluminium

Product description

The most outstanding features of this Dimension Q-Series DIN-rail power supply are the high efficiency and the small size, which are achieved by a synchronous rectification and further novel design details. The Q-Series is part of the Dimension family, existing alongside the lower featured C-Series.

With short-term peak power capability of 150% and built-in large sized output capacitors, these features help start motors, charge capacitors and absorb reverse energy and often allow a unit of a lower wattage class to be used

High immunity to transients and power surges as well as low electromagnetic emission makes usage in nearly every environment possible.

Unique quick-connect spring-clamp terminals allow a safe and fast installation and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.

  • AC 100-240V Wide-range Input
  • Width only 40mm
  • Efficiency up to 92.7%
  • 150% Peak Load Capability
  • Easy Fuse Tripping due to High Overload Current
  • Active Power Factor Correction (PFC)
  • DC Input from 88 to 360Vdc
  • Negligible low Inrush Current Surge
  • Short-term Operation down to 60Vac and up to 300Vac
  • Full Power Between -25°C and +60°C
  • DC-OK Relay Contact
  • Quick-connect Spring-clamp Terminals
  • 3 Year Warranty

Accessories

Related products

Articles Input voltage AC Clamp type Input voltage DC Output voltage Effect Output Current
100-240 V
Spring-clamp
110-150 V
24 V DC
80 W
3,4 A
100-240 V
Spring-clamp
110-300 V
24 V DC
120 W
5 A
100-240 V
Spring-clamp
110-300 V
24 V DC
120 W
5 A
