Programmable LED drivers

Programmable LED drivers allow designers and assembly lines to personalize key output characteristics. Today's LED Lighting designers require more sophisticated technology from the power sources they choose in order to maximize the performance of their lighting fixture designs. Efore's ROAL brand of intelligent LED Drivers are packed with advanced features, unsurpassed efficiencies, and user-managed controls, allowing designers to effortlessly meet the challenges they face.

Read more
  • Programmable outputs: 150-2600 mA / 3,5-150 W
  • Compact encapsulated assembly
  • Long service life (100 000h @ 75 °C Tc)
  • Different dimming options

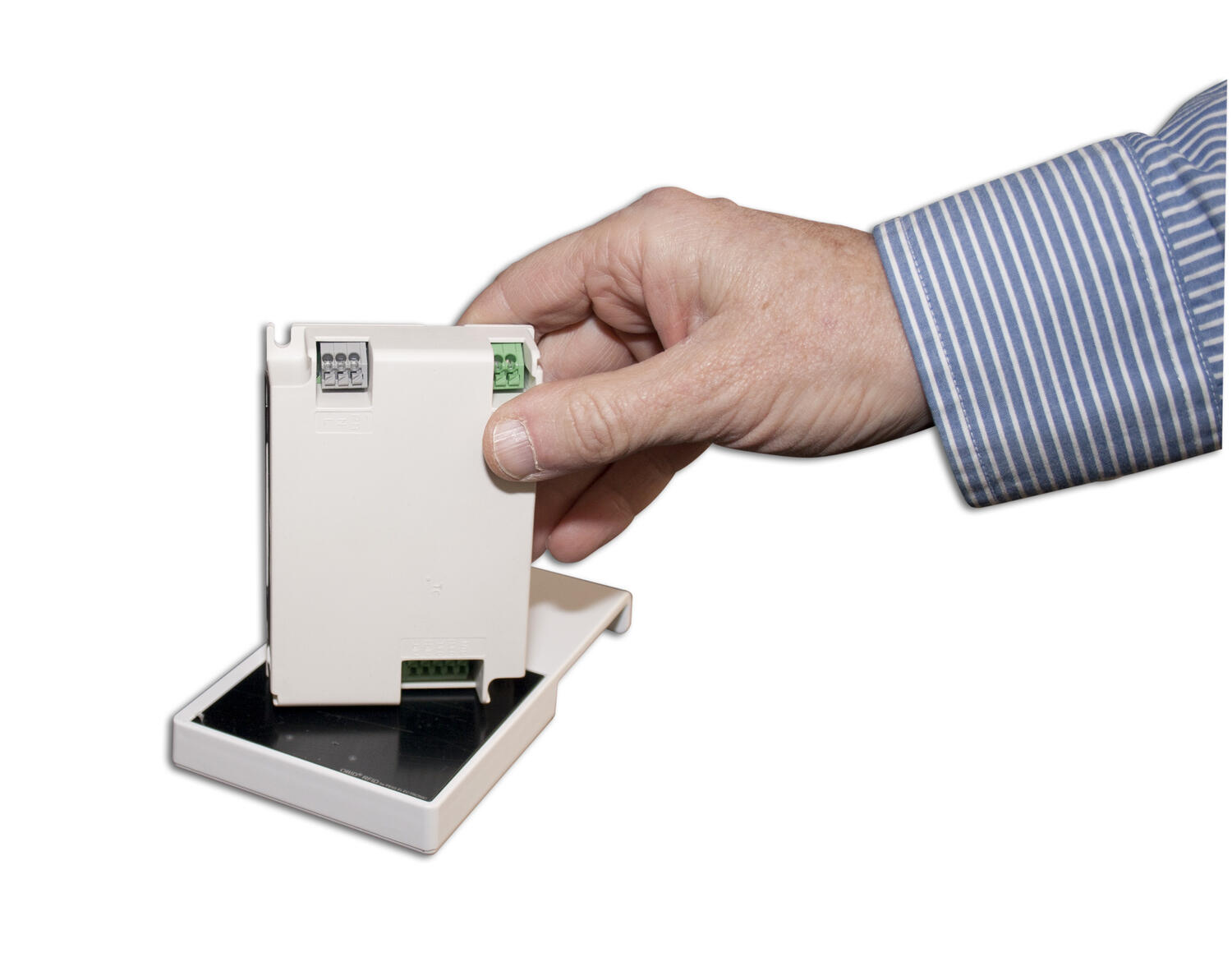

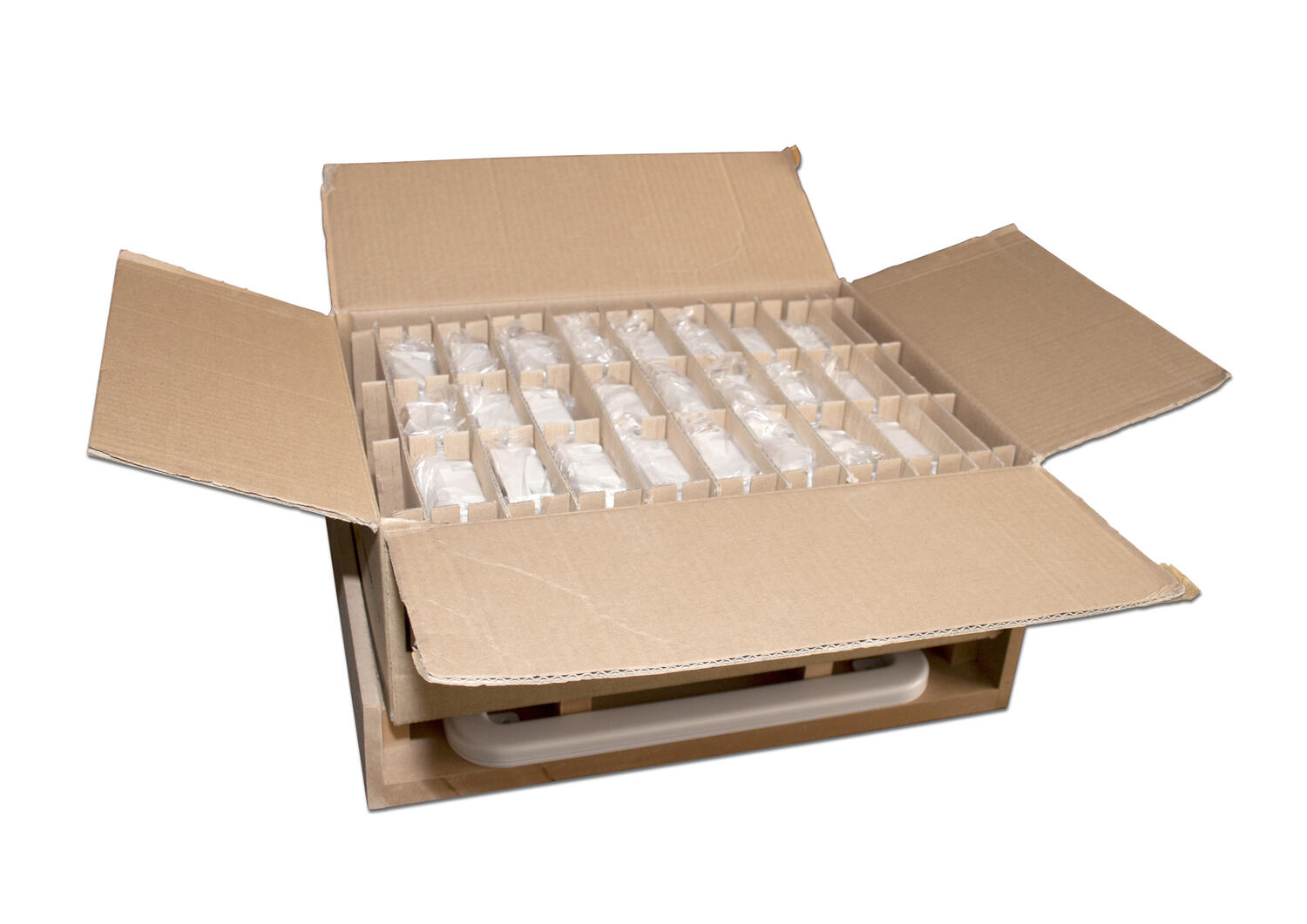

  • Programmable with Efore wired and wireless RFID tools and software

Selected variant

EFORE

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Input voltage AC 120 - 277 V AC
Input voltage ac min 90 V AC
Input voltage ac max 305 V AC
Output current 150 - 900 mA (ohjelmoitavissa)
Power Max 39,2 W
Dimming 0-10V (DTO)
Output voltage (String) 25 - 56 V DC
Weight 0,17 kg
Length 78 mm
Width 40 mm
Height 27 mm
IP Class IP64
Temperature range to 90 °C
Temperature range from -30 °C
Power Factor at 120 V AC, full load. Typical 0,98
Power Factor at 230 V AC, full load. Typical 0,97
Approvals CB, CCC, CE, ENEC, UL

Downloads

Technical illustrations

Product description

Programmable LED drivers allow designers and assembly lines to personalize key output characteristics. Today's LED Lighting designers require more sophisticated technology from the power sources they choose in order to maximize the performance of their lighting fixture designs. Efore's ROAL brand of intelligent LED Drivers are packed with advanced features, unsurpassed efficiencies, and user-managed controls, allowing designers to effortlessly meet the challenges they face.

Accessories

Articles Input voltage AC Input voltage ac min Input voltage ac max Output current Power Max Dimming Output voltage (String) Weight Length Width Height IP Class Temperature range to Temperature range from Power Factor at 120 V AC, full load. Typical Power Factor at 230 V AC, full load. Typical Approvals
STRATO EVO S side.png
LED driver 120 - 277V AC/150 mA - 900mA, 39,2W
Art:
RTLD040-900A-SA Copied
120 - 277 V AC
90 V AC
305 V AC
150 - 900 mA (ohjelmoitavissa)
39,2 W
0-10V (DTO)
25 - 56 V DC
0,17 kg
78 mm
40 mm
27 mm
IP64
90 °C
-30 °C
0,98
0,97
CB, CCC, CE, ENEC, UL

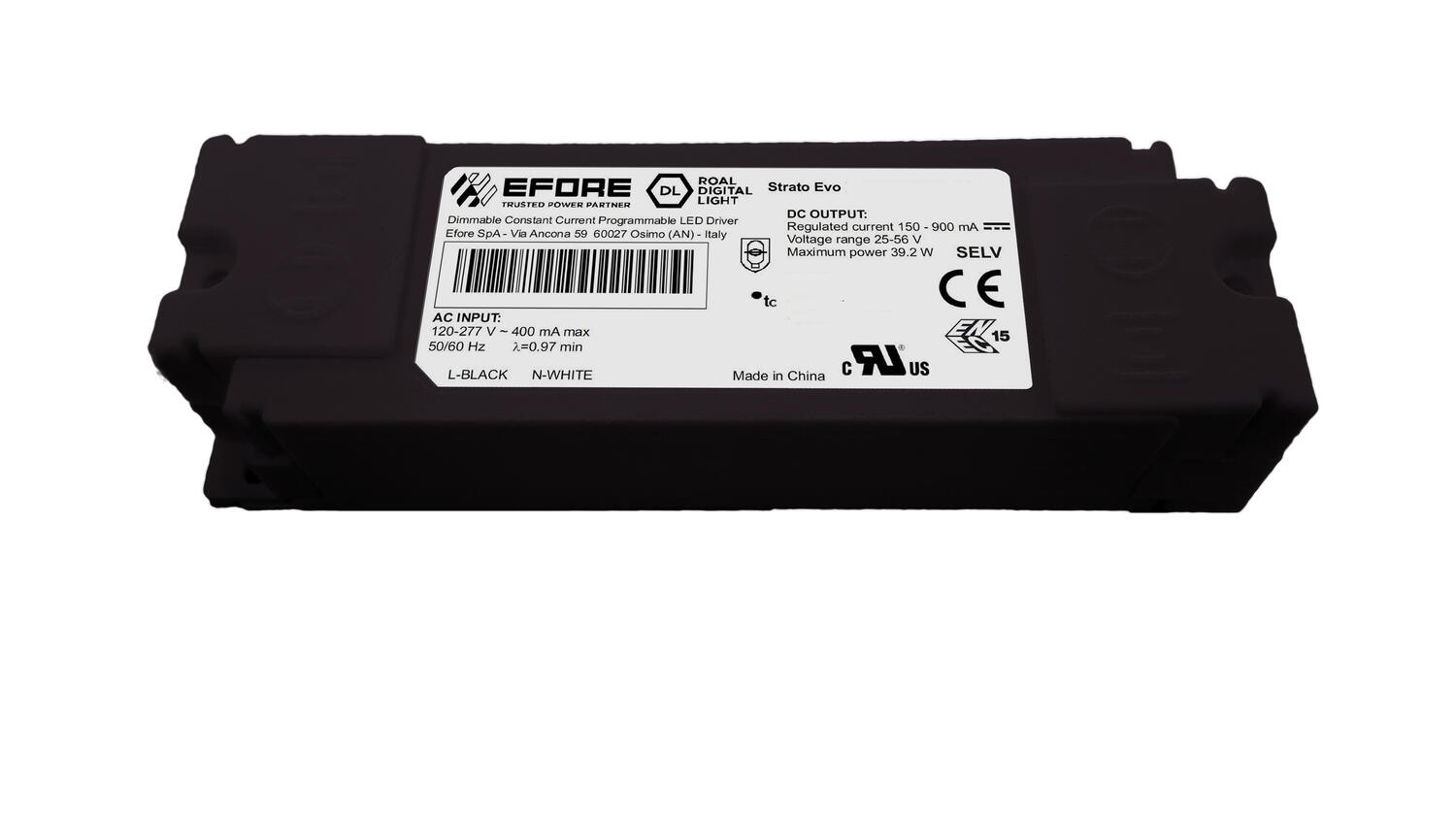

STRATO EVO D side.jpg
LED driver 120 - 277V AC/150 mA - 900mA, 39,2W
Art:
RTLD040-900A-DA Copied
120 - 277 V AC
90 V AC
305 V AC
150 - 900 mA (ohjelmoitavissa)
39,2 W
0-10V (DTO) & Push
25 - 56 V DC
0,17 kg
111 mm
40 mm
27 mm
IP20
90 °C
-30 °C
0,98
0,97
CB, CCC, CE, ENEC, UL
STRATO EVO D side.jpg
LED driver 120 - 277V AC/150 mA - 900mA, 39,2W
Art:
RTLD040-900A-DD Copied
120 - 277 V AC
90 V AC
305 V AC
150 - 900 mA (ohjelmoitavissa)
39,2 W
DALI
25 - 56 V DC
0,17 kg
111 mm
40 mm
27 mm
IP20
90 °C
-30 °C
0,98
0,97
CB, CCC, CE, ENEC, UL
STRATO EVO S side.png
LED driver 120 - 277V AC/200 mA - 1400mA, 39,9W
Art:
RTLD040-1400A-SA Copied
120 - 277 V AC
90 V AC
305 V AC
200 - 1400 mA (ohjelmoitavissa)
39,9 W
0-10V (DTO)
20 - 43 V DC
0,17 kg
78 mm
40 mm
27 mm
IP64
90 °C
-30 °C
0,98
0,97
CB, CCC, CE, ENEC, UL
STRATO EVO D side.jpg
LED driver 120 - 277V AC/200 mA - 1400mA, 39,9W
Art:
RTLD040-1400A-DA Copied
120 - 277 V AC
90 V AC
305 V AC
200 - 1400 mA (ohjelmoitavissa)
39,9 W
0-10V (DTO) & Push
20 - 43 V DC
0,17 kg
111 mm
40 mm
27 mm
IP20
90 °C
-30 °C
0,98
0,97
CB, CCC, CE, ENEC, UL
STRATO EVO D side.jpg
LED driver 120 - 277V AC/200 mA - 1400mA, 39,9W
Art:
RTLD040-1400A-DD Copied
120 - 277 V AC
90 V AC
305 V AC
200 - 1400 mA (ohjelmoitavissa)
39,9 W
DALI
20 - 43 V DC
0,17 kg
111 mm
40 mm
27 mm
IP20
90 °C
-30 °C
0,98
0,97
CB, CCC, CE, ENEC, UL

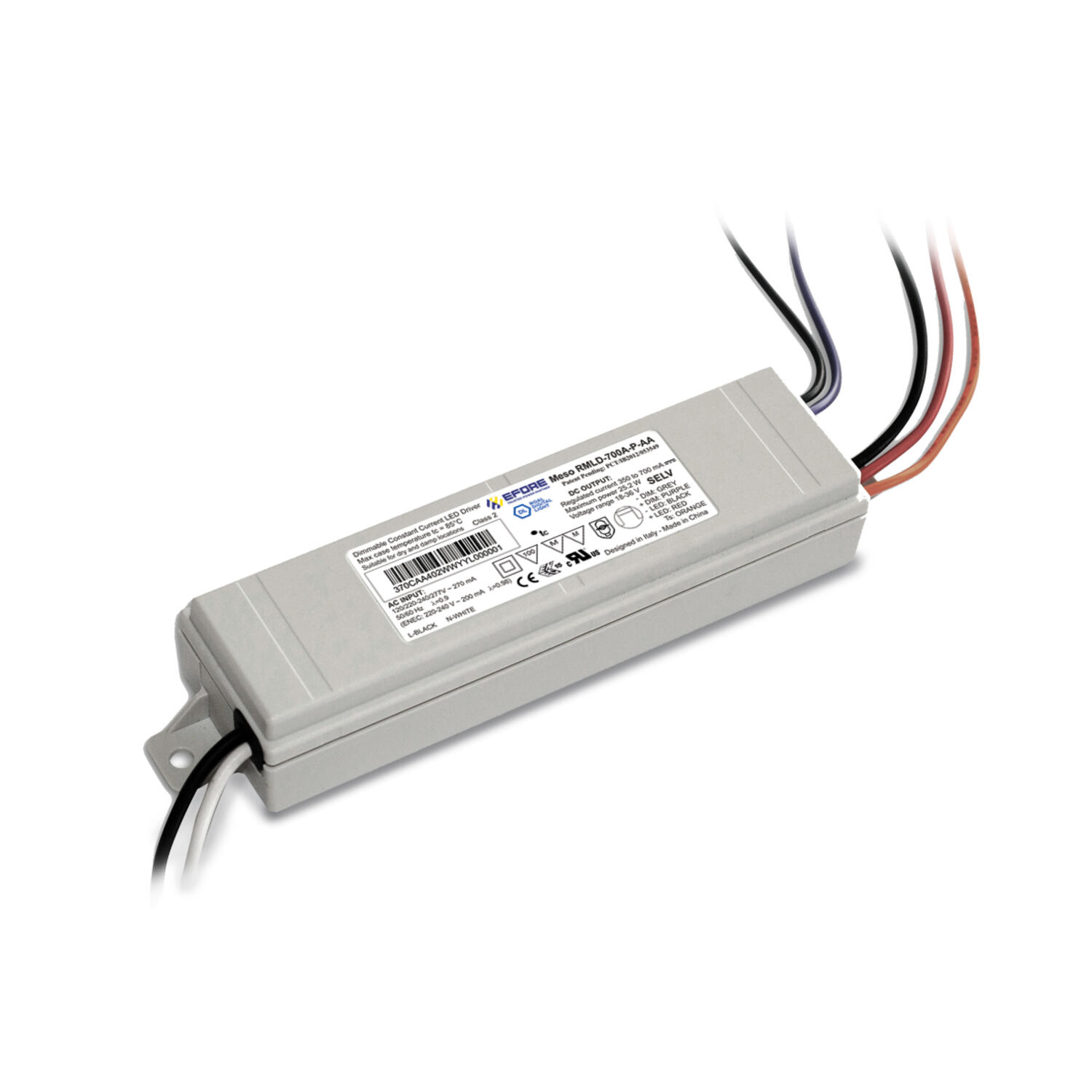

LED driver 120 - 277 V AC/250-500mA, 25W
Art:
RMLD-500A-P-AA Copied
120 - 277 V AC
90 V AC
305 V AC
250 - 500 mA (ohjelmoitavissa)
39,2 W
0-10V (DTO)
28 - 56 V DC
0,156 kg
137 mm
40 mm
26 mm
IP20
85 °C
-30 °C
0,97
0,95
CE, ENEC, UL
LED driver 120 - 277 V AC/250-500mA, 25W
Art:
RMLD-500A-P-AD Copied
120 - 277 V AC
90 V AC
305 V AC
250 - 500 mA (ohjelmoitavissa)
39,2 W
DALI
28 - 56 V DC
0,156 kg
137 mm
40 mm
26 mm
IP20
85 °C
-30 °C
0,97
0,95
CE, ENEC, UL
LED driver 120 - 277 V AC/250-500mA, 12W
Art:
RMLD-500B-P-AA Copied
120 - 277 V AC
90 V AC
305 V AC
250 - 500 mA (ohjelmoitavissa)
12 W
0-10V (DTO)
12 - 24 V DC
0,156 kg
137 mm
40 mm
26 mm
IP20
85 °C
-30 °C
0,97
0,95
CE, ENEC, UL
LED driver 120 - 277 V AC/250-500mA, 12W
Art:
RMLD-500B-P-AD Copied
120 - 277 V AC
90 V AC
305 V AC
250 - 500 mA (ohjelmoitavissa)
12 W
DALI
12 - 24 V DC
0,156 kg
137 mm
40 mm
26 mm
IP20
85 °C
-30 °C
0,97
0,95
CE, ENEC, UL
LED driver 120 - 277 V AC/350-700mA, 25,2W
Art:
RMLD-700A-P-AA Copied
120 - 277 V AC
90 V AC
305 V AC
350 - 700 mA (ohjelmoitavissa)
25,2 W
0-10V (DTO)
18 - 36 V DC
0,156 kg
137 mm
40 mm
26 mm
IP20
85 °C
-30 °C
0,97
0,95
CE, ENEC, UL
LED driver 120 - 277 V AC/350-700mA, 25,2W
Art:
RMLD-700A-P-AD Copied
120 - 277 V AC
90 V AC
305 V AC
350 - 700 mA (ohjelmoitavissa)
25,2 W
DALI
18 - 36 V DC
0,156 kg
137 mm
40 mm
26 mm
IP20
85 °C
-30 °C
0,97
0,95
CE, ENEC, UL
LED driver 120 - 277 V AC/500-1000mA, 24W
Art:
RMLD-1000A-P-AA Copied
120 - 277 V AC
90 V AC
305 V AC
500 - 1000 mA (ohjelmoitavissa)
24 W
0-10V (DTO)
12 - 24 V DC
0,156 kg
137 mm
40 mm
26 mm
IP20
85 °C
-30 °C
0,97
0,95
CE, ENEC, UL
LED driver 120 - 277 V AC/500-1000mA, 24W
Art:
RMLD-1000A-P-AD Copied
120 - 277 V AC
90 V AC
305 V AC
500 - 1000 mA (ohjelmoitavissa)
24 W
DALI
12 - 24 V DC
0,156 kg
137 mm
40 mm
26 mm
IP20
85 °C
-30 °C
0,97
0,95
CE, ENEC, UL

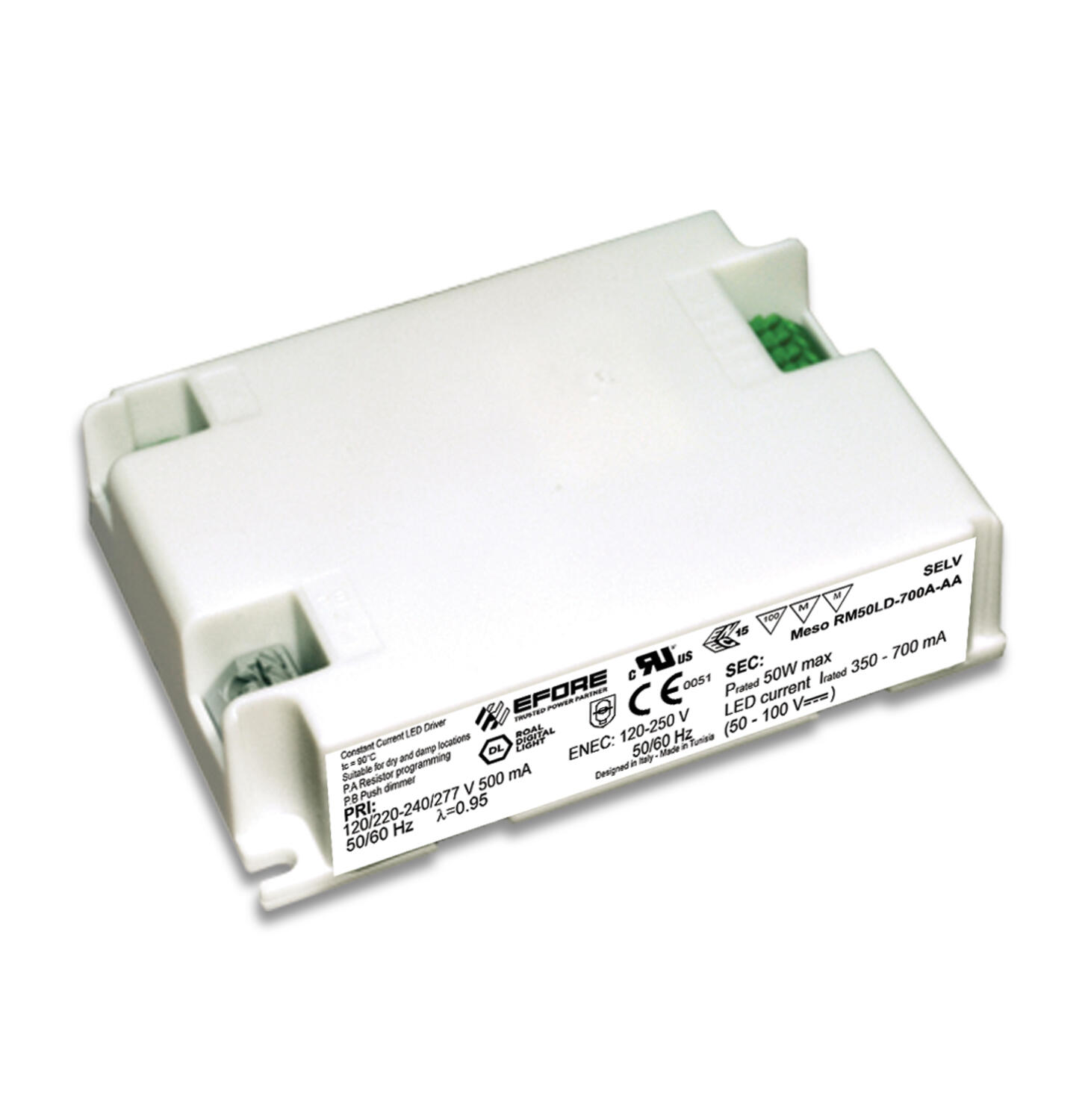

LED driver 120 - 277 V AC/350-700mA, 50W
Art:
RM50LD-700A-AA Copied
120 - 277 V AC
90 V AC
305 V AC
350 - 700 mA (ohjelmoitavissa)
50 W
0-10V (DTO) & push/step
50 - 100 V DC
0,25 kg
105 mm
73 mm
27 mm
IP20
90 °C
-30 °C
0,97
0,95
CE, ENEC, UL
LED driver 120 - 277 V AC/350-700mA, 50W
Art:
RM50LD-700A-AD Copied
120 - 277 V AC
90 V AC
305 V AC
350 - 700 mA (ohjelmoitavissa)
50 W
DALI & 0-10V (DTO) & push/step
50 - 100 V DC
0,25 kg
105 mm
73 mm
27 mm
IP20
90 °C
-30 °C
0,97
0,95
CE, ENEC, UL
LED driver 120 - 277 V AC/500-1050mA, 50W
Art:
RM50LD-1050A-AA Copied
120 - 277 V AC
90 V AC
305 V AC
500 - 1050 mA (ohjelmoitavissa)
50 W
0-10V (DTO) & push/step
28 - 56 V DC
0,25 kg
105 mm
73 mm
27 mm
IP20
90 °C
-30 °C
0,97
0,95
CE, ENEC, UL
LED driver 120 - 277 V AC/500-1050mA, 50W
Art:
RM50LD-1050A-AD Copied
120 - 277 V AC
90 V AC
305 V AC
500 - 1050 mA (ohjelmoitavissa)
50 W
DALI & 0-10V (DTO) & push/step
28 - 56 V DC
0,25 kg
105 mm
73 mm
27 mm
IP20
90 °C
-30 °C
0,97
0,95
CE, ENEC, UL
LED driver 120 - 277 V AC/700-1400mA, 50W
Art:
RM50LD-1400A-AD Copied
120 - 277 V AC
90 V AC
305 V AC
700 - 1400 mA (ohjelmoitavissa)
50 W
DALI & 0-10V (DTO) & push/step
20 - 40 V DC
0,25 kg
105 mm
73 mm
27 mm
IP20
90 °C
-30 °C
0,97
0,95
CE, ENEC, UL
LED driver 120 - 277 V AC/700-1400mA, 50W
Art:
RM50LD-1400A-AA Copied
120 - 277 V AC
90 V AC
305 V AC
700 - 1400 mA (ohjelmoitavissa)
50 W
0-10V (DTO) & push/step
20 - 40 V DC
0,25 kg
105 mm
73 mm
27 mm
IP20
90 °C
-30 °C
0,97
0,95
CE, ENEC, UL

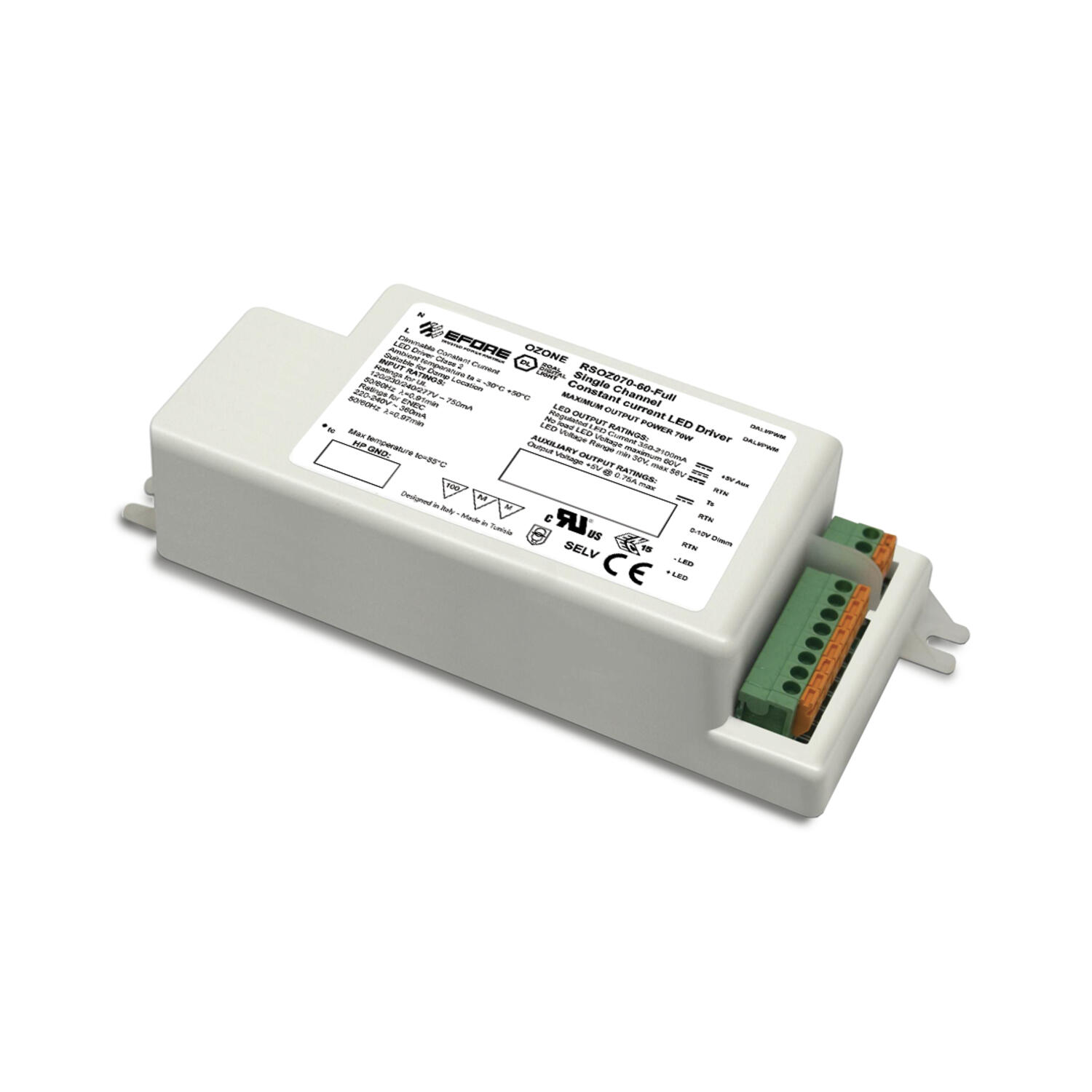

LED driver 120 - 277 V AC/350-2100mA, 70W
Art:
RSOZ070-60-FULL Copied
120 - 277 V AC
108 V AC
305 V AC
350 - 2100 mA (ohjelmoitavissa)
70 W
0-10V (DTO)
30 - 56 V DC
0,345 kg
148 mm
60 mm
35 mm
IP20
85 °C
-30 °C
0,98
0,97
CE, ENEC, UL
LED driver 120 - 277 V AC/350-2100mA, 70W
Art:
RSOZ070-60-DALI Copied
120 - 277 V AC
108 V AC
305 V AC
350 - 2100 mA (ohjelmoitavissa)
70 W
DALI/PWM
30 - 56 V DC
0,345 kg
148 mm
60 mm
35 mm
IP20
85 °C
-30 °C
0,98
0,97
CE, ENEC, UL
LED driver 120 - 277 V AC/350-1100mA, 70W
Art:
RSOZ070-120-FULL Copied
120 - 277 V AC
108 V AC
305 V AC
350 - 1100 mA (ohjelmoitavissa)
70 W
0-10V (DTO)
60 - 115 V DC
0,345 kg
148 mm
60 mm
35 mm
IP20
85 °C
-30 °C
0,98
0,97
CE, ENEC, UL
LED driver 120 - 277 V AC/350-1100mA, 70W
Art:
RSOZ070-120-DALI Copied
120 - 277 V AC
108 V AC
305 V AC
350 - 1100 mA (ohjelmoitavissa)
70 W
DALI/PWM
60 - 115 V DC
0,345 kg
148 mm
60 mm
35 mm
IP20
85 °C
-30 °C
0,98
0,97
CE, ENEC, UL

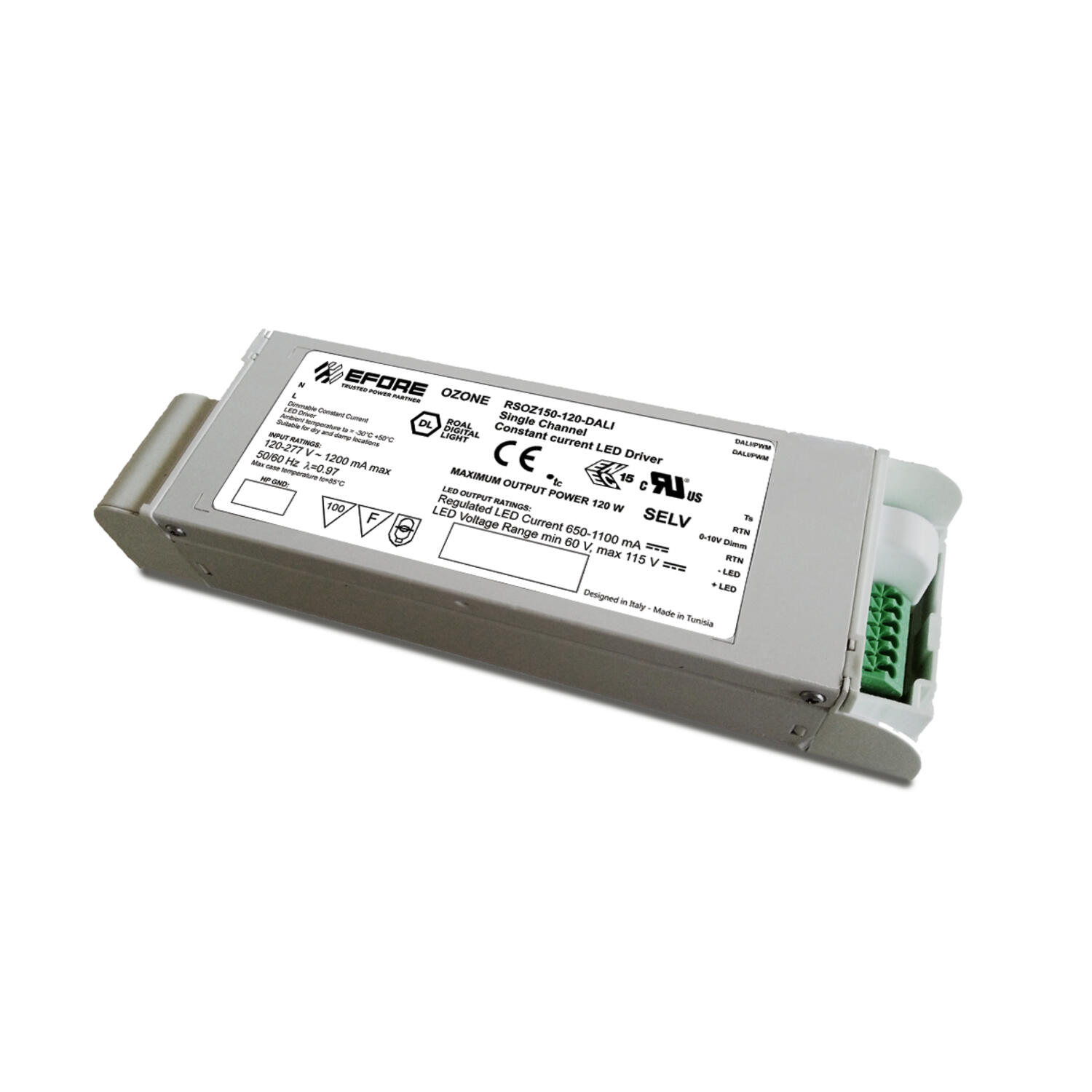

LED driver 120 - 277 V AC/800-1500mA, 150W
Art:
RSOZ150-105-DALI Copied
120 - 277 V AC
108 V AC
305 V AC
800 - 1500 mA (ohjelmoitavissa)
150 W
DALI/PWM & 0-10V
50 - 100 V DC
0,7 kg
195 mm
60 mm
35 mm
IP20
85 °C
-30 °C
0,96
0,95
CE, ENEC, UL
LED driver 120 - 277 V AC/650-1100mA, 120W
Art:
RSOZ150-120-DALI Copied
120 - 277 V AC
108 V AC
305 V AC
650 - 1100 mA (ohjelmoitavissa)
120 W
DALI/PWM & 0-10V
60 - 115 V DC
0,7 kg
195 mm
60 mm
35 mm
IP20
85 °C
-30 °C
0,96
0,95
CE, ENEC, UL
LED driver 120 - 277 V AC/400-1050mA, 150W
Art:
RSOZ150-180-DALI Copied
120 - 277 V AC
108 V AC
305 V AC
400 - 1050 mA (ohjelmoitavissa)
150 W
DALI/PWM & 0-10V
90 - 175 V DC
0,7 kg
195 mm
60 mm
35 mm
IP20
85 °C
-30 °C
0,96
0,95
CE, ENEC, UL
LED driver 120 - 277 V AC/200-700mA, 150W
Art:
RSOZ150-300-DALI Copied
120 - 277 V AC
108 V AC
305 V AC
200 - 700 mA (ohjelmoitavissa)
150 W
DALI/PWM & 0-10V
150 - 295 V DC
0,7 kg
195 mm
60 mm
35 mm
IP20
85 °C
-30 °C
0,96
0,95
CE, ENEC, UL
