SAB BRÖCKSKES

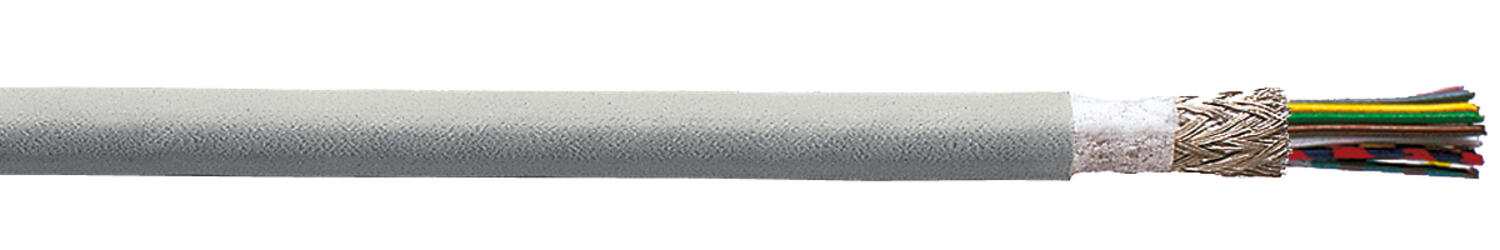

SD 200 C TPE/PUR electronic cable
Shielded
Highly flexible SD 200 C is an energy chain cable for industrial use. Suitable applications include packaging machines, material handling, automation technologies and robot construction. Low friction due to PUR sheath, high abrasion resistance and long service life.
The cable has overall copper screen. In order to achieve optimal EMC characteristics the screen has to be grounded.
Ask for dimensions not listed below and UL approved product S970 CHP.
- DIN 47100 color coding
- Good EMC characteristics
- Flexible application from -40°C
- Applicable for long energy chains
Selected variant
Specifications
| Copper Weight | 11,6 kg/km |
|---|---|
| Bending Radius Flexible Use | Min. 7,5 x d |
| Shielded | Yes |
| Diameter Outer -5% | 3,7 mm |
| Core identification | Colour Coded |
| Drag Chain Tested | Yes |
| Test Voltage | 1500 V |
| Cross-Section | 0,14 mm² |
| Radiation Resistance | 5x10⁷cJ/kg |
| Temperature Range The Use Of | -50 °C |
| Area of application | Flexible use |
| Material Outer Jacket | PUR |
| Twister pairs | No |
| Temperature Range Flexible Use Of | -40 °C |
|---|---|
| Core Insulation | TPE |
| Bending Radius Fixed Laying | Min. 7,5 x d |
| Temperature Range For Flexible Use | 90 °C |
| Nominal Voltage | Max. 350 V DIN VDE |
| Weight | 18 kg/km |
| Number Of leads | 2 |
| Cable type | Communication cable |
| Color Jacket | Grey RAL 7032 |
| Approvals | RoHS |
| Halogen | Yes |
Product description
Highly flexible SD 200 C is an energy chain cable for industrial use. Suitable applications include packaging machines, material handling, automation technologies and robot construction. Low friction due to PUR sheath, high abrasion resistance and long service life.
The cable has overall copper screen. In order to achieve optimal EMC characteristics the screen has to be grounded.
Ask for dimensions not listed below and UL approved product S970 CHP.
