SAB BRÖCKSKES

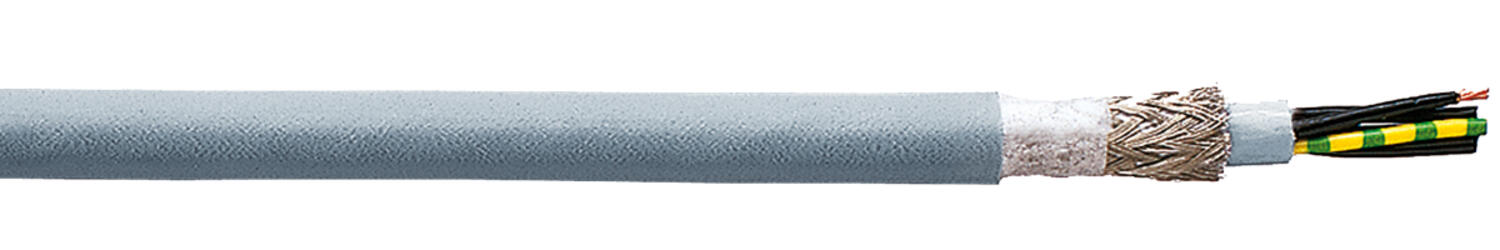

S 200 C TPE/PUR cable
Shielded
S 200 C TPE/PUR is a control cable for industrial use. Examples of applications include robots, packaging and wood working machines and car manufacturing industry. The cable has low friction due to PUR sheath and is therefore a perfect choice for moving installations. High abrasion and chemical resistance.
In order to achieve the full potential of the EMC characteristics the copper screen has to be grounded.
Ask for UL and CSA approved product S 970 CHP and other cable cross sections not listed below.
- Good EMC characteristics
- High shock and abrasion resistance
- Small bend radius (7,5 x d)
- Flexible application from -40°C
Selected variant
Specifications
| Copper Weight | 38,4 kg/km |
|---|---|
| Bending Radius Flexible Use | Min. 7,5 x d |
| Shielded | Yes |
| Diameter Outer -5% | 6,8 mm |
| Core identification | Number Coded |
| Drag Chain Tested | Yes |
| Test Voltage | 2000 V |
| Cross-Section | 0,5 mm² |
| Radiation Resistance | 5x10⁷cJ/kg |
| Temperature Range The Use Of | -50 °C |
| Material Outer Jacket | PUR |
| Twister pairs | No |
| Temperature Range Flexible Use Of | -40 °C |
| Core Insulation | TPE |
|---|---|
| Bending Radius Fixed Laying | Min. 7,5 x d |
| Testing voltage, screen | 2000 V |
| Temperature Range For Flexible Use | 90 °C |
| Nominal Voltage | Uo/U 300/500 V |
| Weight | 51 kg/km |
| Number Of leads | 2 |
| Cable type | Control cable |
| Color Jacket | Grey RAL 7000 |
| Approvals | RoHS |
| Halogen | Yes |
Product description
S 200 C TPE/PUR is a control cable for industrial use. Examples of applications include robots, packaging and wood working machines and car manufacturing industry. The cable has low friction due to PUR sheath and is therefore a perfect choice for moving installations. High abrasion and chemical resistance.
In order to achieve the full potential of the EMC characteristics the copper screen has to be grounded.
Ask for UL and CSA approved product S 970 CHP and other cable cross sections not listed below.
